Double satellite antenna socket SAT-SAT-RTV (module) white DASK2.01/11

Name: Double satellite antenna socket SAT-SAT-RTV (module) white
Brand: KONTAKT-SIMON
SKU: MEA240KONT
Price: 31.73 PLN
Availability: InStock

local index:

MEA240KONT

Catalog No:

DASK2.01/11

EAN code:

5902787825409

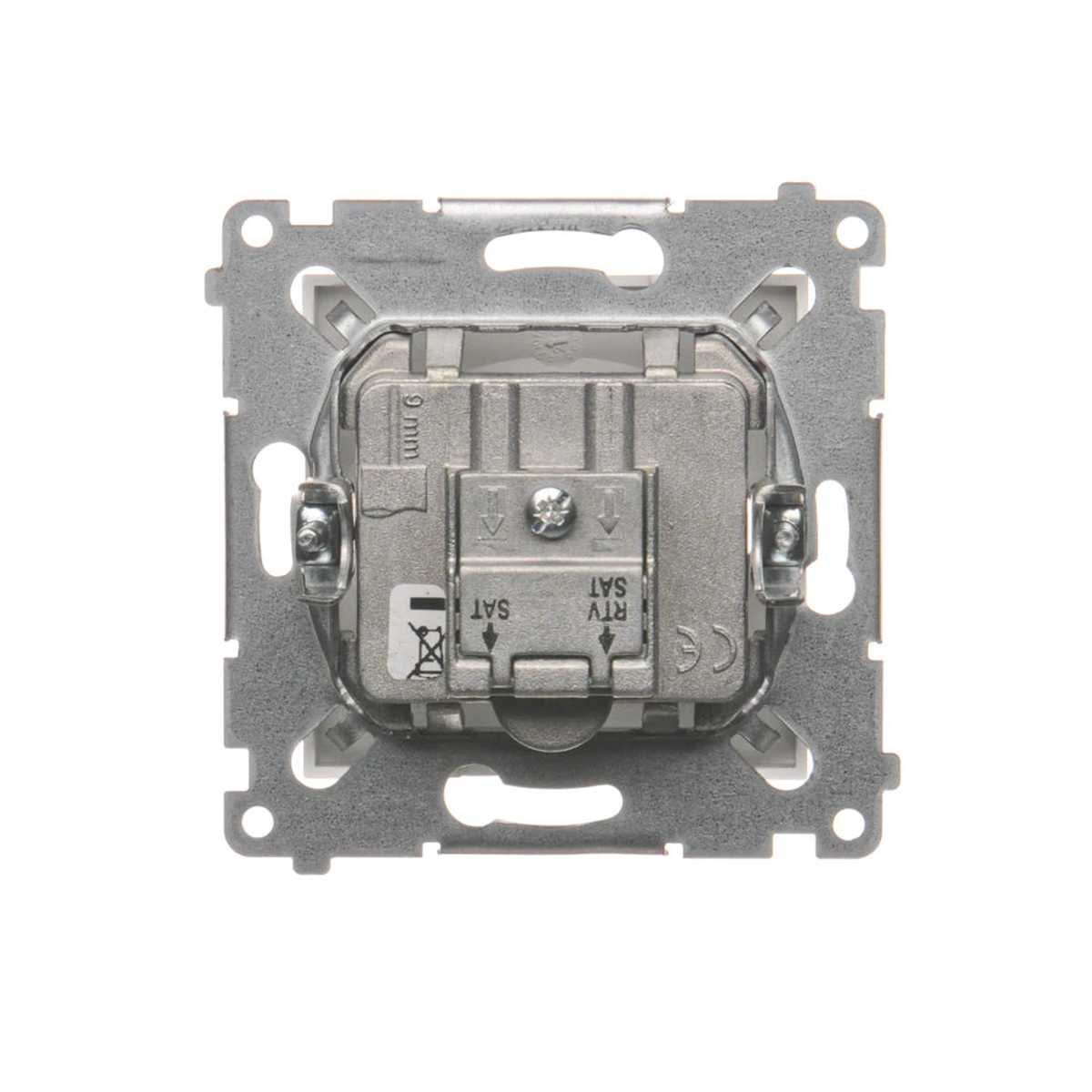

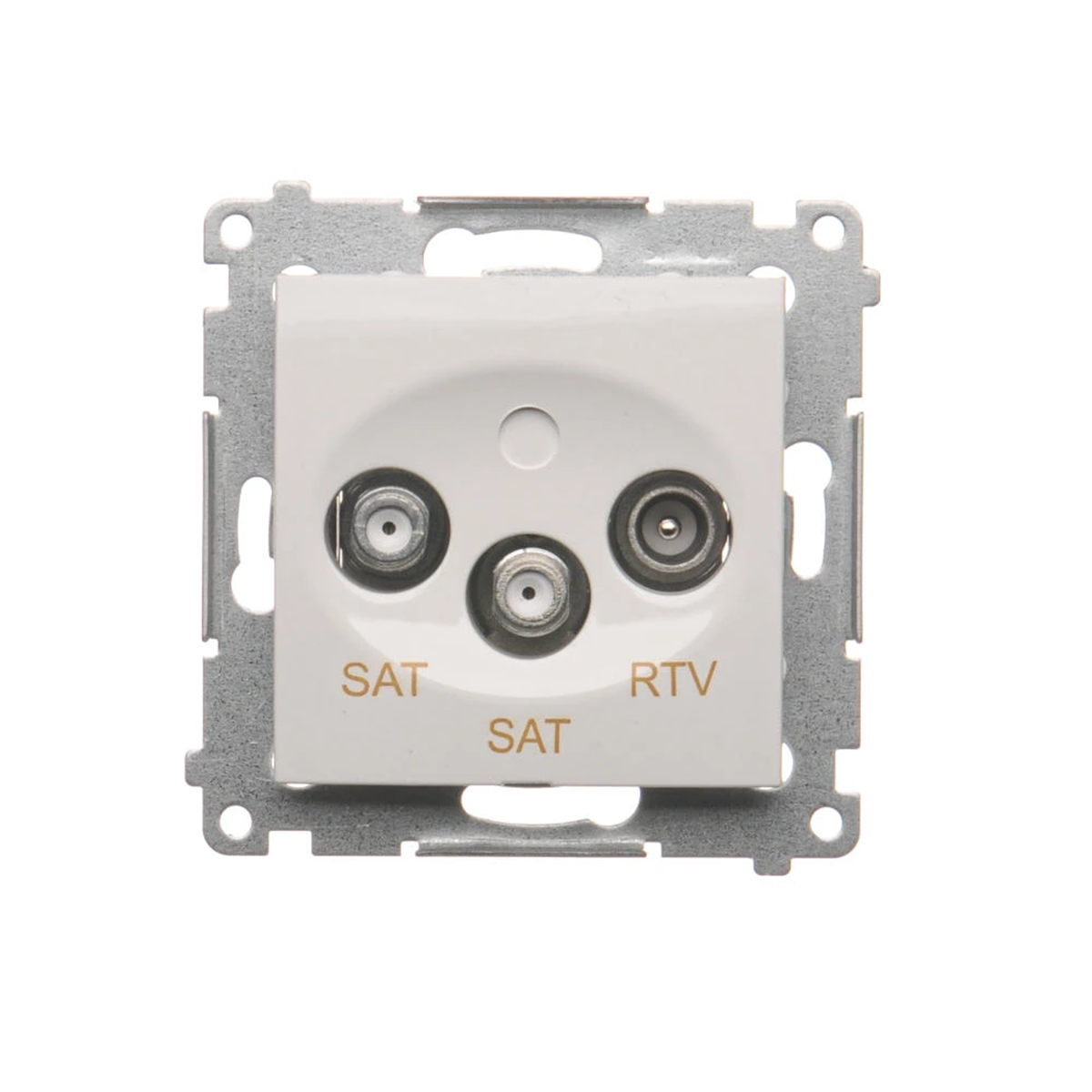

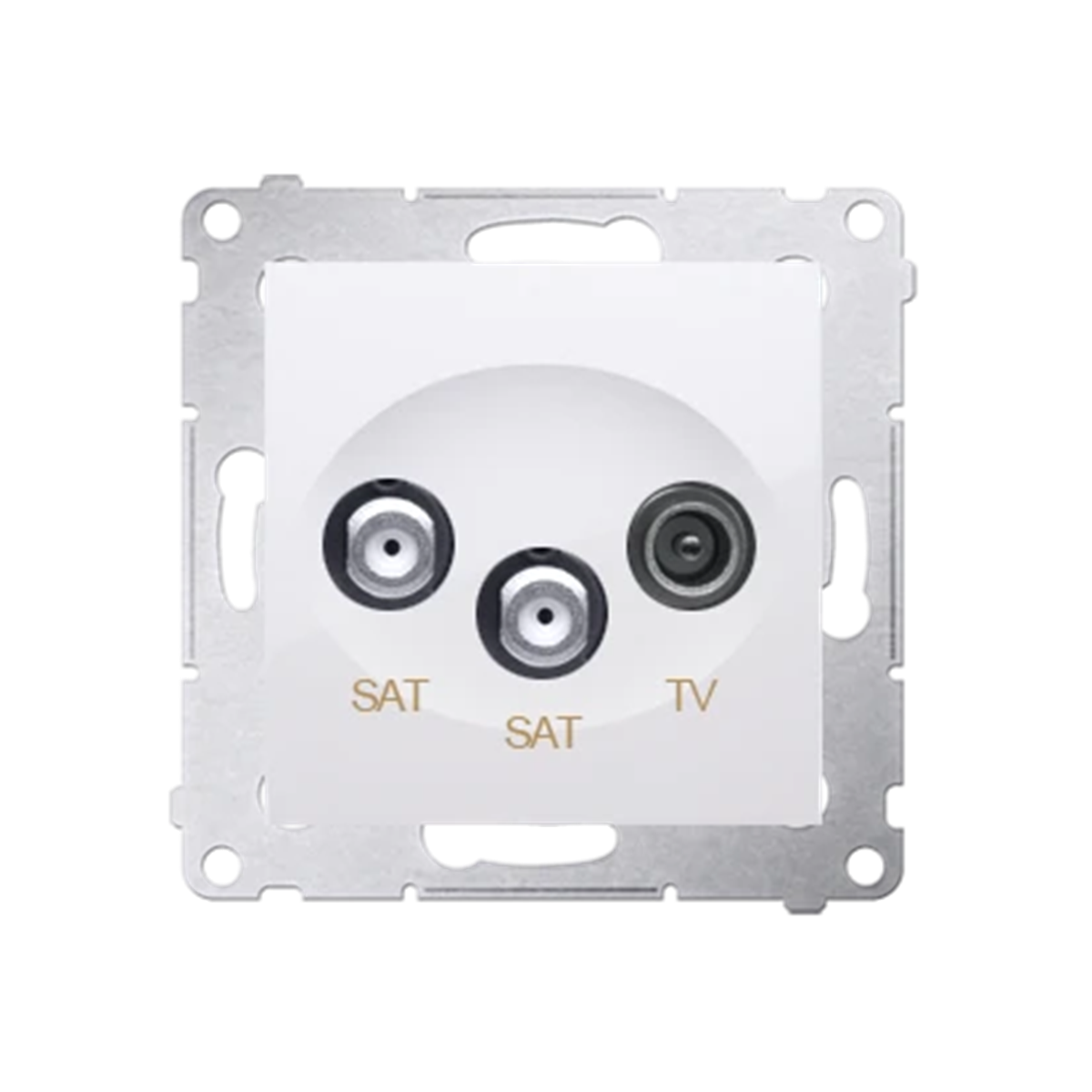

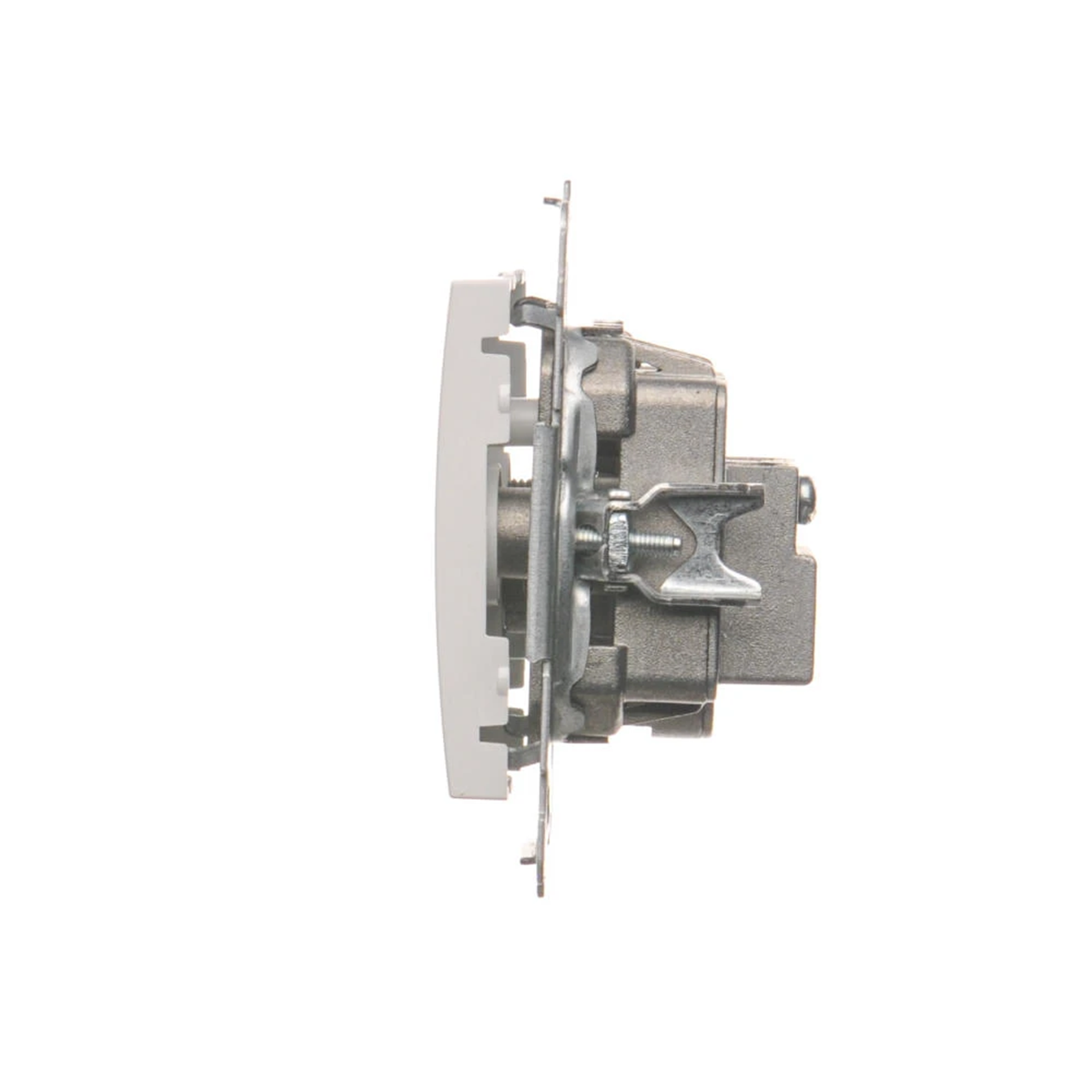

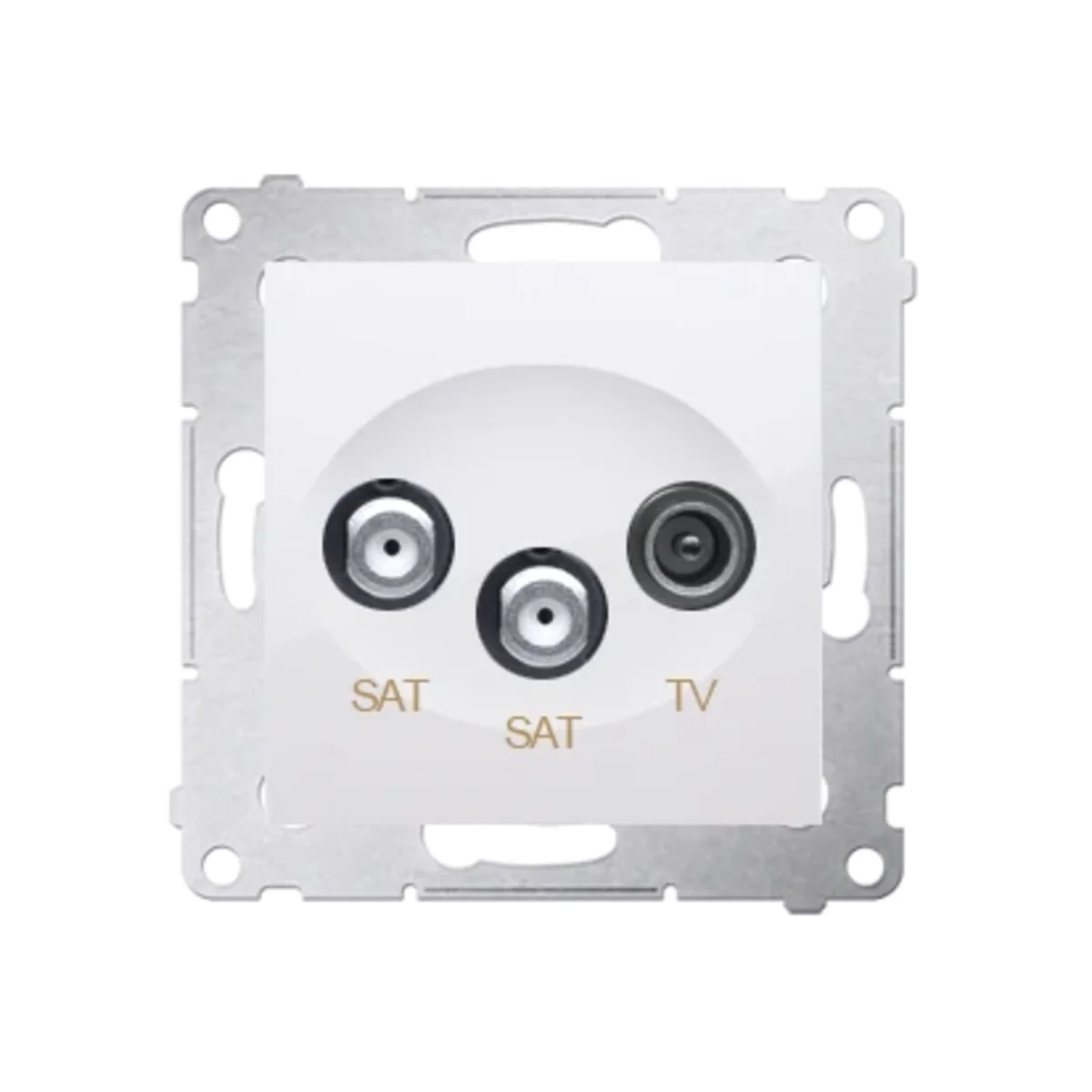

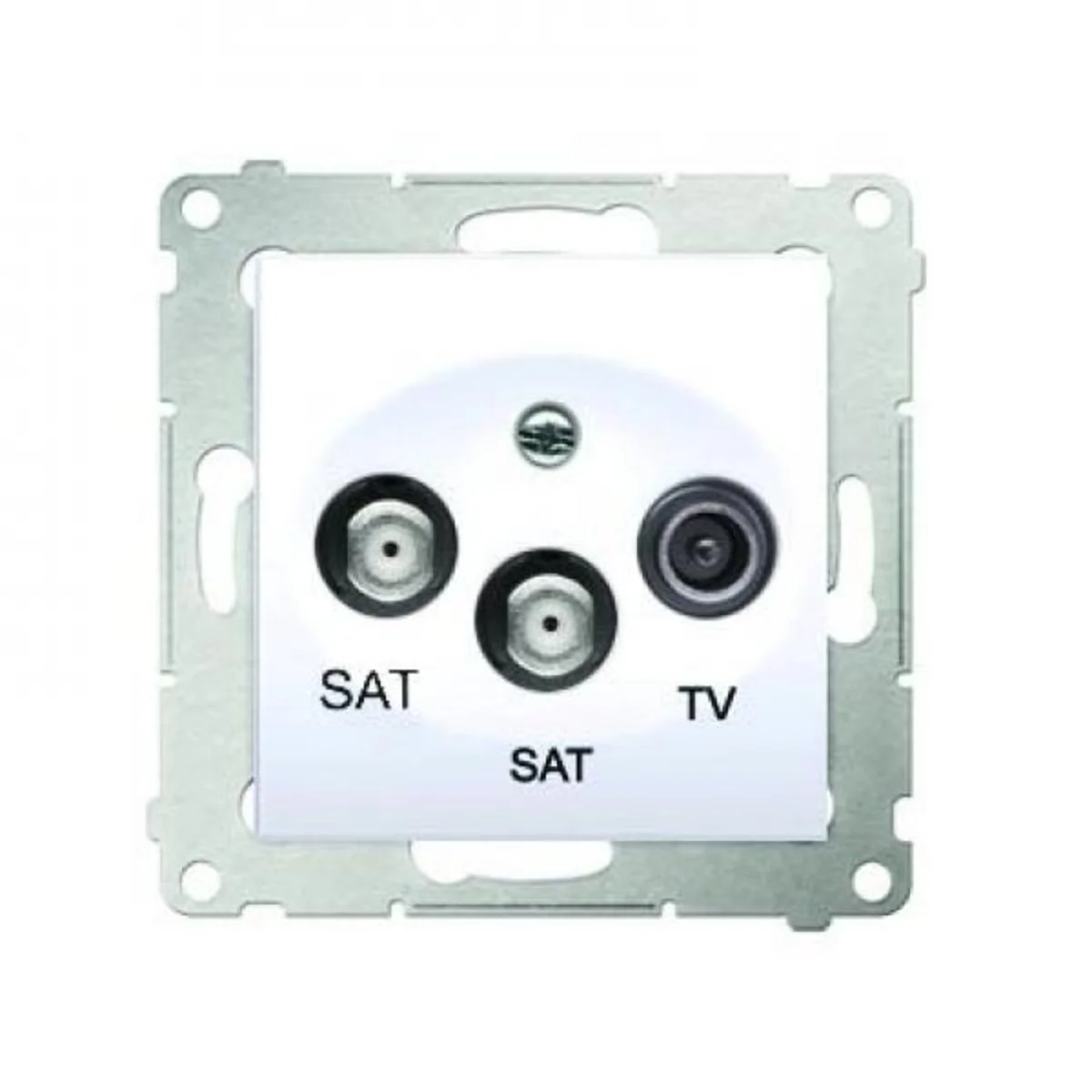

Double satellite antenna socket SAT-SAT-RTV (module) white

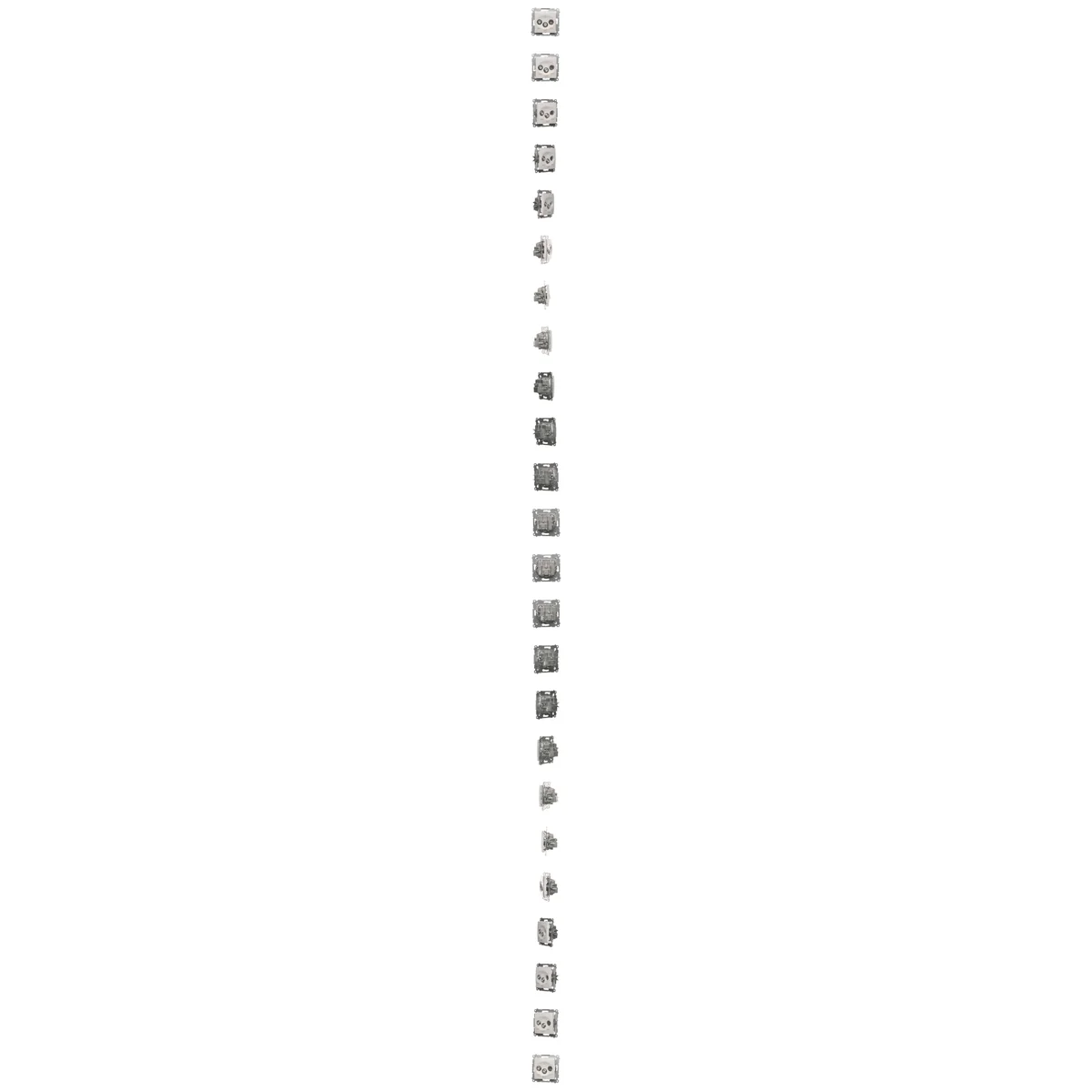

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 3

See full description

Price:

31,73 €

gross / pcs.

(including VAT 23%)

Accessible 8 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Antenna socket from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DASK2.01/11.

FEATURES

Satellite.
Double.
SAT-SAT-RTV.
Final.
Frameless module.
Color white.

SERIES DESCRIPTION

SImon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The flush-mounted antenna socket has all the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

3
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

Simon 54
Width [mm]

75
Type

Flush-mounted
Height [mm]

75
Frequency Range [MHz]

5-2400
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 1 Connections for 2150 MHz: 2
Version

Final
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

29
Variant

RTV sat sat2
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

TWIN end socket
Tap loss at 2150 MHz

2 dB
Suitable for remote power supply

Yes

Tap loss at 860 MHz

1 dB
Number of outlets

3
Frequency

5 ... 2400 MHz

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,116	0,116	1,205
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
