Double satellite antenna socket SAT-SAT-RTV (module) anthracite (metallic) DASK2.01/48

Name: Double satellite antenna socket SAT-SAT-RTV (module) anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MEA204KONT
Price: 33.09 PLN

local index:

MEA204KONT

Catalog No:

DASK2.01/48

EAN code:

5902787825447

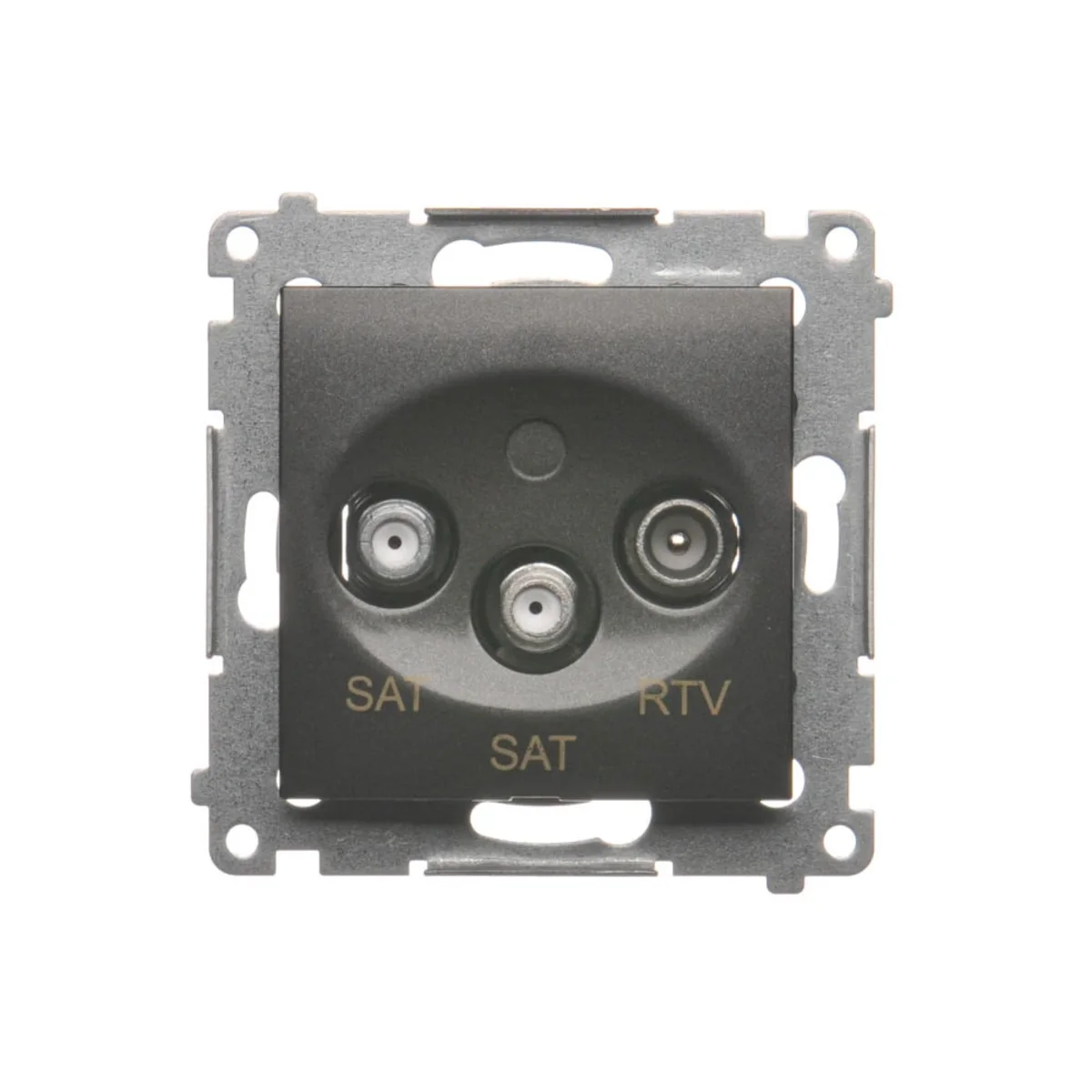

Double satellite antenna socket SAT-SAT-RTV (module) anthracite (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 3

See full description

Price:

33,09 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

SAT-SAT-RTV satellite antenna socket. Suitable for frames from the SIMON 54 series.

Technical data

Halogen free

Yes
Number of sockets

3
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

Simon 54
Width [mm]

75
Type

Flush-mounted
Height [mm]

75
Frequency Range [MHz]

5-2400
Accurate color

Metallized anthracite
Mounting depth [mm]

29
Variant

RTV sat sat2
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

41
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 1 Connections for 2150 MHz: 2
Version

Final
Surface protection

varnishing
Surface finish

matte
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Other technical data

Model

TWIN end socket
Tap loss at 2150 MHz

2 dB
Suitable for remote power supply

Yes

Tap loss at 860 MHz

1 dB
Number of outlets

3
Frequency

5 ... 2400 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,116	0,116	1,205
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
