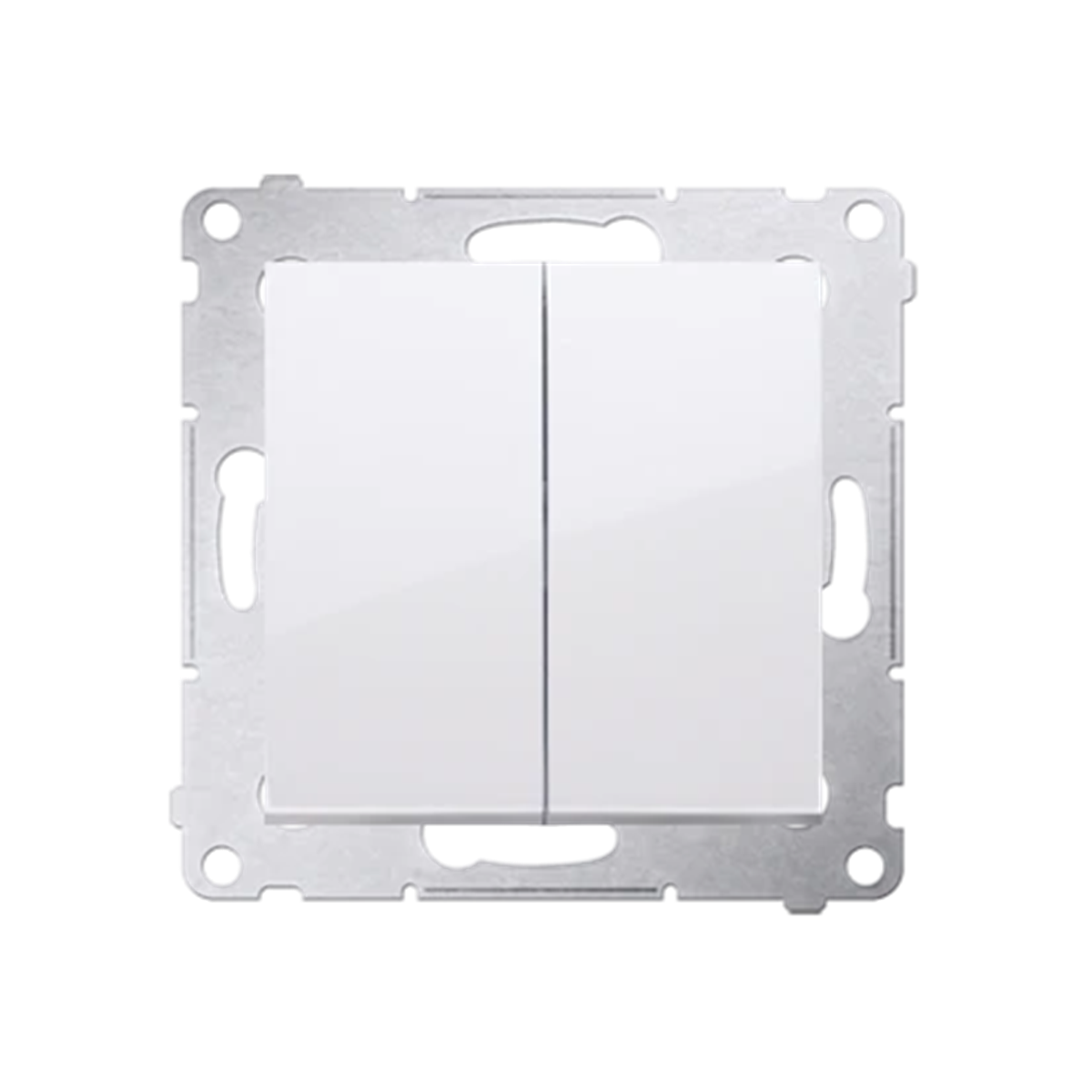

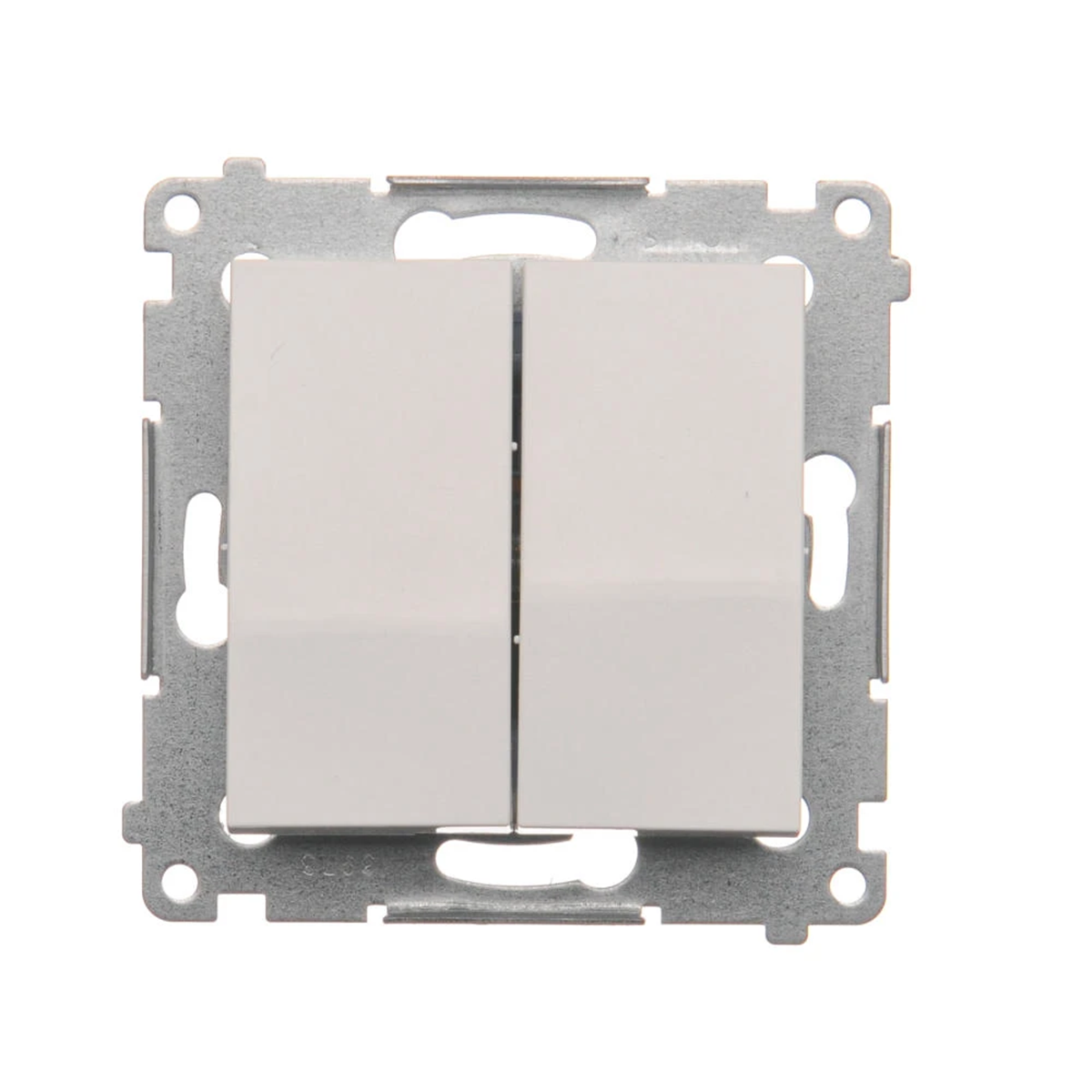

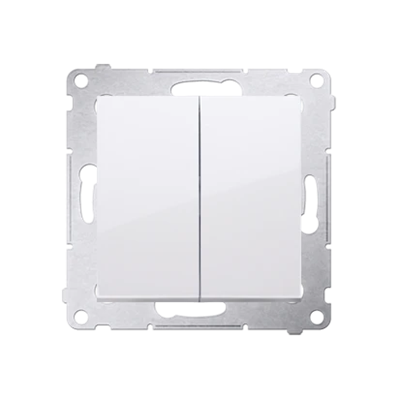

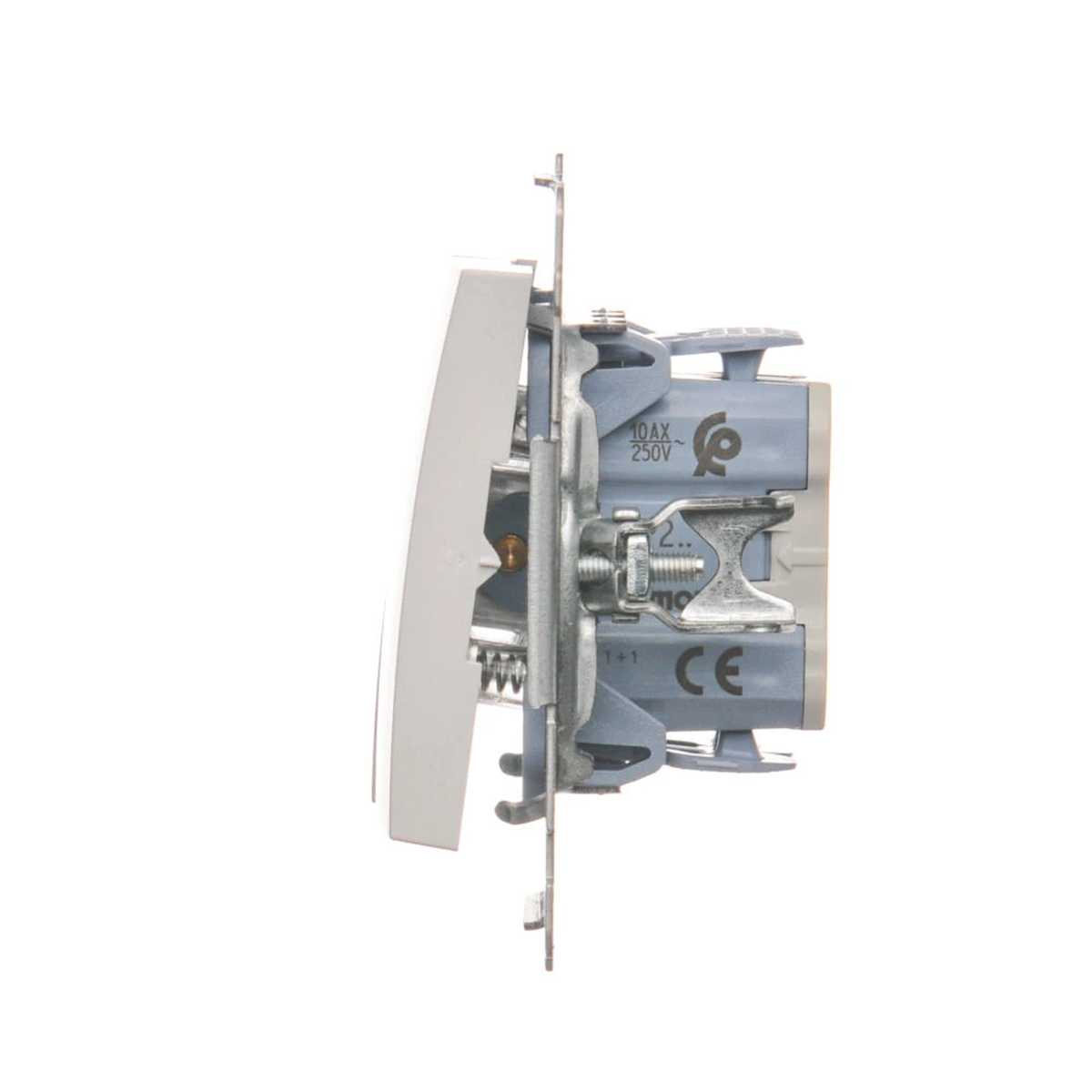

Double pushbutton without pictogram (module) 10A 250V quick connectors white DP2.01/11

Name: Double pushbutton without pictogram (module) 10A 250V quick connectors white
Brand: KONTAKT-SIMON
SKU: MMZ211KONT
Price: 8.09 PLN

local index:

MMZ211KONT

Catalog No:

DP2.01/11

EAN code:

5902787823559

Double pushbutton without pictogram (module) 10A 250V quick connectors white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

See full description

Price:

8,09 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Double closing pushbutton Simon 54 series, from the manufacturer Contact Simon. The product catalog number is < strong>DP2.01/11. White.

FEATURES

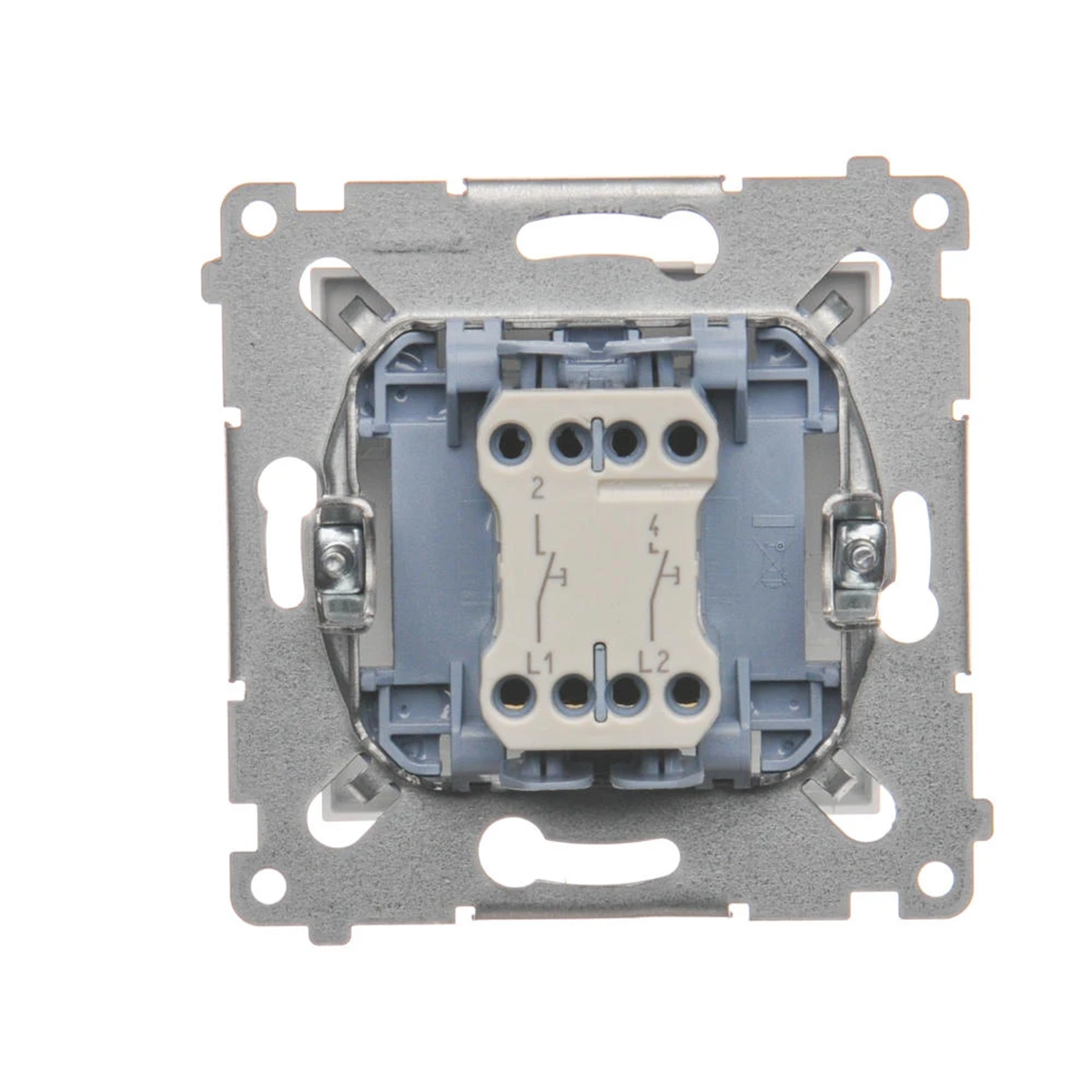

Quick connectors.
2x1-pole pushbutton (monostable).
Dual-circuit: 2 inputs, 2 outputs.
2 make contacts (NO).
To be obtained splash-proof class IP44, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation accessories based on new, reliable and assembly-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

26
Variant

Ordinary
Exact material

PC

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Version

Confident
Surface protection

Natural
Backlight

NO
Terminal type

Threadless
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Contacts

2 make contacts (NO)
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,060	0,060	0,689
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
