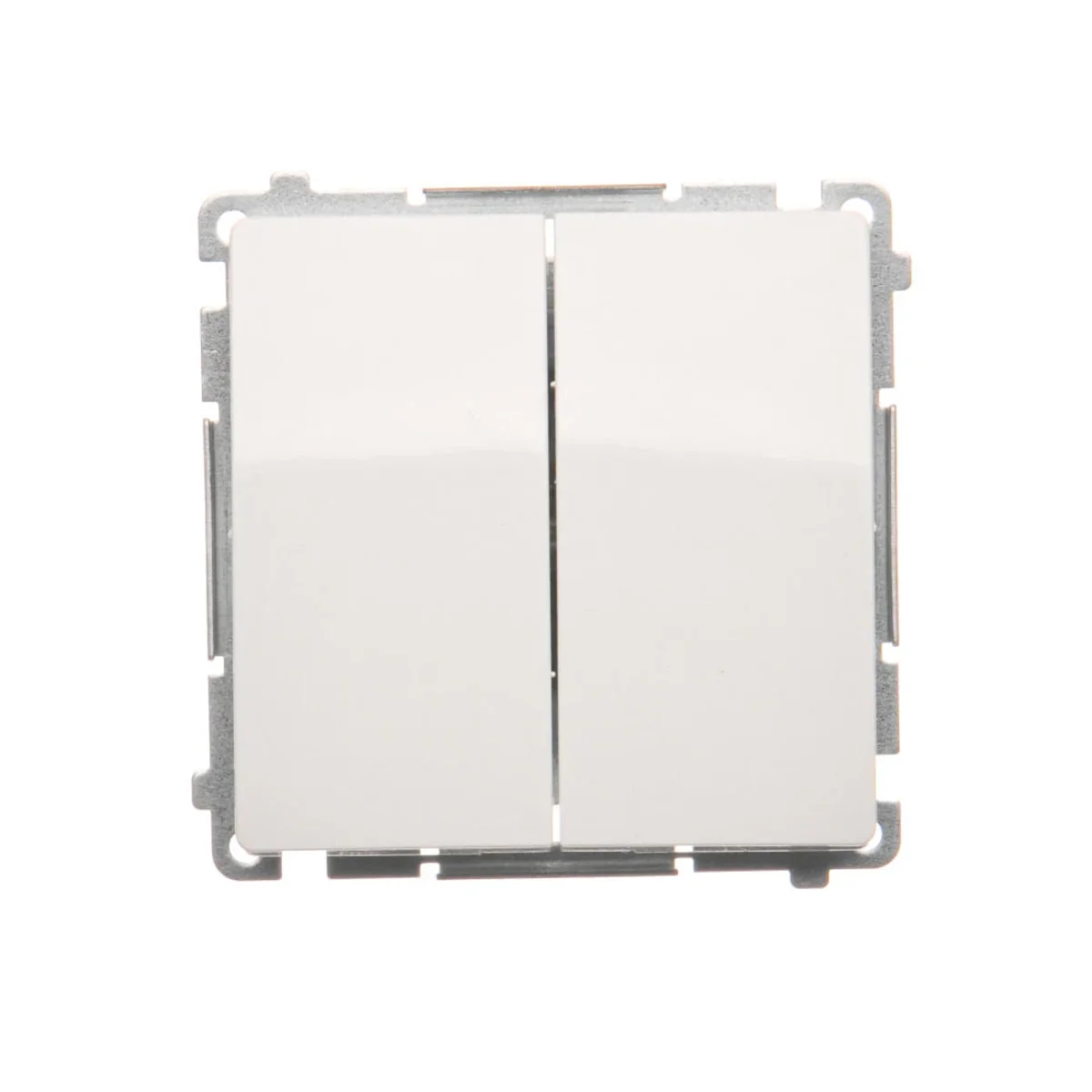

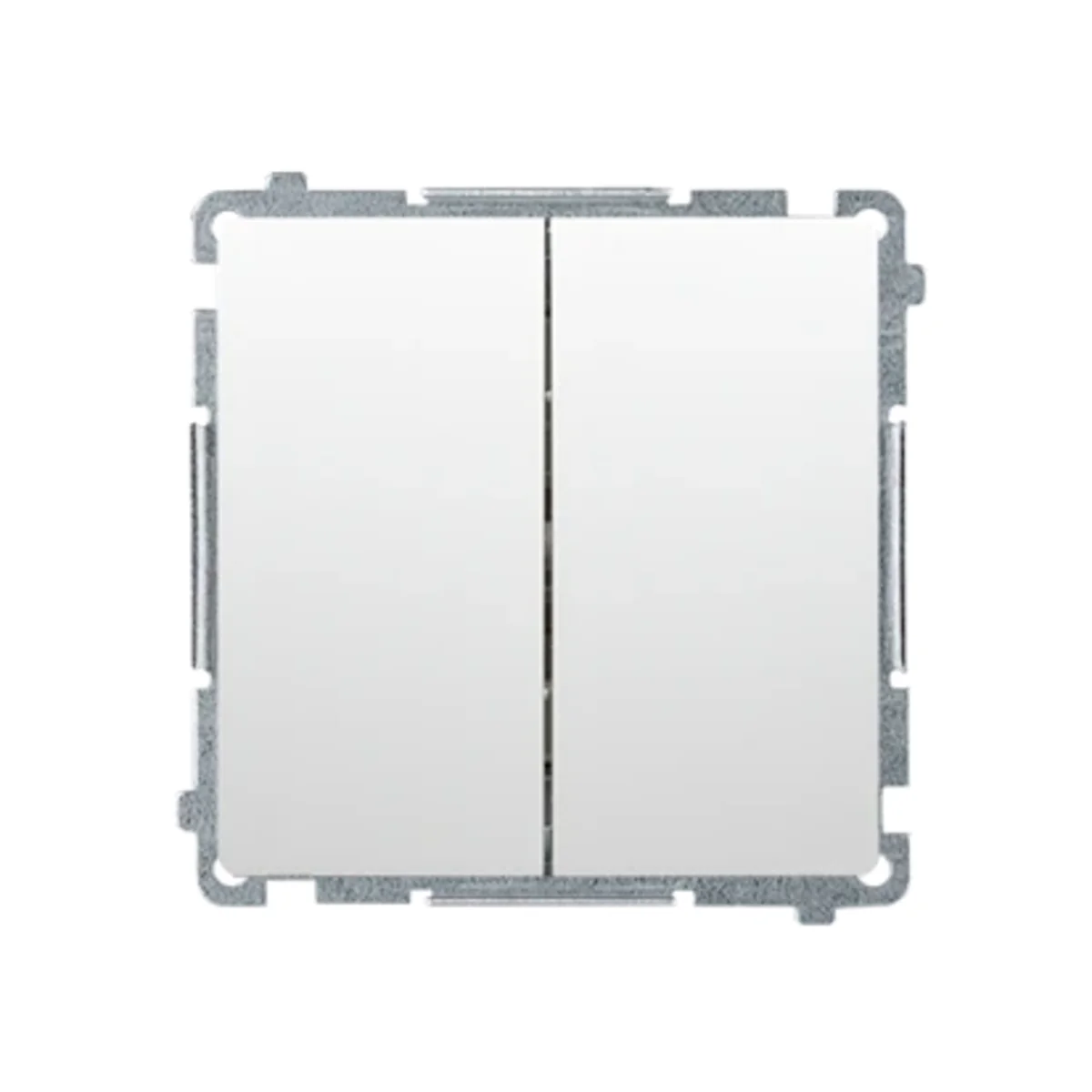

Double push-button double-circuit: 2 inputs 2 outputs (module) 16A 250V screw terminals white BMP2.01/11

local index:
MMZ121KONT
Catalog No:
BMP2.01/11
EAN code:
5902787814779
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 2
Price:
7,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double closing pushbutton from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is < strong>BMP2.01/11. In white.



FEATURES

  • Quick connectors.

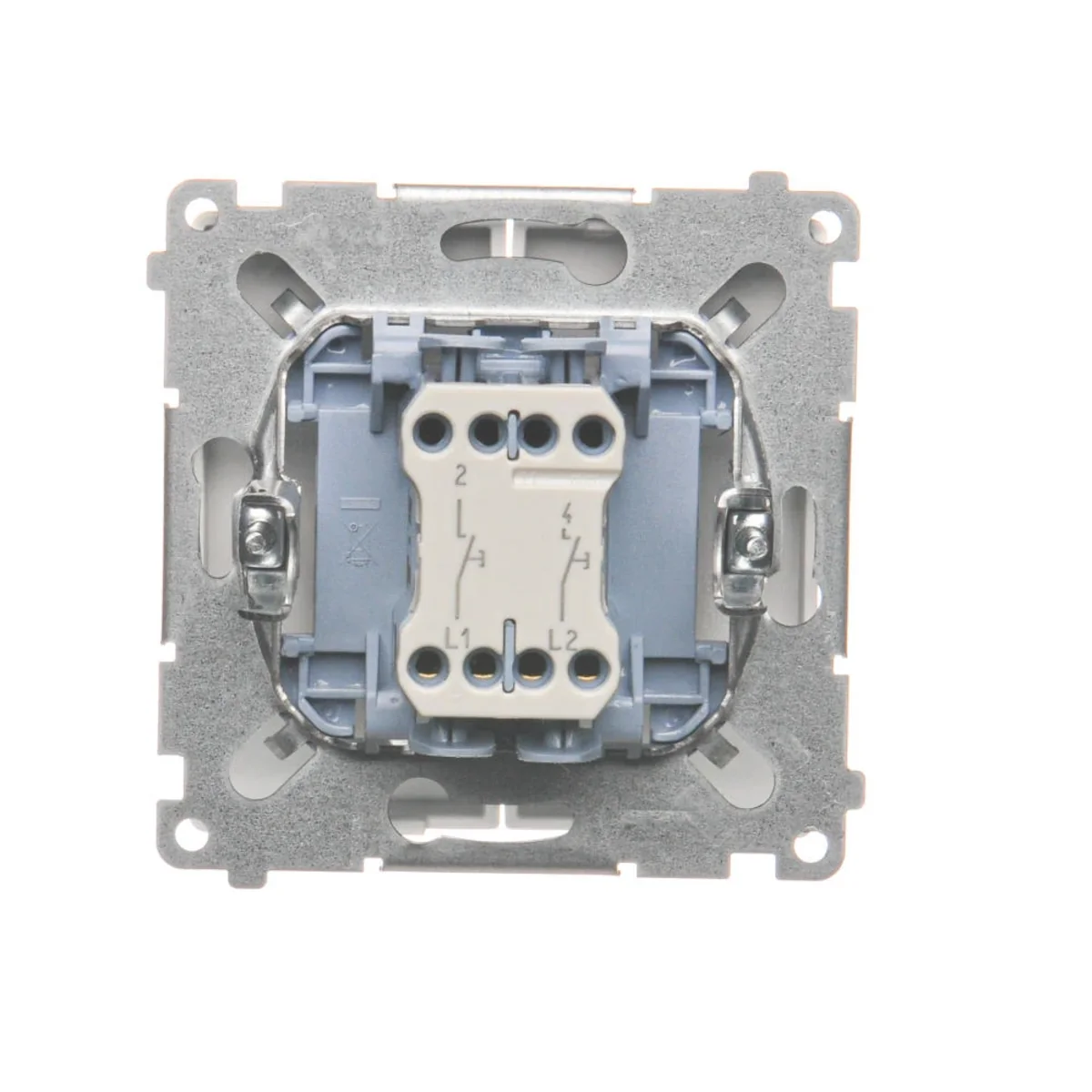

  • 2 NO contacts.
  • 2x1-pole push-button (monostable).
  • Dual-circuit: 2 inputs, 2 outputs.
  • To be obtained splash-proof class IP44 use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..
  • To obtain IP44 splash-proof class, additionally use a gasket under the keys: SU1W.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24
  • Variant
    Ordinary
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Contacts
    2 make contacts (NO)
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,080 0,080 0,887
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
