Double-pole switch (module) 16A, 250V, screw terminals, anthracite (metallic) DW2A.01/48

Name: Double-pole switch (module) 16A, 250V, screw terminals, anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MMD053KONT
Price: 9.42 PLN

local index:

MMD053KONT

Catalog No:

DW2A.01/48

EAN code:

5902787822941

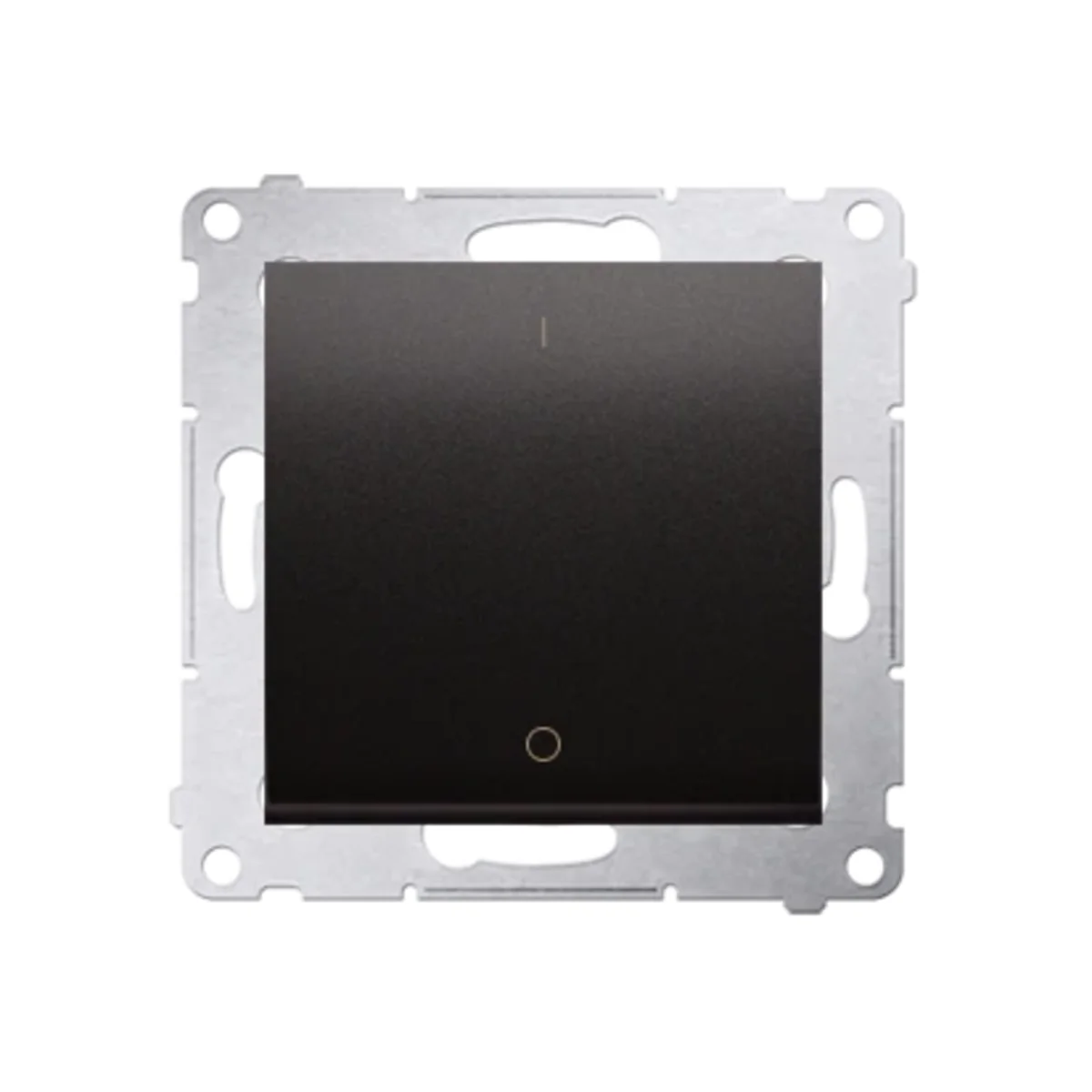

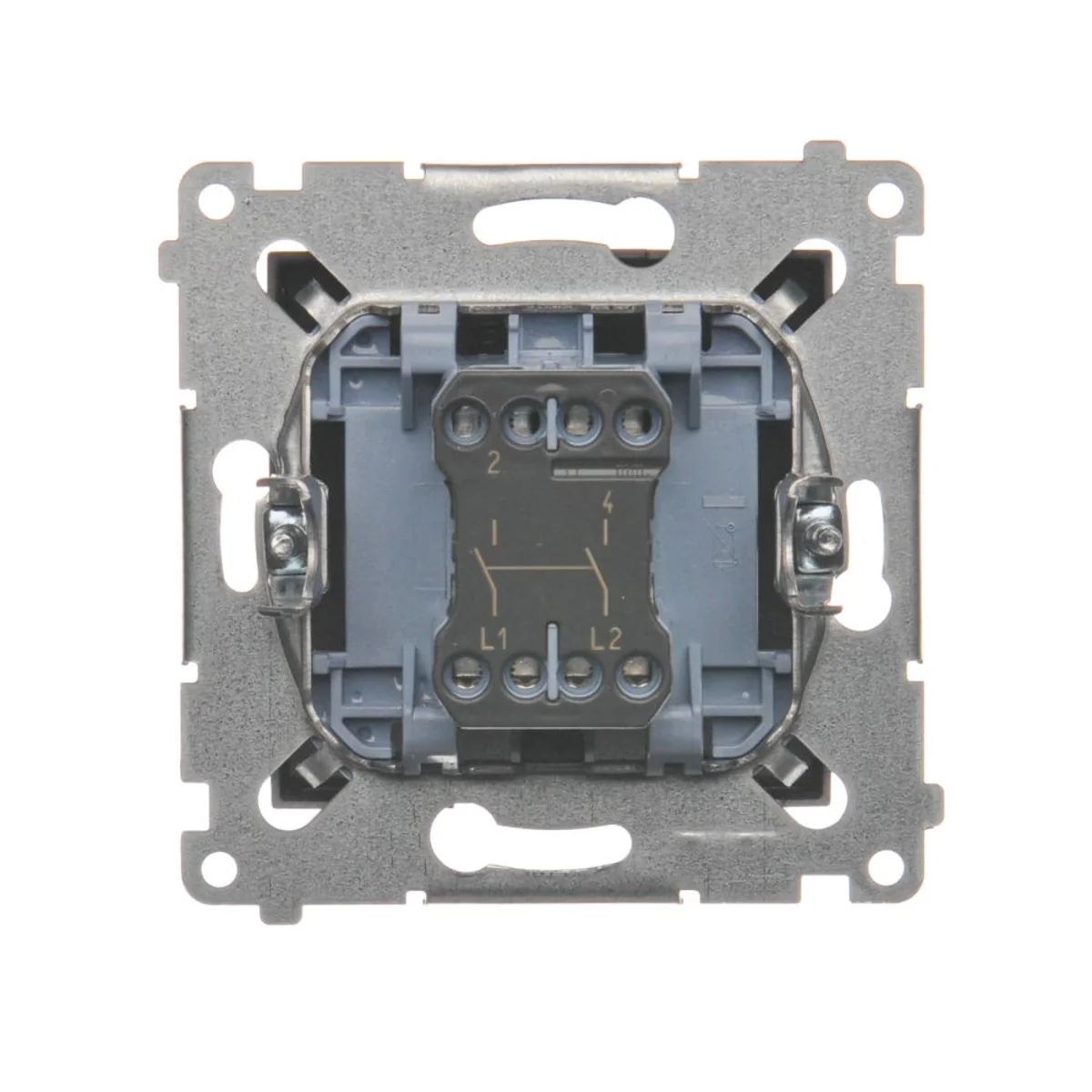

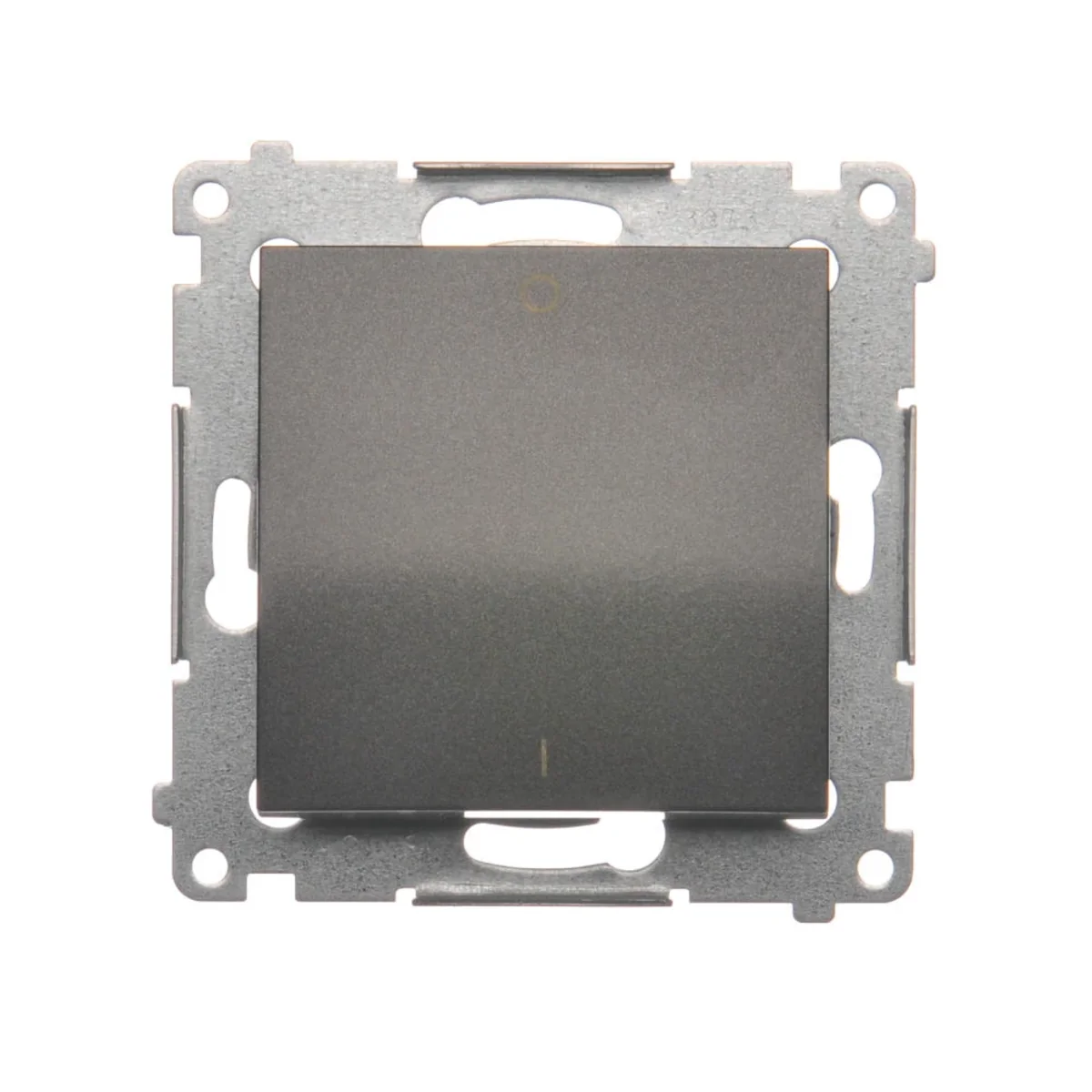

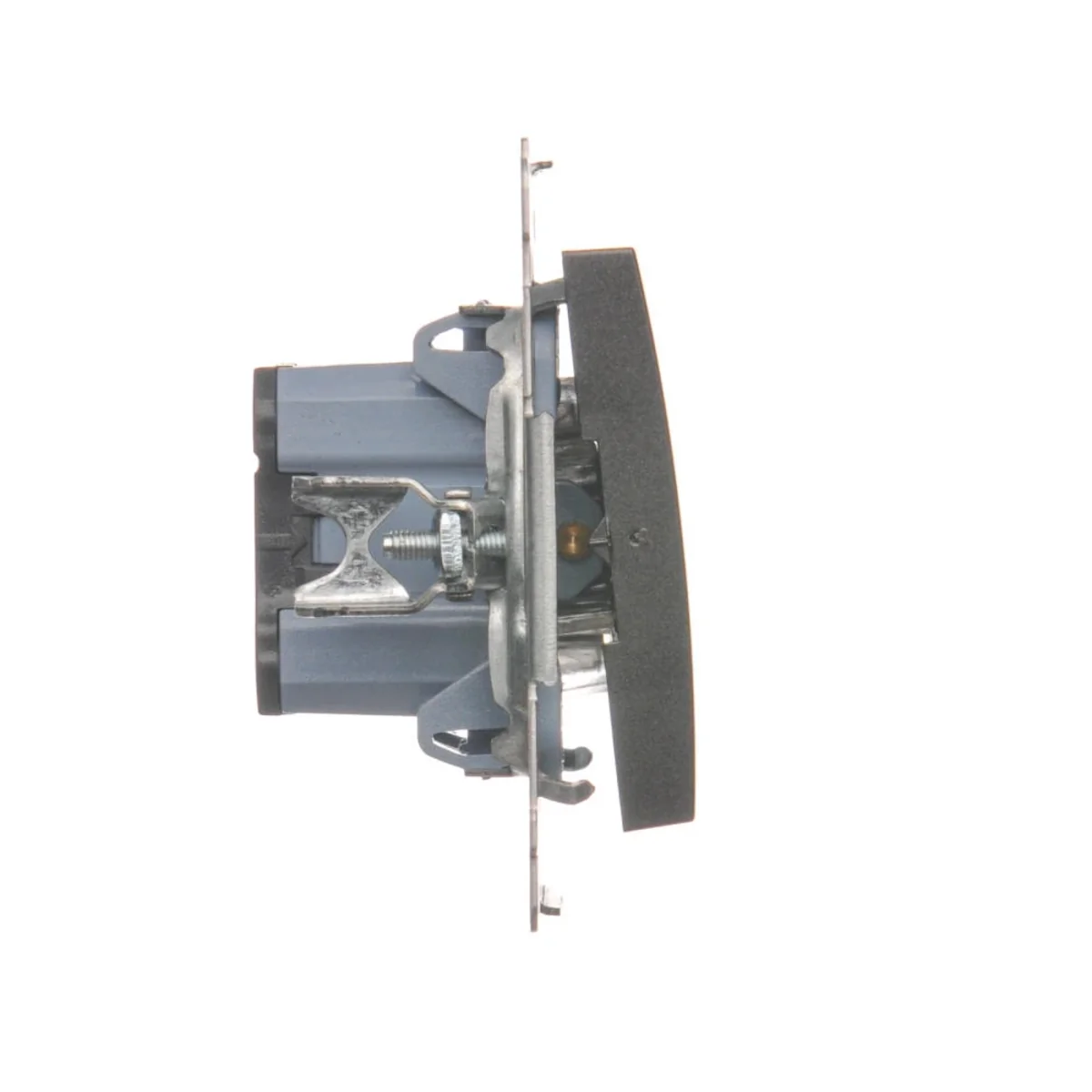

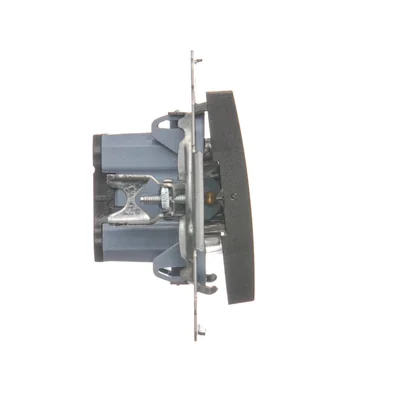

Double-pole switch (module) 16A, 250V, screw terminals, anthracite (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

9,42 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Double-pole switch from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW2A.01/48.

FEATURES

Module without frame.< /li>
Screw terminals.
Backlight optional, not included.
Rocker switch.
Toggle switch.
To be obtained splash-proof class IP44, use a frame gasket.

SERIES DESCRIPTION

Simon 54 is a series of modern accessories installation, distinguished by reliable and easy-to-install mechanisms and a variety of colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threaded
Exact material

PC

Depth [mm]

41
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Symbol

0-1
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,065	0,065	0,739
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
