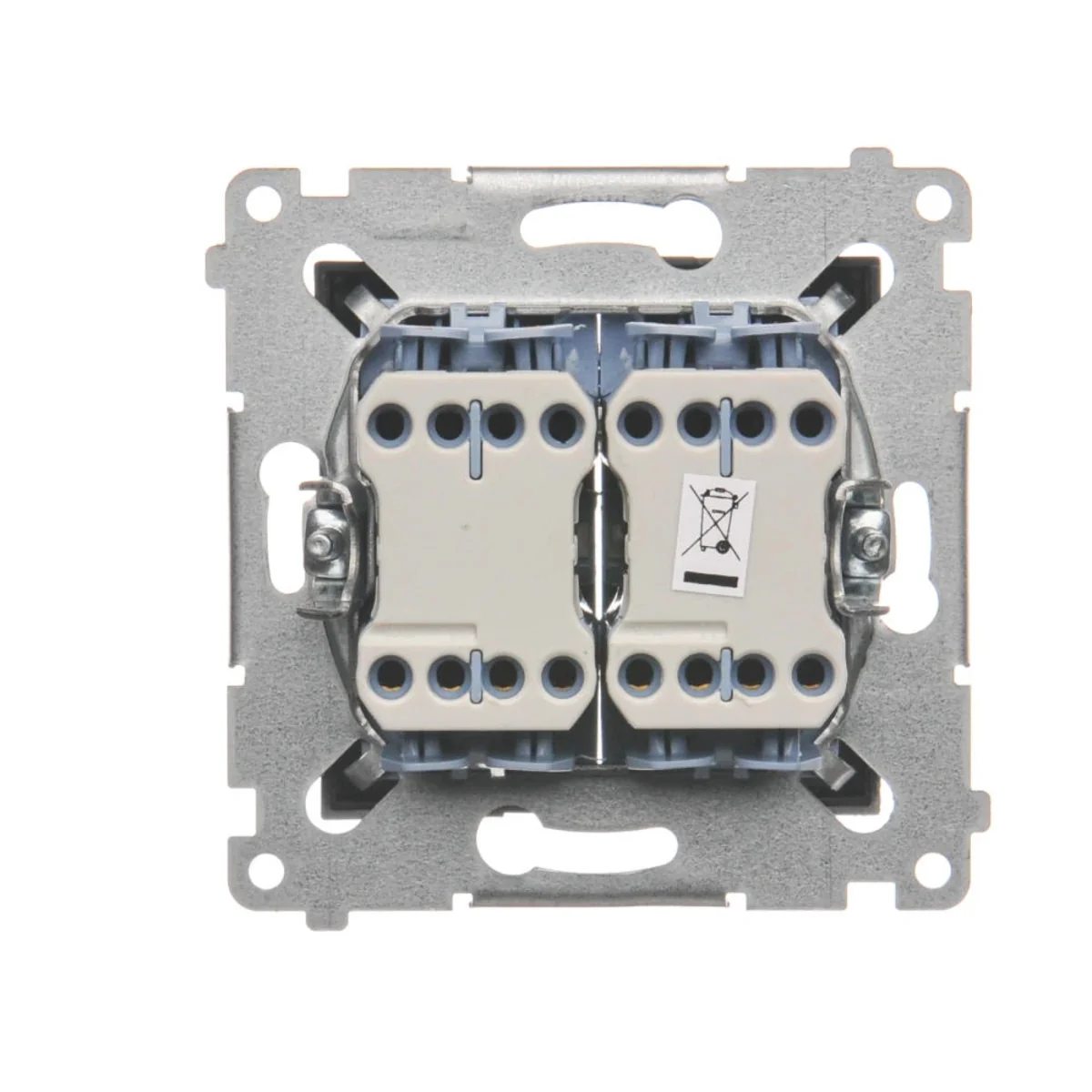

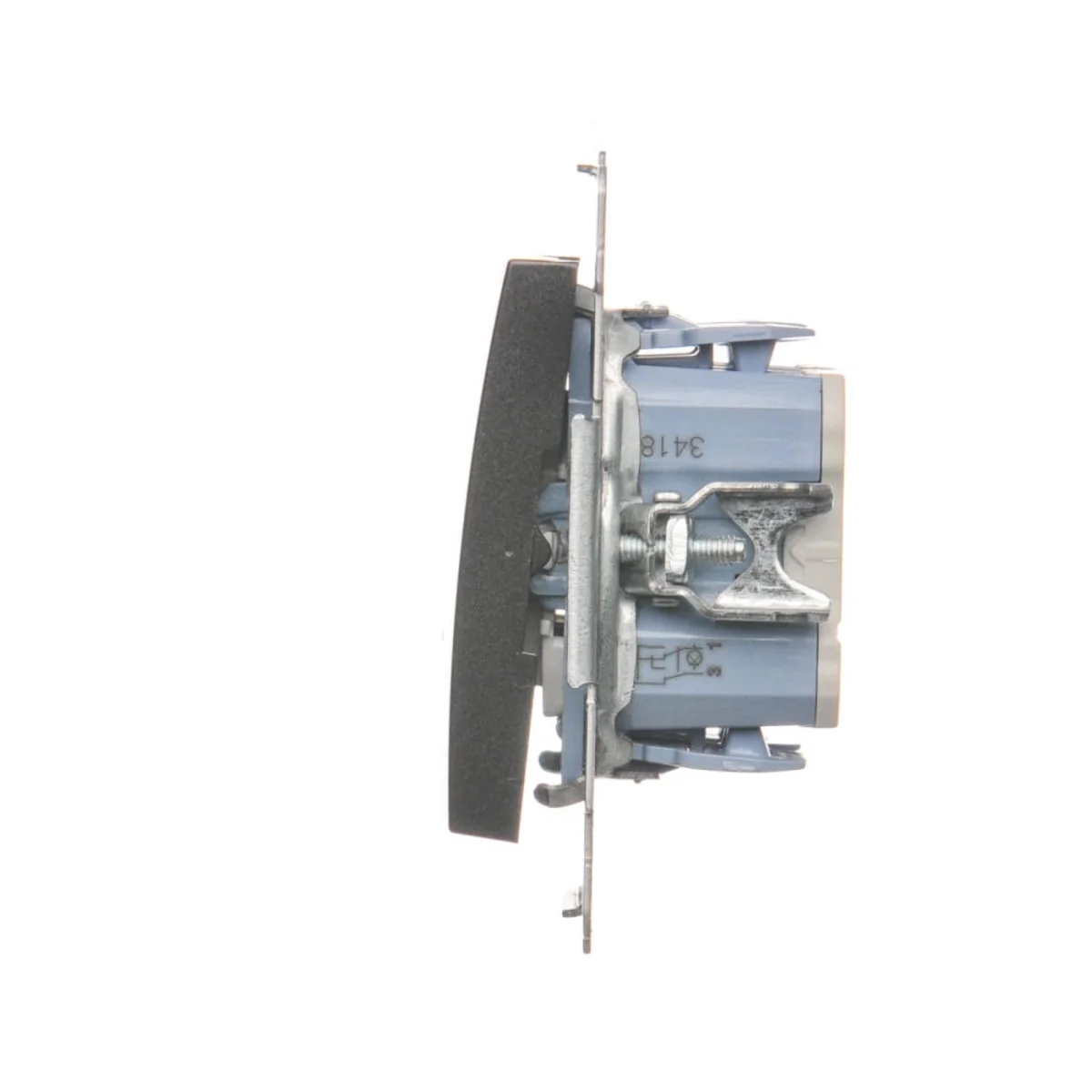

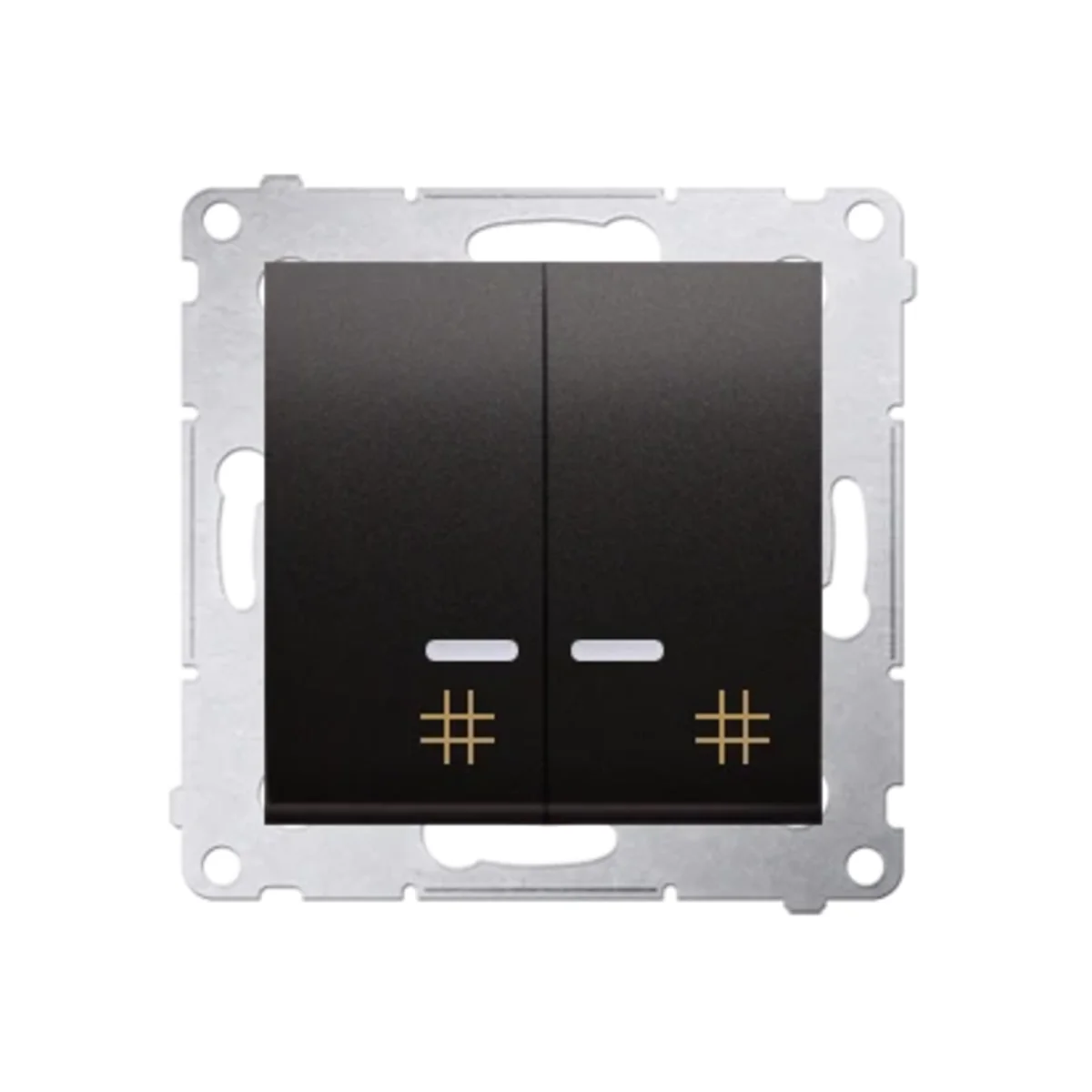

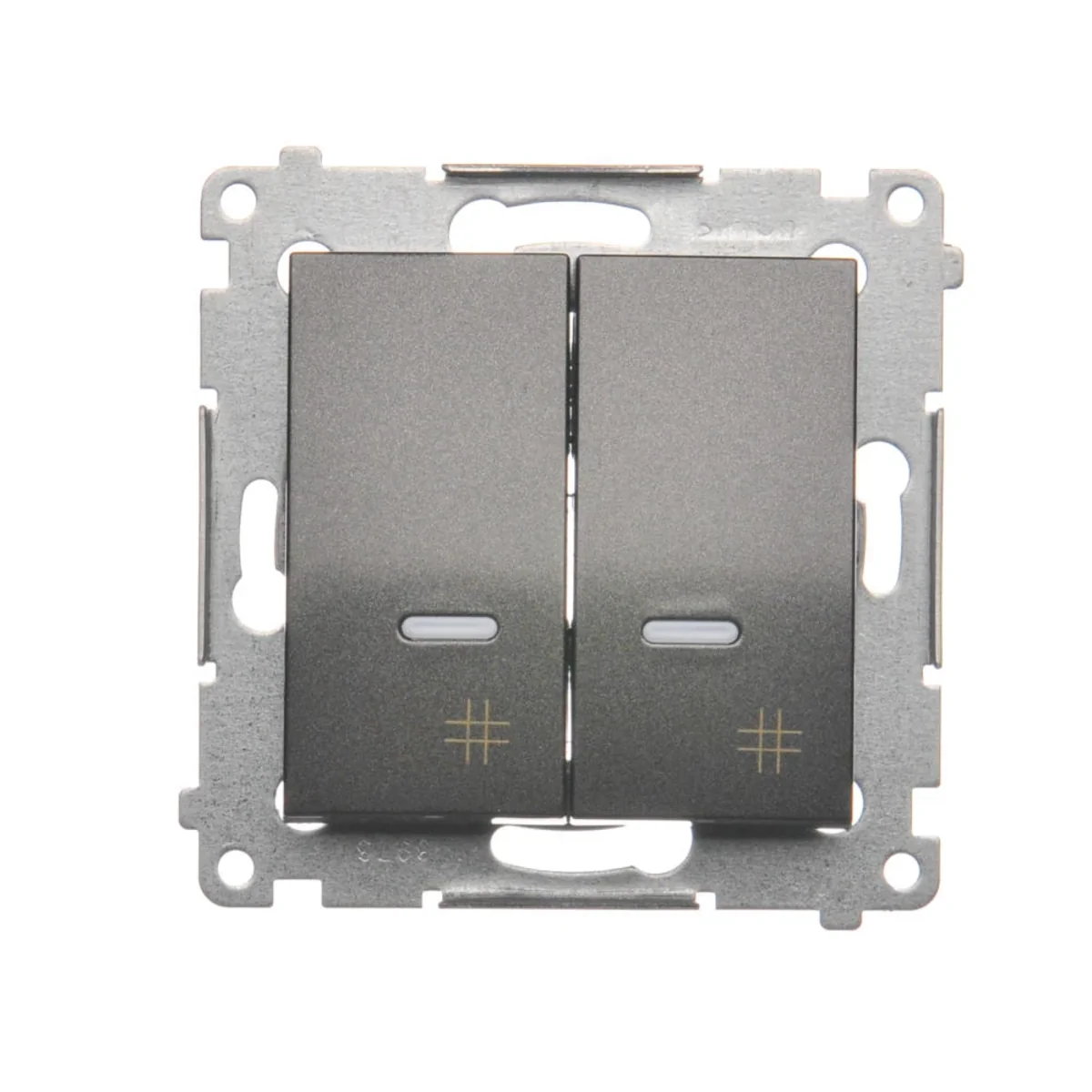

Double illuminated cross switch (module) 250 V, metallic anthracite DW7/2L.01/48

Name: Double illuminated cross switch (module) 250 V, metallic anthracite
Brand: KONTAKT-SIMON
SKU: MMK066KONT
Price: 29.79 PLN

Indeks lokalny:

MMK066KONT

Nr katalogowy:

DW7/2L.01/48

Kod EAN:

5902787834074

Double illuminated cross switch (module) 250 V, metallic anthracite

Kliknij zdjęcie, aby powiększyć

Producent: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

Zobacz cały opis

Cena:

29,79 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do tygodnia (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Cross connector from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW7/2L.01/48.

FEATURES

Dual .
Module without frame.
2x1-pole switch (bistable).
Rocker switch.
Built-in orientation backlight (LED replaceable).
Quick connectors.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Cross connector has all the features of this unique series.

Dane techniczne

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Cross
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Pozostałe dane techniczne

Wiring system

Off switch 2x1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Dane producenta

Producent

Kontakt-Simon S.A.
Adres

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Opakowania zbiorcze

Rodzaj opakowania		Paczka	Karton
Ilość	1 szt.	1 szt.	10 szt.
Waga (kg)	0,080	0,080	0,889
Szerokość (m)	0,075	0,110	0,190
Długość (m)	0,075	0,045	0,230
Głębokość (m)	0,041	0,160	0,100
