Double hotel switch -2Z with backlight. Rated current 10A (module) silver (metallic) DWH2.01/43

Name: Double hotel switch -2Z with backlight. Rated current 10A (module) silver (metallic)
Brand: KONTAKT-SIMON
SKU: MMH026KONT
Price: 43.25 PLN

local index:

MMH026KONT

Catalog No:

DWH2.01/43

EAN code:

5902787823672

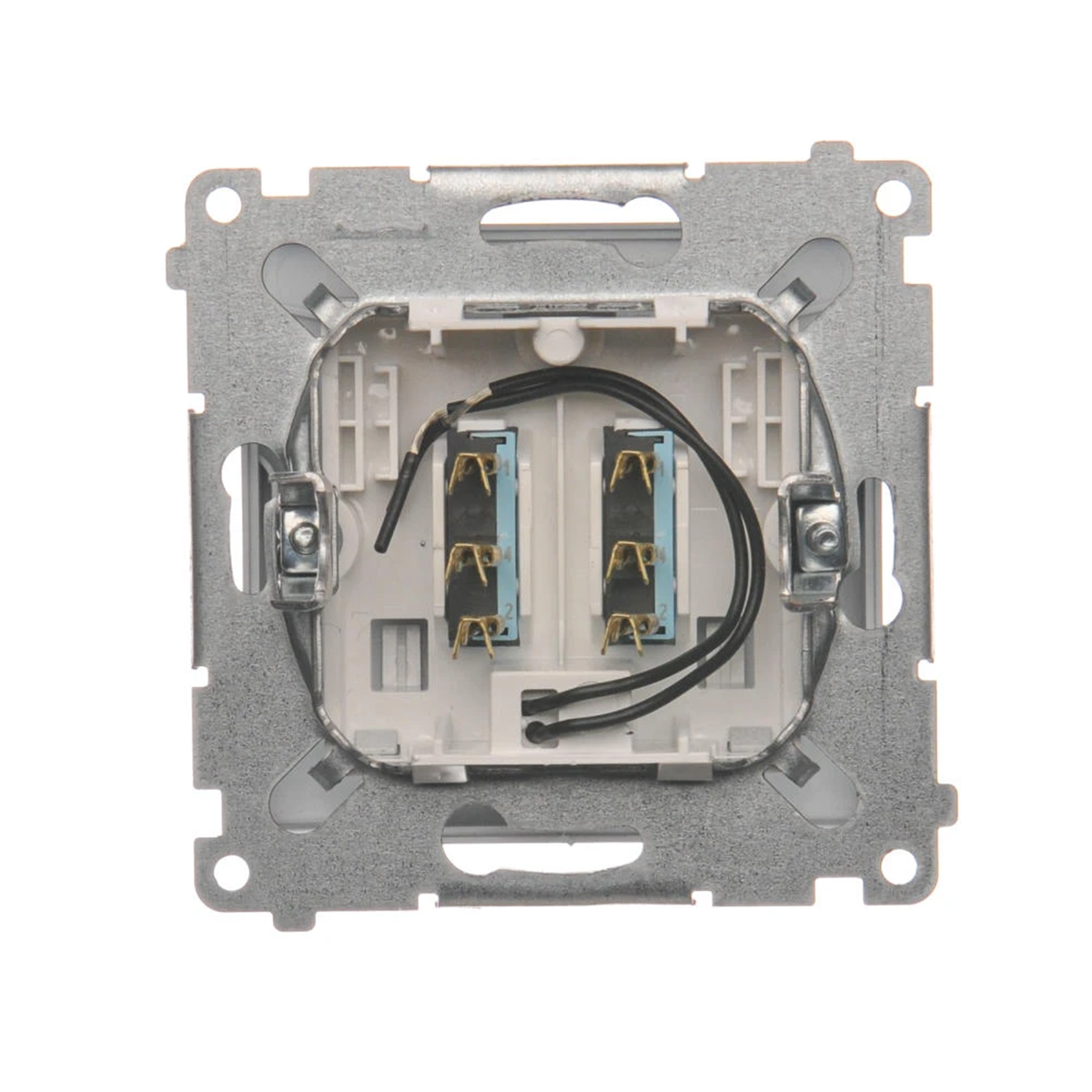

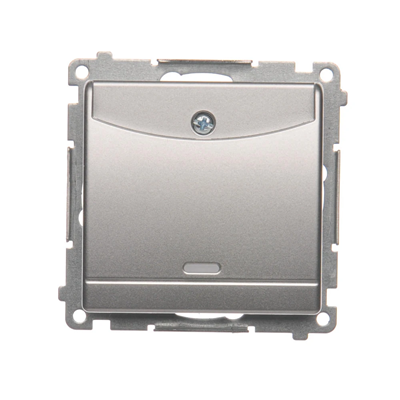

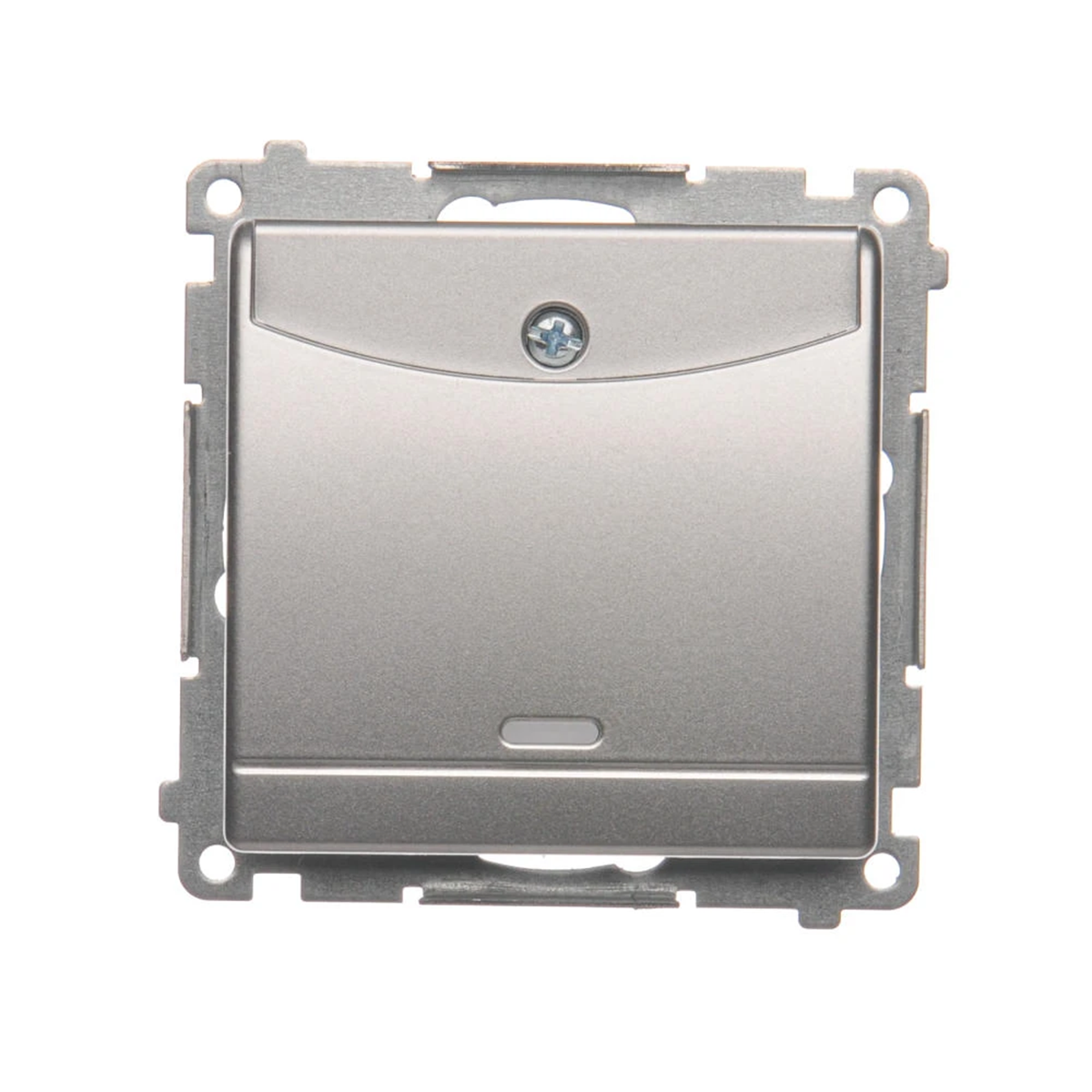

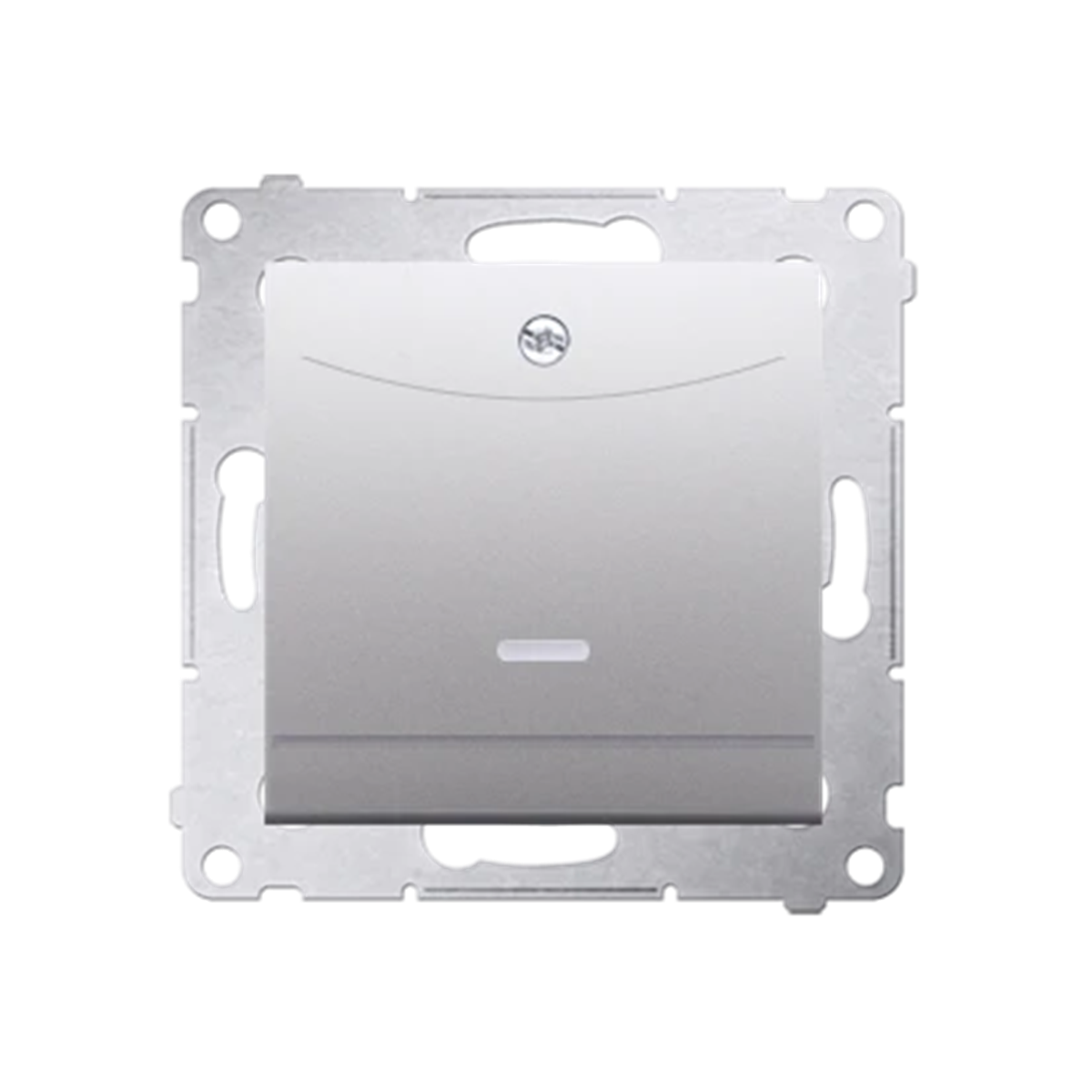

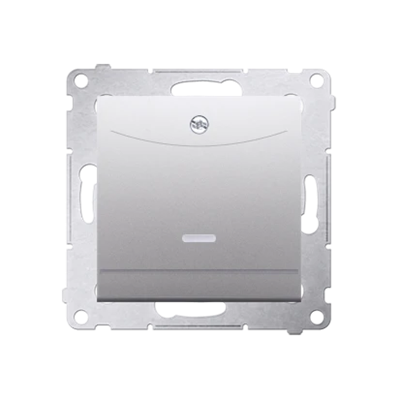

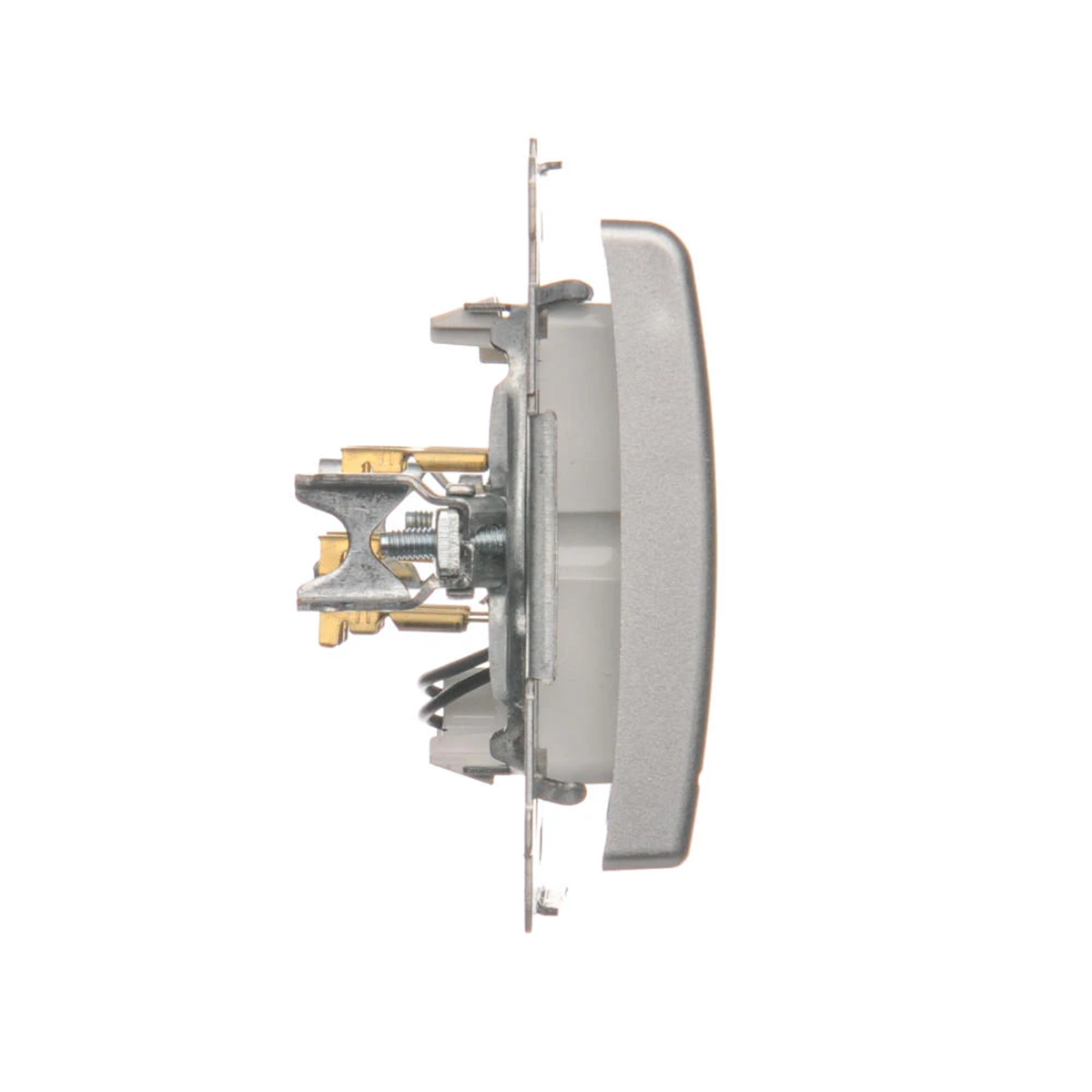

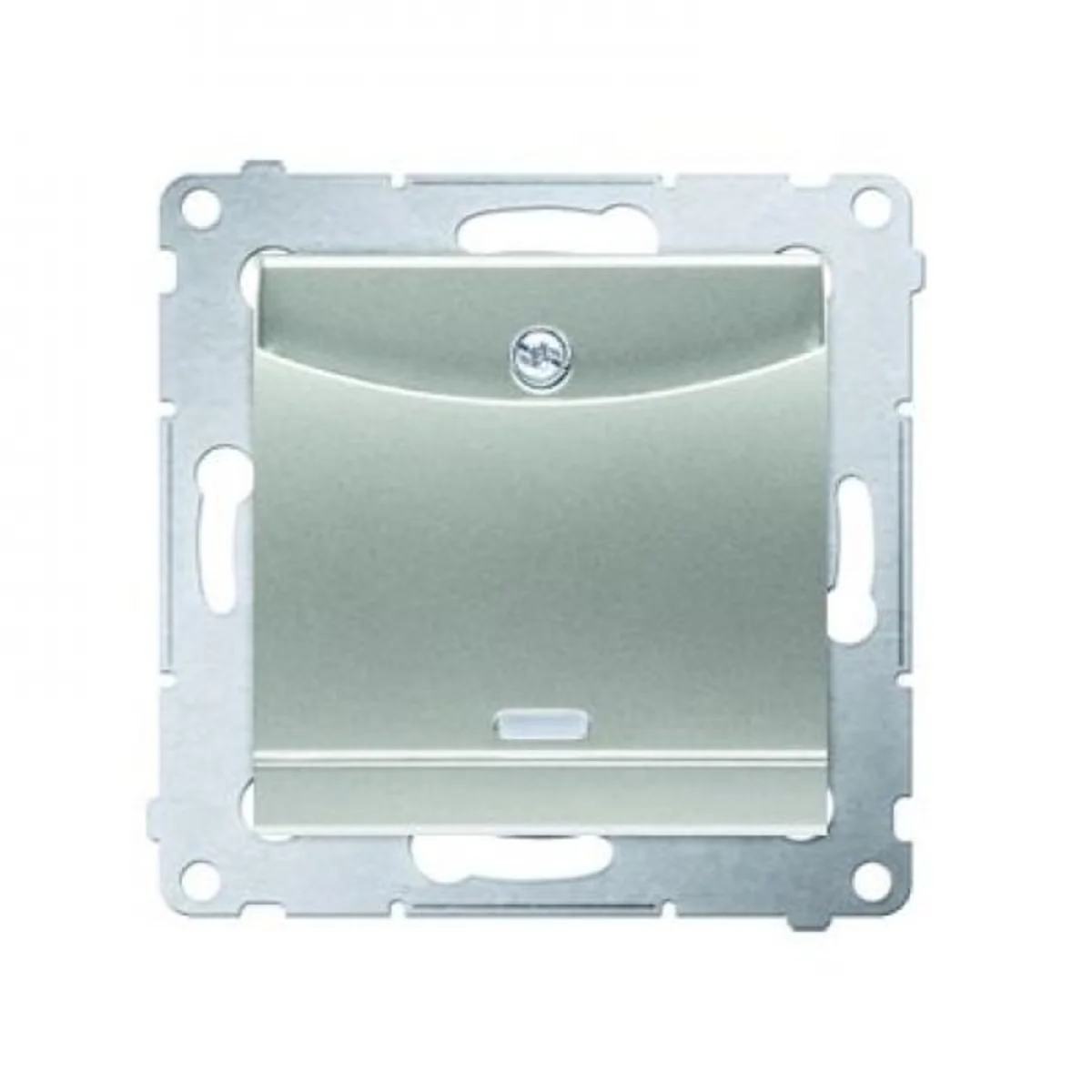

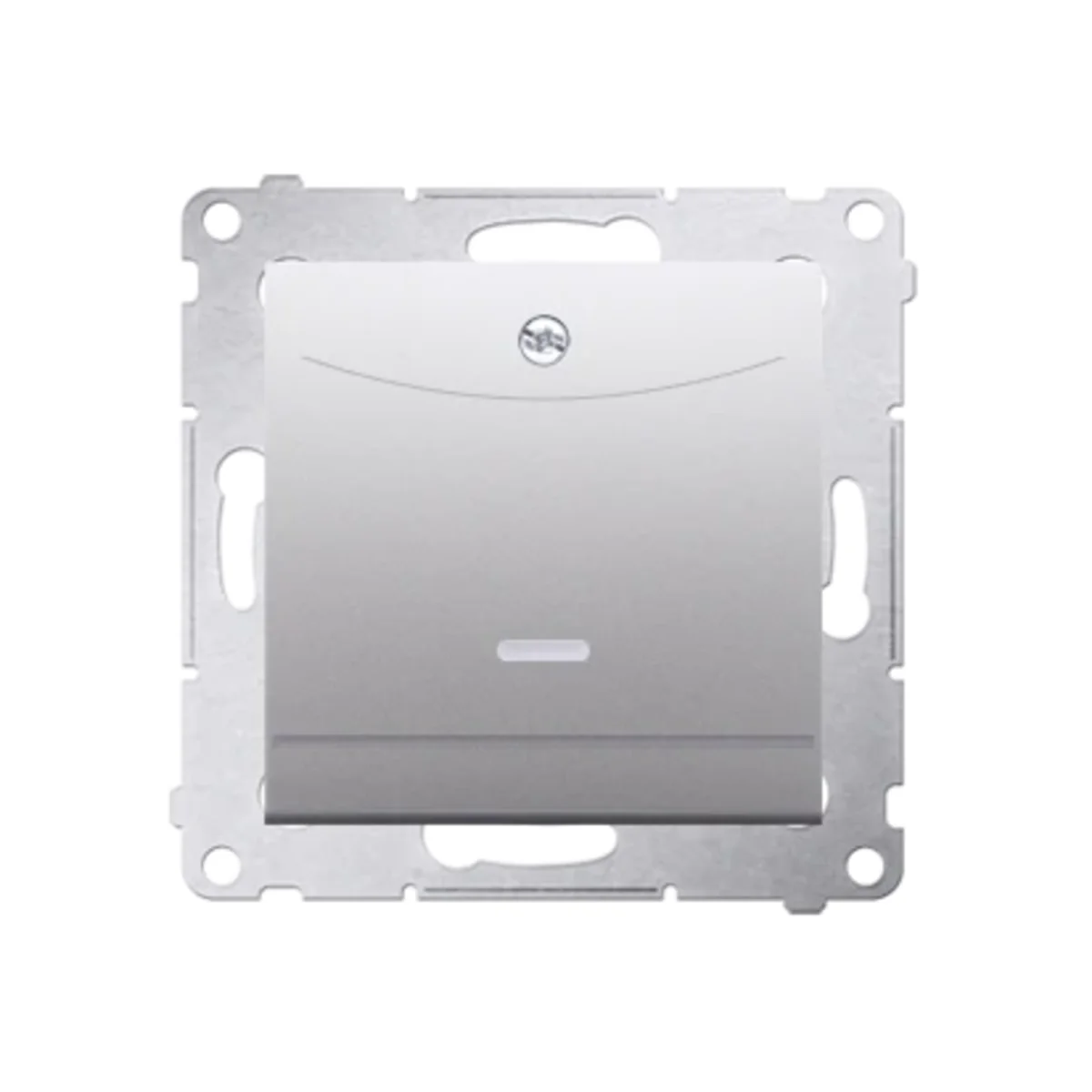

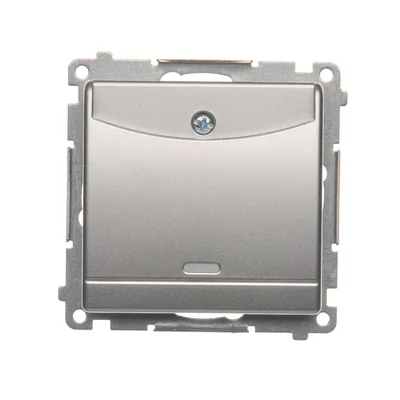

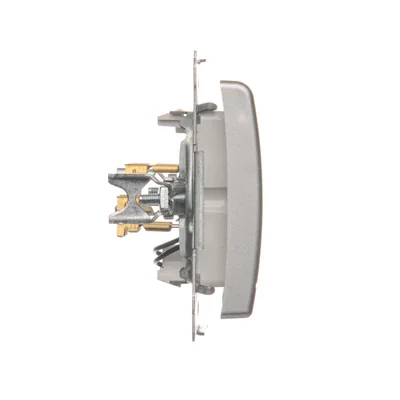

Double hotel switch -2Z with backlight. Rated current 10A (module) silver (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: hotel card

See full description

Price:

43,25 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Double hotel switchfrom the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DWH2.01/43.

FEATURES

With built-in backlight (LED replaceable).
Connection type / Terminal type: plug, crimp (tong terminal).
Rated current (inductive): 2 A.
Operation for hotel card.
2-pole switch (bistable).
Not suitable for Simon54 Nature frames.
Relay/contactor required.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy in assembly with mechanisms and a variety of colors. The Hotel connector characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

hotel card
Shape

Square
Fixing

claws Screws
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Version

Double
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

26
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Silver
Material

Plastic
Rated voltage [V]

230
Type

Hotel
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

Yes
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Silver
Nominal voltage

230 V

Method of operation

Hotel card
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,058	0,058	0,670
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,320
Depth (m)	0,041	0,160	0,100
