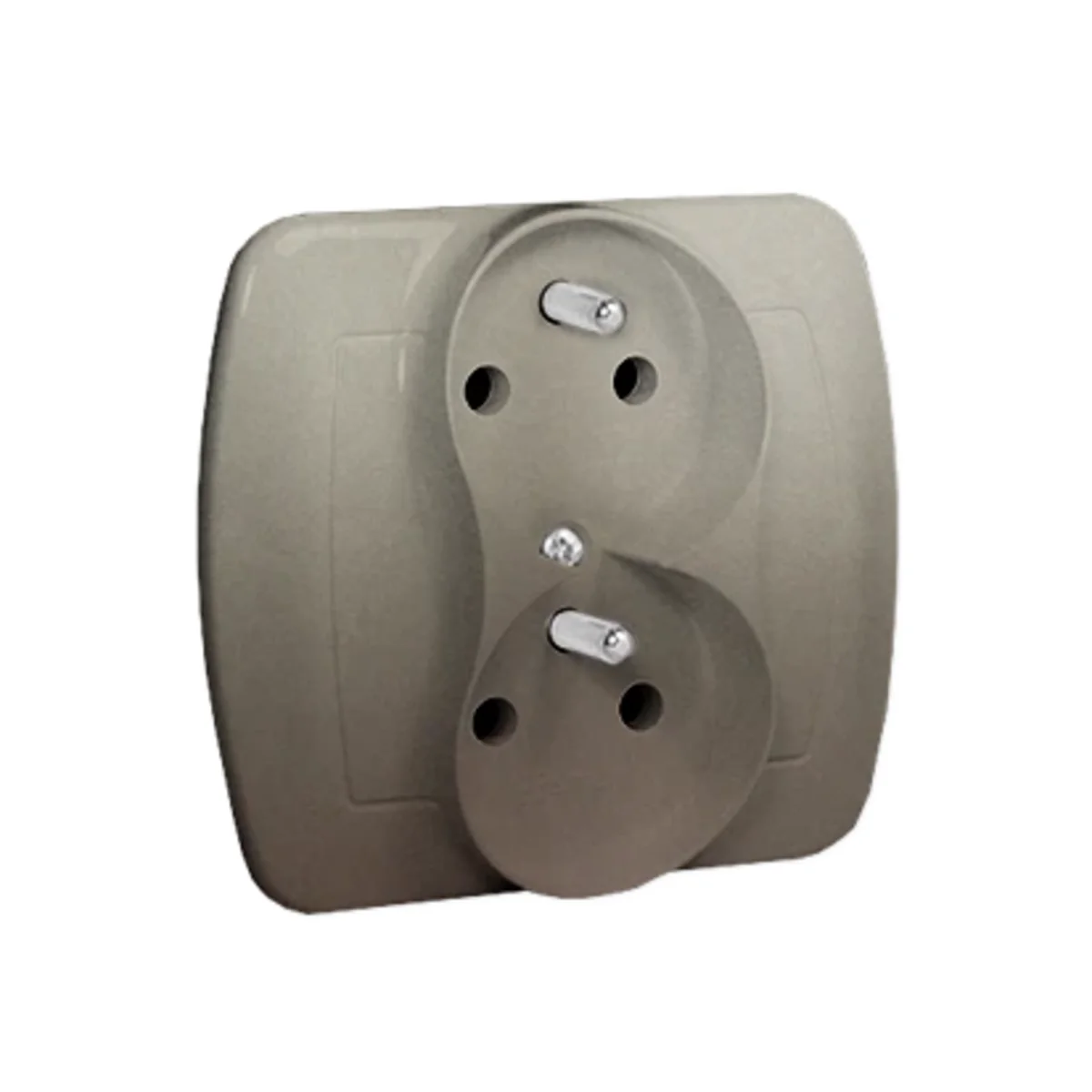

Double earthed socket outlet, phase invariant, 16A, 230V, screw terminals, satin (metallic) AGZ2CZ/29
Lokaler Index:
MEE104KONT
Katalognummer:
AGZ2CZ/29
EAN-Code:
5902787599492
Preis:
34,40 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Socket from the Chord series, from the manufacturer Contact Simon. The product catalog number is AGZ2CZ/29.
FEATURES
- Double.
- Grounded, ground pin.
- Phase invariant.
- Screw terminals.
- Complete product; with a frame.
- Color satin, metallic.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Mounting flush.
- Dimensions: 80.5 x 90 mm (H x W).
- Made of PC.
SERIES DESCRIPTION
The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish the Chord series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but sophisticated colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details
Technische Daten
-
Halogen freeYes
-
Number of sockets2
-
ShapeRectangular
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]80.5
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemNO
-
Phase invariance functionYes
-
Depth [mm]37.5
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySIMON CHORD
-
Width [mm]90
-
GroundHurt
-
Surface protectionvarnishing
-
Accurate colorSatin metallic
-
Mounting depth [mm]21
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPC
-
PKWIU27.33.13.0
Weitere technische Daten
-
Number of units2
-
Connection typeScrewed terminal
-
ColourBeige
-
Type of fasteningOther
-
Surface finishingMatt
-
Frequency50 ... 60 Hz
-
Number of modules (module system)1
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Surface protectionLacquered
-
Nominal voltage250 V
Hersteller-Details
-
HerstellerKontakt-Simon S.A.
-
Adresse43-500 Czechowice-Dziedzice Bestwińska 21 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Paczka | Karton |
| Menge | 1 stk. | 10 stk. |
| Gewicht (kg) | 0,069 | 0,776 |
| Breite (m) | 0,110 | 0,190 |
| Länge (m) | 0,043 | 0,230 |
| Tiefe (m) | 0,160 | 0,100 |
