Double earthed plug socket for nature frames 230V, white DGZ2MZN.01/11
local index:
MEE335KONT
Catalog No:
DGZ2MZN.01/11
EAN code:
5902787833817
Price:
8,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

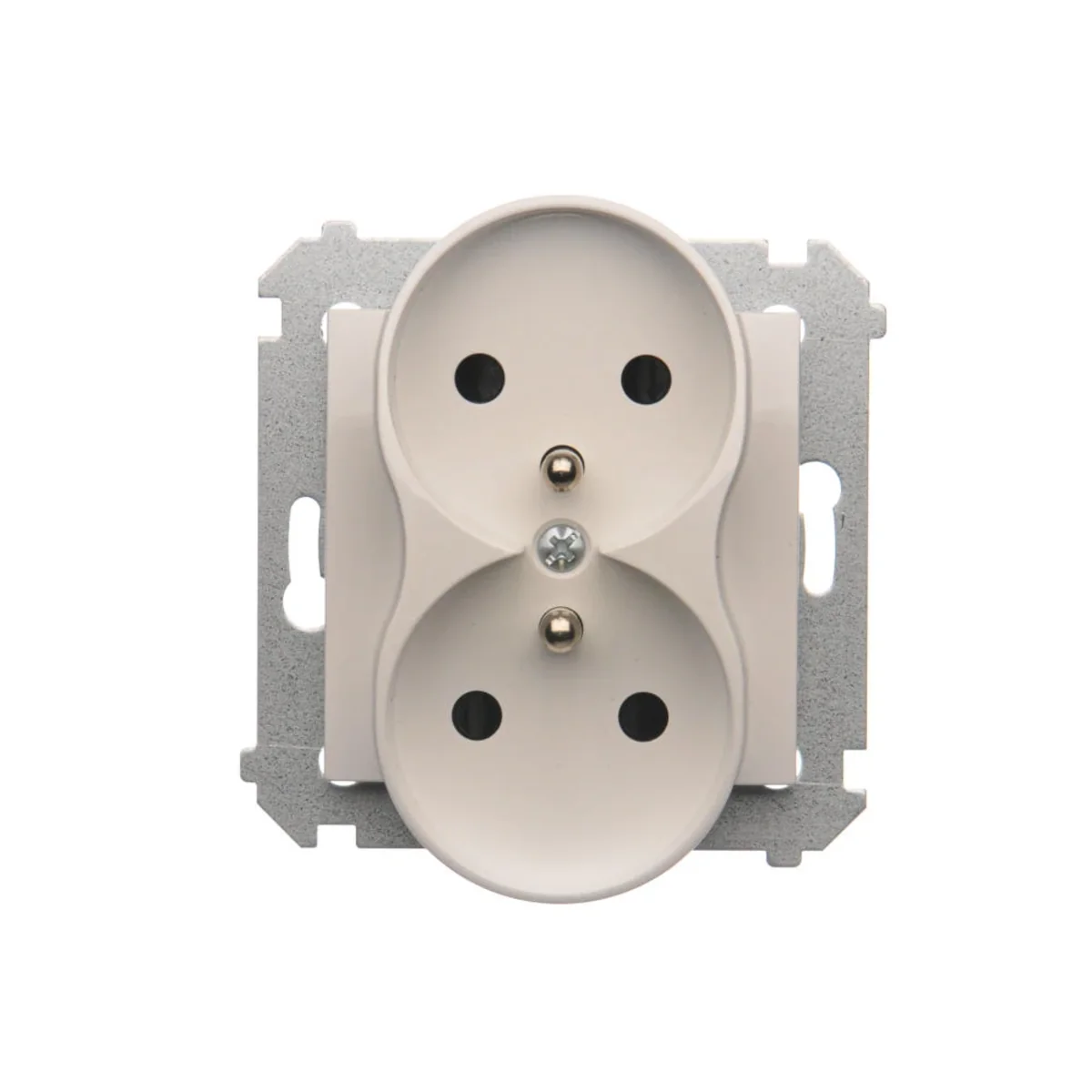

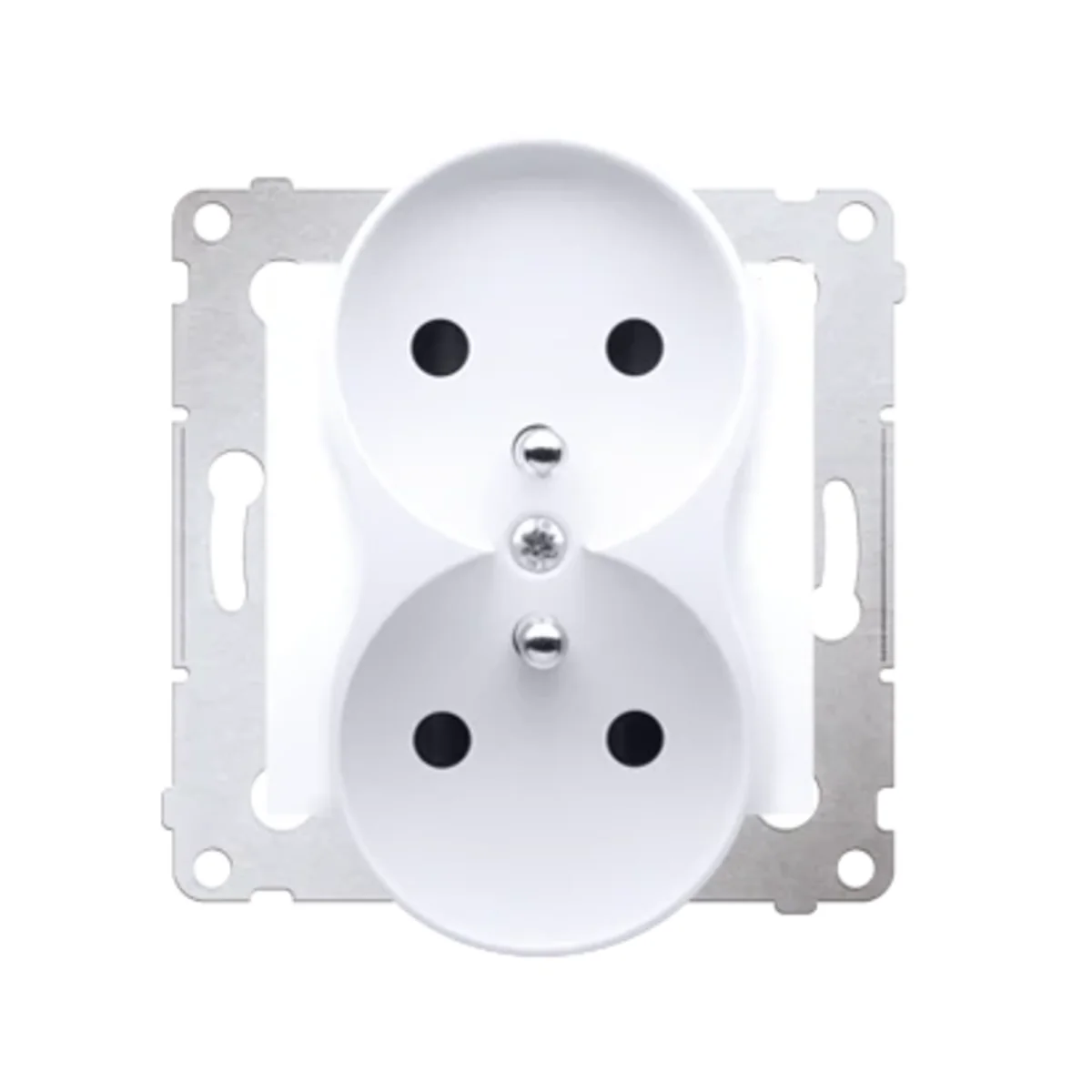

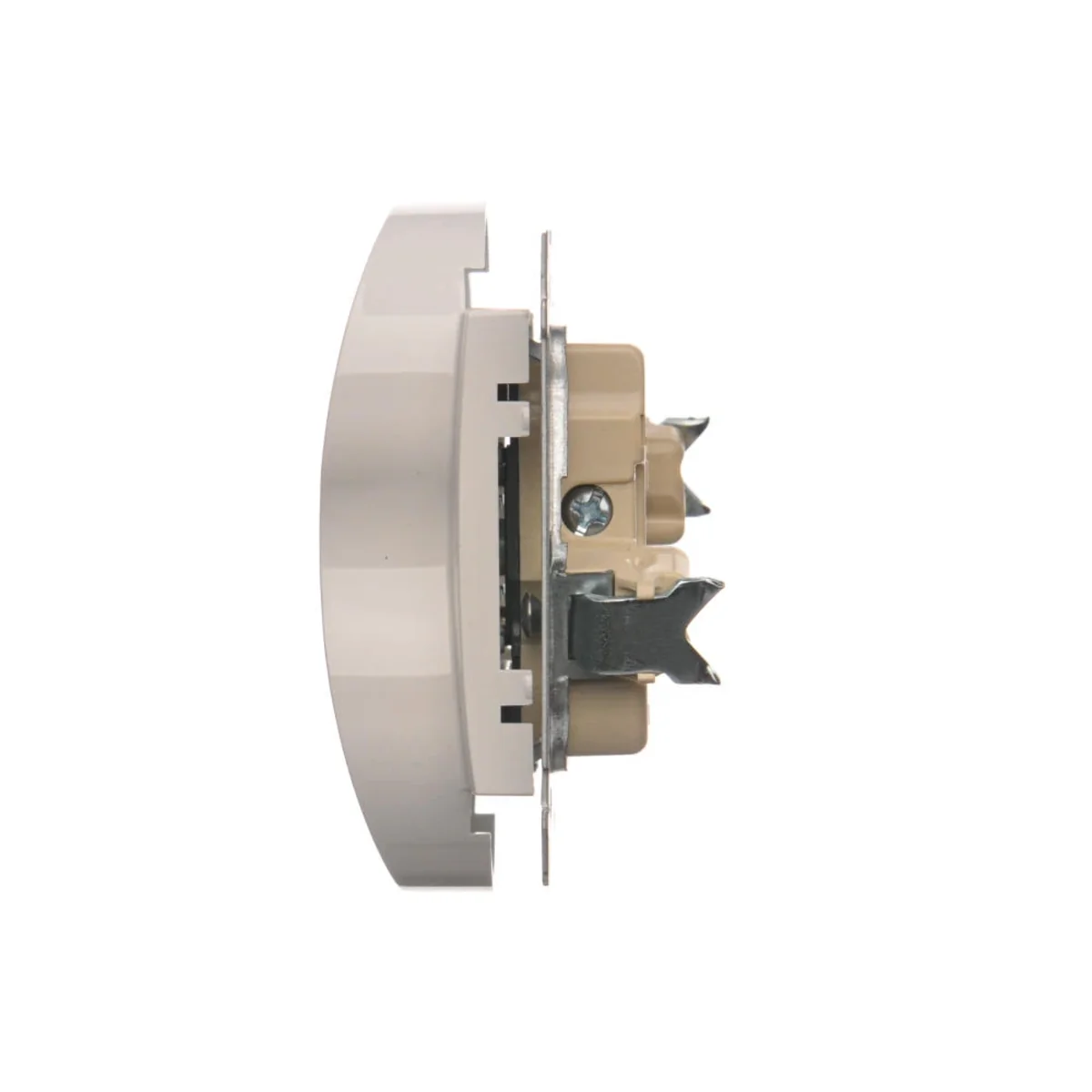

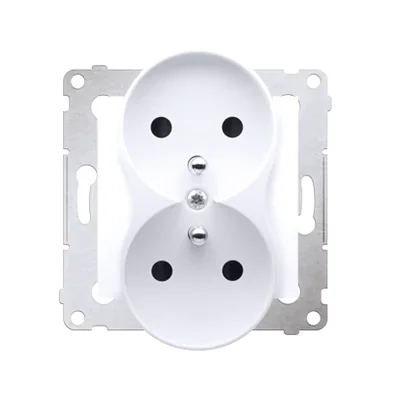

Socket from the Simon 54 Nature series, from the manufacturer Contact Simon. The product catalog number is DGZ2MZN.01/11.
FEATURES
- Double.
- Grounded; grounding pin.
- With shutters for current paths.
- Module without frame; for Simon 54 Nature.

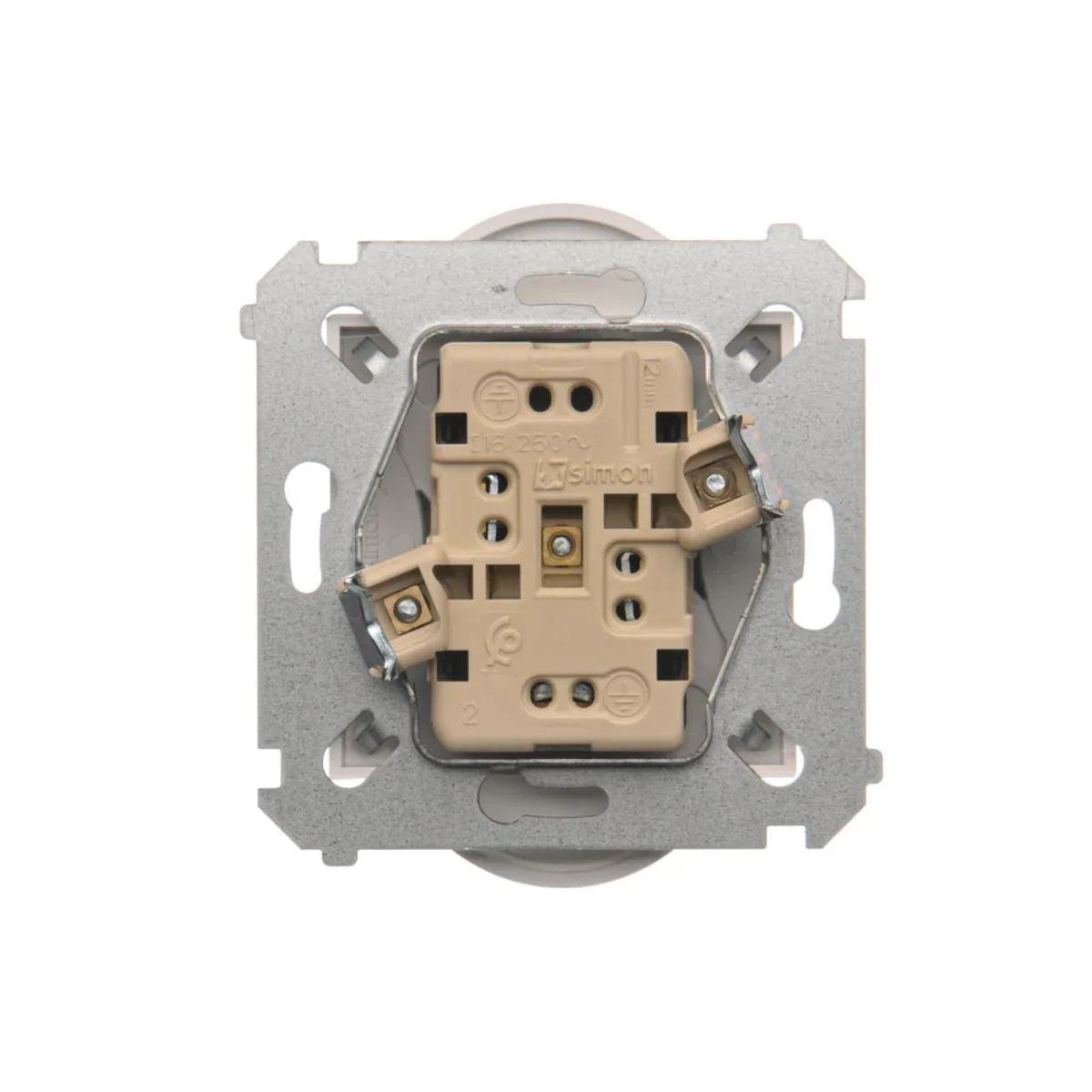

- Screw terminals.
- Color white. < li>Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.< /li>
- flushmount.
- Dimensions: 81 x 75mm (H x W).
- Material PC.
SERIES DESCRIPTION
Simon 54 Nature is a unique, nature-inspired series of wooden, glass and metal frames supplemented with frames made of concrete. The non-standard shape and noble materials guarantee a perfect combination of exposed elements of the accessories with the interior design.
Technical data
-
Halogen freeYes
-
Number of sockets2
-
ShapeRectangular
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]81
-
Surface finishShiny
-
Mounting depth [mm]20
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPC
-
Depth [mm]46
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 54
-
Width [mm]75
-
GroundHurt
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Number of units2
-
ColourWhite
-
MaterialPlastic
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Connection typeScrewed terminal
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Frequency50 ... 60 Hz
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,083 | 0,083 | 0,919 |
| Width (m) | 0,081 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,048 | 0,230 |
| Depth (m) | 0,046 | 0,160 | 0,100 |
