Double cross switch with backlight (module) 250 V, gold metallic DW7/2L.01/44

Name: Double cross switch with backlight (module) 250 V, gold metallic
Brand: KONTAKT-SIMON
SKU: MMK064KONT
Price: 123.00 PLN
Availability: BackOrder

Index local:

MMK064KONT

Numéro de catalogue:

DW7/2L.01/44

Code EAN:

5902787834050

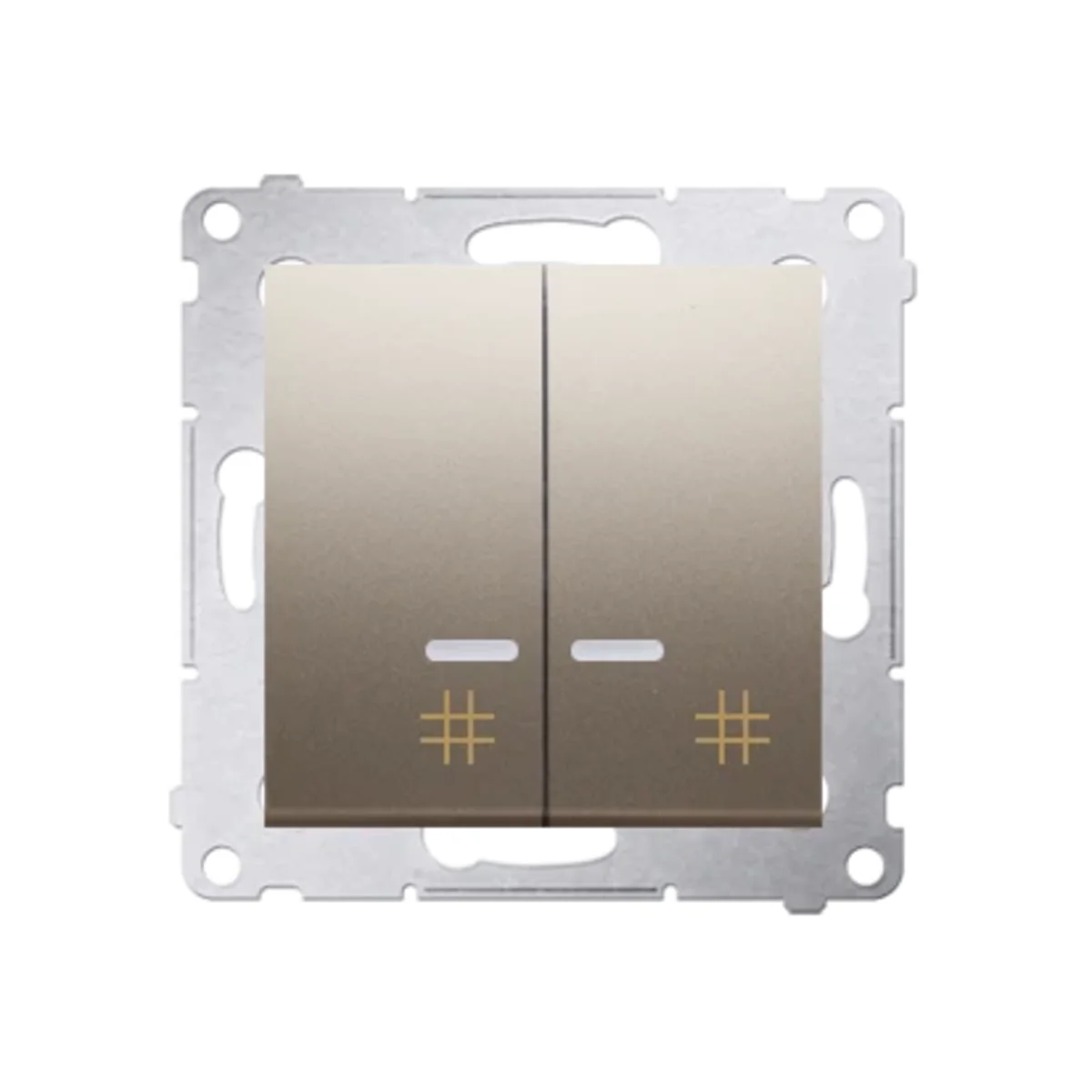

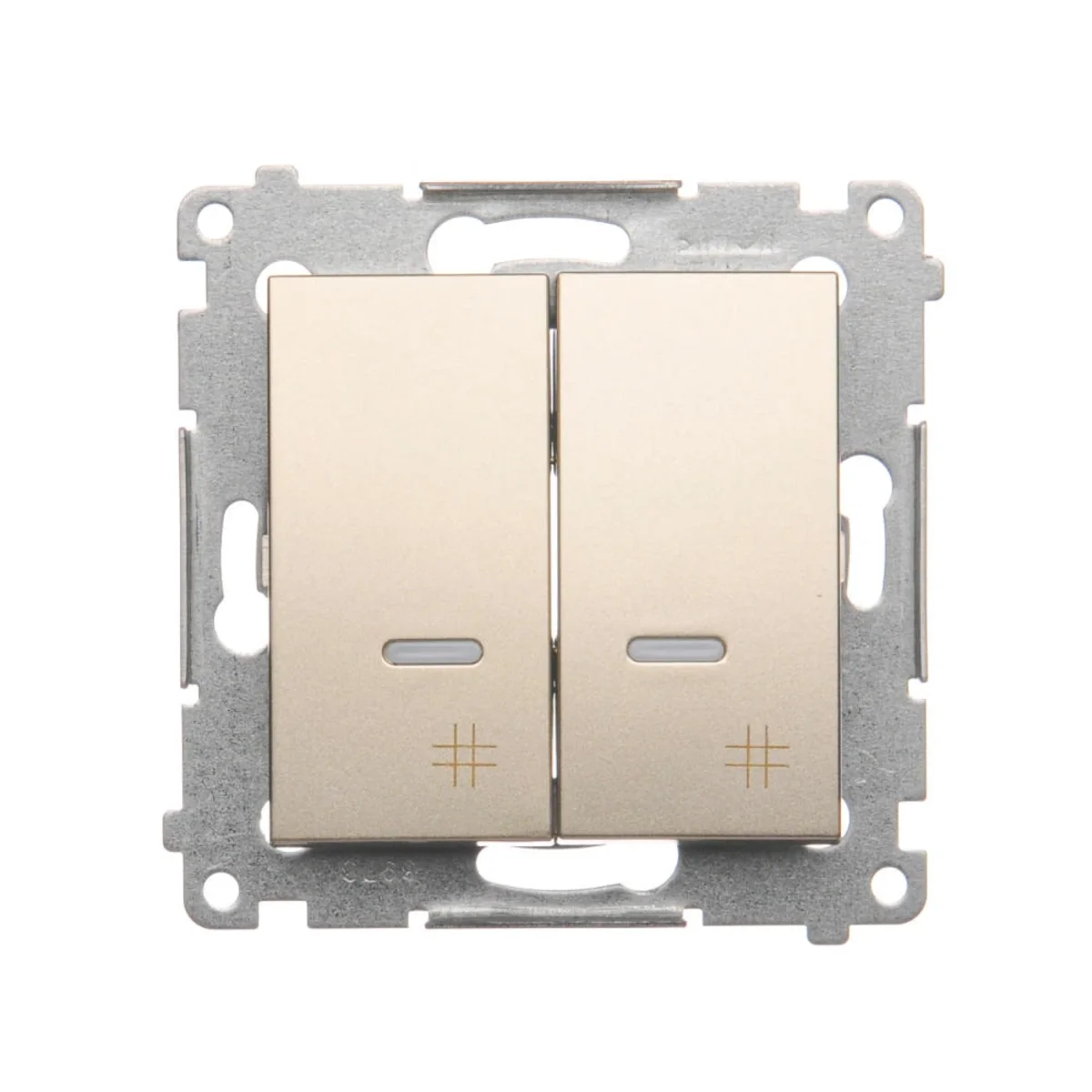

Double cross switch with backlight (module) 250 V, gold metallic

Cliquer sur la photo pour l'agrandir

Producteur: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

Voir la description complète

Prix:

123,00 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à une semaine

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Cross connector from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW7/2L.01/44.

FEATURES

Dual .
Module without frame.
2x1-pole switch (bistable).
Rocker switch.
Built-in orientation backlight (LED replaceable).

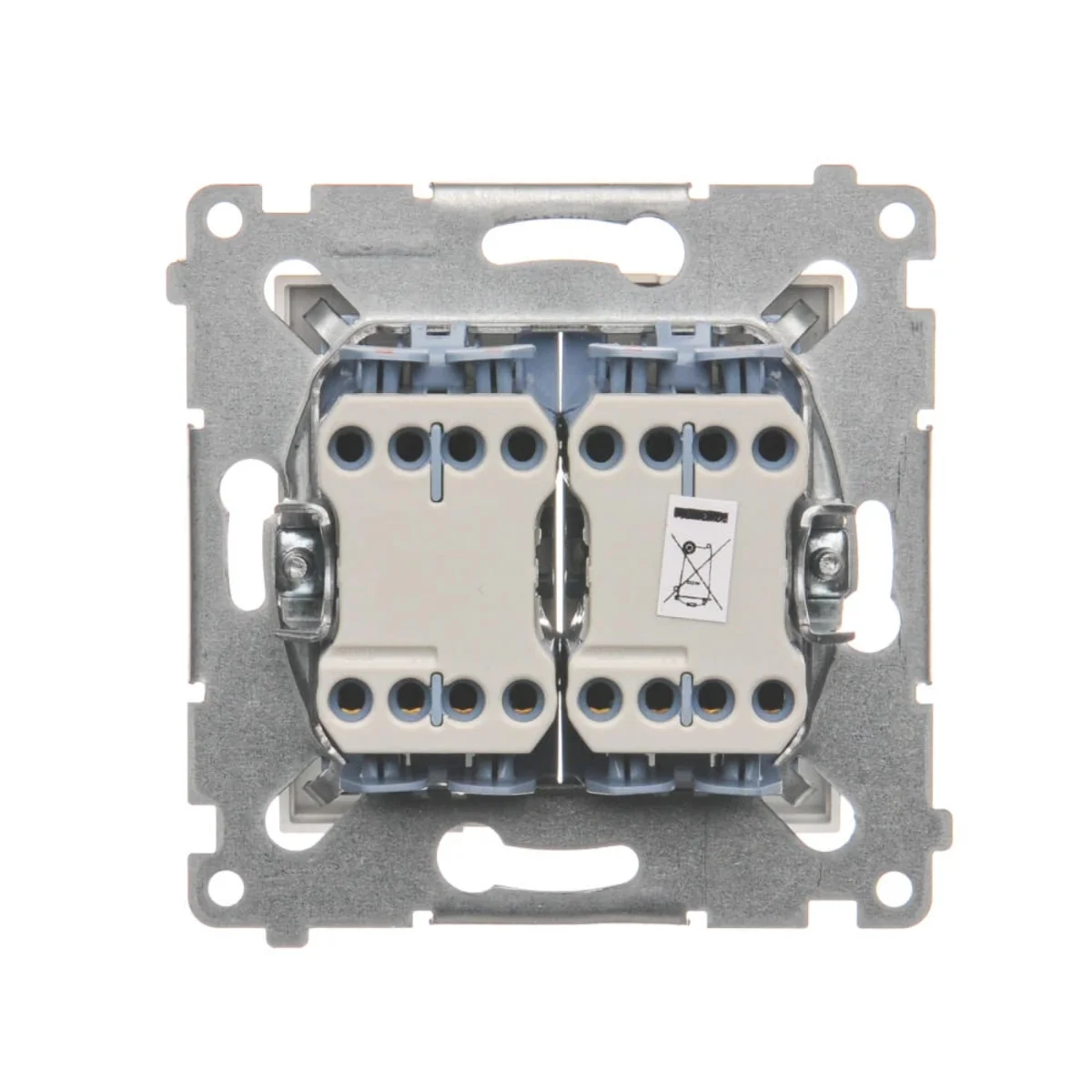

Quick connectors.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Cross connector has all the features of this unique series.

Données techniques

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Golden
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Cross
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Gold metallic matt
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Autres données techniques

Wiring system

Off switch 2x1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V
Connection type

Push-in clamp

Détails du fabricant

Producteur

Kontakt-Simon S.A.
Adresse

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
E-mail

info@kontakt-simon.com.pl

Emballage en vrac

Une sorte de paquet	Paczka	Karton
Quantité	1 pcs.	10 pcs.
poids (kg)	0,080	0,889
Largeur (m)	0,110	0,190
Longueur (m)	0,045	0,230
Profondeur (m)	0,160	0,100
