Double cross switch 2 keys (module) 230, white DW7/2.01/11

Name: Double cross switch 2 keys (module) 230, white
Brand: KONTAKT-SIMON
SKU: MMK054KONT
Price: 18.59 PLN

local index:

MMK054KONT

Catalog No:

DW7/2.01/11

EAN code:

5902787833961

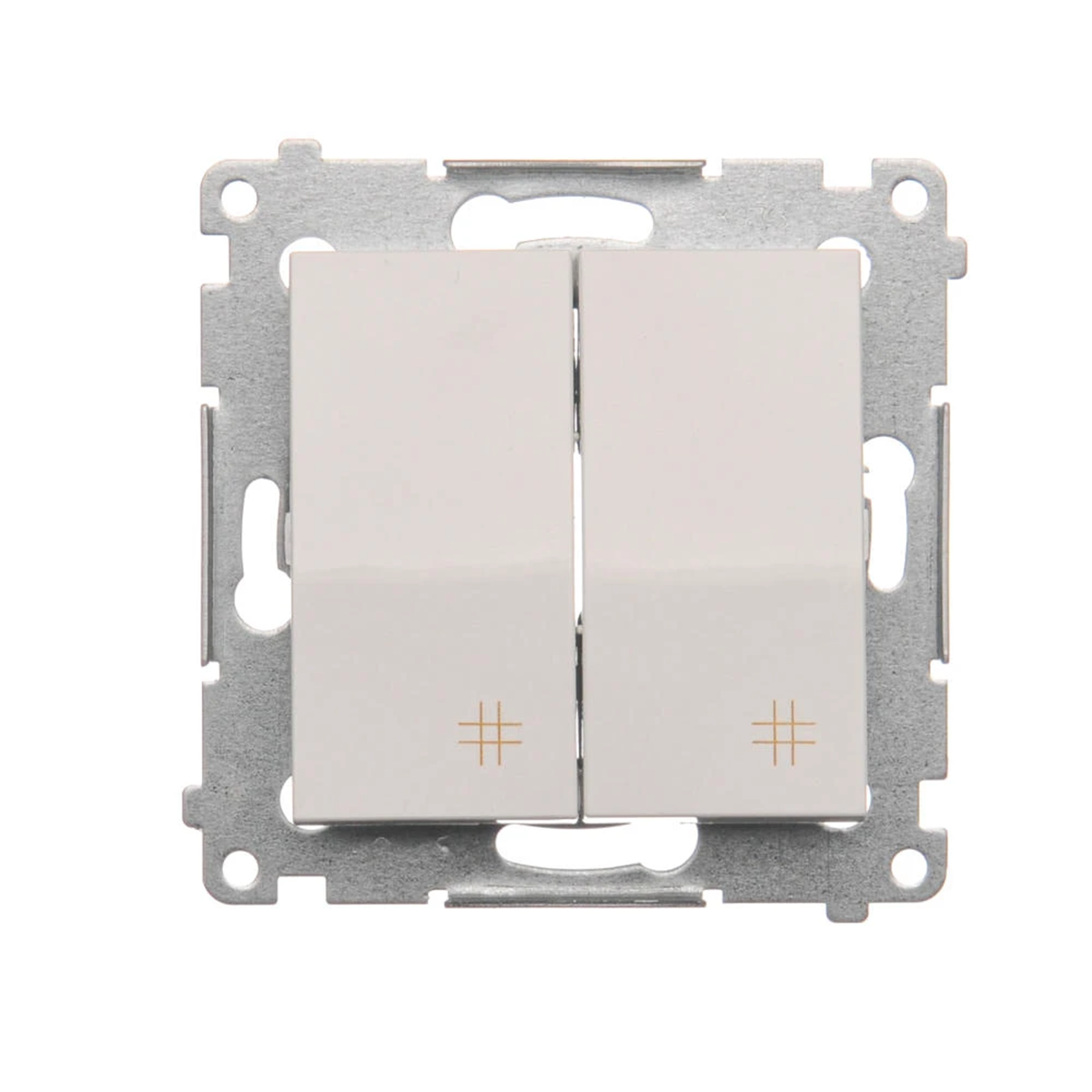

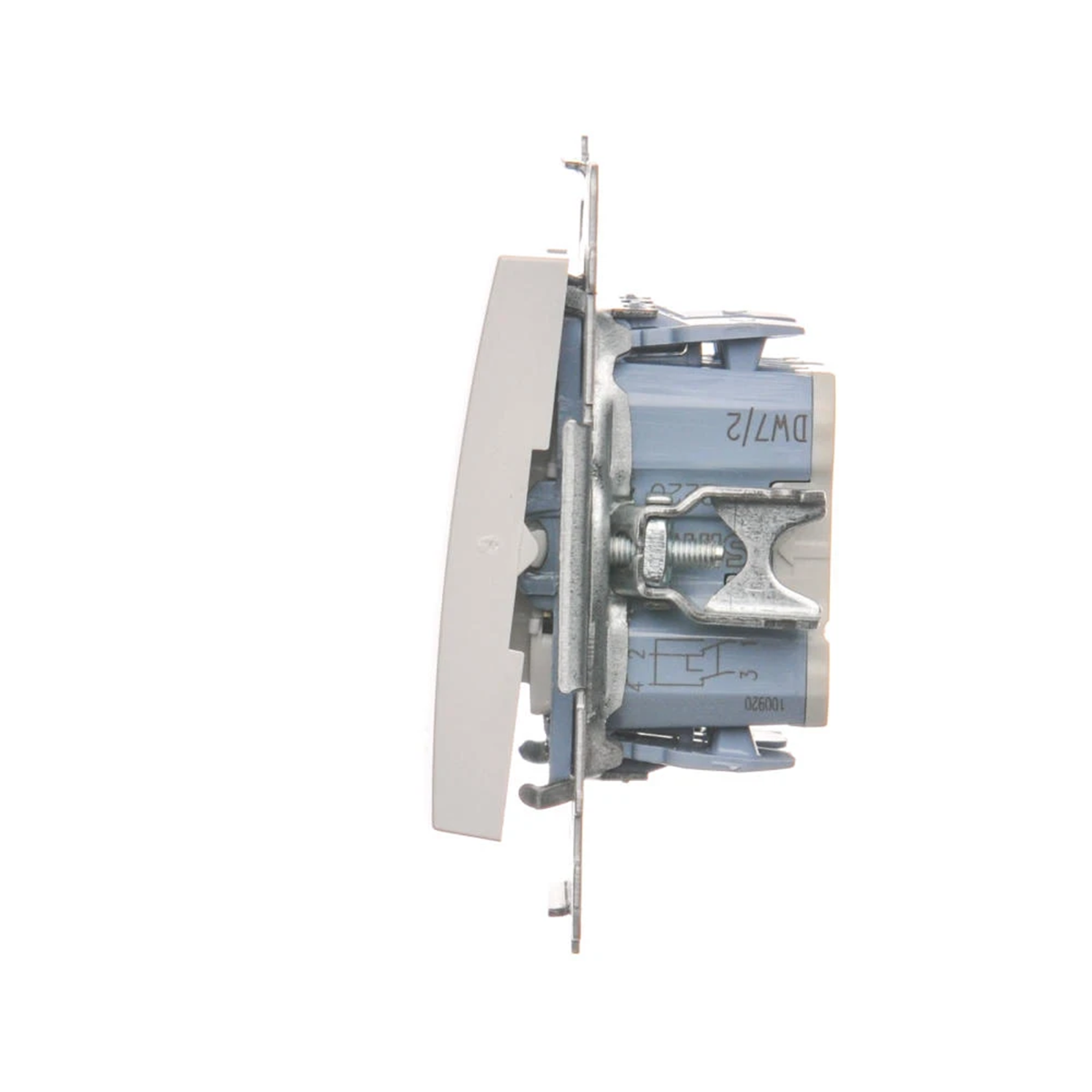

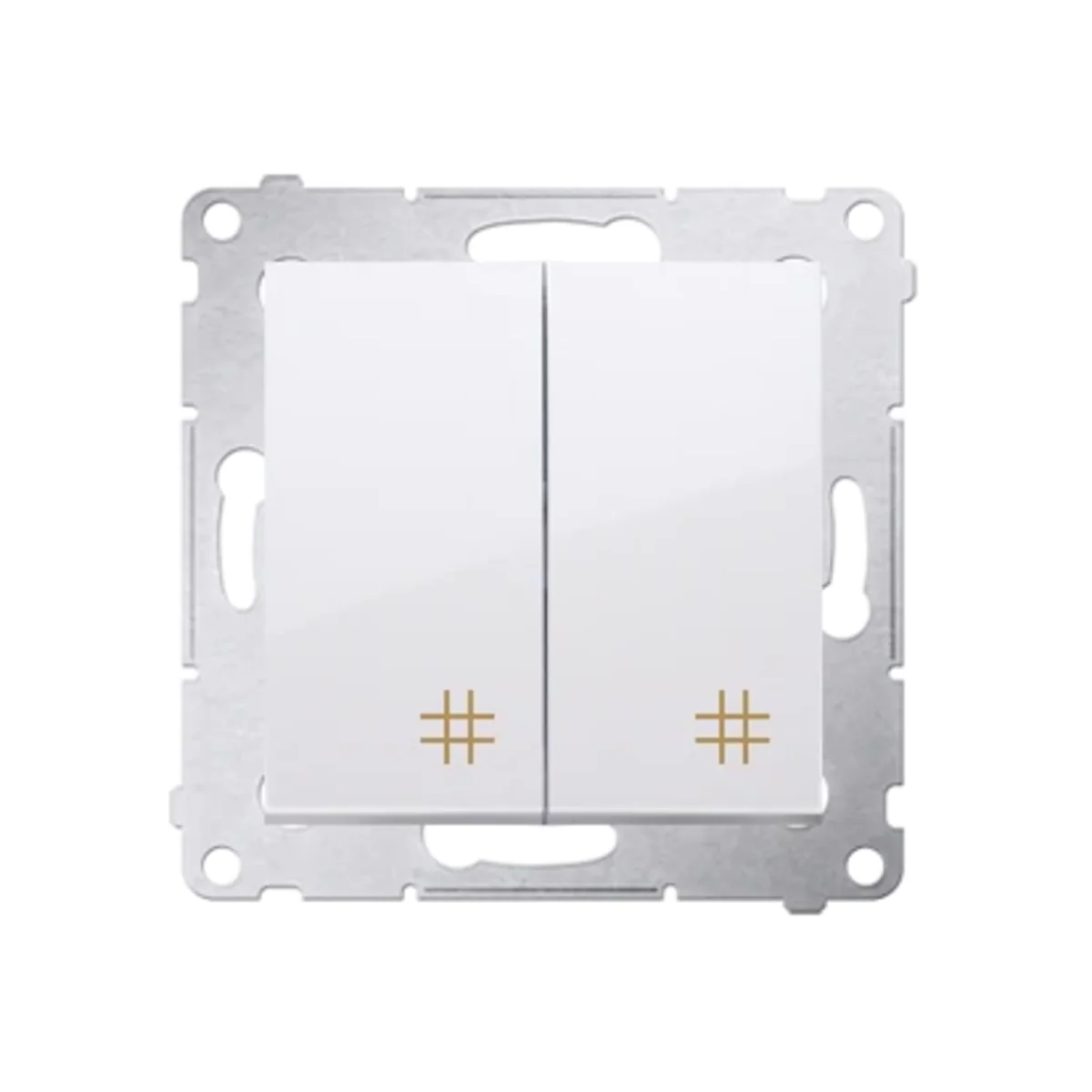

Double cross switch 2 keys (module) 230, white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

See full description

Price:

18,59 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Cross connector from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW7/2.01/11 .

FEATURES

Dual.
Module without frame.
Toggle switch.
Rocker switch.
Backlight optional, not included.

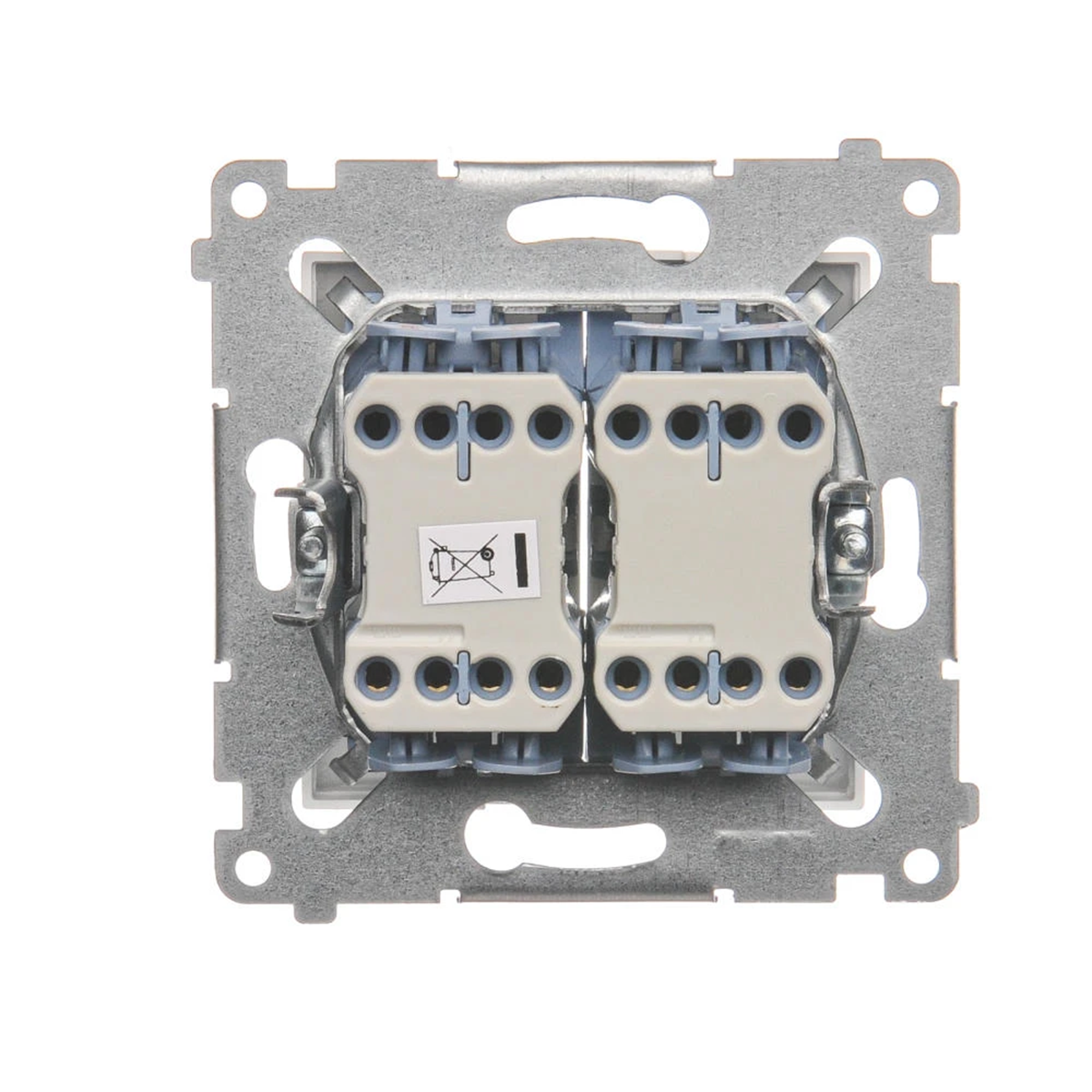

Quick connectors.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The cross connector has all the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Cross
Type

Flush-mounted
Surface protection

Natural
Backlight

NO
Terminal type

Threadless
Exact material

PC

Other technical data

Wiring system

Intermediate switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,073	0,073	0,819
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
