Double-circuit push-button: 2 inputs, 2 outputs (module) 230V, metallic inox BMP2.01/21

local index:
MMZ048KONT
Catalog No:
BMP2.01/21
EAN code:
5902787820596
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 2
Price:
10,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

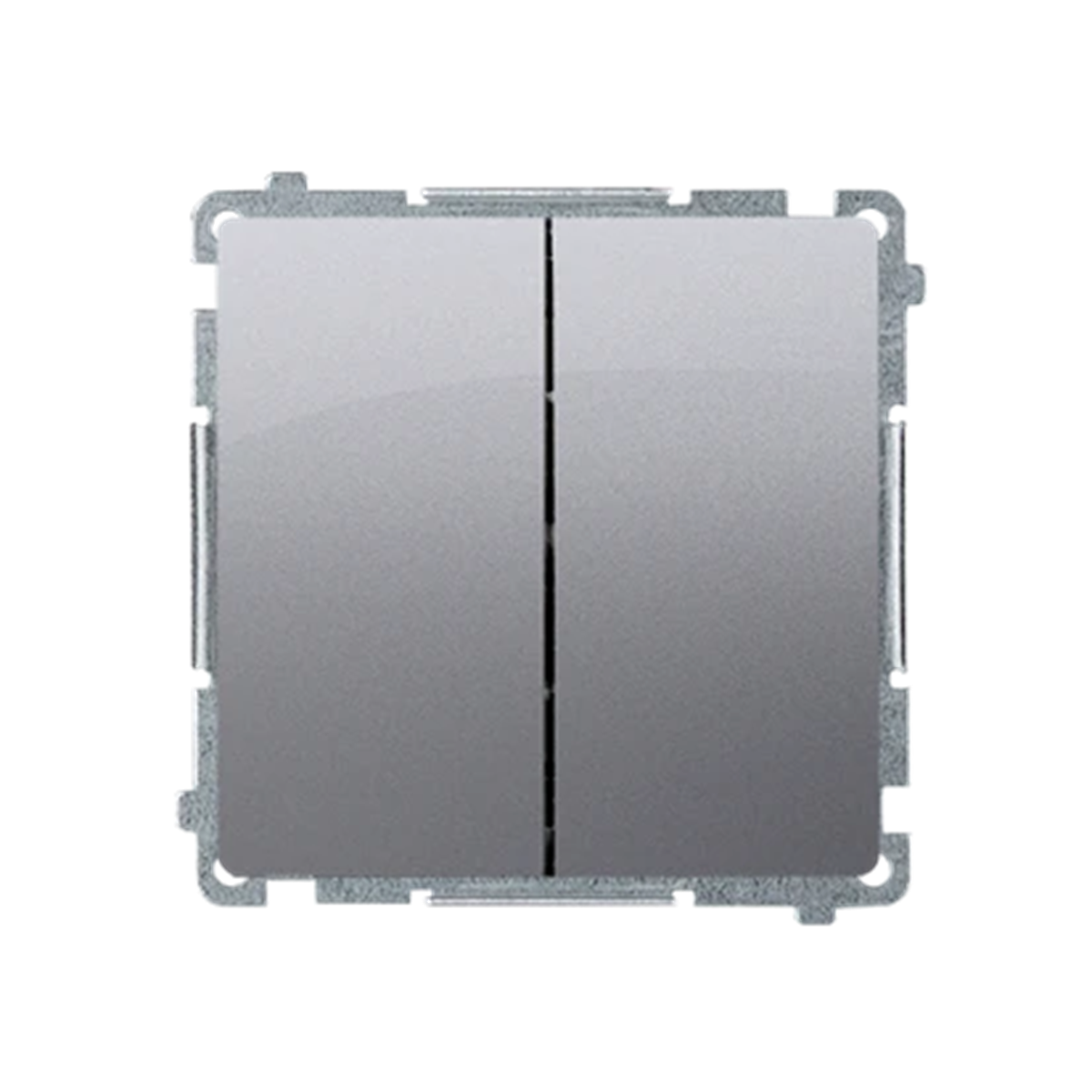

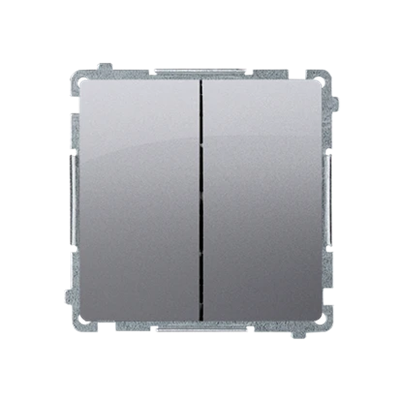

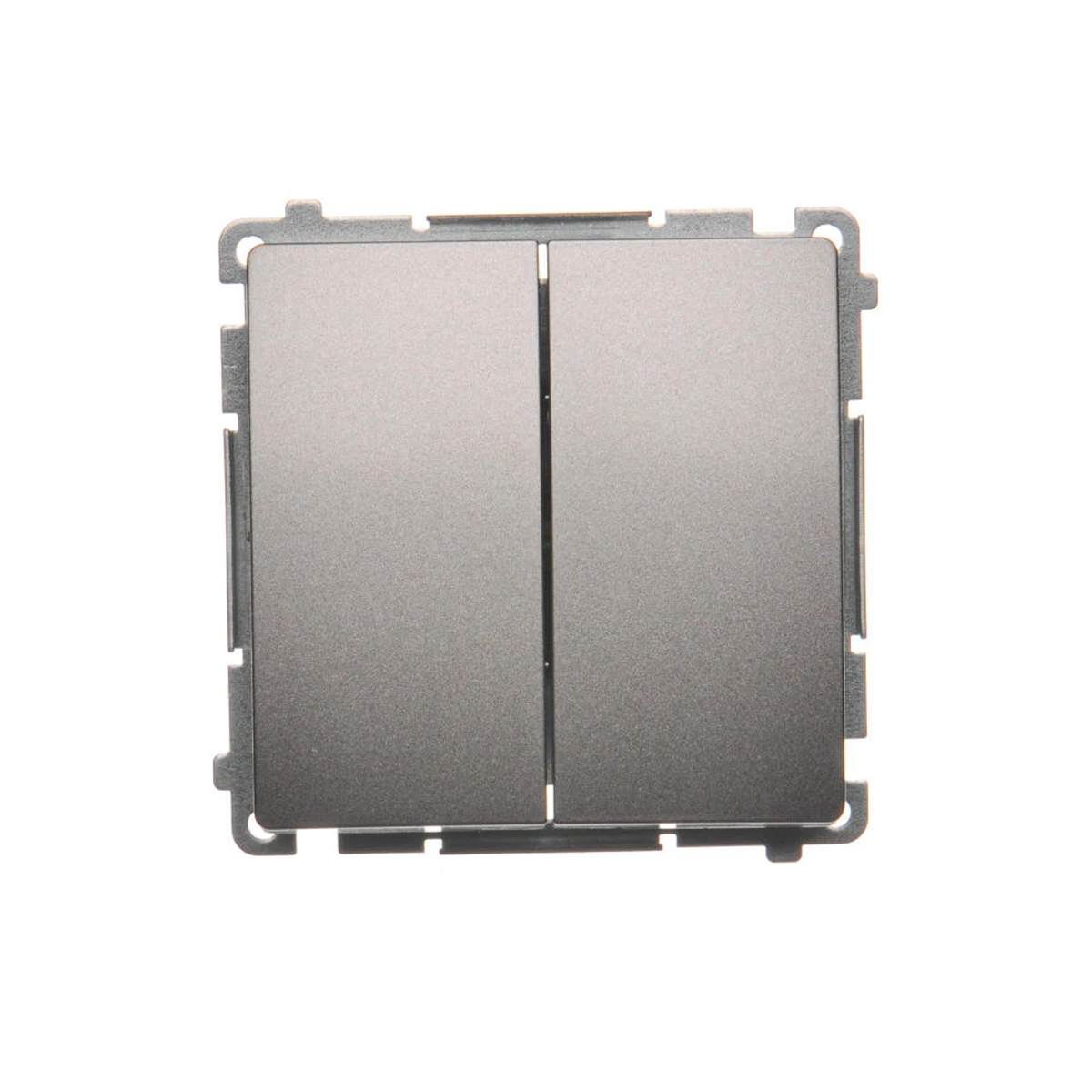

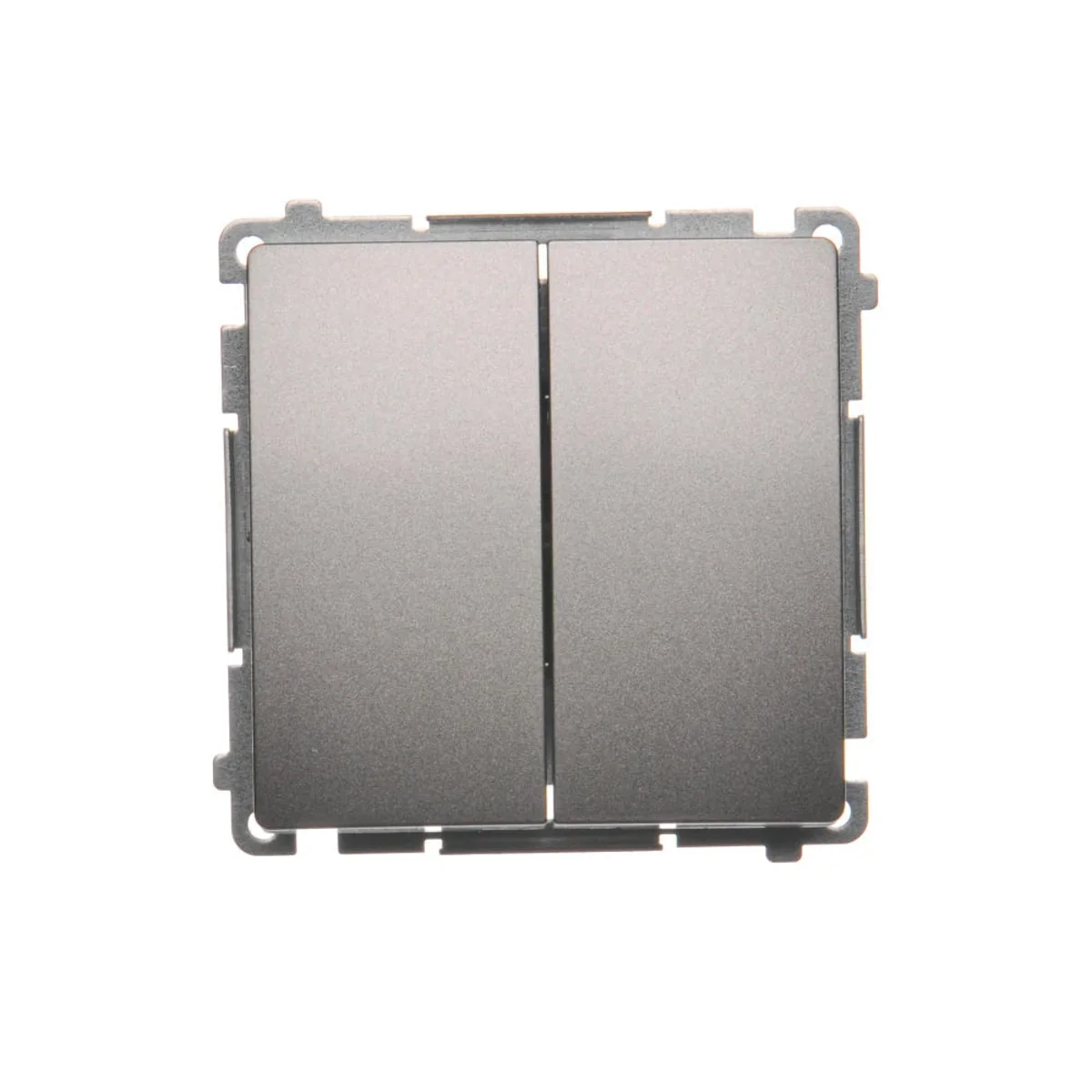

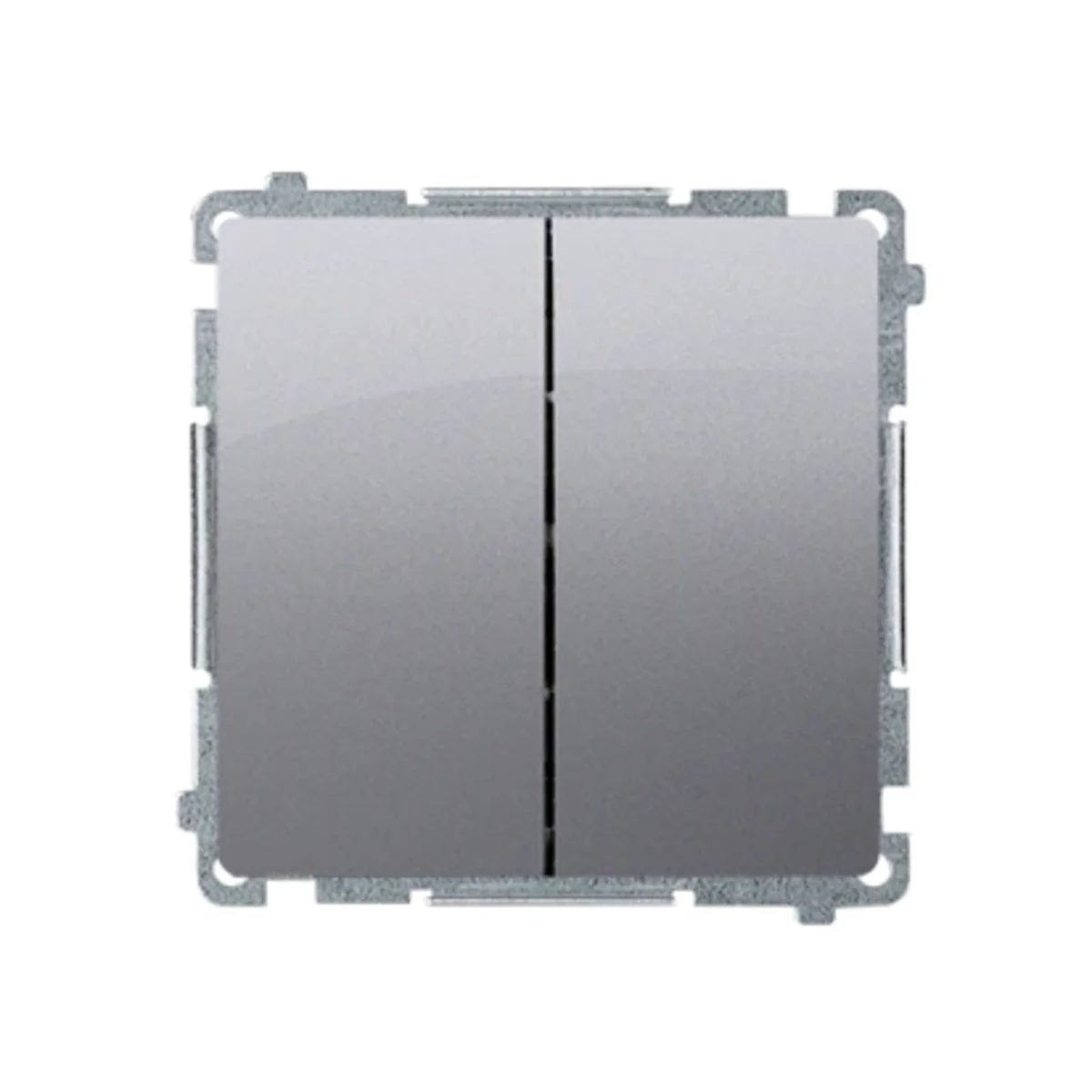

Double closing pushbutton from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is < strong>BMP2.01/21. Inox color, metallic.



FEATURES

  • Quick connectors.< /li>
  • 2 NO contacts.
  • 2x1-pole pushbutton (monostable).

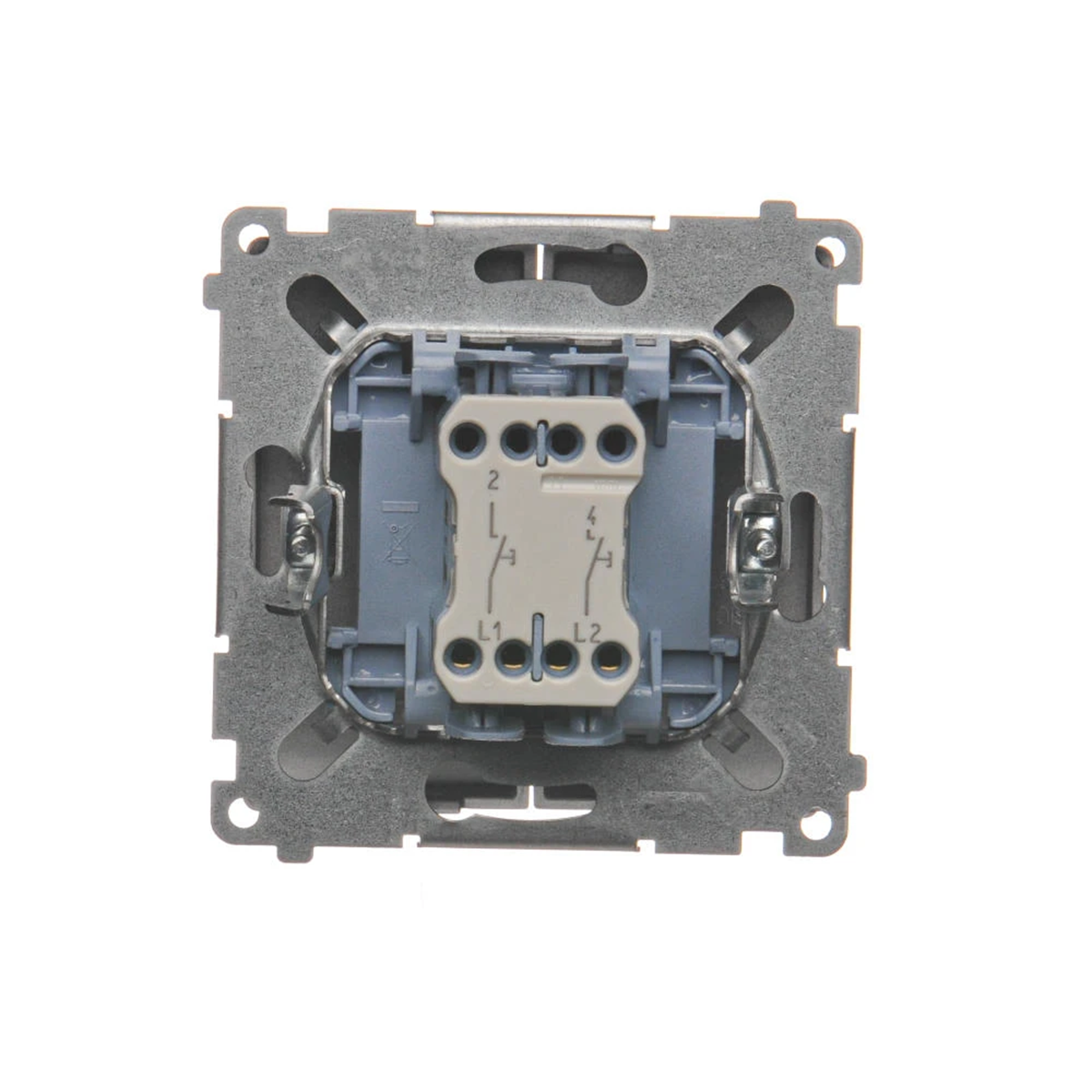

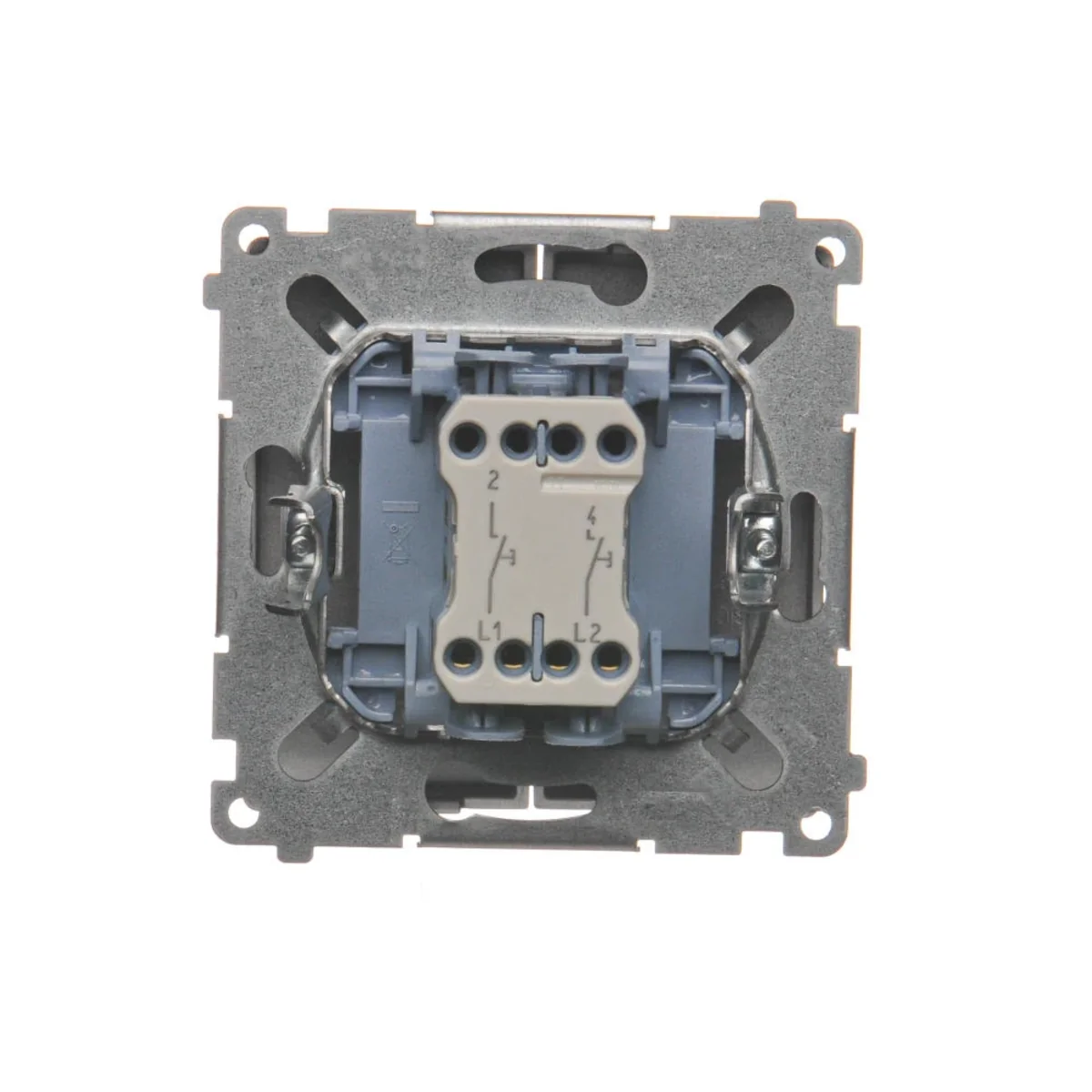

  • Dual-circuit: 2 inputs, 2 outputs.
  • To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..
  • To obtain IP44 splash-proof class, additionally use a gasket under the keys: SU1W.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Metallized stainless steel
  • Mounting depth [mm]
    24
  • Variant
    Ordinary
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Contacts
    2 make contacts (NO)
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,080 0,080 0,887
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
