DATA socket with authorization key (module) 16A 250V screw terminals anthracite (metallic) DGD1.01/48

Name: DATA socket with authorization key (module) 16A 250V screw terminals anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MEE010KONT
Price: 8.49 PLN

local index:

MEE010KONT

Catalog No:

DGD1.01/48

EAN code:

5902787824297

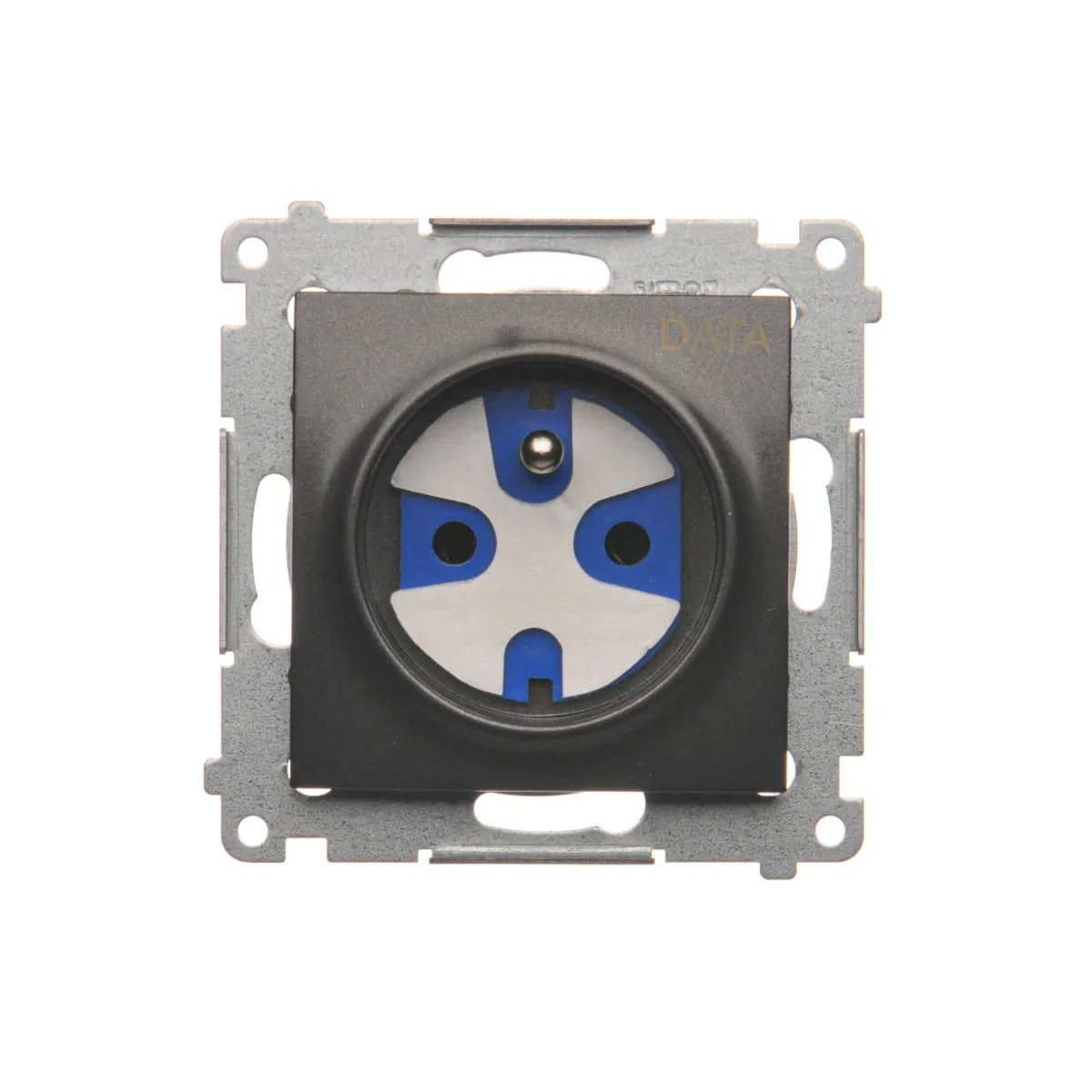

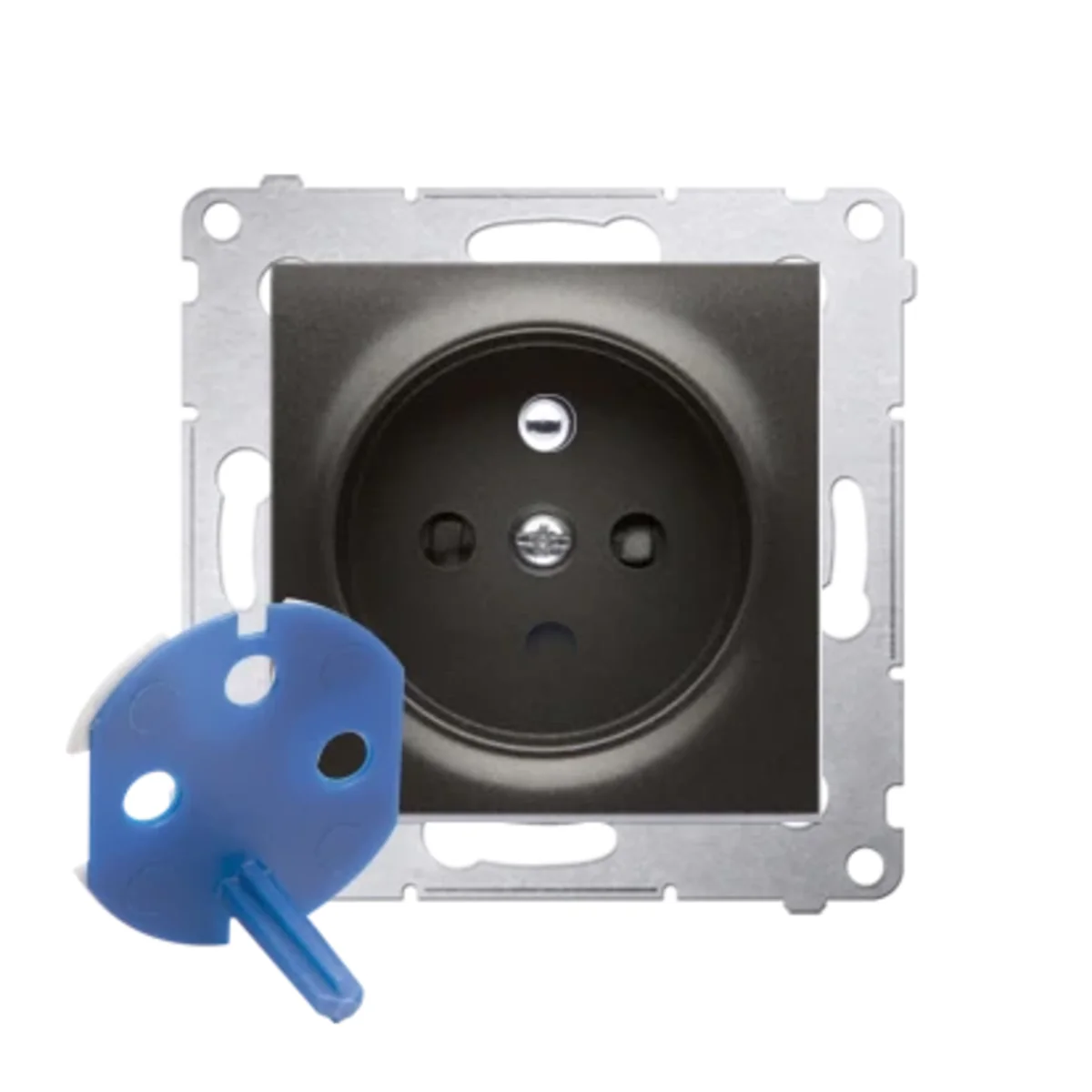

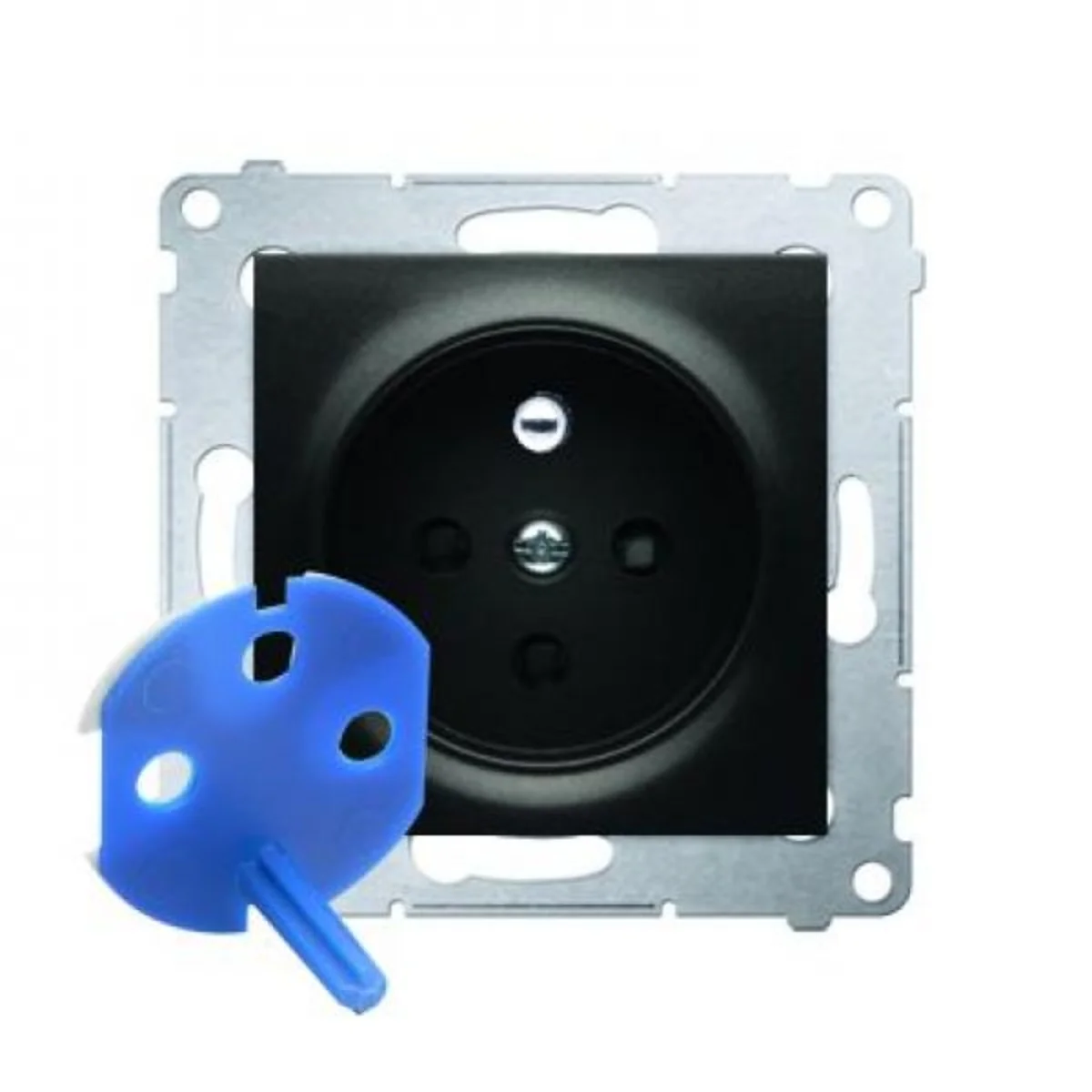

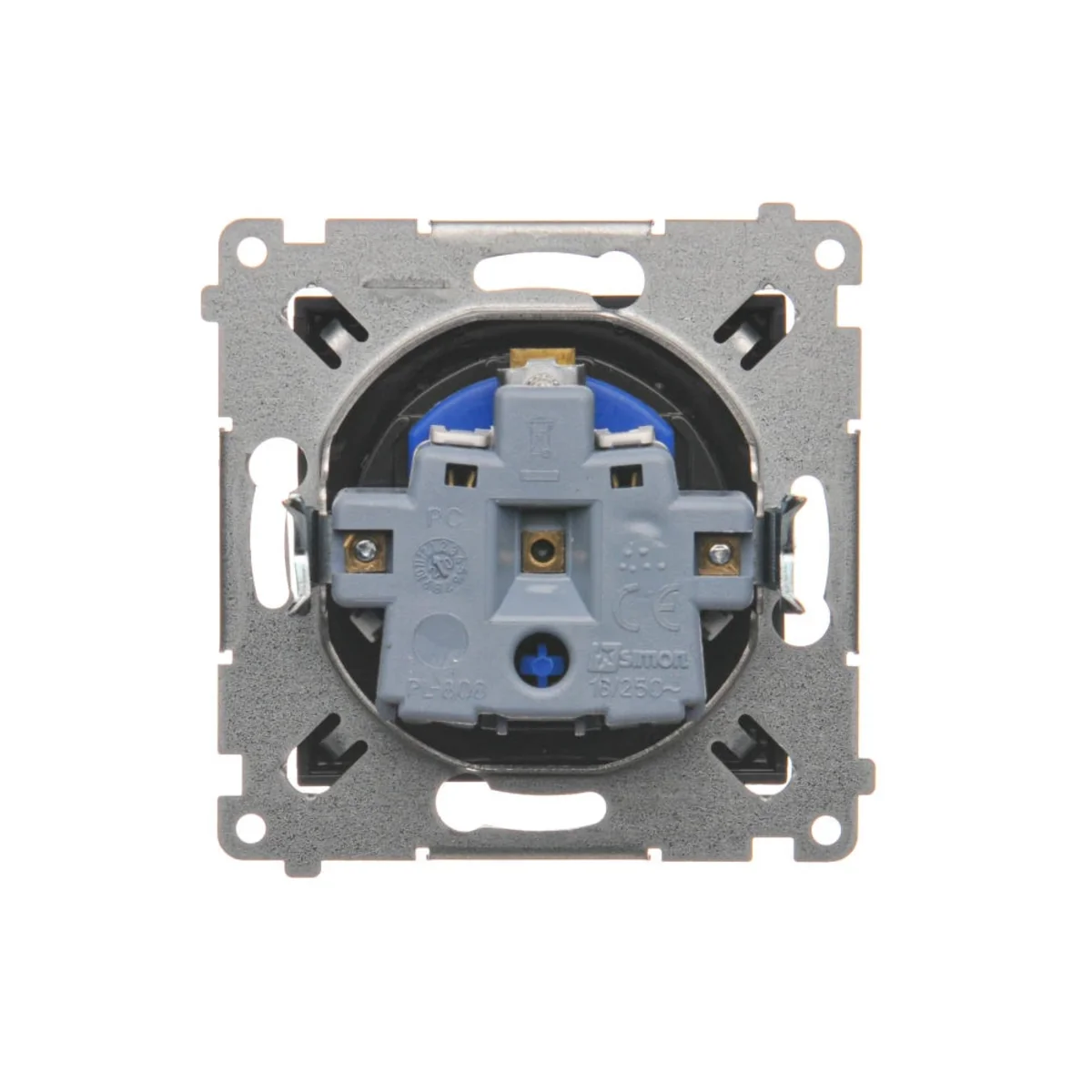

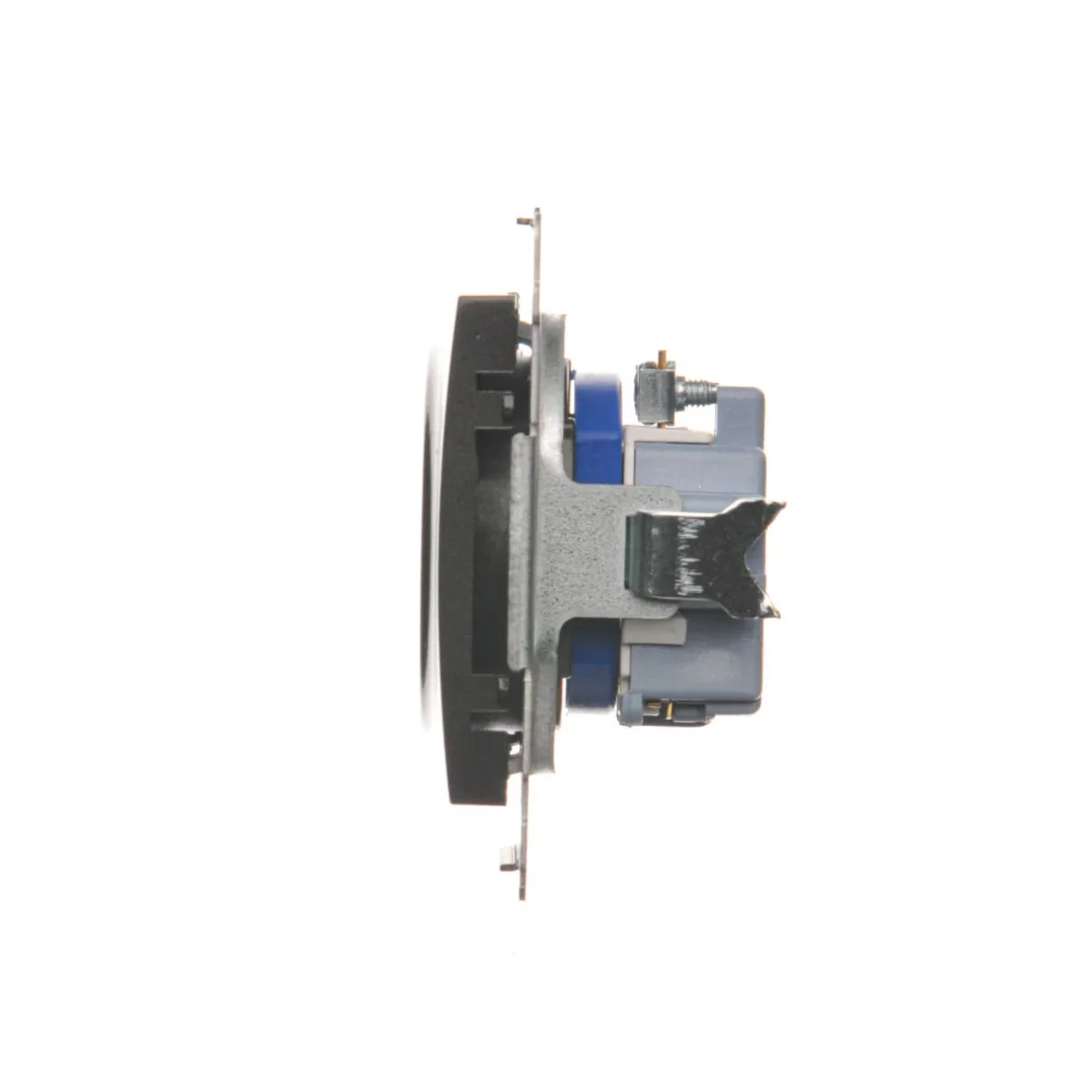

DATA socket with authorization key (module) 16A 250V screw terminals anthracite (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 38

Number of sockets: 1

See full description

Price:

8,49 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Socket from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DGD1.01/48.

FEATURES

Single.
Grounded, ground pin.
DATE.
With authorization key.
Module without frame; for frames from the Nature and Premium series.
Thread clamps.

anthracite

Rated current 16A.
Rated voltage 230V.
Ingress protection IP20.
flush mounting.
Dimensions: 75 x 75 ;mm (height x width).
Material PC.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of sockets

1
Shape

Square
Fixing

claws Screws
Overprint

DATE
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Ground

Hurt
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

26
Standard

European
On the DATA key

Yes
Additional information

With authorization key
PKWIU

27.33.13.0

Depth [mm]

38
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

Yes
Exact material

PC

Other technical data

Number of units

1
Colour

Anthracite
Material

Plastic
Surface protection

Lacquered
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Frequency

50 ... 60 Hz

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,076	0,076	0,852
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,043	0,230
Depth (m)	0,038	0,160	0,100
