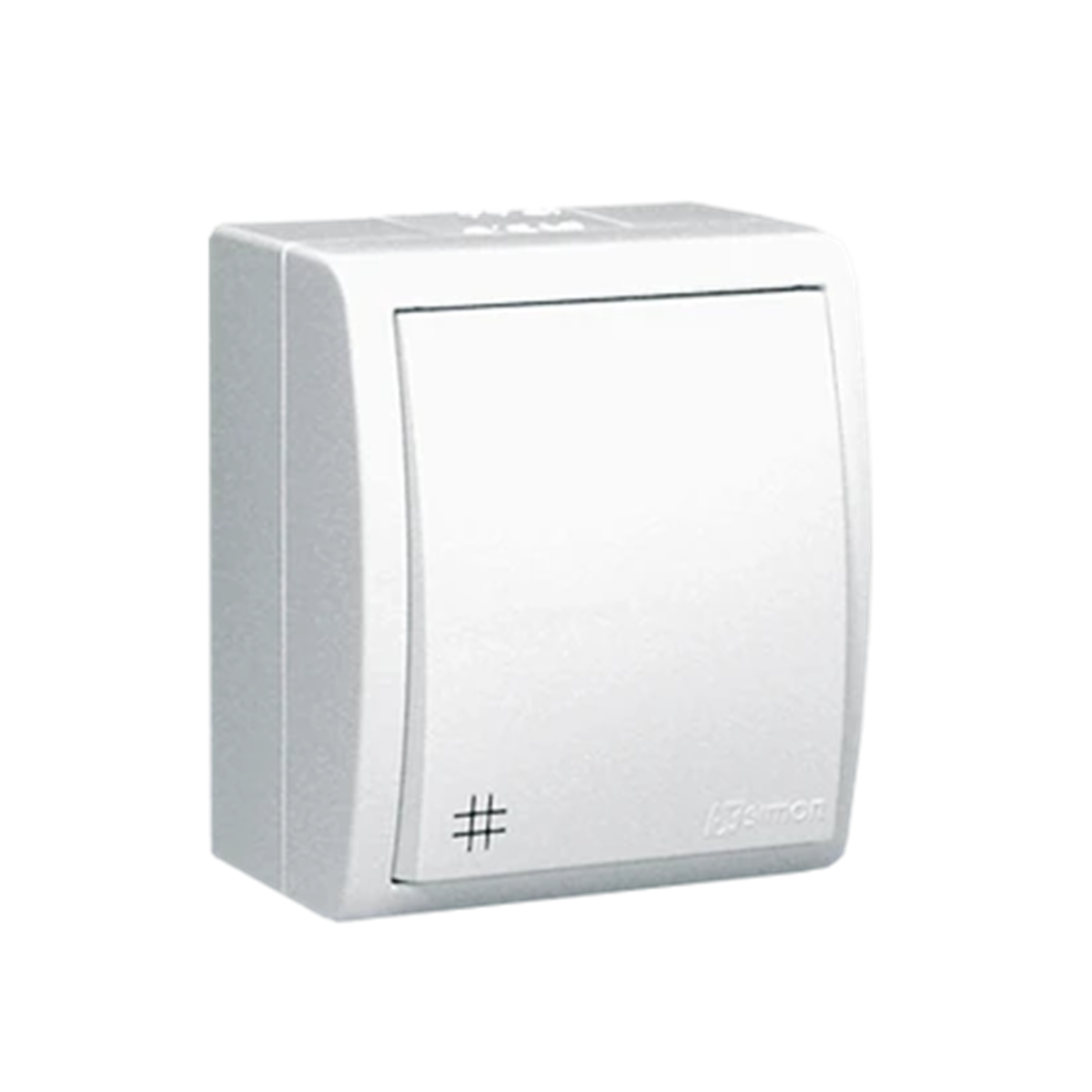

Cross switch with backlight, 230V, white AQW7L/11

Místní index:
MNK002KONT
Katalogové číslo.:
AQW7L/11
EAN kód:
5902787574437
Výrobce: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 48
Number of keys: 1
Cena:
9,04 €
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
do 2 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Hermetic cross connector with backlight, from the Simon Aquarius series. The product catalog number is AQW7L/11.



FEATURES

  • Backlight built-in, orientation.< /li>
  • Complete product.
  • Rocker switch.
  • Bistable switch.
  • Screw mounting (e.g. to a box).



SERIES DESCRIPTION

Simon Aquarius is a series of surface-mounted, splash-proof electrical installation equipment intended for use in adverse conditions.  Hermetic cross connector characterize the features of this unique series.

Technické údaje

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Rectangular
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP54
  • Type
    Surface-mounted
  • Surface protection
    Natural
  • Backlight
    Yes
  • For the frame system
    NO
  • Backlight type
    Smoldering lamp
  • PKWIU
    27.33.11.0
  • Depth [mm]
    48
  • Color
    White
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    SIMON AQUARIUS
  • Width [mm]
    60
  • Height [mm]
    70
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Exact material
    ABS
  • Backlight color
    Orange

Další technické údaje

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal
  • Method of operation
    Rocker/button
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP54
  • Switching current for fluorescent lamps
    10 AX

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Paczka Karton
Množství 1 kusů. 10 kusů.
Hmotnost (kg) 0,088 0,968
Šířka (m) 0,110 0,190
Délka (m) 0,053 0,230
Hloubka (m) 0,160 0,100
