Cross connector with LED backlight (module) 10A 250V white quick connectors DW7L.01/11

Name: Cross connector with LED backlight (module) 10A 250V white quick connectors
Brand: KONTAKT-SIMON
SKU: MMK072KONT
Price: 10.57 PLN

local index:

MMK072KONT

Catalog No:

DW7L.01/11

EAN code:

5902787822705

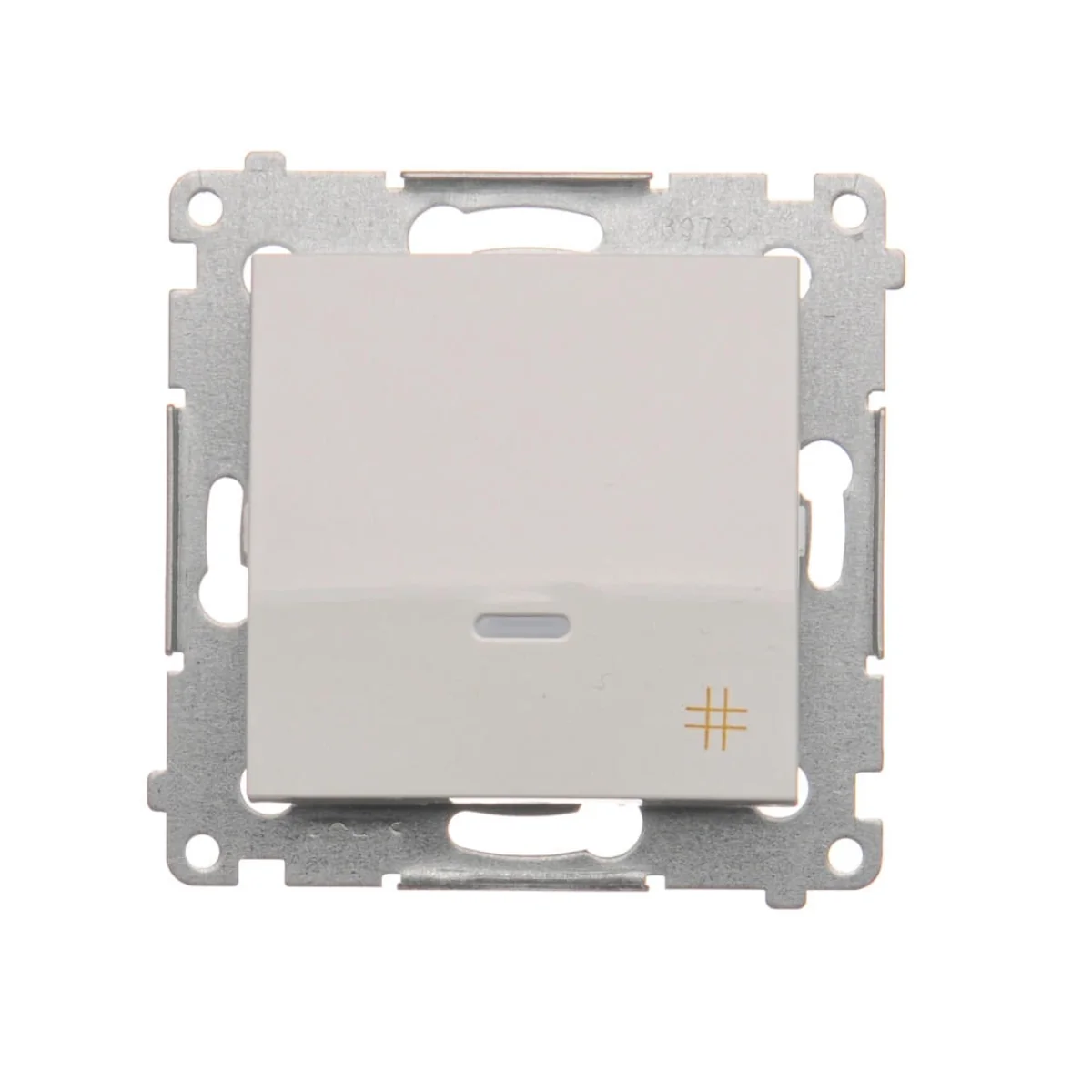

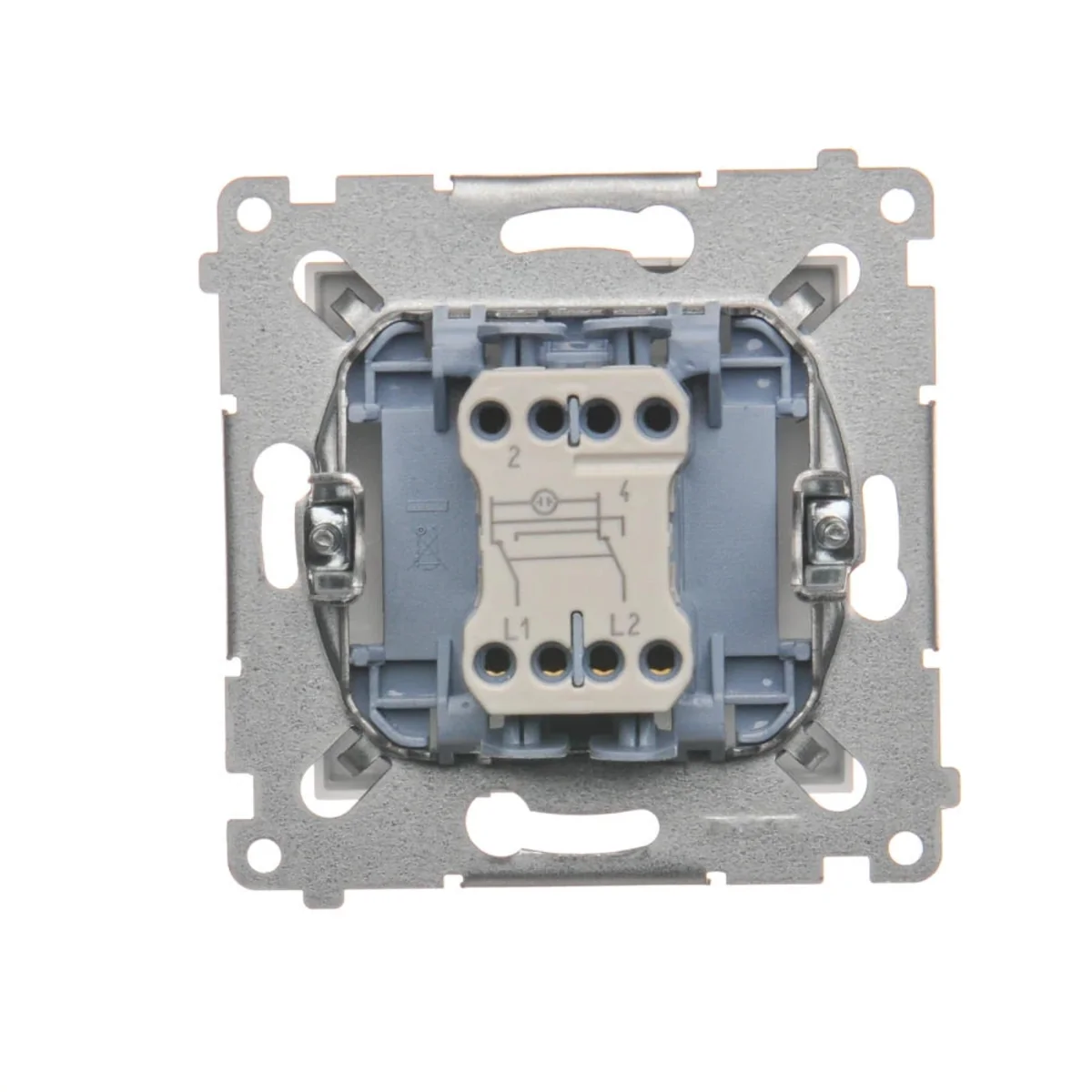

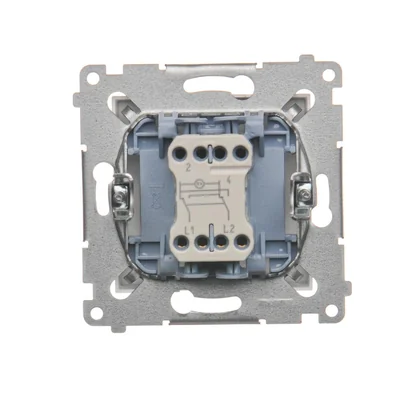

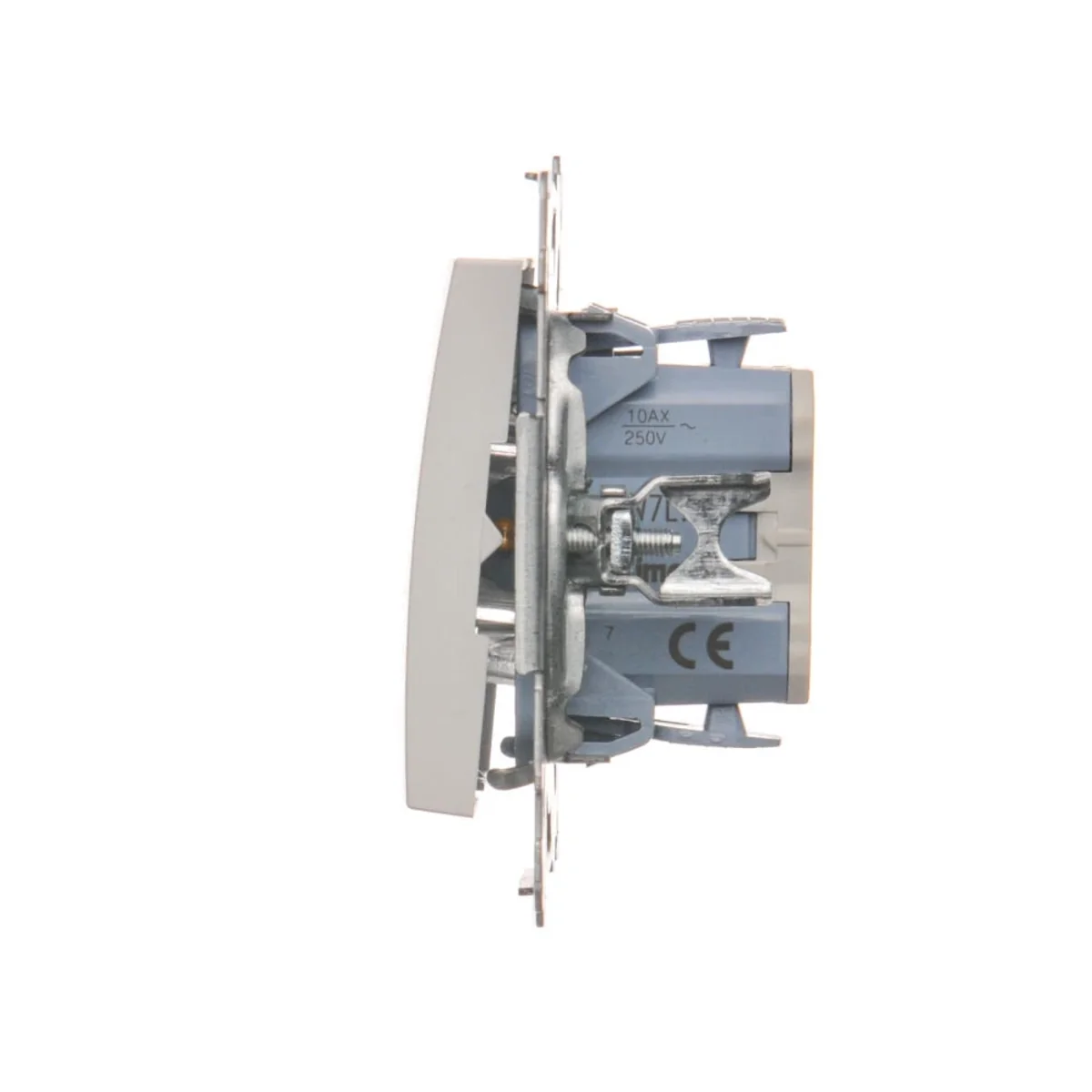

Cross connector with LED backlight (module) 10A 250V white quick connectors

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

10,57 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Cross connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW7L.01/11.

FEATURES

Module without frame.< /li>
Bistable switch.
Rocker switch.
Built-in, replaceable LED backlight.
Quick connectors.
To obtain the IP44 splash-proof class, use the frame gasket.

SERIES DESCRIPTION

Simon 54 to a series of modern installation accessories, distinguished by reliable and easy to install mechanisms and a variety of colors. The cross connector has all the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Cross
Type

Flush-mounted
Surface protection

Natural
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Other technical data

Wiring system

Intermediate switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,063	0,063	0,719
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
