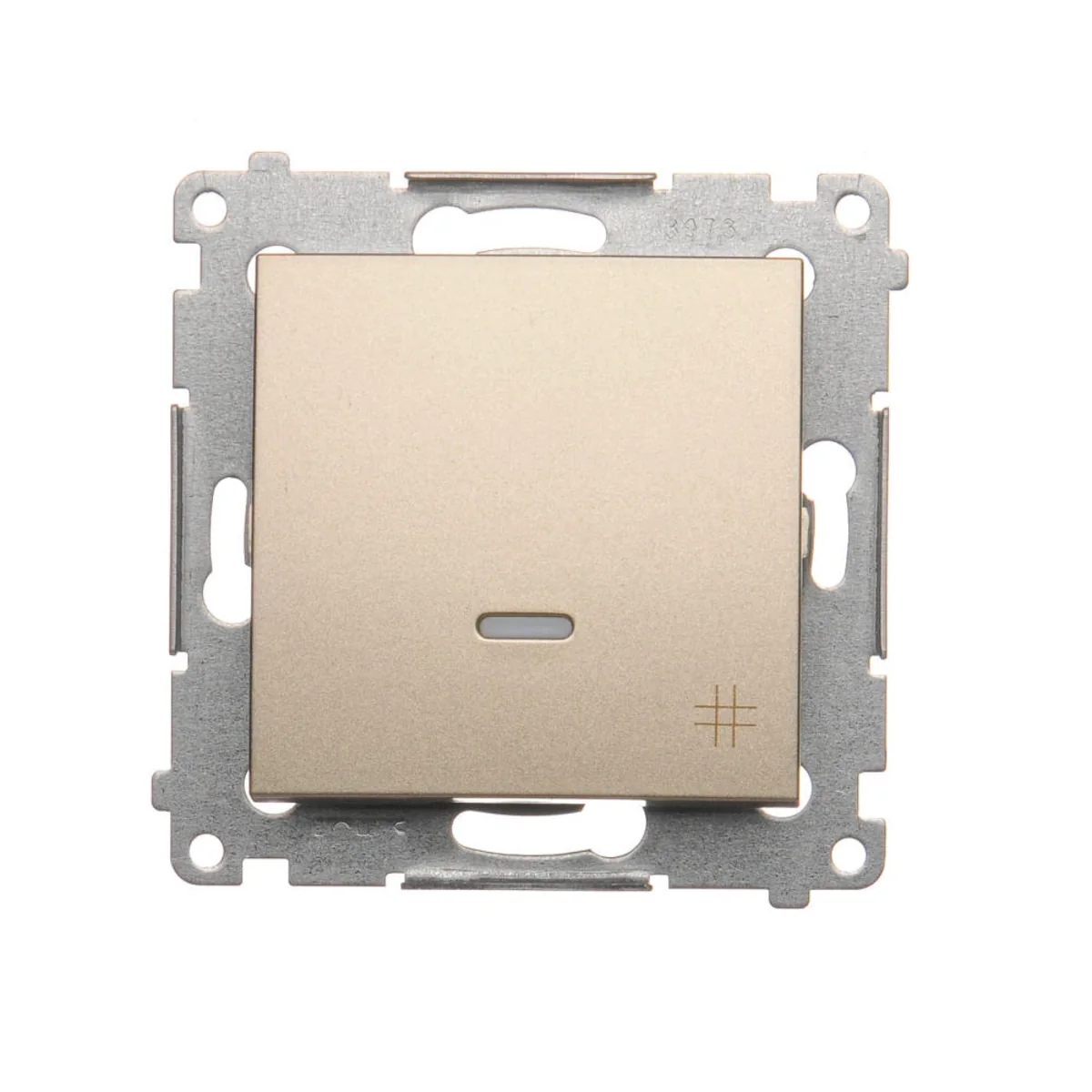

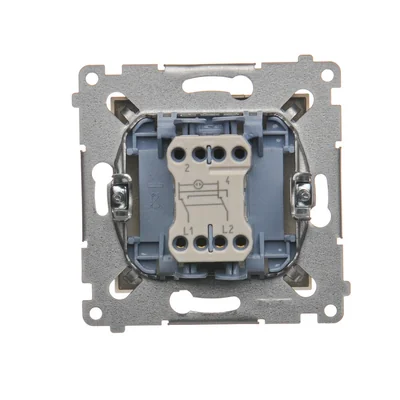

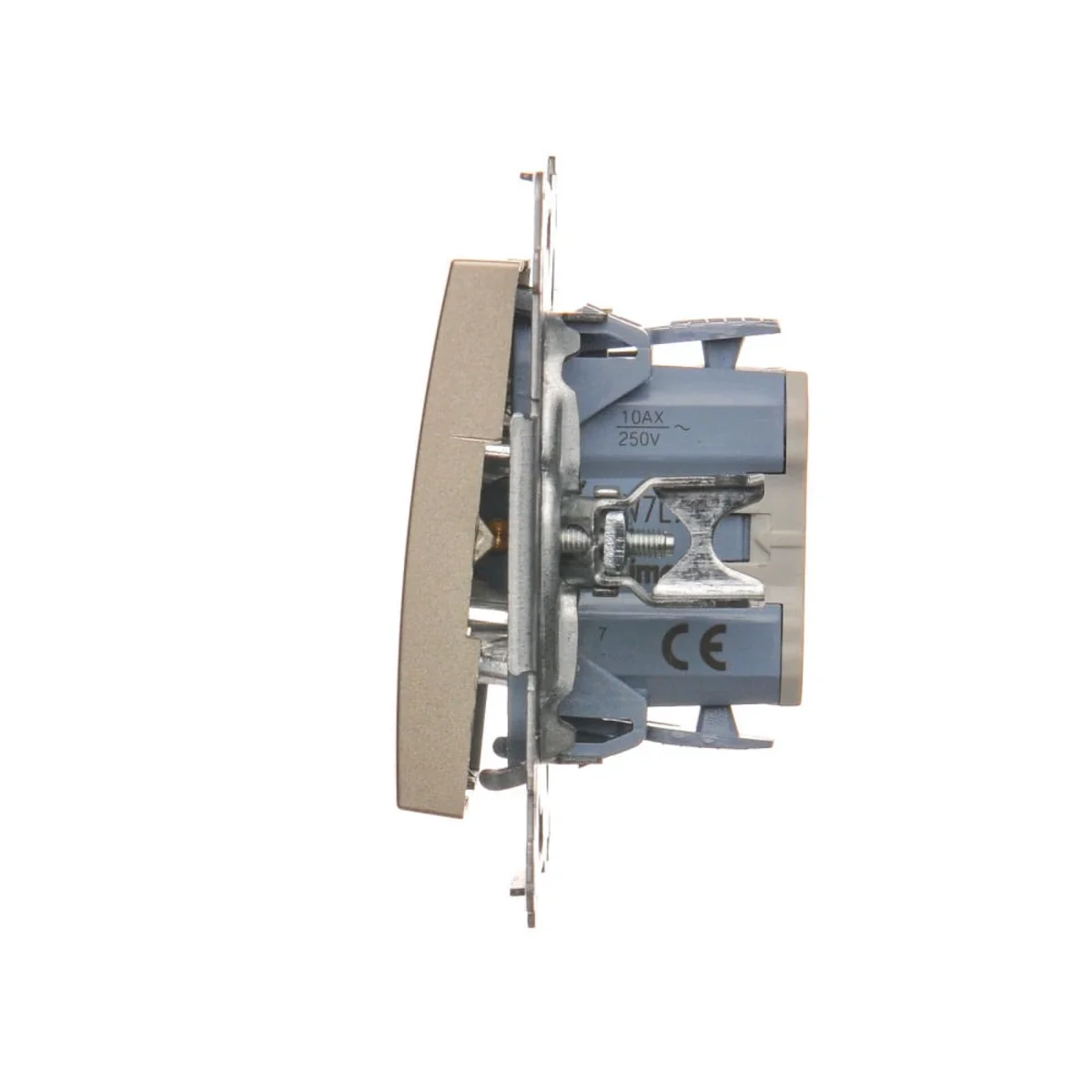

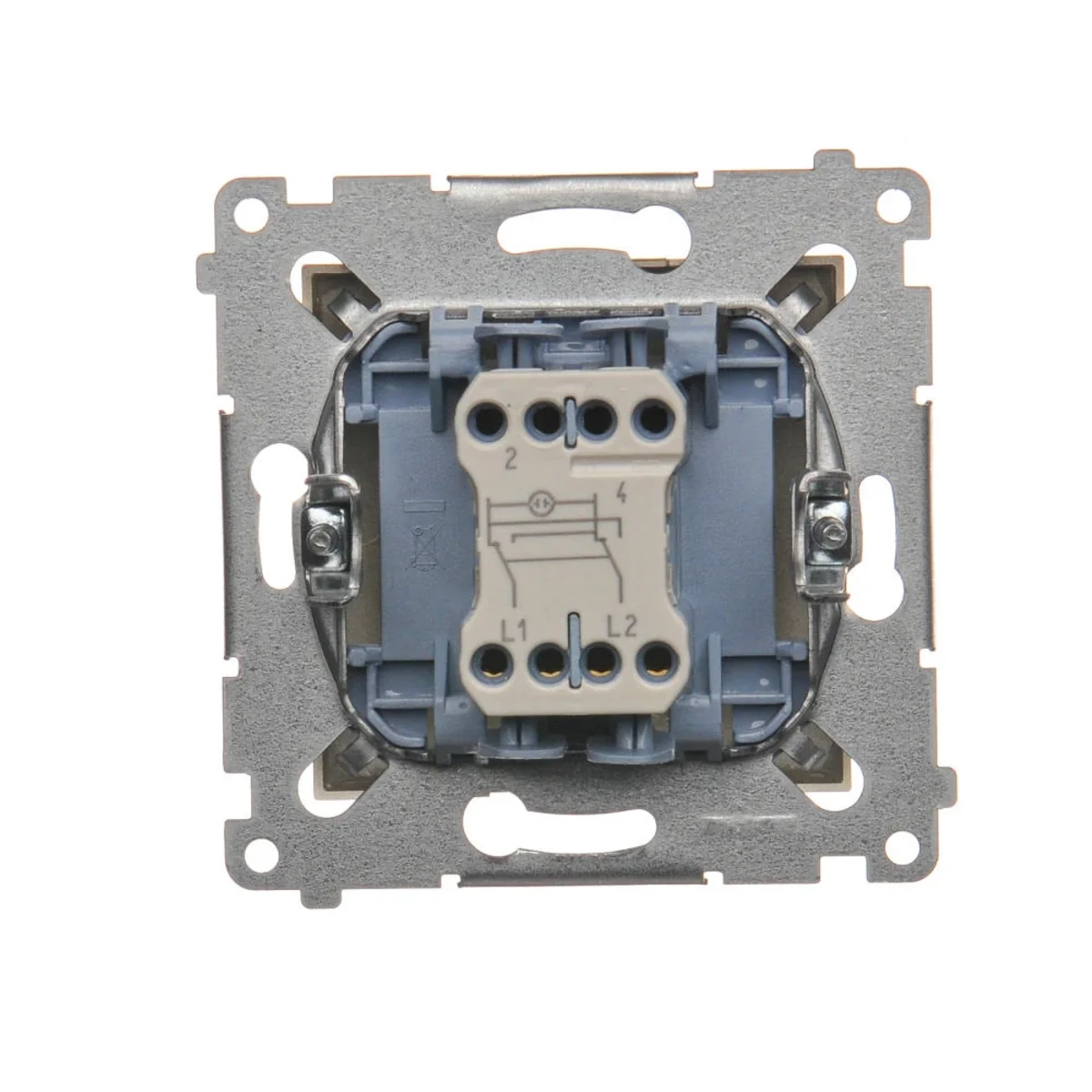

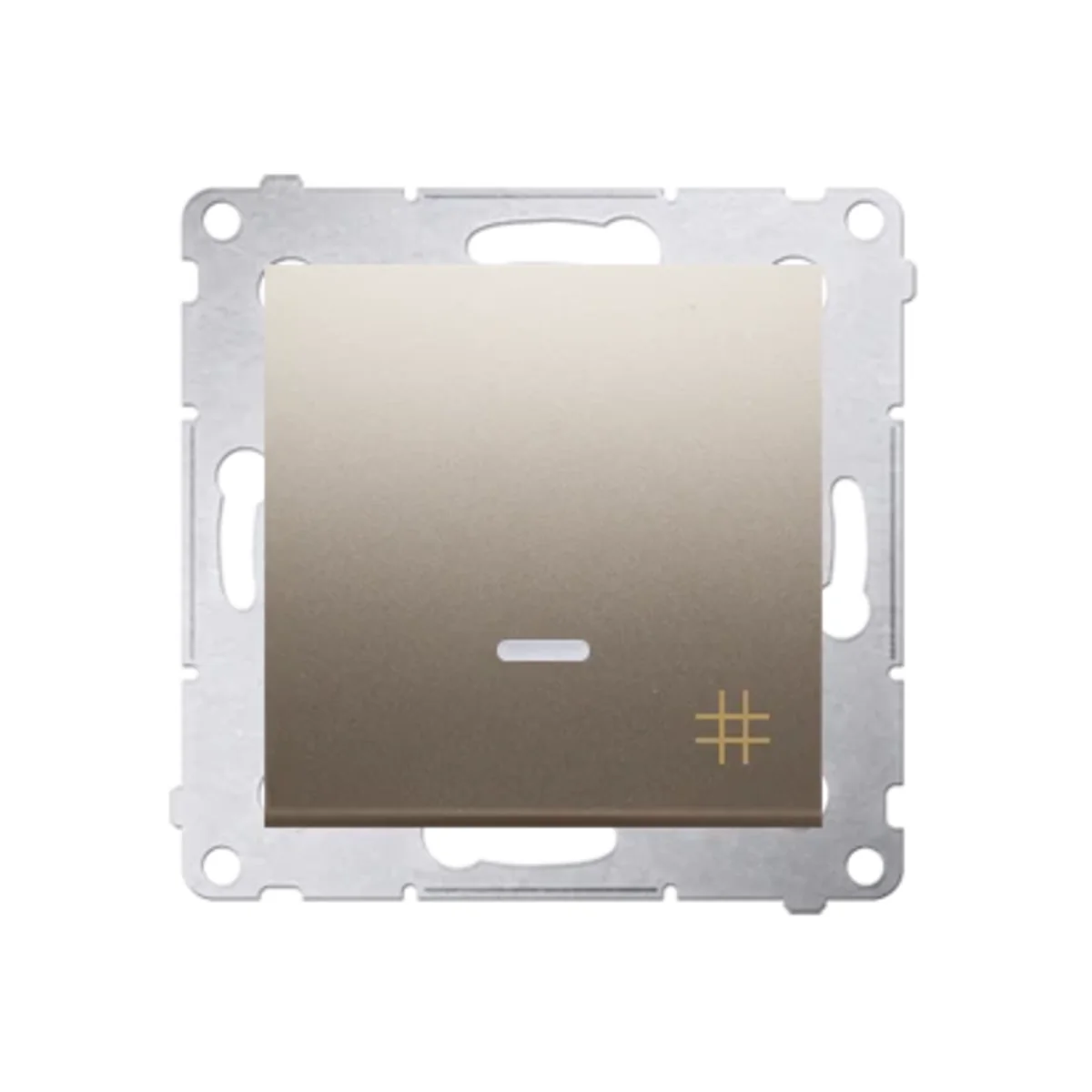

Cross connector with LED backlight (module) 10A 250V gold (metallic) quick connectors DW7L.01/44

local index:
MMK075KONT
Catalog No:
DW7L.01/44
EAN code:
5902787822736
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 1
Price:
12,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cross connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW7L.01/44.



FEATURES

  • Module without frame.< /li>
  • Bistable switch.
  • Rocker switch.
  • Built-in, replaceable LED backlight.
  • Quick connectors.
  • To obtain the IP44 splash-proof class, use the frame gasket.



SERIES DESCRIPTION

Simon 54 to a series of modern installation accessories, distinguished by reliable and easy to install mechanisms and a variety of colors. The cross connector has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP20
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    Yes
  • Terminal type
    Threadless
  • Exact material
    PC
  • Backlight color
    Blue
  • Depth [mm]
    41
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Symbol
    Cross
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Gold metallic matt
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • Backlight type
    LED
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Connection type
    Push-in clamp

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,063 0,063 0,719
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
