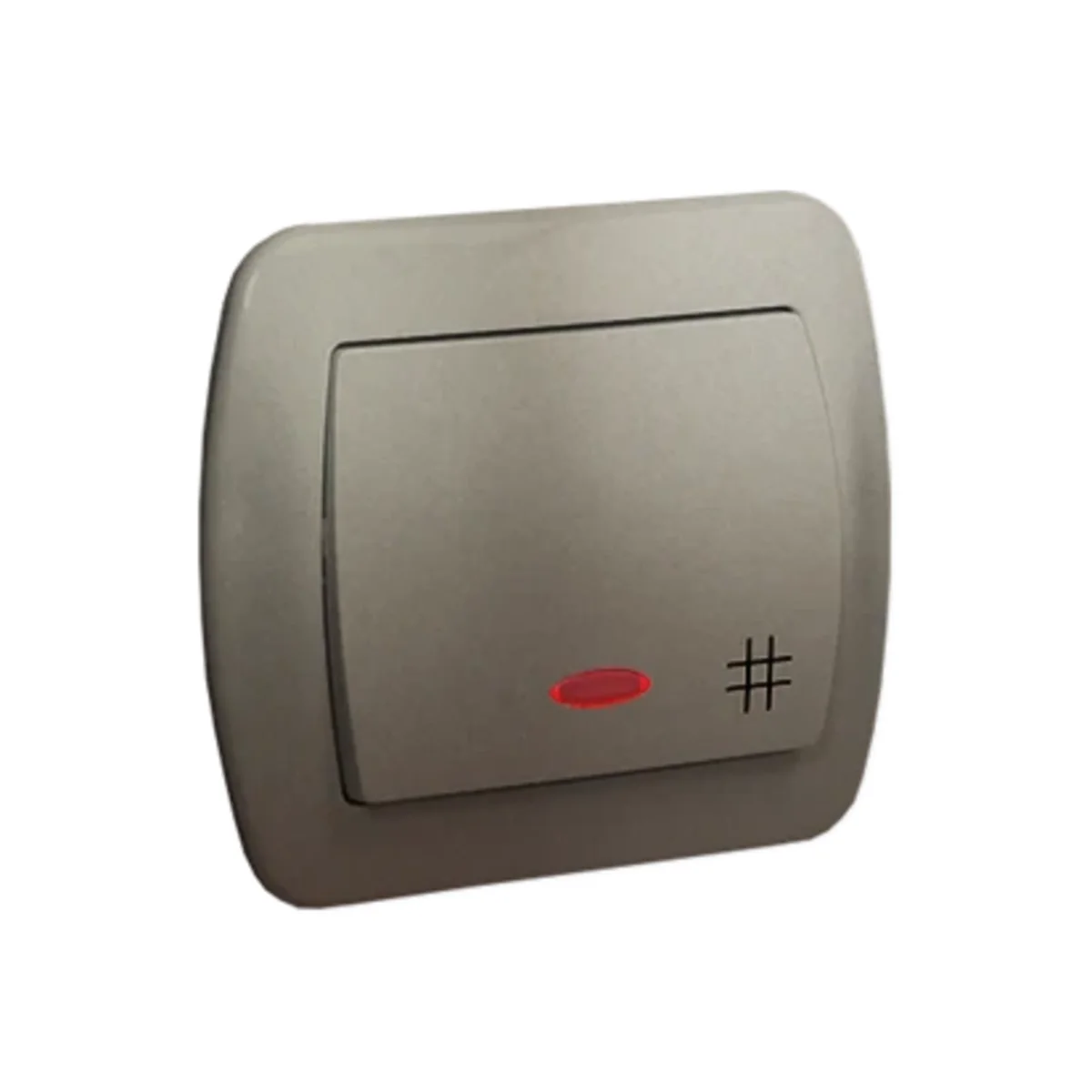

Cross connector with backlight 10A 250V screw terminals satin (metallic) AW7L/29

local index:
MMK032KONT
Catalog No:
AW7L/29
EAN code:
5902787597719
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 1
Price:
9,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cross connector from the Simon Akord series, from the manufacturer Contact Simon. The product part number is AW7L/29.



FEATURES

  • Complete product.
  • Built-in orientation backlight.
  • Toggle switch.
  • Rocker switch.



SERIES DESCRIPTION

Simon Akord is a minimalist monoblock, i.e. non-frame series. The cross connector has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP20
  • Width [mm]
    90
  • Height [mm]
    80.5
  • Surface finish
    matte
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Exact material
    PC
  • Backlight color
    Orange
  • Depth [mm]
    37.5
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON CHORD
  • Symbol
    Cross
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Satin metallic
  • Mounting depth [mm]
    24.5
  • For the frame system
    NO
  • Backlight type
    Smoldering lamp
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,066 0,066 0,749
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,043 0,230
Depth (m) 0,038 0,165 0,100
