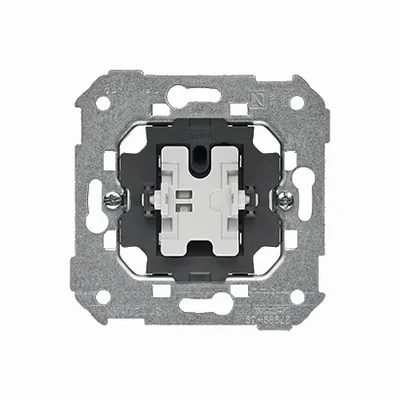

Cross connector with 10AX illumination 75254-39
local index:
MPK005KONT
Catalog No:
75254-39
EAN code:
8421053003671
Price:
14,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

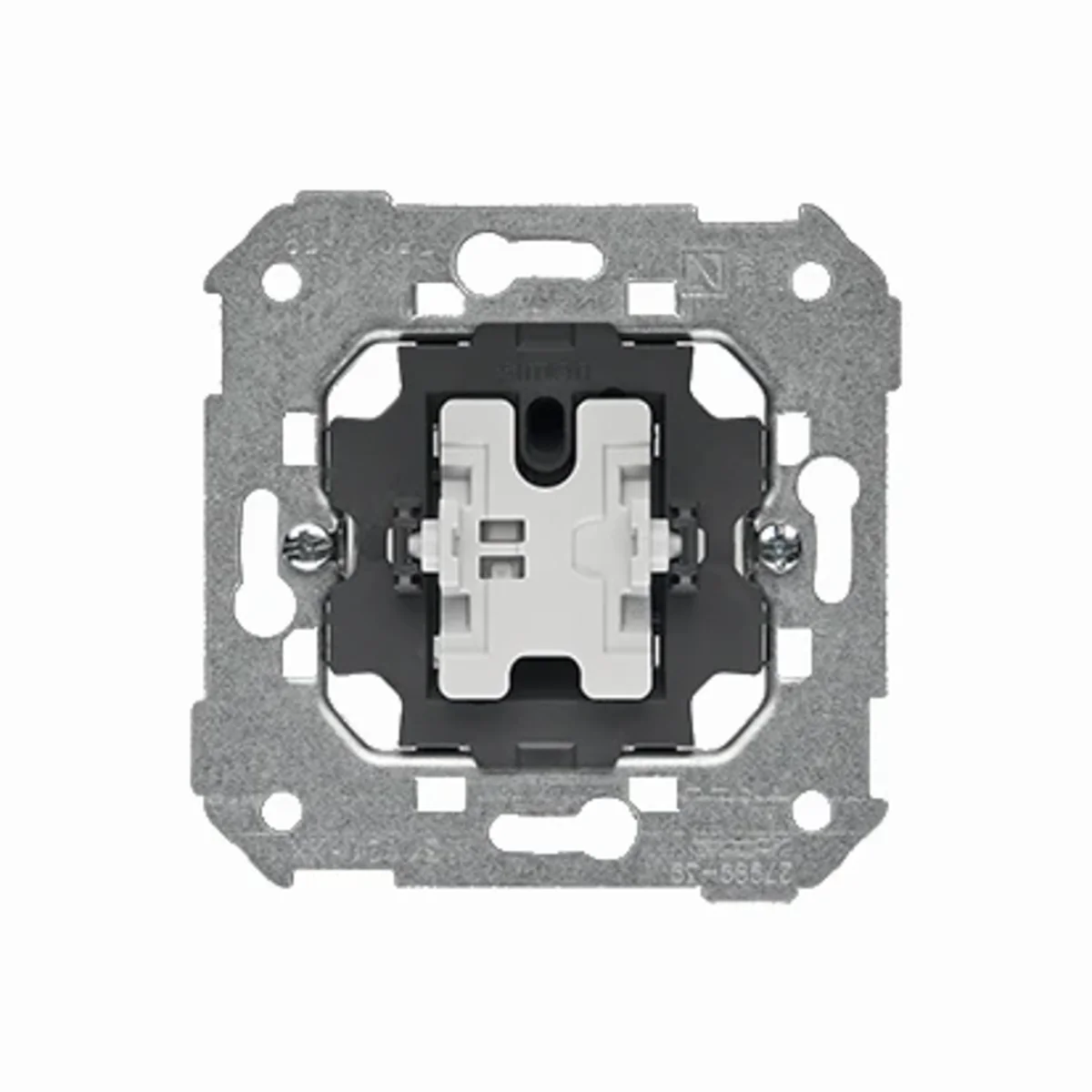

Cross switch mechanism with backlight from the Simon 82 series, from the manufacturer Contact Simon. The product catalog number is 75254-39.
- Use a frame gasket to obtain IP44 splash-proof class.
- Quick connectors.
- Built-in orientation backlight.
Technical data
-
Depth [mm]32
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeCross
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Surface protectionNatural
-
Mounting depth [mm]21
-
For the frame systemYes
-
Backlight colorRed
-
Number of keys1
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySimon 82
-
Width [mm]75
-
Height [mm]75
-
BacklightYes
-
Terminal typeThreadless
-
Backlight typeSmoldering lamp
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemIntermediate switch
-
Assembly arrangementBasic element
-
MaterialMetal
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps10 AX
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Connection typePush-in clamp
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,064 | 0,064 | 0,840 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,032 | 0,160 | 0,100 |
