Cross connector (module) 16A 250V screw terminals white DW7A.01/11

Name: Cross connector (module) 16A 250V screw terminals white
Brand: KONTAKT-SIMON
SKU: MMK013KONT
Price: 8.43 PLN

local index:

MMK013KONT

Catalog No:

DW7A.01/11

EAN code:

5902787822750

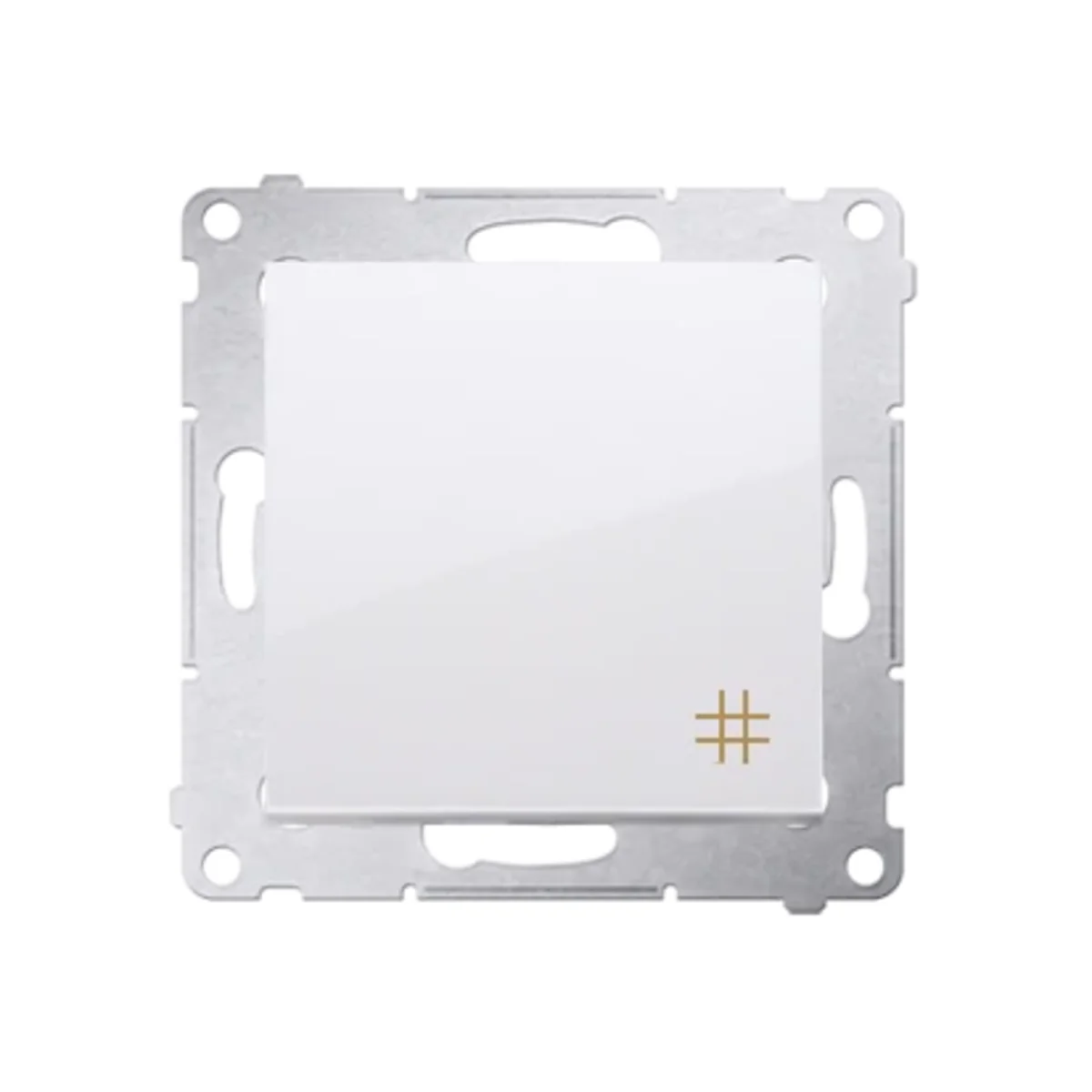

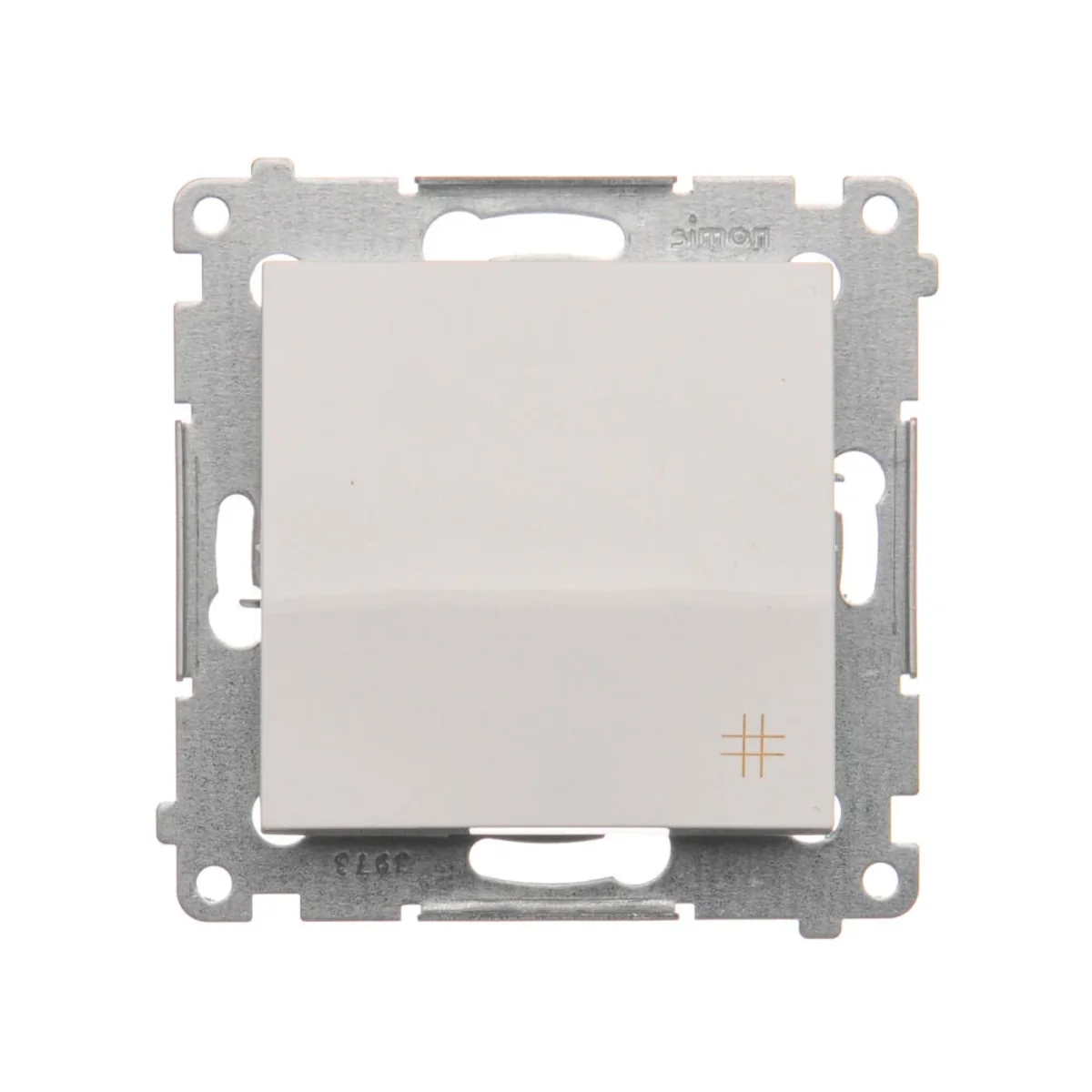

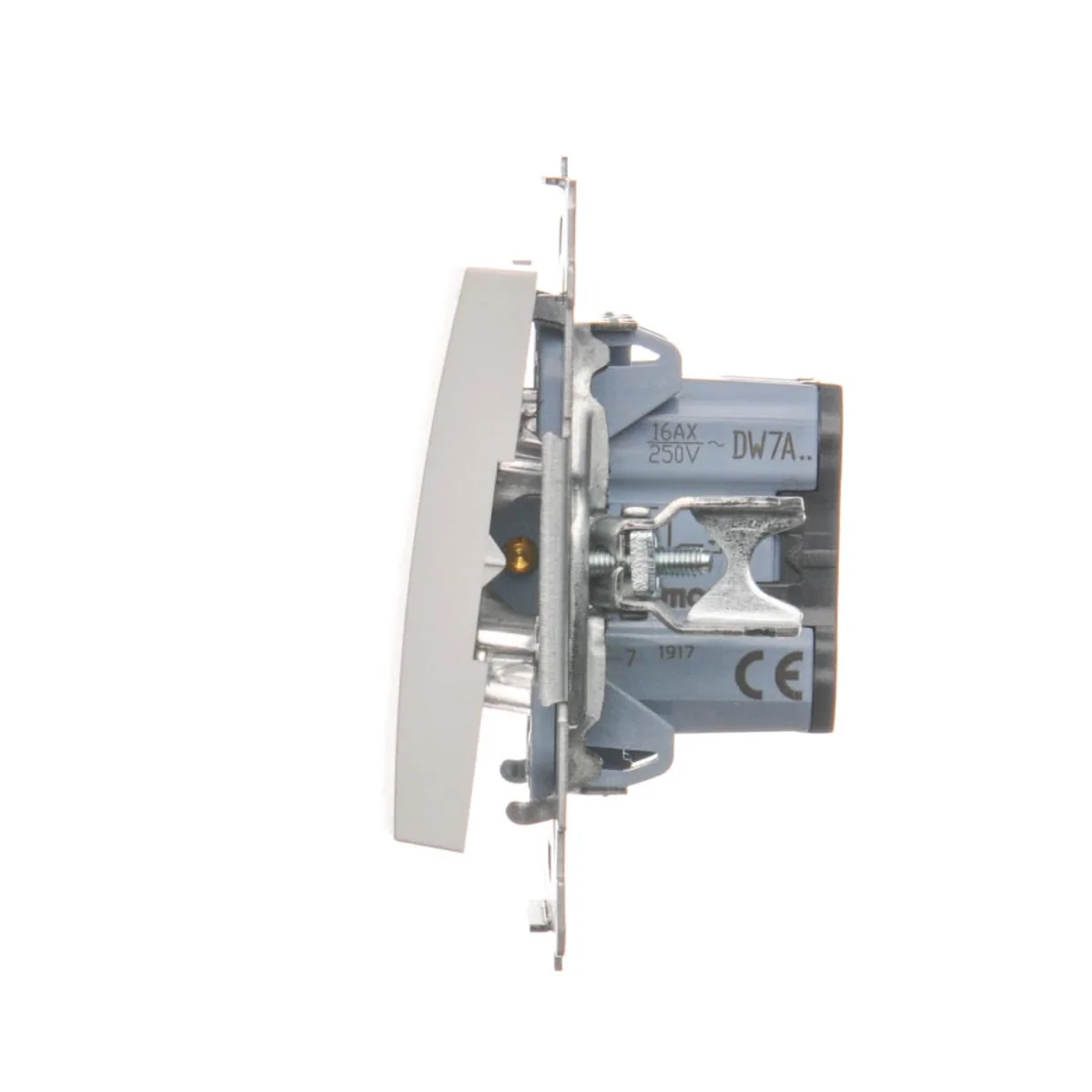

Cross connector (module) 16A 250V screw terminals white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

8,43 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Cross connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW7A.01/11.

FEATURES

Module without frame.< /li>
Toggle switch.
Rocker switch.
Backlight optional, not included

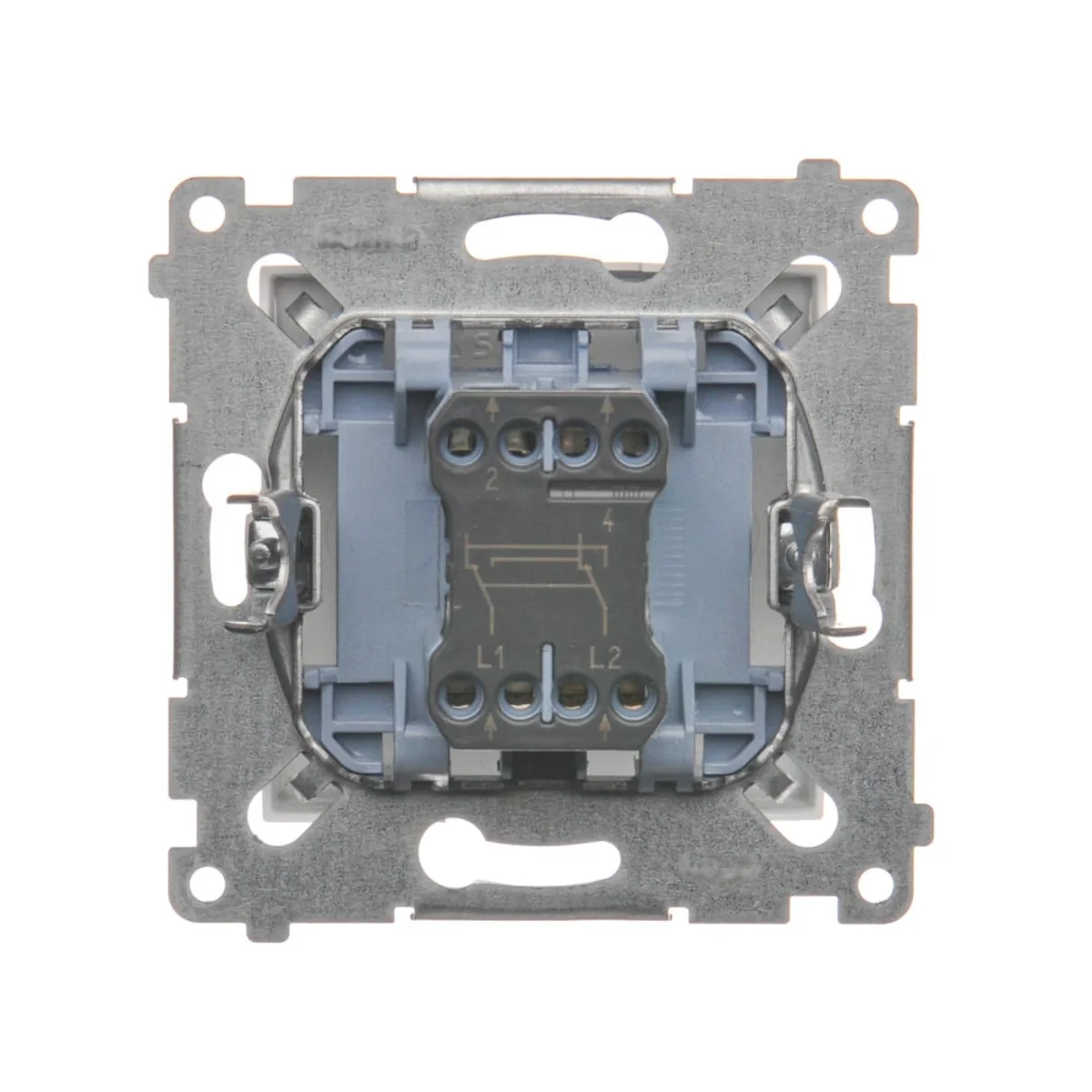

Screw terminals.
For class splash-proof IP44, use a frame gasket.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories , distinguished by reliable and easy to assemble mechanisms and a variety of colors. The cross connector has all the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Symbol

Cross
Type

Flush-mounted
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
Exact material

PC

Other technical data

Wiring system

Intermediate switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,065	0,065	0,739
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
