Cross connector (module) 10AX 230V white CW7.01/11

Name: Cross connector (module) 10AX 230V white
Brand: KONTAKT-SIMON
SKU: MMK012KONT
Price: 5.67 PLN

local index:

MMK012KONT

Catalog No:

CW7.01/11

EAN code:

5902787841577

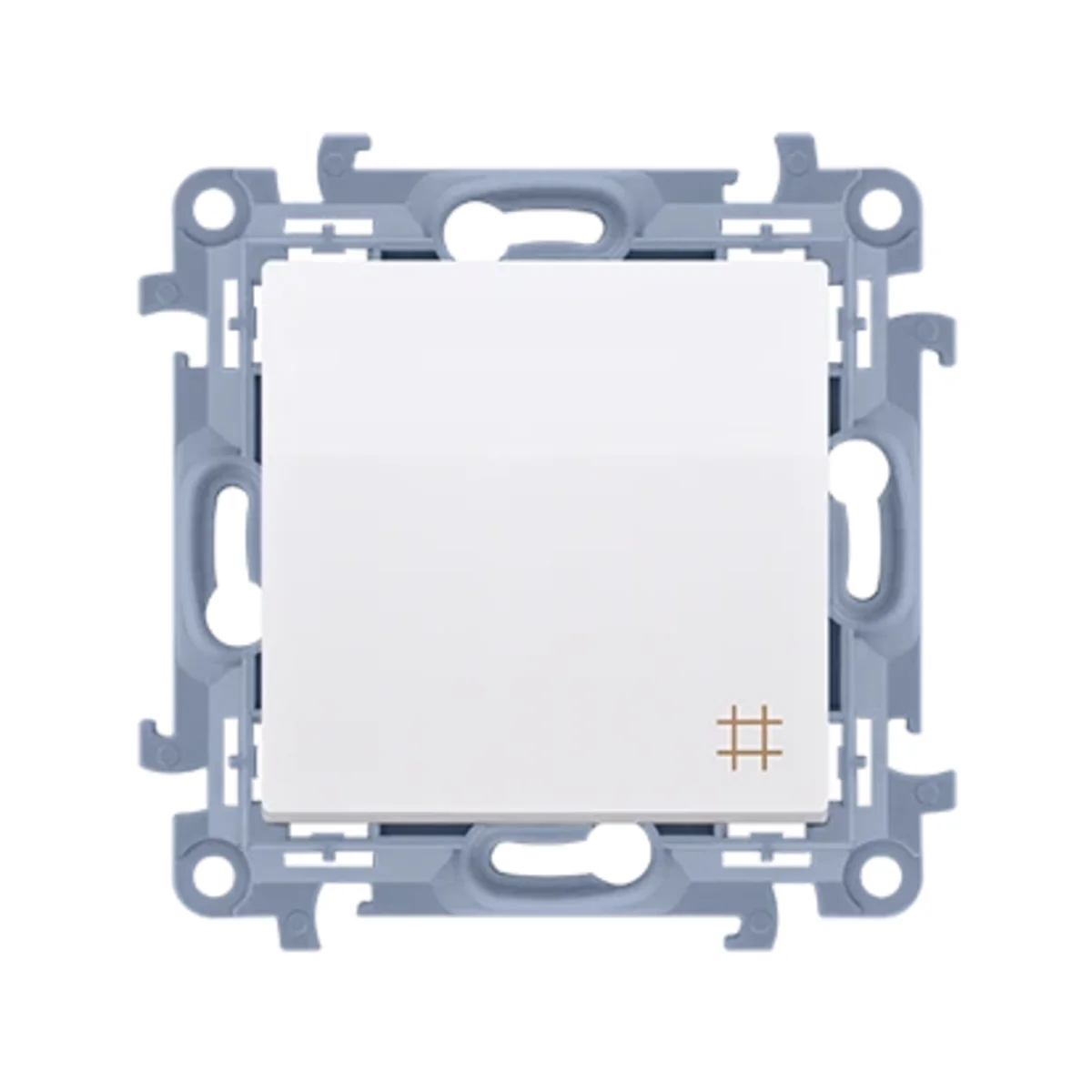

Cross connector (module) 10AX 230V white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 42

Number of keys: 1

See full description

Price:

5,67 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Cross connector from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CW7.01/11.

FEATURES

Module without frame.< /li>
Toggle switch.
Rocker switch.
Optional backlight, not included.
To obtain IP44 splash-proof class, use frame gasket.

SERIES DESCRIPTION

Simon 10 is an economical series of electrical accessories, the colors of which are limited to in white and cream. The cross connector has all the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Width [mm]

77
Height [mm]

77
Surface finish

Shiny
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

42
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 10
Symbol

Cross
Type

Flush-mounted
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
Exact material

PC

Other technical data

Wiring system

Intermediate switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,056	0,056	0,654
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,047	0,230
Depth (m)	0,042	0,160	0,100
