Cross connector (module) 10A 250V quick connectors anthracite (metallic) DW7.01/48

Name: Cross connector (module) 10A 250V quick connectors anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MMK051KONT
Price: 10.12 PLN

Índice local:

MMK051KONT

Número de catálogo:

DW7.01/48

Código EAN:

5902787822699

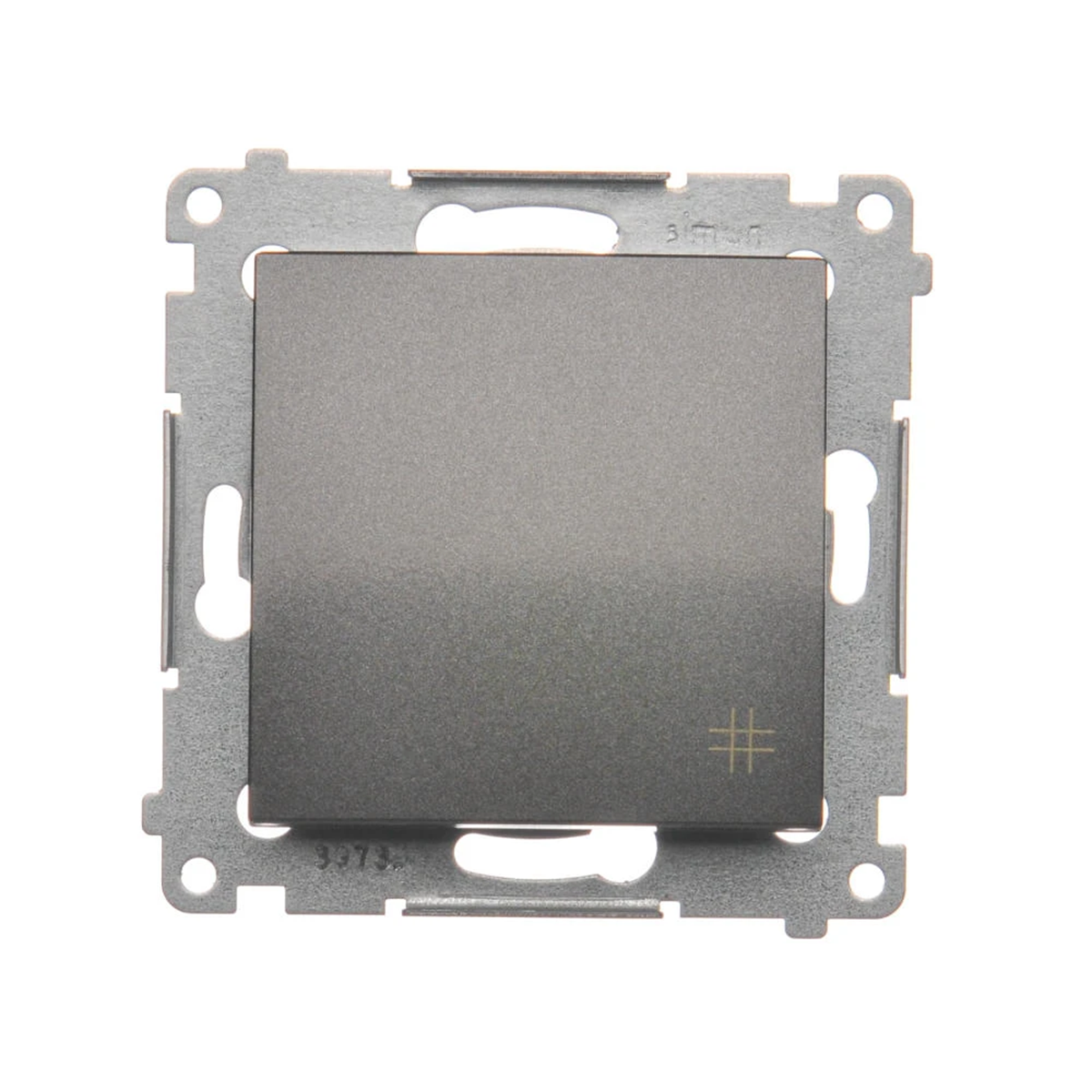

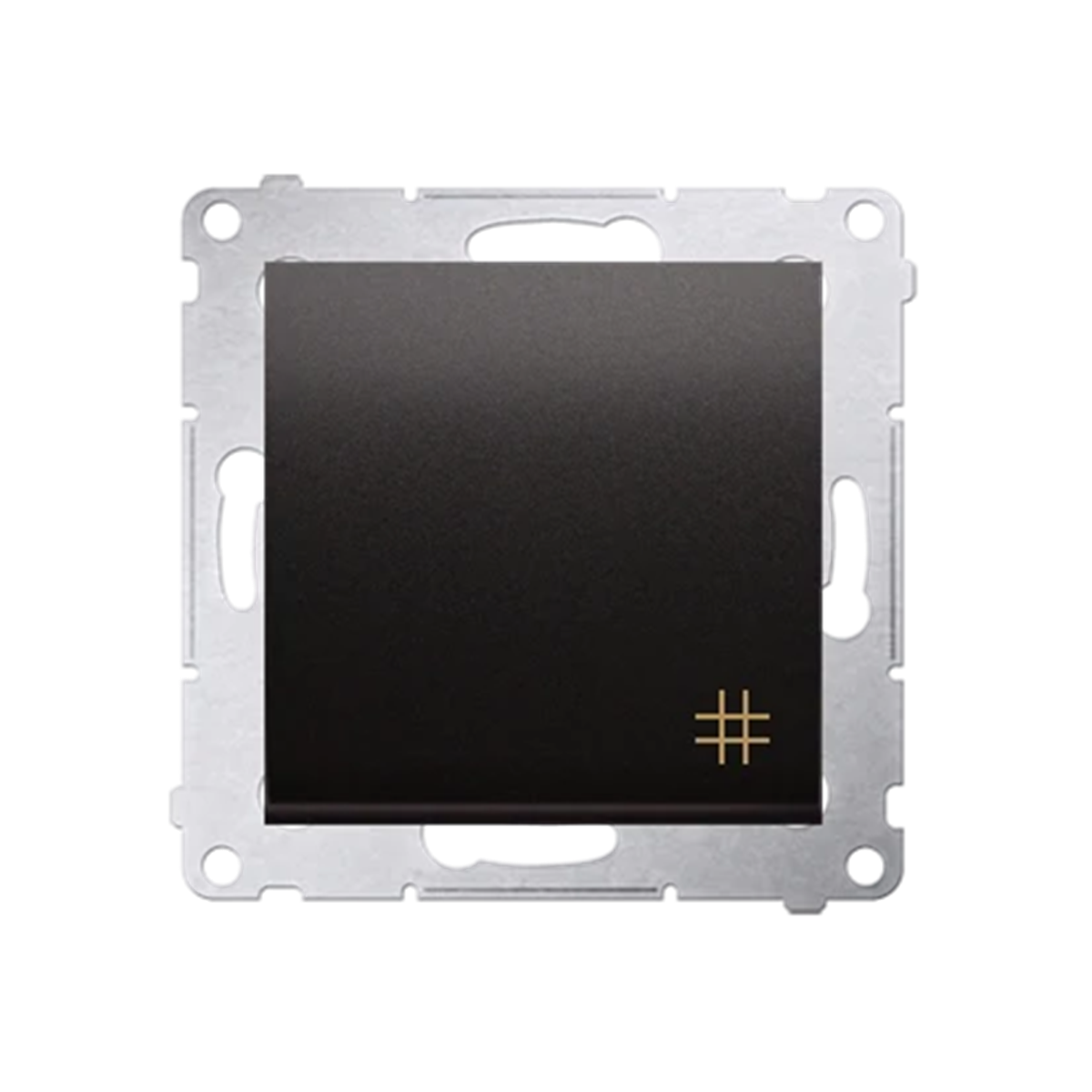

Cross connector (module) 10A 250V quick connectors anthracite (metallic)

Haga clic en la foto para ampliar

Fabricante: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

Ver descripción completa

Precio:

10,12 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 2 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

)

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Cross connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW7.01/48.

FEATURES

Module without frame.< /li>
Toggle switch.
Rocker switch.
Backlight optional, not included.
Quick connectors.
For class splash-proof IP44, use a frame gasket.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories , distinguished by reliable and easy to assemble mechanisms and a variety of colors. The cross connector has all the features of this unique series.

Datos técnicos

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threadless
Exact material

PC

Depth [mm]

41
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Cross
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Otros datos técnicos

Wiring system

Intermediate switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Detalles del fabricante

Fabricante

Kontakt-Simon S.A.
Dirección

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Empaquetado a granel

una especie de paquete	Paczka	Karton	Paczka	Karton
Cantidad	1 uds.	10 uds.	1 uds.	10 uds.
Peso (kg)	0,063	0,718	0,063	0,718
Ancho (m)	0,110	0,190	0,110	0,190
Longitud (m)	0,045	0,230	0,045	0,230
Profundidad (m)	0,160	0,100	0,160	0,100
