Cross connector cream color 764604

local index:
MMK020LEGR
Catalog No:
764604
EAN code:
3414970684042
Manufacturer: LEGRAND
Halogen free: Yes
Depth [mm]: 45.5
Number of keys: 1
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
3,71 €
gross / pcs.
(including VAT 23%)
Last lowest price: 3,71 € gross
Base price: 7,63 € gross -51%
Delivery in 3h
Accessible 71 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

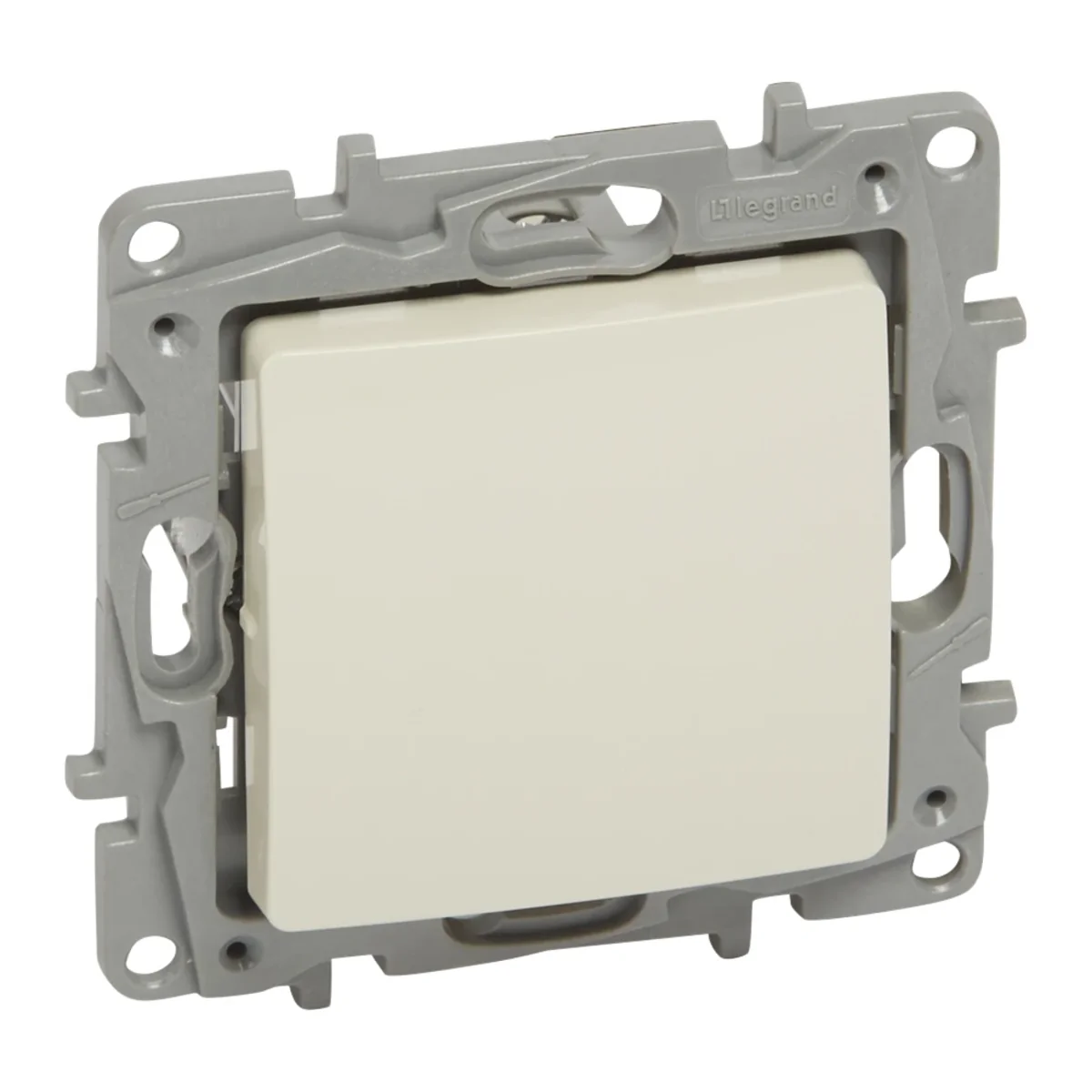

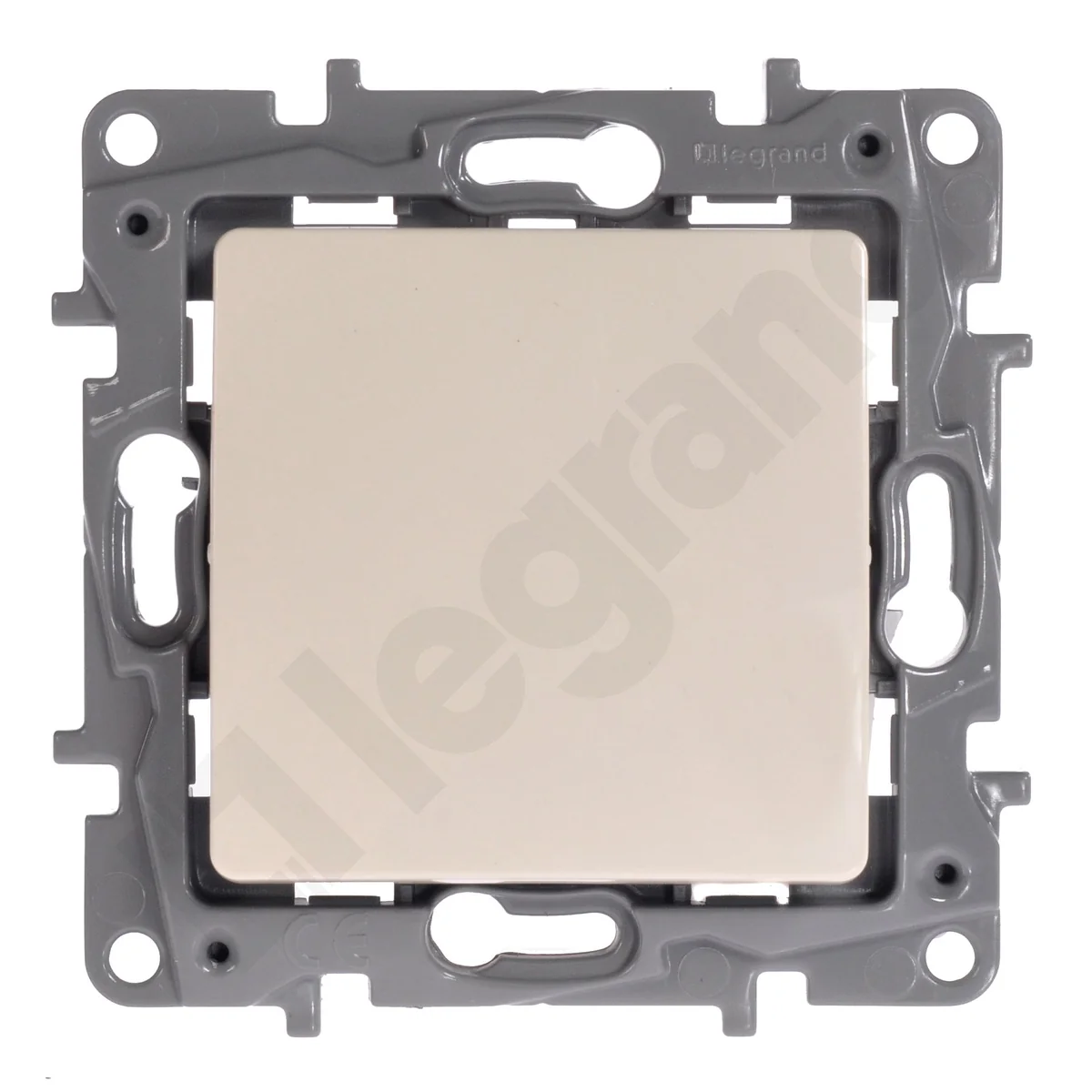

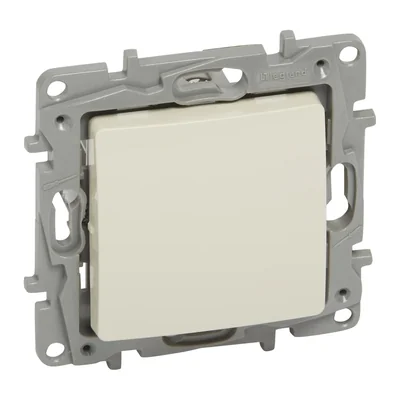

Cross connectorfrom the Niloe/Niloe Selection series, from Legrand. The product catalog number is 764604.



FEATURES

  • Mechanism with a key, claws and a mounting bracket.
  • To be equipped with a frame.
  • Automatic clamps.



SERIES DESCRIPTION

Niloe is a traditional series of electrical installation accessories. The cross connector  characterizes the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated current [A]
    10
  • Family
    NILOE
  • Width [mm]
    76
  • Height [mm]
    76
  • Accurate color
    Creamy
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    14.5
  • PKWIU
    27.33.11.0
  • Depth [mm]
    45.5
  • Color
    Beige
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK04
  • Backlight
    NO
  • For the frame system
    Yes
  • Exact material
    ABS

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Illumination
    No
  • Type of lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Device width
    75.8 mm
  • Device depth
    45.5 mm
  • Min. depth of built-in installation box
    30 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Beige
  • Label space/information surface
    No
  • Function lighting
    Other
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75.8 mm
  • Built-in depth
    31 mm

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 100 pcs. 1000 pcs.
Weight (kg) 0,640 6,968 69,680
Volume (m3) 0,000 0,000 0,001
Width (m) 0,093 0,399 1,200
Length (m) 0,115 0,227 0,602
Depth (m) 0,386 0,599 1,000
