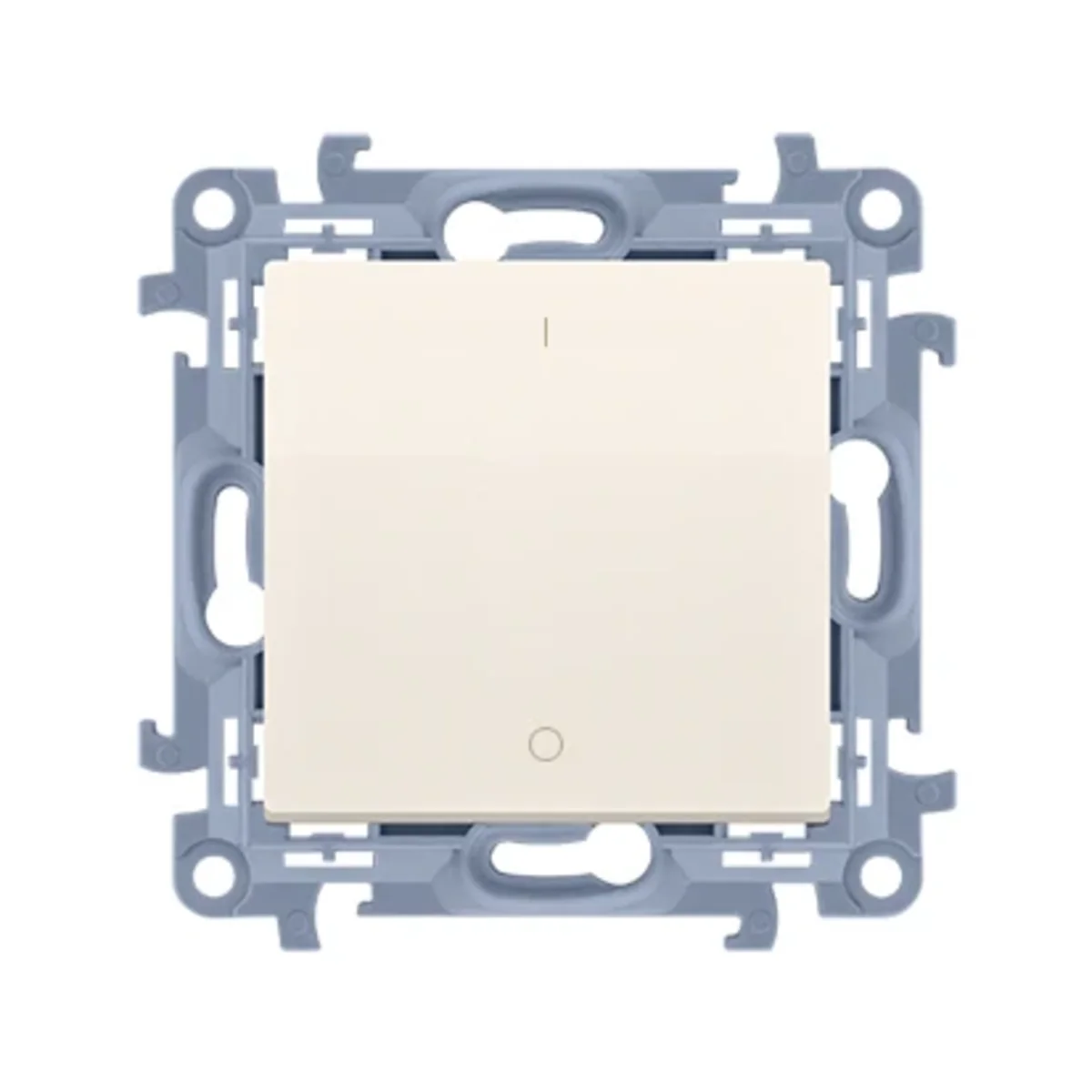

Cream 10AX double-pole connector CW2.01/41
Lokaler Index:
MMD041KONT
Katalognummer:
CW2.01/41
EAN-Code:
5902787854560
Preis:
25,66 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Double pole switch from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CW2.01/41.
FEATURES
- Module without frame.< /li>
- Screw terminals.
- Rocker switch.
- Toggle switch.
DESCRIPTION SERIES
Simon 10 is an economical series of electrical equipment, the colors of which are limited to white and cream. Double pole switch characterize features of this unique series.
Technische Daten
-
Halogen freeYes
-
Number of keys1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeBipolar
-
Level of securityIP20
-
Width [mm]77
-
Height [mm]77
-
Surface finishShiny
-
BacklightNO
-
Terminal typeThreaded
-
Exact materialPC
-
Depth [mm]42
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySimon 10
-
Symbol0-1
-
TypeFlush-mounted
-
Surface protectionNatural
-
Accurate colorCreamy
-
Mounting depth [mm]26
-
For the frame systemYes
-
PKWIU27.33.11.0
Weitere technische Daten
-
Wiring system2-pole switch
-
Assembly arrangementBasic element with central cover plate
-
Type of fasteningOther
-
Surface finishingGlossy
-
Switching current for fluorescent lamps10 AX
-
Built-in depth26 mm
-
Method of operationOther
-
Mounting methodFlush-mounted
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Connection typeScrewed terminal
Hersteller-Details
-
HerstellerKontakt-Simon S.A.
-
Adresse43-500 Czechowice-Dziedzice Bestwińska 21 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Paczka | Karton |
| Menge | 1 stk. | 10 stk. |
| Gewicht (kg) | 0,052 | 0,610 |
| Breite (m) | 0,110 | 0,190 |
| Länge (m) | 0,047 | 0,230 |
| Tiefe (m) | 0,160 | 0,100 |
