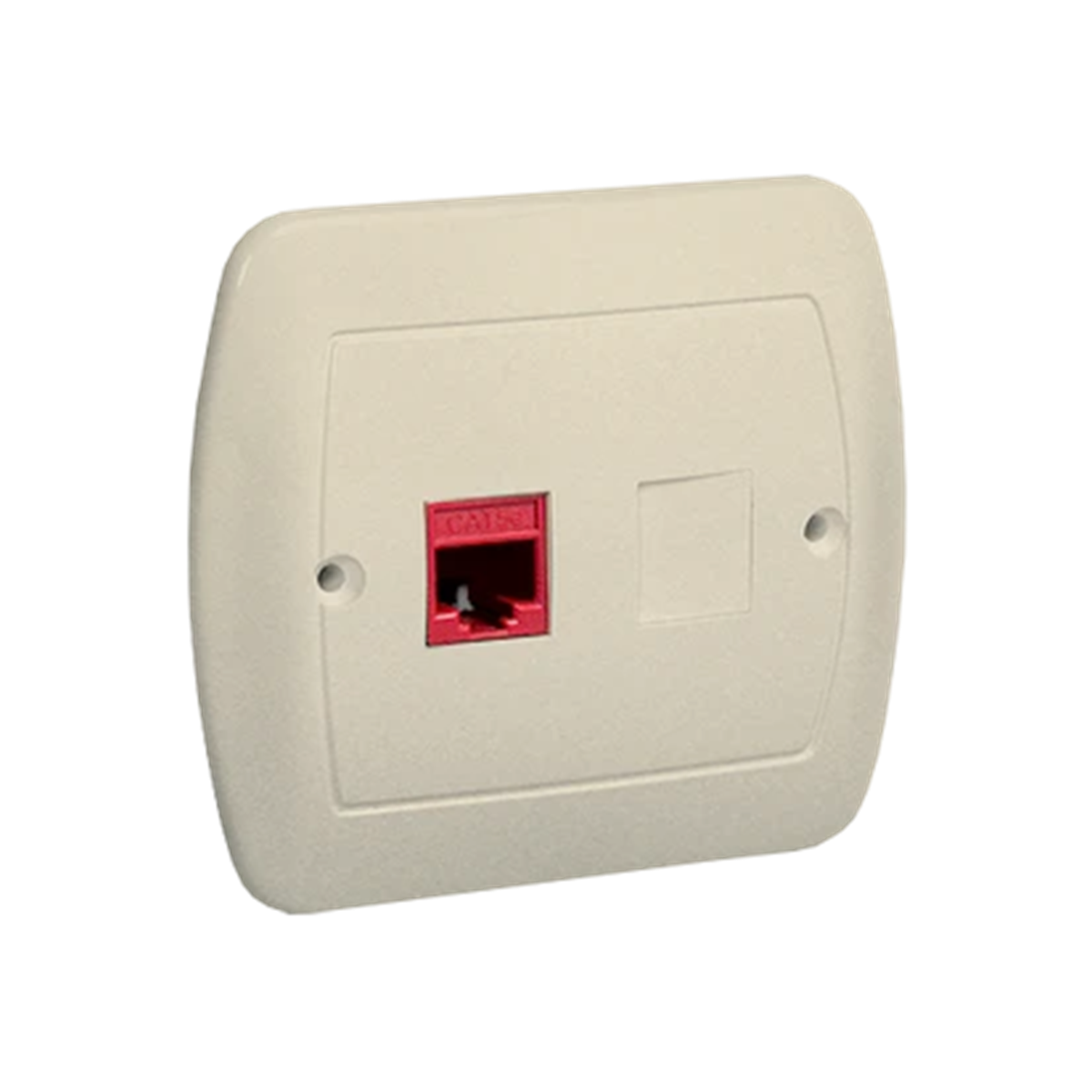

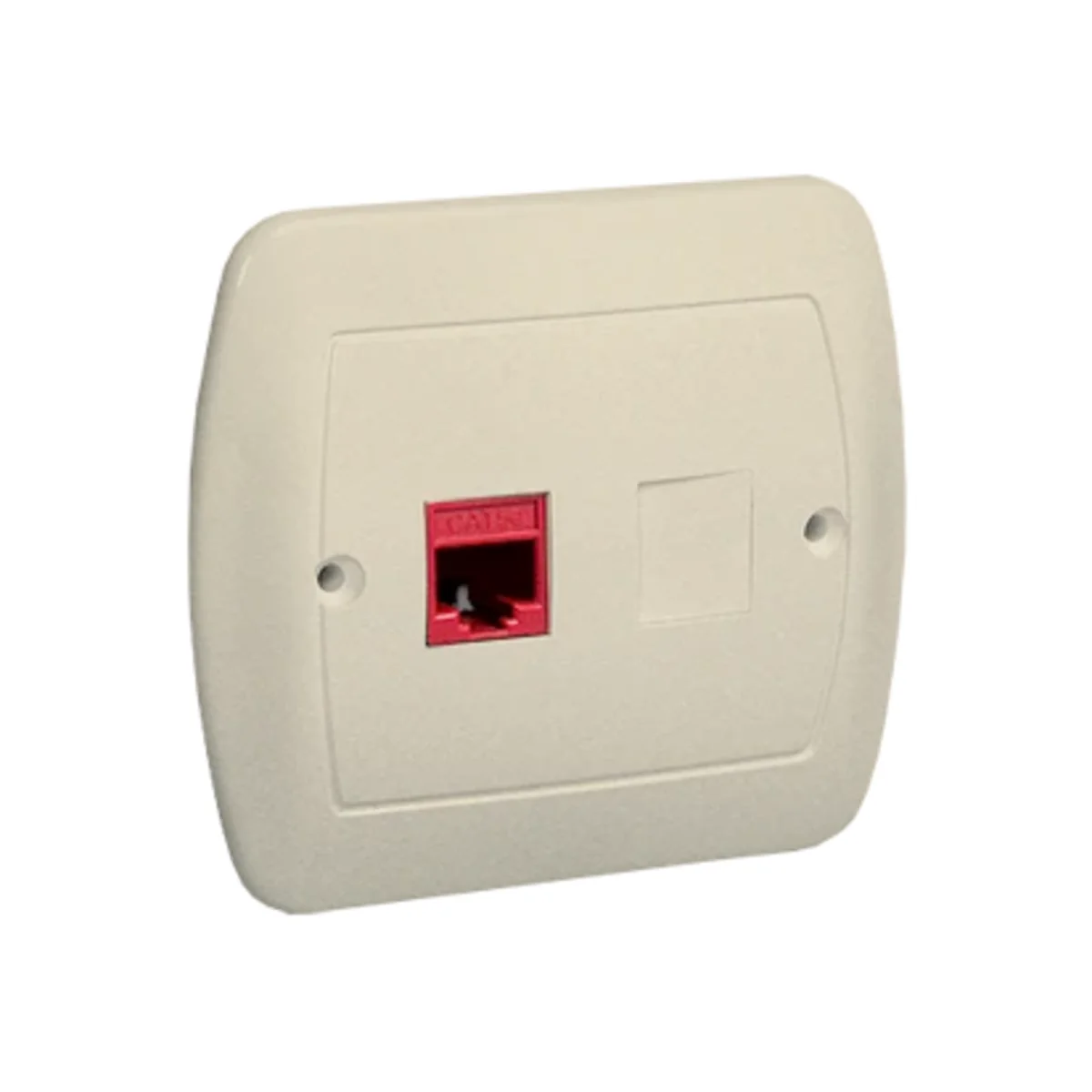

Computer socket RJ45 single cat. 5e beige AF51/12

Índice local:
MEI029KONT
Número de catálogo:
AF51/12
Código EAN:
5902787570019
Fabricante: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 30.5
Category: 5e
Precio:
68,73 zł
gross / uds.
(IVA incluido 23%)
hasta 2 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Computer socket RJ45 single category 5e



SERIES DESCRIPTION

Slightly longer base and spine line relative to the sidesó w and clearly rounded corners of the frames distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Datos técnicos

  • Halogen free
    Yes
  • Category
    5e
  • Shape
    Rectangular
  • Fixing
    Screws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Terminal type
    Insulation piercing clamp
  • For the frame system
    Yes
  • Dust cover
    NO
  • Exact material
    PC
  • Depth [mm]
    30.5
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Version
    UTP
  • Surface protection
    Natural
  • Mounting depth [mm]
    20.5
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    Blank space
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • Type of connector
    RJ45 8(8)
  • Shielded housing
    No
  • Compatible with third-party covers
    Yes
  • With dust cover
    No
  • Colour
    Beige
  • Separate earthing connection
    No
  • Outlet direction
    Straight
  • Colour coding
    Yes

Detalles del fabricante

Empaquetado a granel

una especie de paquete Paczka Karton
Cantidad 1 uds. 14 uds.
Peso (kg) 0,025 0,341
Ancho (m) 0,110 0,190
Longitud (m) 0,040 0,230
Profundidad (m) 0,160 0,100
