Computer socket RJ45 cat.6 single beige BM61.01/12

local index:
MEI045KONT
Catalog No:
BM61.01/12
EAN code:
5902787555764
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 34
Category: 6
Price:
17,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

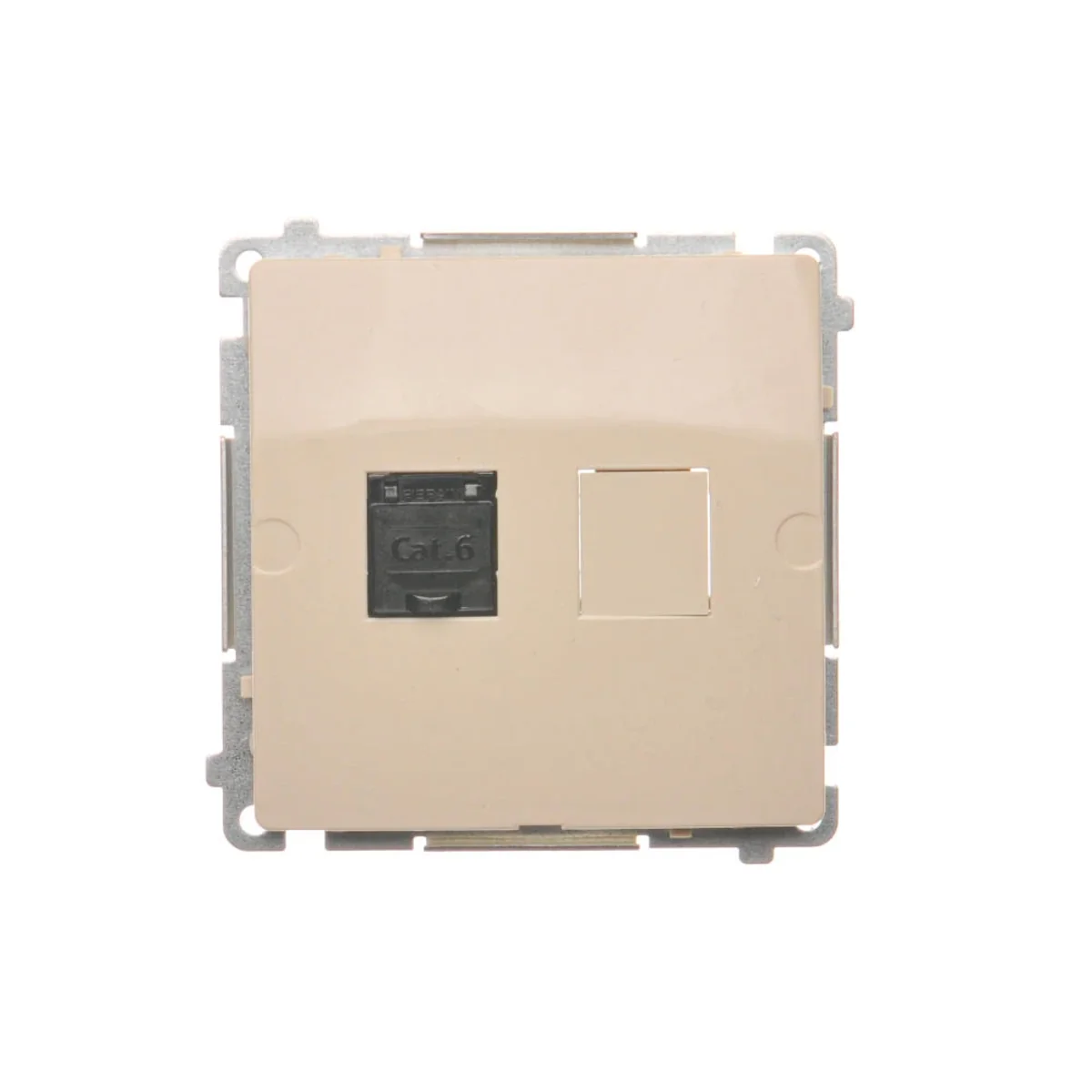

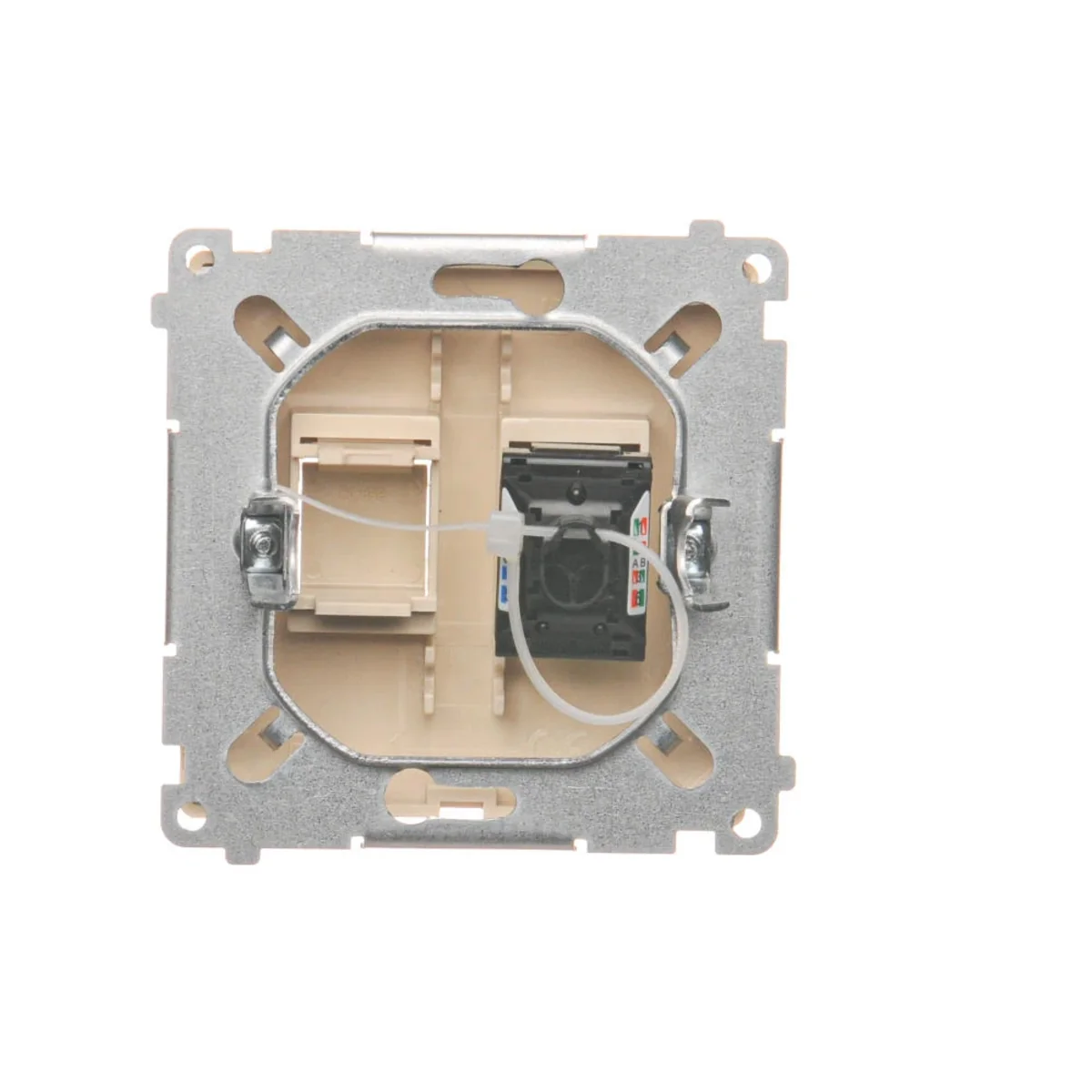

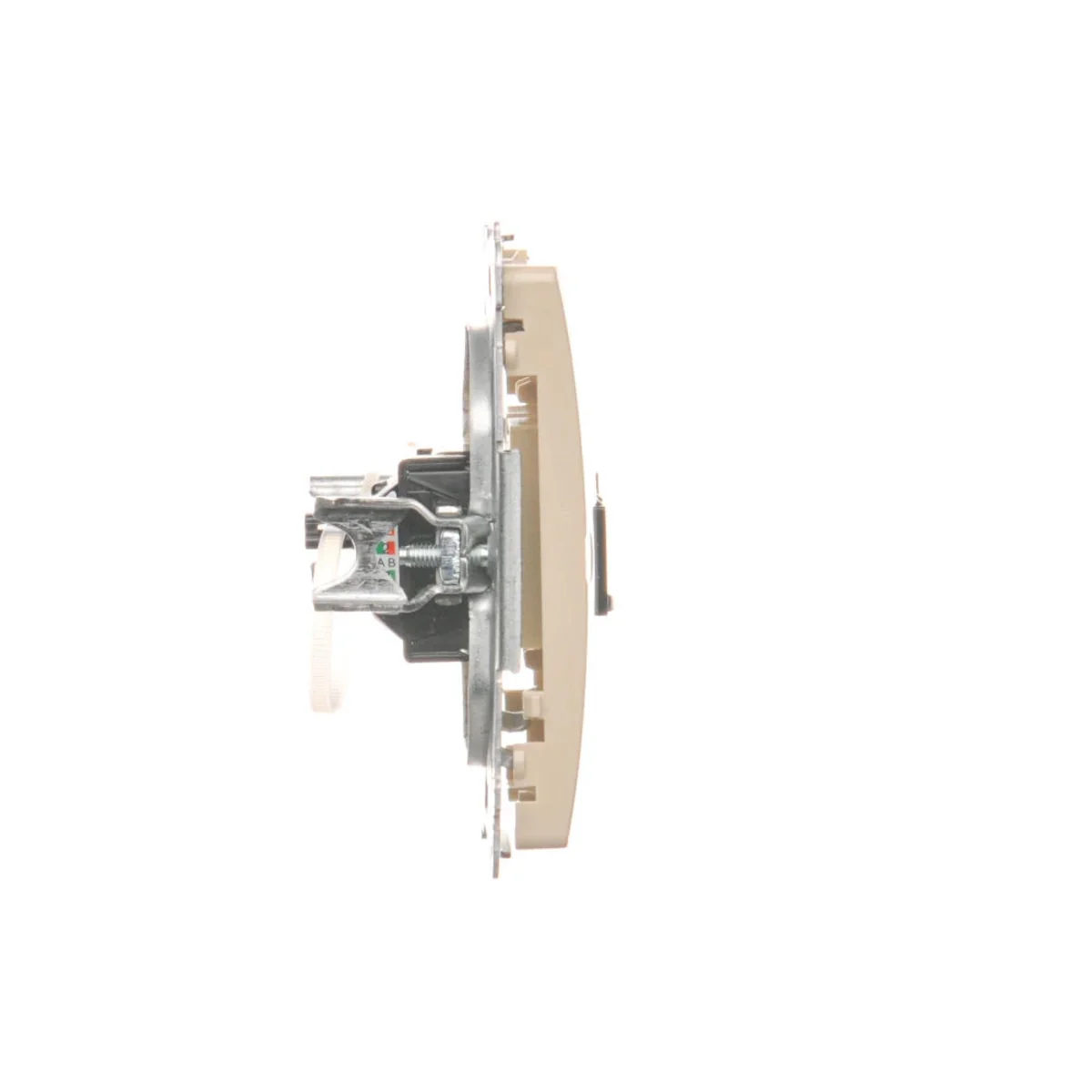

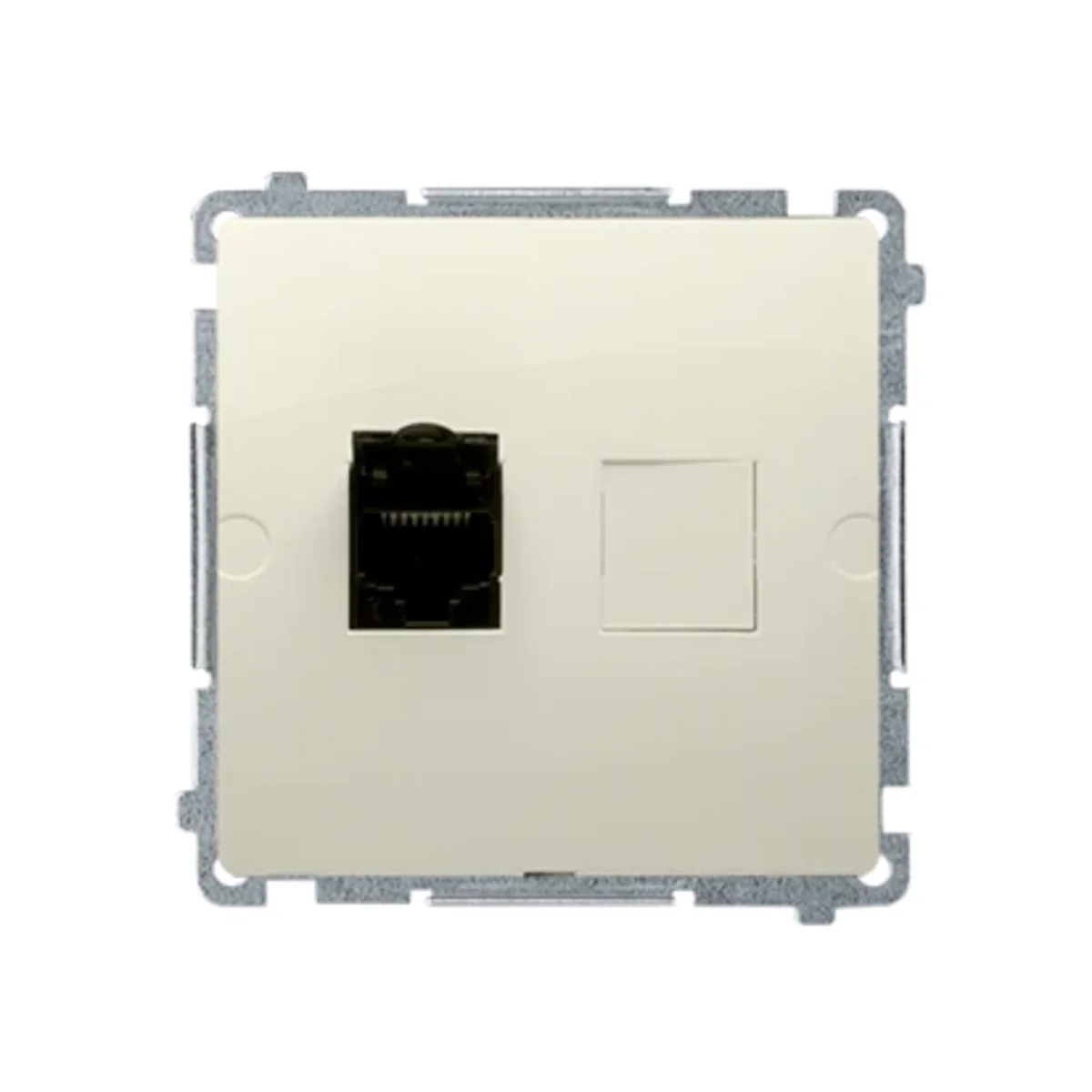

Computer socket single RJ45, category 6, with dust cover.



SERIES DESCRIPTION

Functionality and classic look these are the characteristic features of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Category
    6
  • Shape
    Square
  • Fixing
    claws Screws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Mounting depth [mm]
    21
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    Blank space
  • PKWIU
    27.33.13.0
  • Depth [mm]
    34
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    UTP
  • Surface protection
    Natural
  • Terminal type
    Insulation piercing clamp
  • For the frame system
    Yes
  • Dust cover
    Yes
  • Exact material
    PC

Other technical data

  • Type of connector
    RJ12 6(6)
  • Shielded housing
    No
  • Compatible with third-party covers
    Yes
  • Outlet direction
    Straight
  • Colour coding
    Yes
  • Colour
    Beige
  • Separate earthing connection
    No
  • Mounting method shielding connection
    Cable tie
  • With dust cover
    Yes

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,048 0,048 0,572
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,039 0,230
Depth (m) 0,034 0,160 0,100
