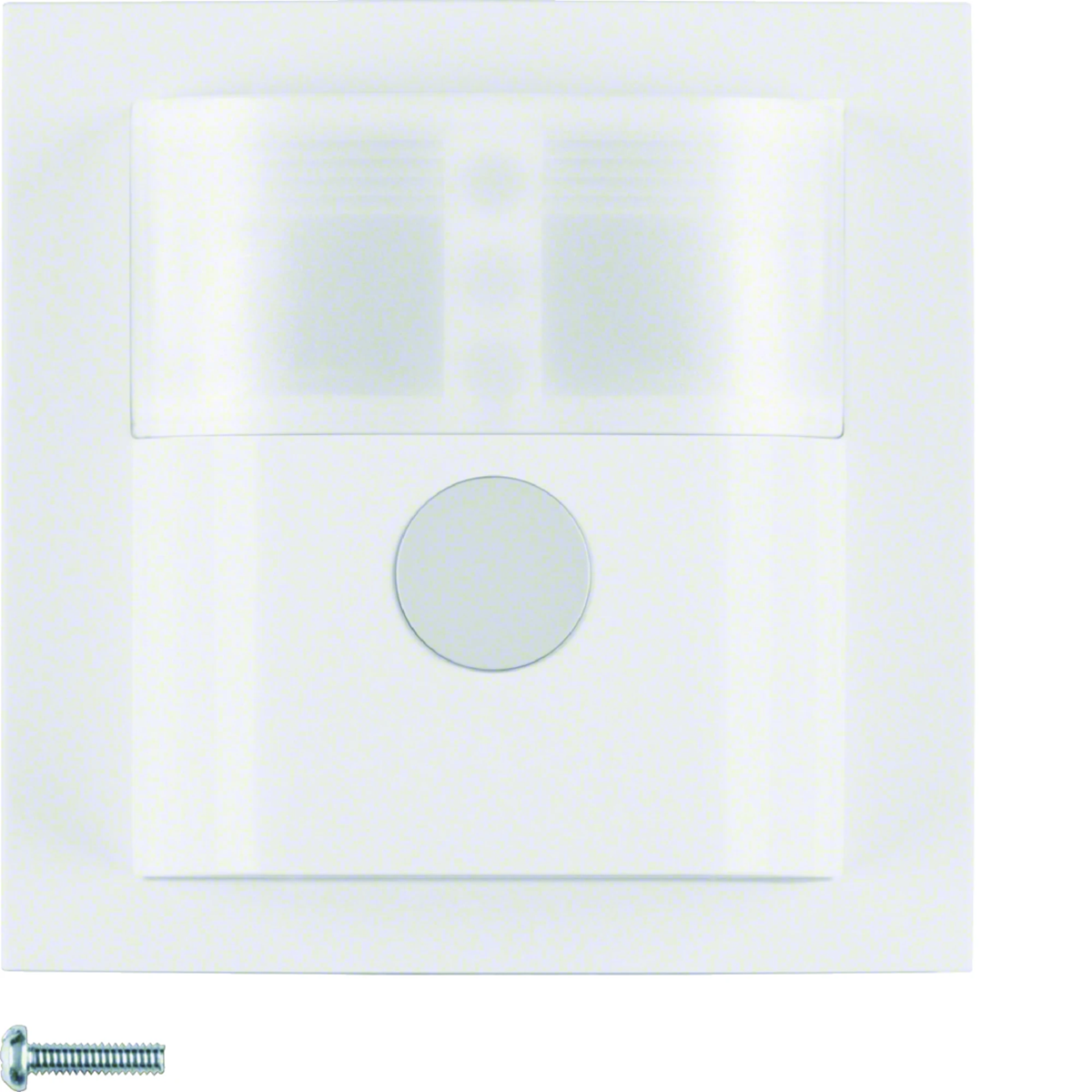

Comfort IR motion sensor cap 1.1 m, white, glossy, Berker S.1/B.3/B.7 85341289

local index:
MAP426BERK
Catalog No:
85341289
EAN code:
4011334373650
Manufacturer: BERKER
Color: White
Shape: Square
Maximum straight range [m]: 12
Price:
141,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IR attachment for motion sensor comfort series Berker B.Kwadrat/B.3/B.7.

Functions:

  • microprocessor control
  • pulse operation with idle time (e.g. for stair lighting installations/with pulse switching)
  • level programming function illuminance activated by button
  • with button lock
  • "party" function activated for 2 hours
  • with memory function to simulate presence
  • < /ul>

    Controls and indicators:

    • with on/off/automatic button

    < strong>LED control:

    • with red/green/orange operation and status LEDs
    • cap and mechanism compatibility LED indicator

Technical data

  • Color
    White
  • Maximum straight range [m]
    12
  • Type
    For the motion sensor
  • Level of security
    IP20
  • Accurate color
    Snow white
  • For modular equipment
    Not applicable
  • Shape
    Square
  • Material
    Plastic
  • Family
    B.SQUARE
  • Surface finish
    Shiny
  • Installation height [m]
    1.1
  • PKWIU
    27.40.30.0

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Networkable
    Yes
  • Creep-under protection
    No
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    0 m
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    Yes
  • Staircase light controller
    Yes
  • Material quality
    Thermoplastic
  • Suitable for degree of protection (IP)
    IP20
  • Min. switch-on time
    10 s
  • Switch-off delay self-learning
    No
  • Colour
    White
  • Mounting method
    Flush-mounted
  • HVAC-control
    Yes
  • Suitable for wireless transmission
    Yes
  • Mounting height
    1.1 m
  • Max. reach frontally
    12 m
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Animal zone
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Operation mode switch
    Yes
  • Max. duty cycle
    30 min
  • Detection angle horizontal
    45 ... 90 °
  • RAL-number (similar)
    9010

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,036 0,105 4,200 157,400
Width (m) 0,056 0,090 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,056 0,090 0,400 1,200
