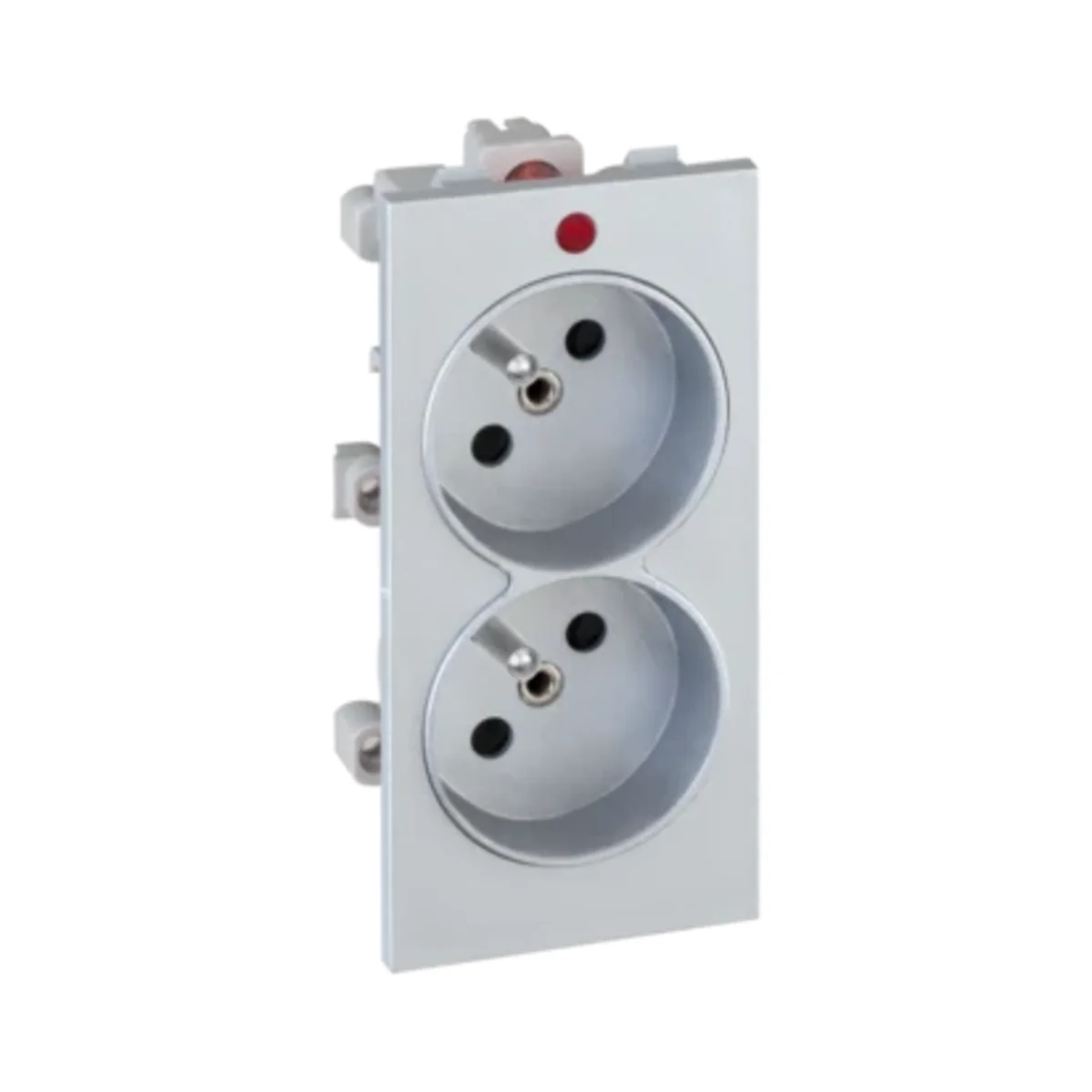

CIMA double socket with earthing 2x230V 16A aluminum S2/8

local index:
MGE052KONT
Catalog No:
S2/8
EAN code:
8426436045767
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 45
Number of sockets: 2
Price:
20,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical socket in CIMA standard, from the manufacturer Contact Simon. The product catalog number is S2/8.



FEATURES

  • Double.
  • Earth; ground pin.
  • With voltage indication.
  • Complete product.
  • Color aluminum .
  • Screw terminals.
  • Rated current 16 A.
  • Rated voltage 230 V.
  • Rating IP20.
  • Mounting dimensions 108 x 52 mm .
  • Mounting method: to the ground, latches, screw.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    CIMA
  • Width [mm]
    52
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    45
  • Color
    Silver
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    CIMA
  • Height [mm]
    108
  • Surface finish
    matte
  • Backlight
    Yes
  • Standard
    European
  • On the DATA key
    NO
  • Additional information
    Voltage indication

Other technical data

  • Connection type
    Screwed terminal
  • Mounting method
    Built-in installation
  • Surface protection
    Lacquered
  • Nominal voltage
    250 V
  • Colour
    Aluminium
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,112 0,112 11,190
Width (m) 0,108 - 0,121
Length (m) 0,052 - 0,264
Depth (m) 0,045 - 0,118
