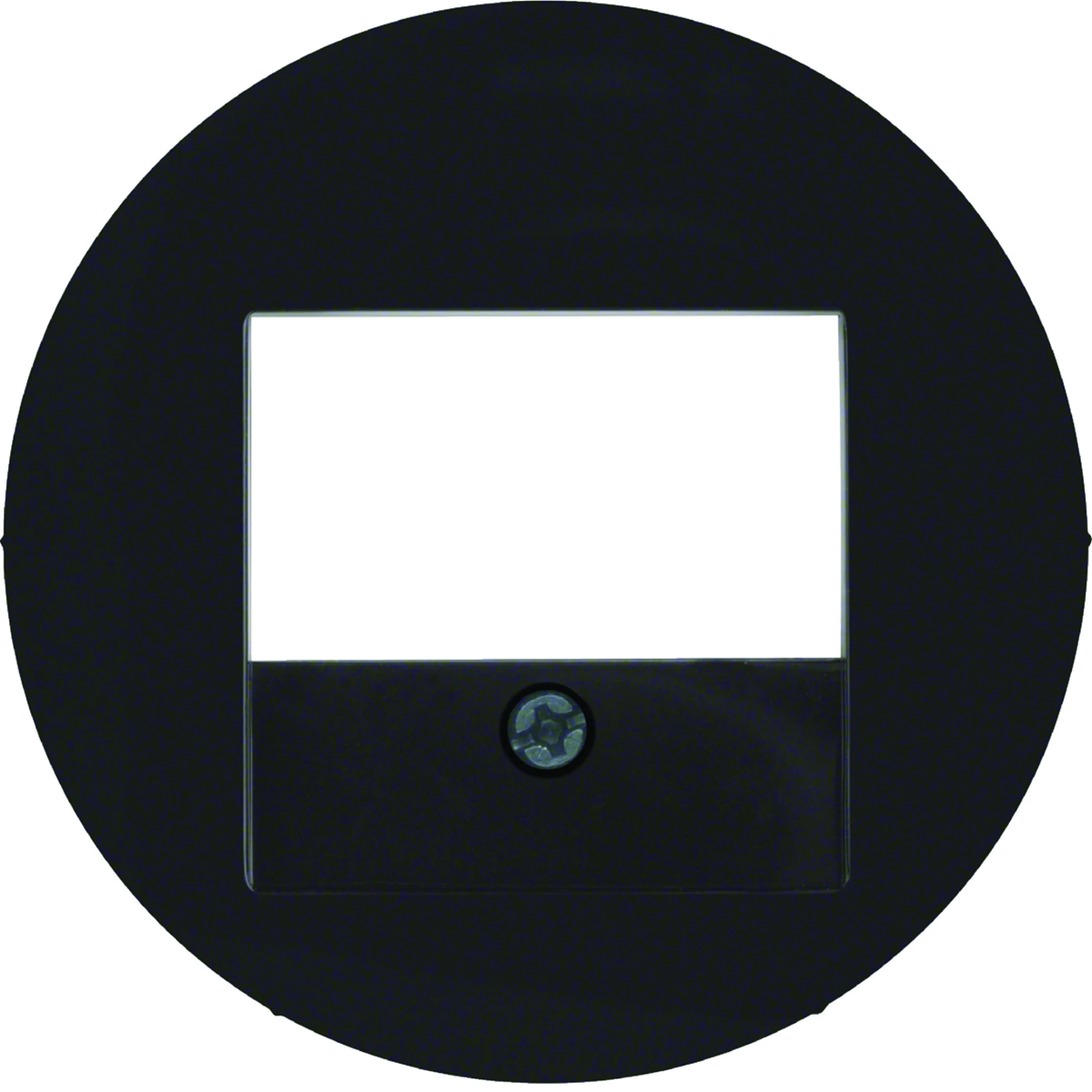

Central element for TAE and R.1/R.3/R.classic speaker sockets, glossy black 10382045

local index:
MAP013BERK
Catalog No:
10382045
EAN code:
4011334365396
Manufacturer: BERKER
Color: Black
Shape: Round
Material: Plastic
Price:
8,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Frontplate for speaker terminal or USB charger  series  Berker R.1/R.3/R.classic strong>. The product part number is 10382045.

  • For screw connection.
  • Without support ring.

Technical data

  • Color
    Black
  • Material
    Plastic
  • Family
    R.1 R.3 R.CLASSIC
  • For modular equipment
    Not applicable
  • Shape
    Round
  • Type
    To the speaker terminal To the USB socket
  • Surface finish
    Shiny
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Black
  • Transparent
    No
  • With buses/couplings
    No
  • Luster terminal
    No
  • Device width
    58.1 mm
  • Device depth
    12 mm
  • Utilization
    TAE
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • Type of fastening
    Mounting with screw
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    58.1 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 9600 pcs.
Weight (kg) 0,007 0,110 3,740 142,680
Width (m) 0,058 0,080 0,300 0,800
Length (m) 0,012 0,070 0,225 1,050
Depth (m) 0,058 0,130 0,400 1,200
