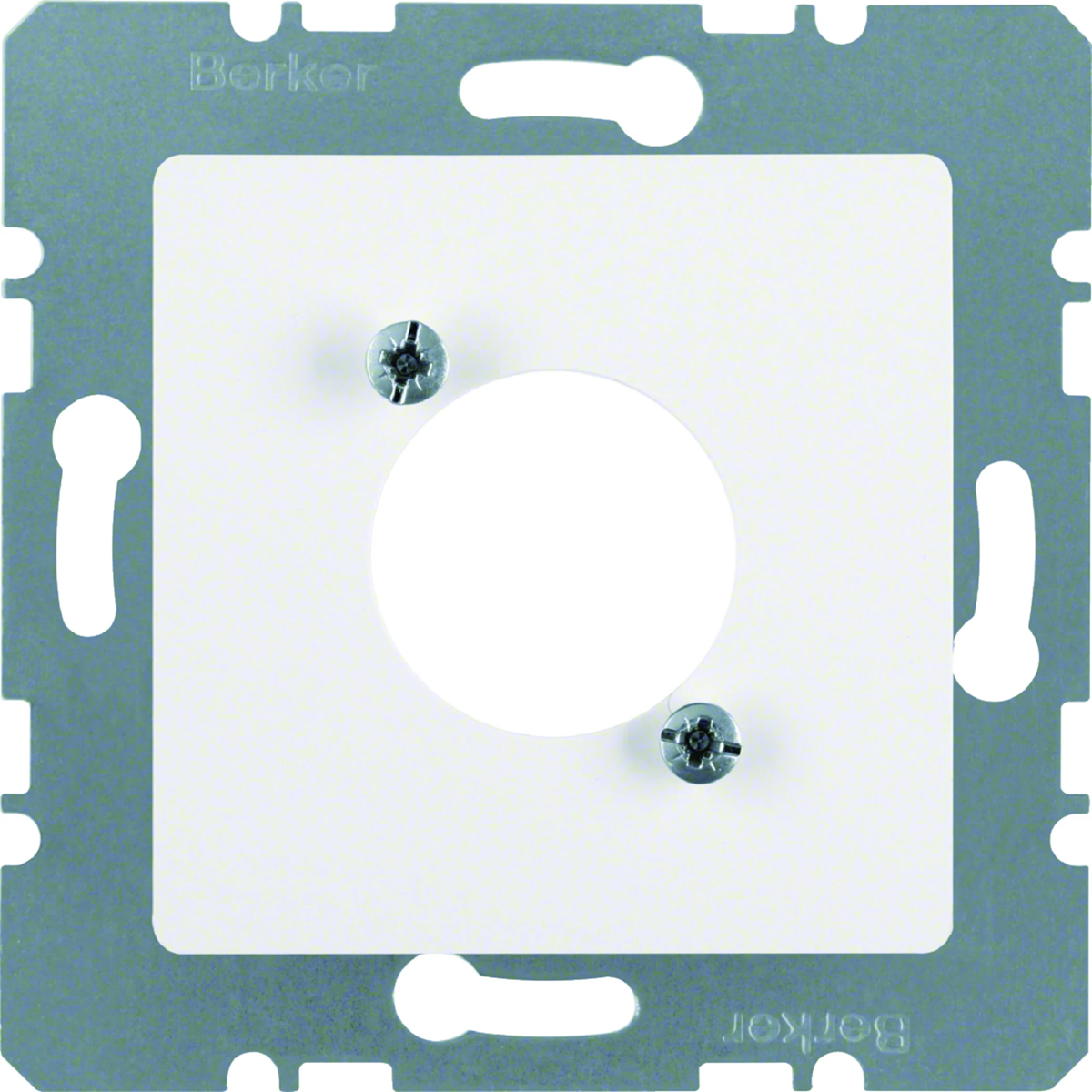

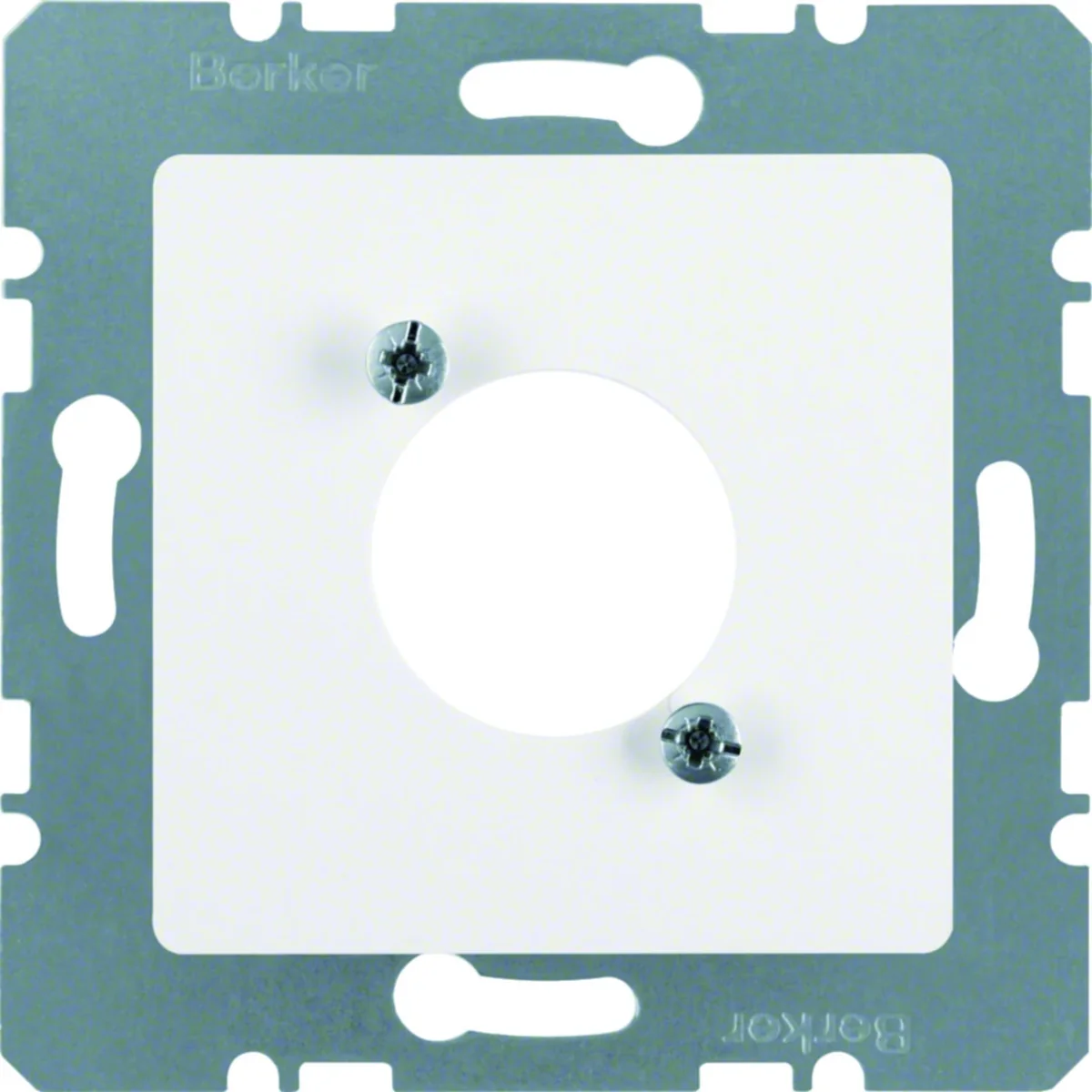

Center plate for D-Series XLR round connectors; snow white; S.1/B.1/B.3/B.7 Glas 14121909
local index:
MAP180BERK
Catalog No:
14121909
EAN code:
4011334226963
Price:
8,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Central plate for D-Series round XLR connectors, Berker B.Kwadrat/B.3/B.7 series. Product part number is 14121909.
- Use only with face plate spacers.
- With Ø 23.6 mm.
- For XLR sockets.
- Without expansion claws.
- Vertical distance: 24 mm. < li>Horizontal spacing: 19 mm.
- Bolt spacing (horizontal/vertical): 19 / 24 mm.
Technical data
-
Number of holes1
-
ShapeSquare
-
TypeTo the speaker jack
-
Level of securityIP20
-
For modular equipmentNot applicable
-
ColorWhite
-
MaterialPlastic
-
FamilyB.SQUARE
-
Accurate colorSnow white
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementCentral cover plate for intermediate ring
-
Support ringYes
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box0 mm
-
UtilizationXLR
-
With dust coverNo
-
Imprintable labelImprintable label snap-in in intermediate ring
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9010
-
Type of fasteningMounting with screw
-
Suitable for number of connectors1
-
Luster terminalNo
-
Device width71 mm
-
Device depth10 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,037 | 0,460 | 2,745 | 107,849 |
| Width (m) | 0,050 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,050 | 0,225 | 0,400 | 1,200 |
