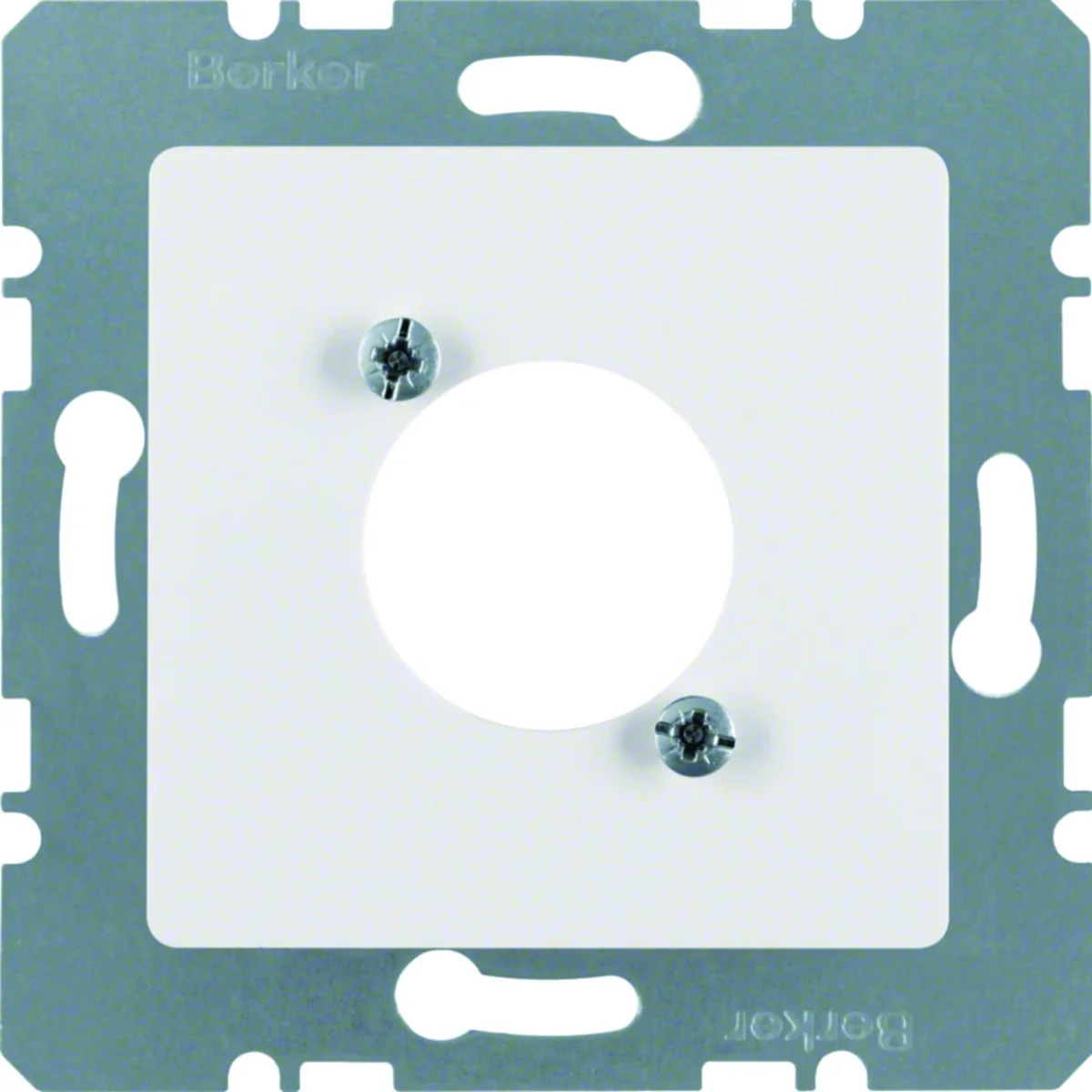

Center plate for D-Series XLR round connectors; snow white; Center plate system 141209

Indice locale:
MAP177BERK
Numero di catalogo:
141209
Codice EAN:
4011334226932
Produttore: BERKER
Number of holes: 1
Color: White
Shape: Square
Prezzo:
8,31 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Twoja hurtownia Choose your wholesaler
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Central plate for D-Series round XLR connectors, Berker B.Square series. The product part number is 141209.

  • Use only with  face plate spacers.
  • With Ø 23.6 mm.
  • For XLR sockets.
  • Without expansion claws.
  • Vertical distance: 24 mm.
  • < li>Horizontal spacing: 19 mm.
  • Bolt spacing (horizontal/vertical): 19 / 24 mm.

Dati tecnici

  • Number of holes
    1
  • Shape
    Square
  • Type
    To the speaker jack
  • Level of security
    IP20
  • Accurate color
    Snow white
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Family
    B.SQUARE
  • Surface finish
    Shiny
  • For modular equipment
    Not applicable

Altri dati tecnici

  • Assembly arrangement
    Central cover plate for intermediate ring
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    XLR
  • With dust cover
    No
  • Imprintable label
    Imprintable label snap-in in intermediate ring
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    10 mm

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 10 pezzi 50 pezzi 1600 pezzi
Peso (kg) 0,037 0,460 2,745 107,849
Larghezza (m) 0,071 0,160 0,300 0,800
Lunghezza (m) 0,010 0,075 0,225 1,050
Profondità (m) 0,071 0,225 0,400 1,200
