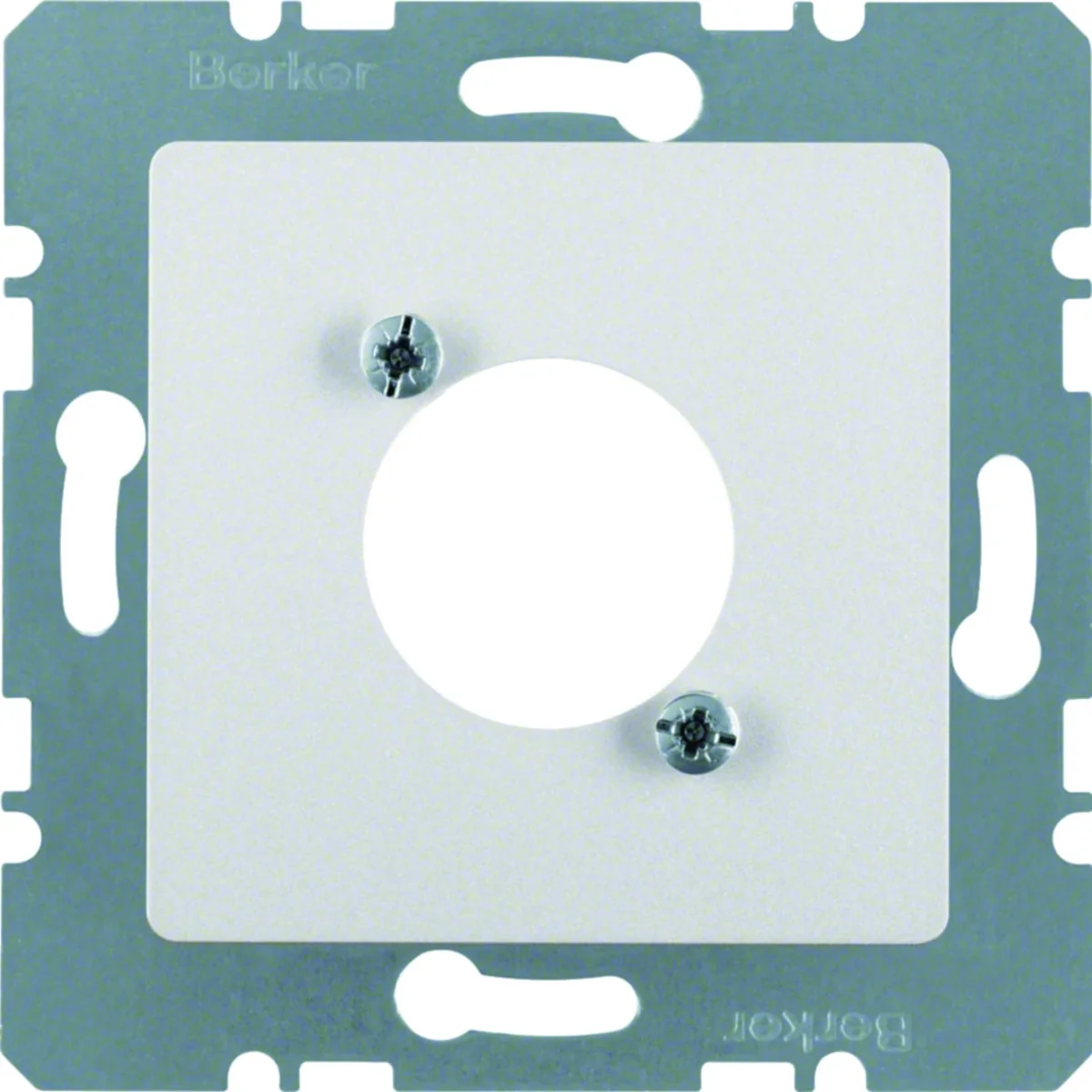

Center plate for D-Series XLR round connectors; aluminum; B.Square/B.7 14121404

local index:
MAP178BERK
Catalog No:
14121404
EAN code:
4011334226949
Manufacturer: BERKER
Number of holes: 1
Color: Silver
Shape: Square
Price:
14,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Central plate for D-Series round XLR connectors, Berker B.Kwadrat/B.3/B.7 series. Product part number is 14121404.

  • Use only with  face plate spacers.
  • With Ø 23.6 mm.
  • For XLR sockets.
  • Without expansion claws.
  • Vertical distance: 24 mm.
  • < li>Horizontal spacing: 19 mm.
  • Bolt spacing (horizontal/vertical): 19 / 24 mm.

Technical data

  • Number of holes
    1
  • Shape
    Square
  • Type
    To the speaker jack
  • Level of security
    IP20
  • Surface finish
    matte
  • For modular equipment
    Not applicable
  • Color
    Silver
  • Material
    Plastic
  • Family
    B.SQUARE
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Central cover plate for intermediate ring
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • Transparent
    No
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    XLR
  • With dust cover
    No
  • Imprintable label
    Imprintable label snap-in in intermediate ring
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    10 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,037 0,460 2,745 107,849
Width (m) 0,050 0,160 0,300 0,800
Length (m) 0,010 0,075 0,225 1,050
Depth (m) 0,050 0,225 0,400 1,200
