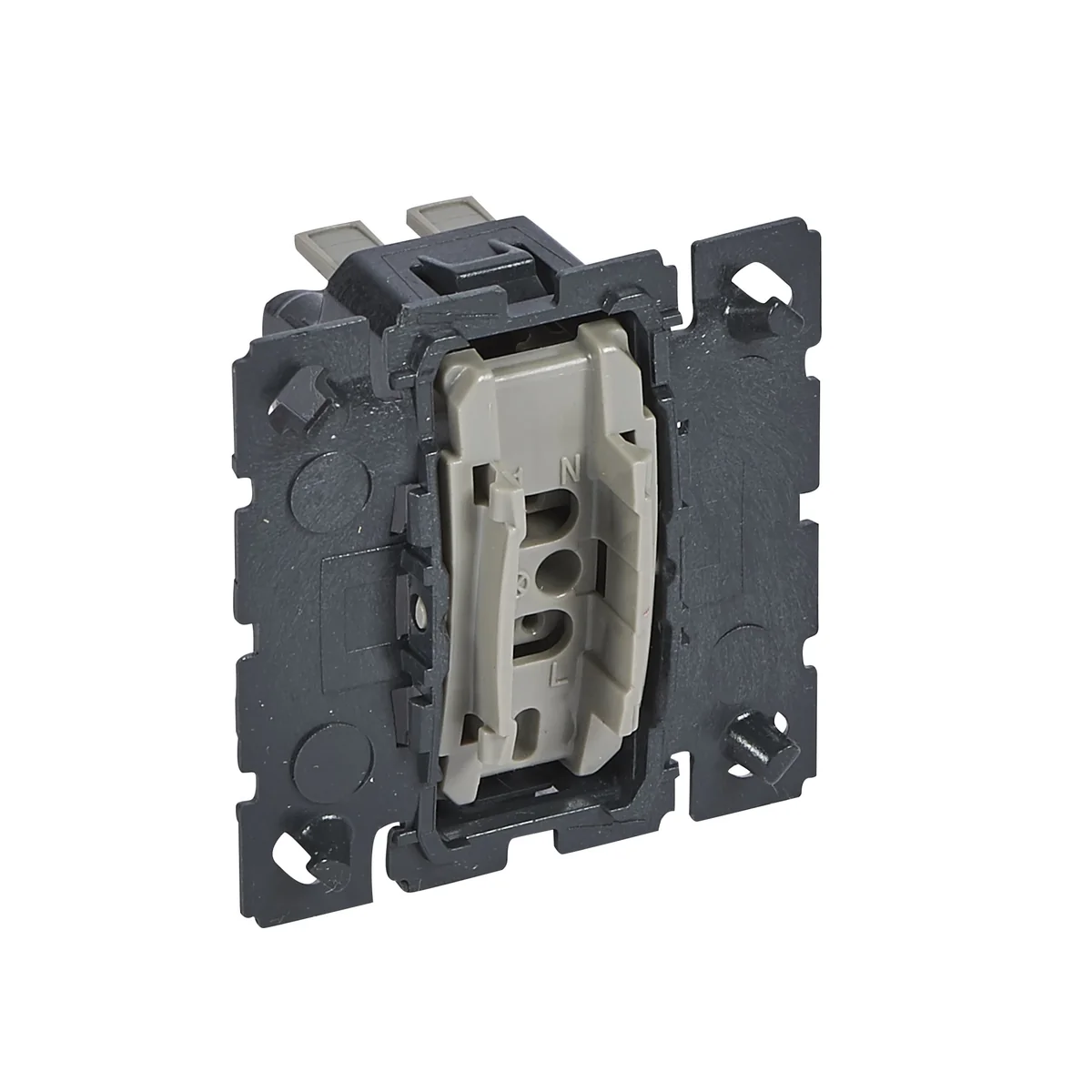

CELIANE 10AX IP20 universal coupler 067001E

Index local:
MMI011LEGR
Numéro de catalogue:
067001E
Code EAN:
3414971252455
Producteur: LEGRAND
Level of security: IP20
Prix:
53,74 zł
gross / pcs.
(y compris la TVA 23%)
2 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

CELIANE 10AX IP20 universal coupler

Données techniques

  • Level of security
    IP20
  • PKWIU
    27.33.11.0

Autres données techniques

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Modular device for domestic switching devices
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7016
  • Label space/information surface
    No
  • Function lighting
    Other
  • Suitable for degree of protection (IP)
    IP21
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Heating switch
    No
  • Device width
    45 mm
  • Device depth
    32 mm
  • Min. depth of built-in installation box
    30 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    2
  • Number of rockers
    1
  • Type of fastening
    Engage (snap)
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Other
  • Colour of switch operator
    Other
  • Illumination
    No
  • Type of lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Washing machine switch
    No
  • Device height
    45 mm
  • Built-in depth
    23 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Détails du fabricant

  • Producteur
    Legrand Polska Sp. z o.o.
  • Adresse
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Emballage en vrac

Une sorte de paquet Pudełko Karton Paleta
Quantité 10 pcs. 120 pcs. 4320 pcs.
poids (kg) 0,202 2,624 94,464
Volume (m3) 0,001 0,015 0,812
Largeur (m) 0,102 0,208 1,200
Longueur (m) 0,035 0,257 0,677
Profondeur (m) 0,238 0,276 1,000
