Cat.6 RJ45 socket 664873

local index:
MEI041LEGR
Catalog No:
664873
EAN code:
3245066648736
Manufacturer: LEGRAND
Category: 6
Color: Beige
Shape: Square
Price:
13,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

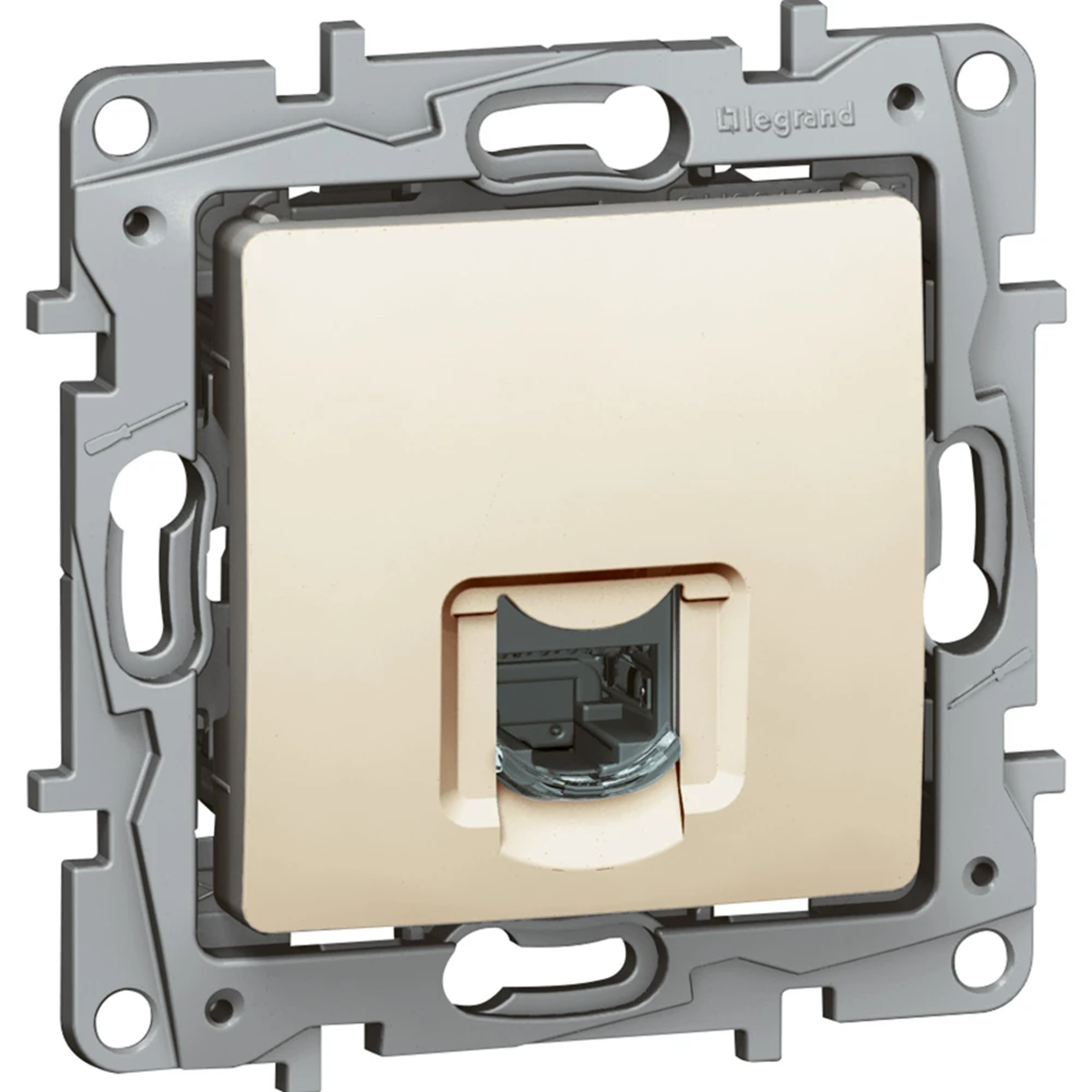

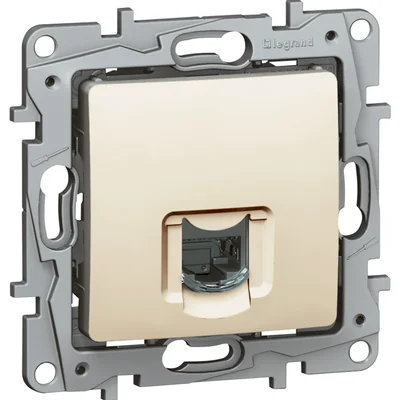

RJ45 UTP category 6 computer socket from the Niloe series.

  • Mechanisms are supplied with tags and holders.
  • You can choose the appropriate frames for them.
  • Fixed with screws or latches.
  • Can be mounted on claws 665099 but sold separately.
  • Temperature operating range: -5°C to +35°C.



SERIES DESCRIPTION

Accessories Niloe are traditional switches, sockets and frames in six popular colors: white, cream, grey, red, aluminum and graphite. The offer also includes switch mechanisms made in the ZigBee radio technology, enabling the extension of the existing installation with home automation functions without the need to forge walls.

Technical data

  • Category
    6
  • Shape
    Square
  • Installation
    Flush-mounted
  • Family
    NILOE
  • Type
    Flush-mounted
  • Accurate color
    Creamy
  • For the frame system
    Yes
  • Dust cover
    NO
  • Color
    Beige
  • Material
    Plastic
  • Type
    Internet
  • Level of security
    IP20
  • Version
    UTP
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • PKWIU
    27.33.13.0

Other technical data

  • Surface mounting
    No
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    RJ45 8(8)
  • Suitable for number of connectors
    1
  • Colour
    Beige
  • Connection type
    Insulation displacement connector
  • Separate earthing connection
    No
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Device width
    75.8 mm
  • Device depth
    35.5 mm
  • Montaż podtynkowy
    Yes
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with central cover plate
  • With buses/couplings
    Yes
  • Category
    6
  • RAL-number
    0
  • Shielded buses
    No
  • With label space
    No
  • Mounting method shielding connection
    None
  • With dust cover
    Yes
  • Colour coding
    Yes
  • Device height
    75.8 mm

Manufacturer details

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 100 pcs. 1000 pcs.
Weight (kg) 0,423 4,651 46,510
Volume (m3) 0,000 0,000 0,001
Width (m) 0,147 0,300 1,200
Length (m) 0,055 0,305 0,470
Depth (m) 0,372 0,400 1,000
