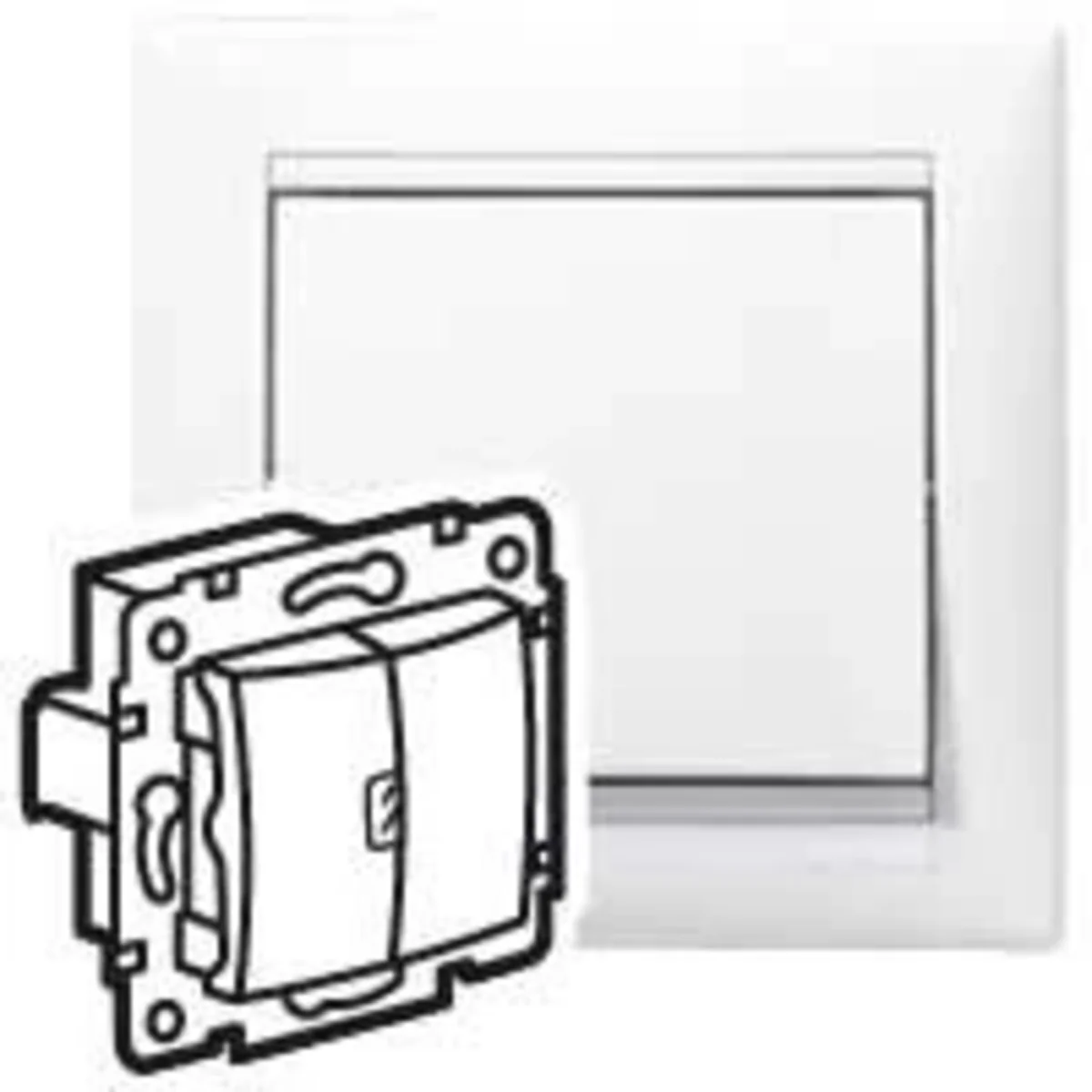

Candlestick switch with white backlight 774445

local index:
MMT022LEGR
Catalog No:
774445
EAN code:
3245067744451
Manufacturer: LEGRAND
Number of keys: 2
Color: White
Shape: Square
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
7,85 €
gross / pcs.
(including VAT 23%)
Last lowest price: 21,53 € gross
Base price: 22,82 € gross -66%
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Candlestick connector from the Valena series, from the manufacturer Legrand. Product part number is 774445.



FEATURES

  • With current flow indicator.
  • Illuminated; with orange neonó1 mA - 230V~ Art.-No. ref. 7758 98
  • Automatic spring clamps.
  • Borderless module.
  • Color white .
  • Rated current 10 AX.
  • Rated voltage 230V.
  • flushmount.
  • Mechanism complete with keys and metal holder.
  • Mounting with claws or screws.
  • Compatible with fluorescent lamps.

Technical data

  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Backlight
    Yes
  • For the frame system
    Yes
  • Backlight color
    Orange
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    VALENA
  • Type
    Flush-mounted
  • Terminal type
    Threadless
  • Backlight type
    Activation signaling
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Device width
    71 mm
  • Device depth
    37 mm
  • Min. depth of built-in installation box
    30 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Kremowy
  • Label space/information surface
    No
  • Function lighting
    Illuminated (on)
  • Suitable for degree of protection (IP)
    IP31
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    21 mm

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 100 pcs. 1000 pcs.
Weight (kg) 0,891 9,480 94,800
Volume (m3) 0,000 0,000 0,001
Width (m) 0,175 0,386 1,200
Length (m) 0,055 0,300 0,549
Depth (m) 0,395 0,405 1,000
