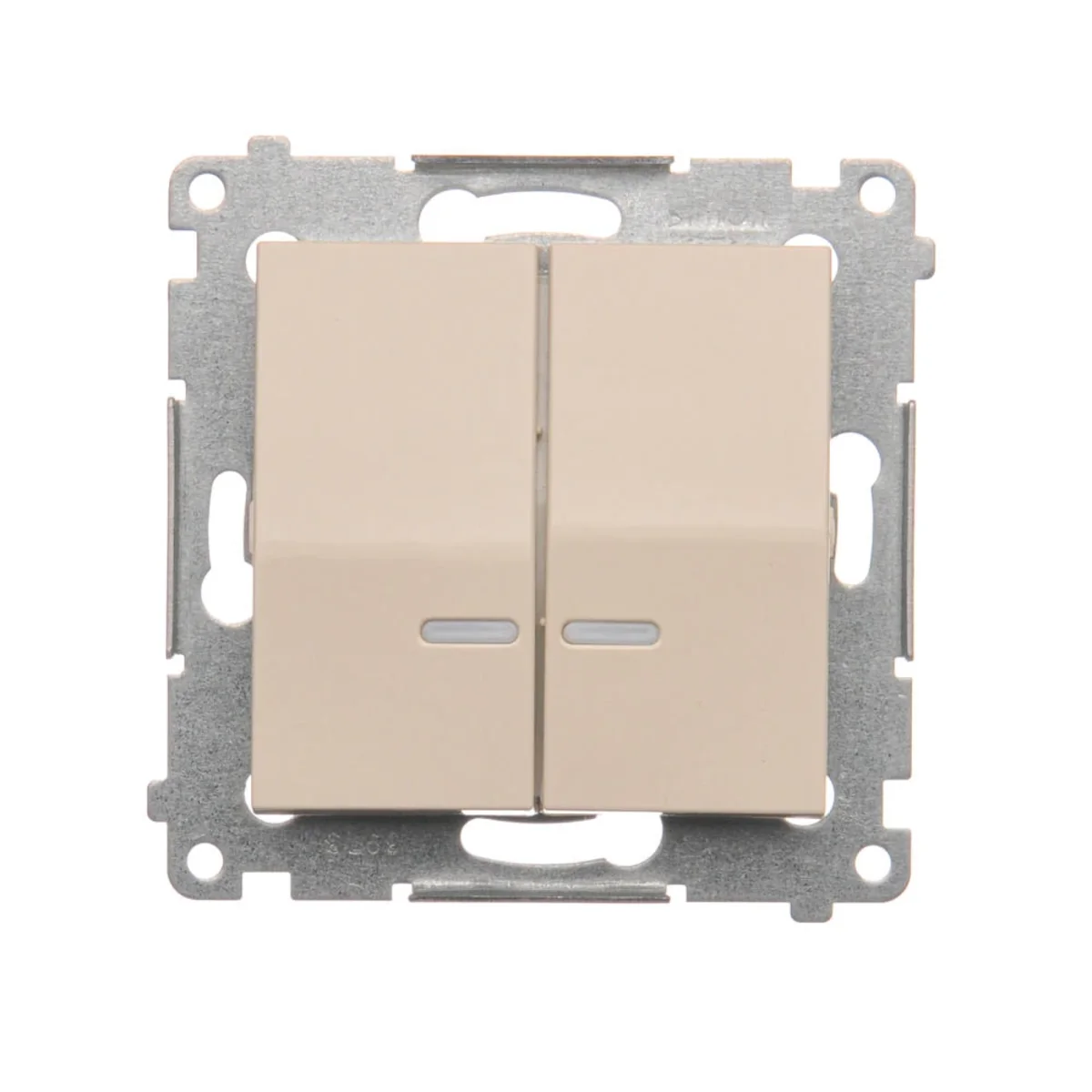

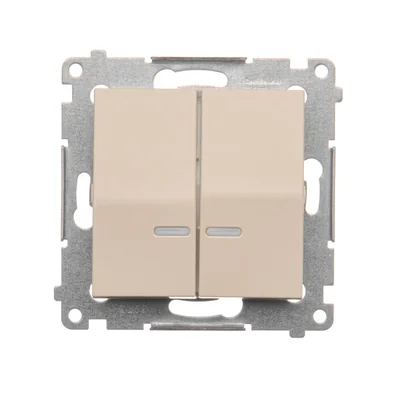

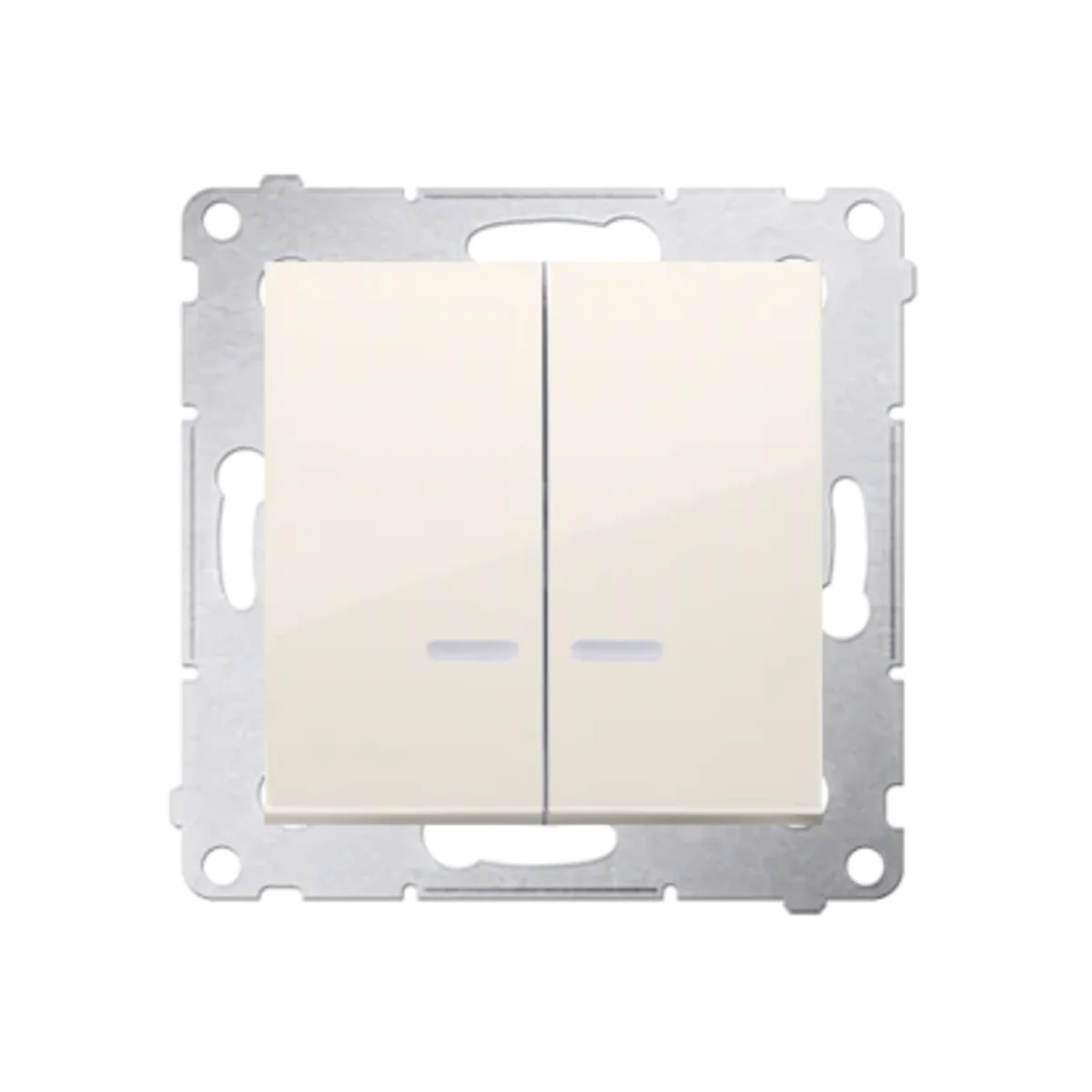

Candlestick switch with LED backlight and for the 230V version (module), cream DW5ABL.01/41

Name: Candlestick switch with LED backlight and for the 230V version (module), cream
Brand: KONTAKT-SIMON
SKU: MMT074KONT
Price: 9.80 PLN

local index:

MMT074KONT

Catalog No:

DW5ABL.01/41

EAN code:

5902787559502

Candlestick switch with LED backlight and for the 230V version (module), cream

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

See full description

Price:

9,80 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Candlestick connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW5ABL.01/41.

FEATURES

With built-in backlight , orientation, blue (LED replaceable).
For IP44 version.
Frameless module.

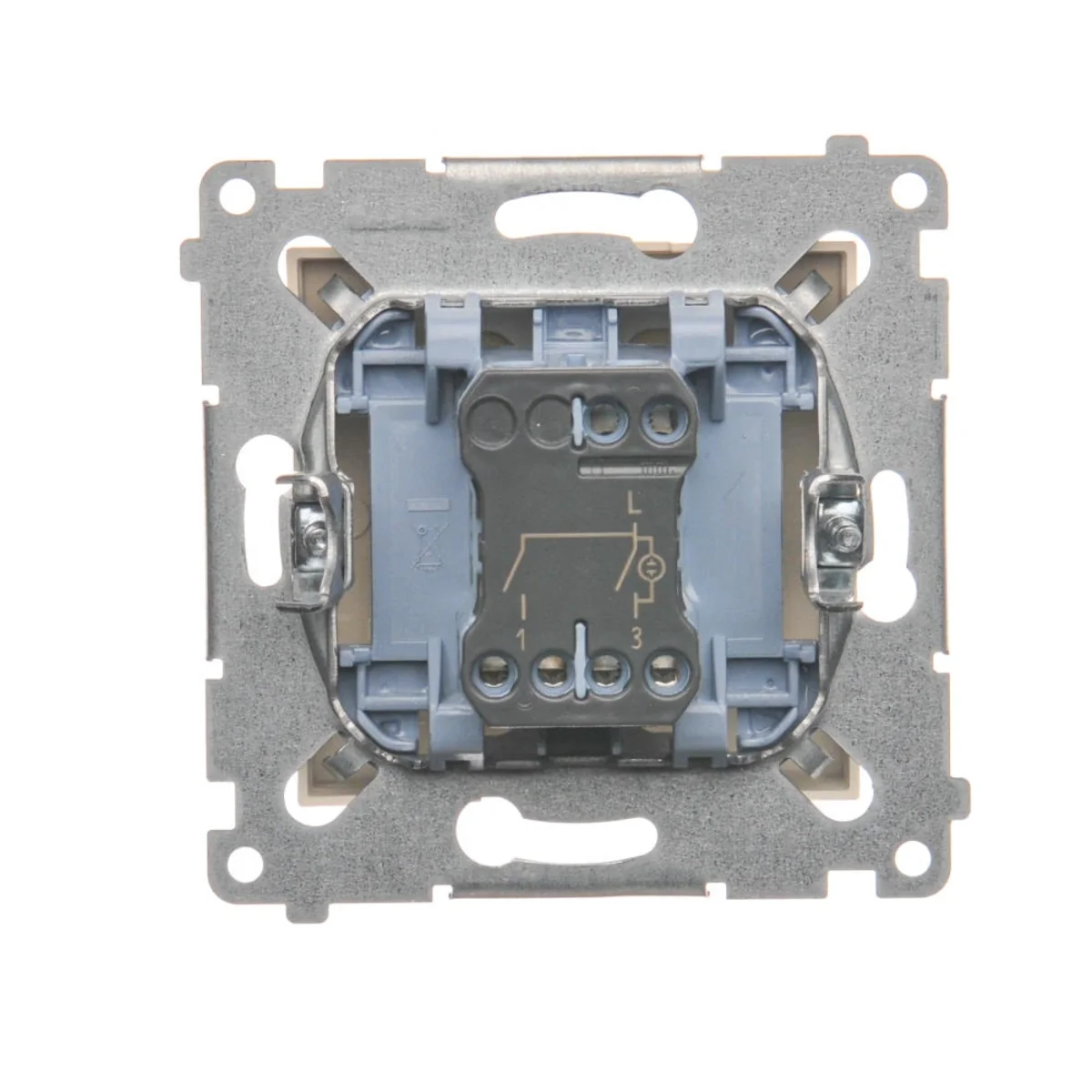

Screw terminals.
Colour cream.
Rated current of fluorescent lamps 16AX.
Rated voltage 230V.
Ingress protection IP20.
flushmount.
Dimensions: 75 x 75 mm (height x width).
Material PC.
2x1-pole (bistable) connector.
Use a frame gasket to obtain IP44 splash-proof class.
It has a sealing insert under the keys .

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and assembly-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Candlestick
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Accurate color

Creamy
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Backlight

Yes
Terminal type

Threaded
Exact material

PC
Backlight color

Blue

Other technical data

Wiring system

Off switch 2x1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

Kremowy
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,068	0,068	0,769
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
