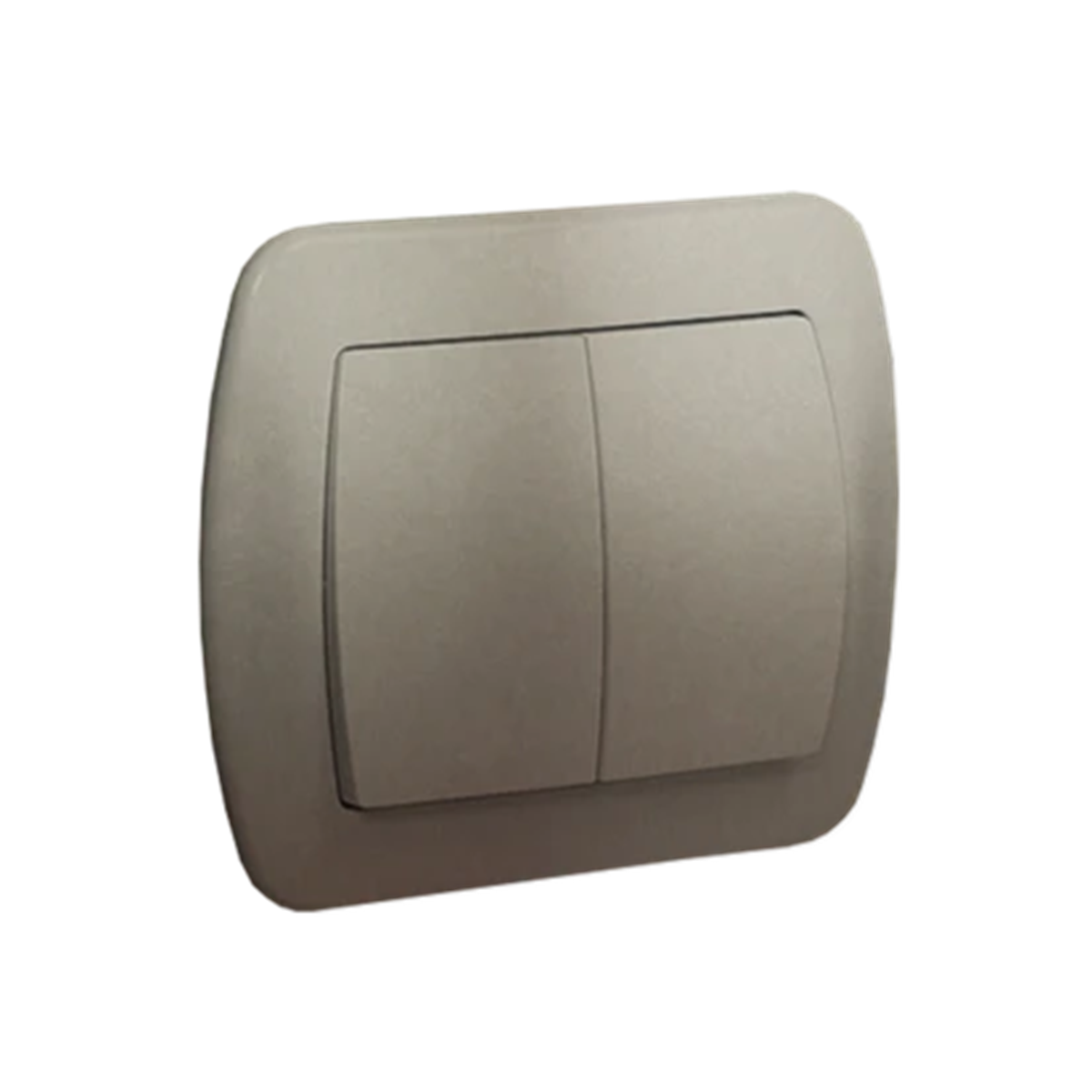

Candlestick switch with backlight 10A 250V screw terminals satin (metallic) AW5L/29
local index:
MMT040KONT
Catalog No:
AW5L/29
EAN code:
5902787597870
Price:
7,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Candlestick connector from the Simon Akord series, from the manufacturer Contact Simon. The product catalog number is AW5L/29.
FEATURES
- With built-in backlight< /strong>, orienting, orange (smoldering lamp).
- Complete product; with a frame.
- Screw terminals.
- Colour satin, metallic.
- Rated current of fluorescent lamps 10AX.
- Rated voltage 230V.
- Ingress protection IP20< /strong>.
- flushmount.
- Dimensions: 80.5 x 90 mm (height x width).
- Made of PC.
- 2x1-pole switch (bistable).
SERIES DESCRIPTION
The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish the Chord series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.
Technical data
-
Halogen freeYes
-
Number of keys2
-
ShapeRectangular
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeCandlestick
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorSatin metallic
-
Mounting depth [mm]24.5
-
For the frame systemNO
-
Backlight typeOrientation Smoldering lamp
-
PKWIU27.33.11.0
-
Depth [mm]37.5
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySIMON CHORD
-
Width [mm]90
-
Height [mm]80.5
-
Surface finishmatte
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPC
-
Backlight colorOrange
Other technical data
-
Wiring systemOff switch 2x1-pole
-
Assembly arrangementBasic element with complete housing
-
MaterialPlastic
-
Surface protectionLacquered
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps10 AX
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Nominal voltage250 V
-
Connection typeScrewed terminal
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,063 | 0,063 | 0,716 |
| Width (m) | 0,080 | 0,110 | 0,190 |
| Length (m) | 0,090 | 0,043 | 0,230 |
| Depth (m) | 0,038 | 0,165 | 0,100 |
