Candlestick switch (module) 230V, matt bronze metallic DW5.01/46

Name: Candlestick switch (module) 230V, matt bronze metallic
Brand: KONTAKT-SIMON
SKU: MMT064KONT
Price: 8.46 PLN

local index:

MMT064KONT

Catalog No:

DW5.01/46

EAN code:

5902787832551

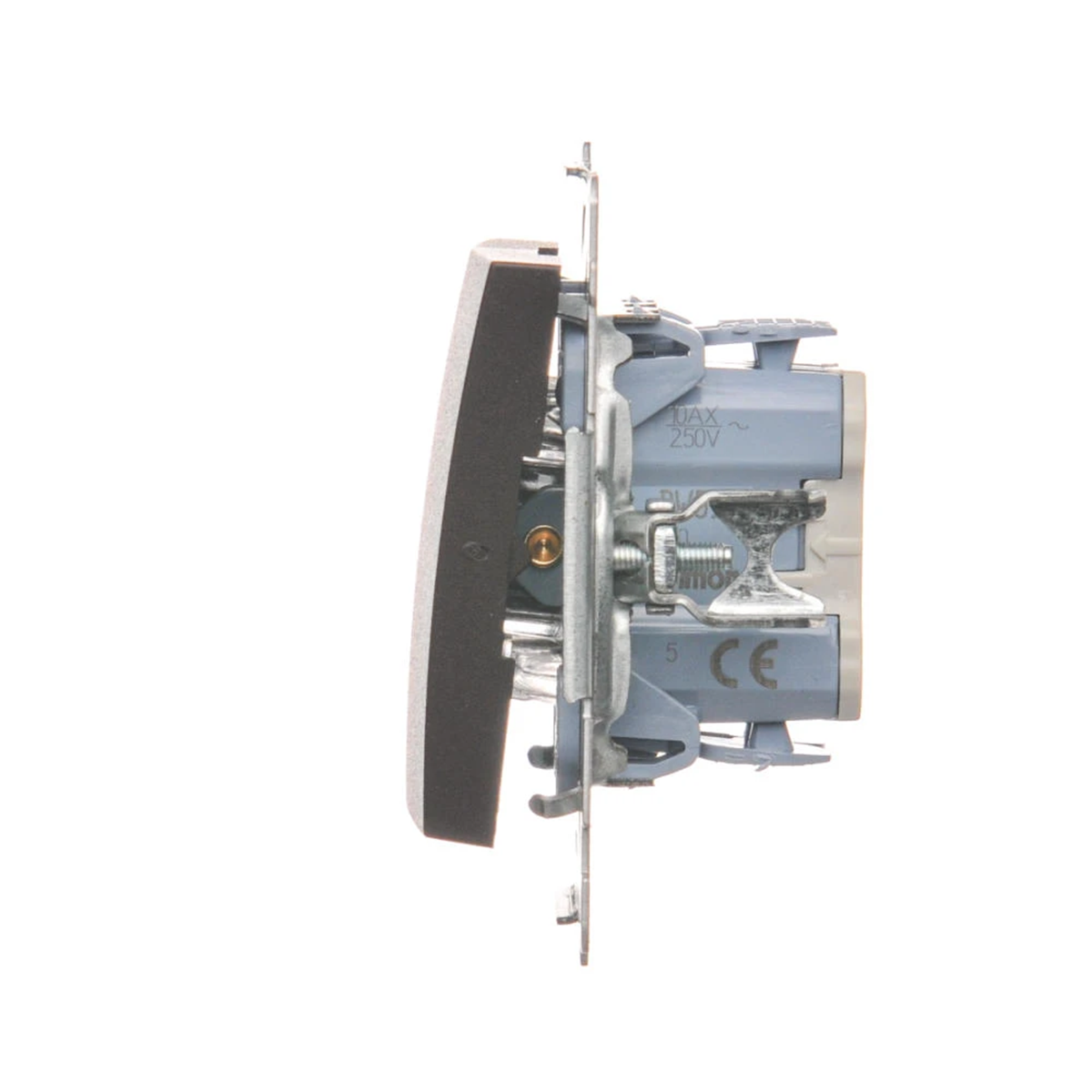

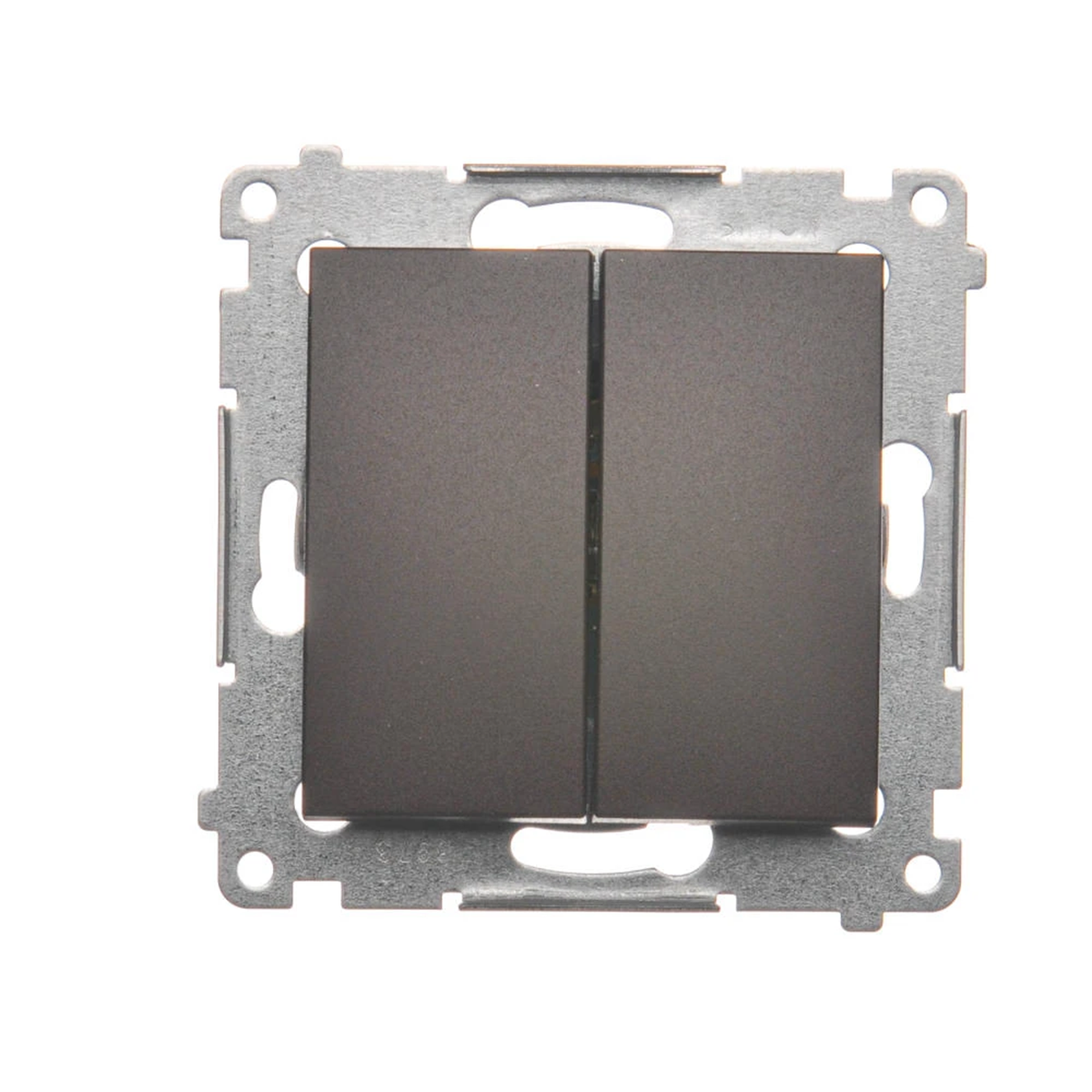

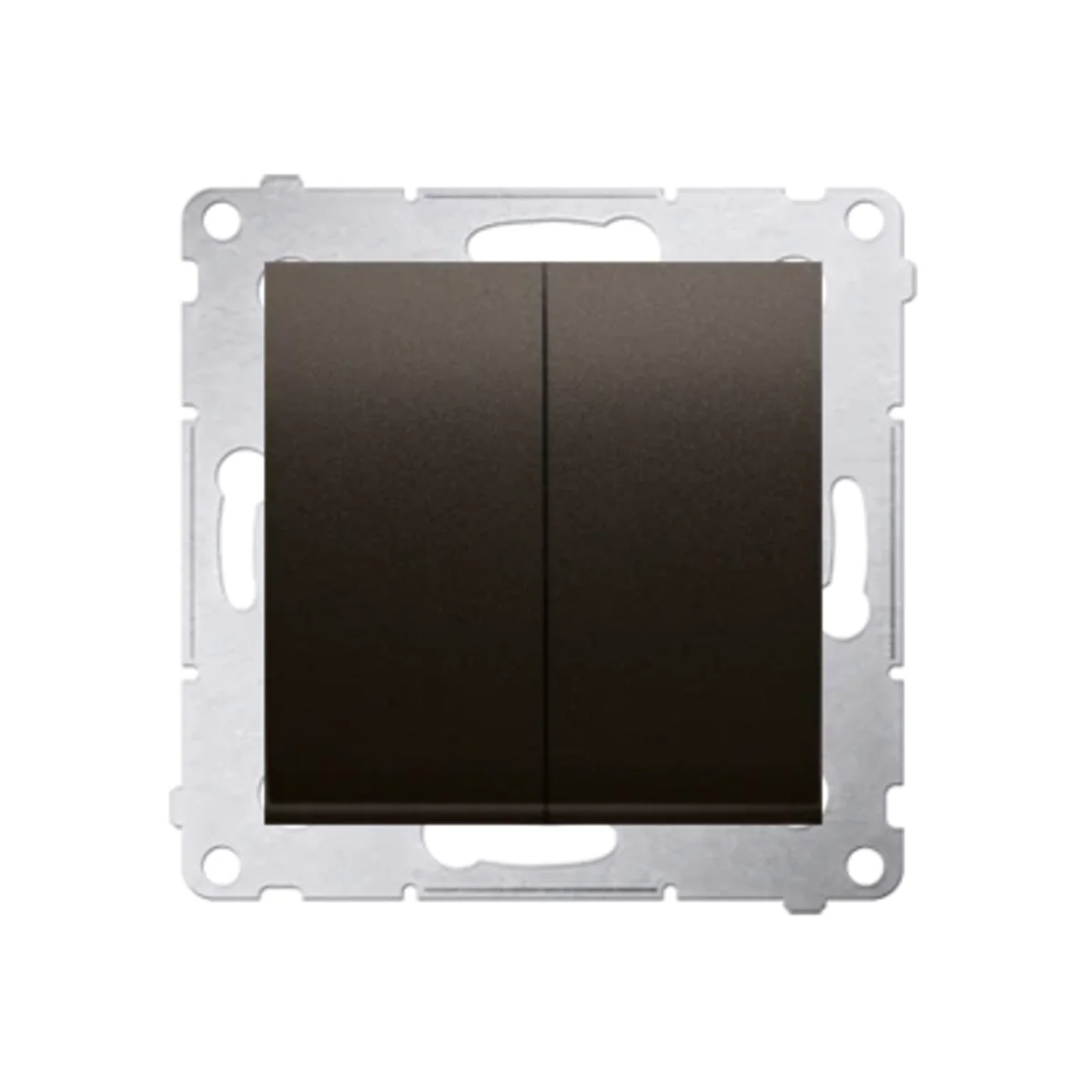

Candlestick switch (module) 230V, matt bronze metallic

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

See full description

Price:

8,46 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Candlestick connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW5.01/46.

FEATURES

Module without frame .
Quick connectors.
Colour matt brown, metallised.
Rated current of fluorescent lamps 10AX.
Rated voltage 230V.
Ingress protection IP20 .
flush mounting.
Dimensions: 75 x 75 mm (height x width).
Material PC.

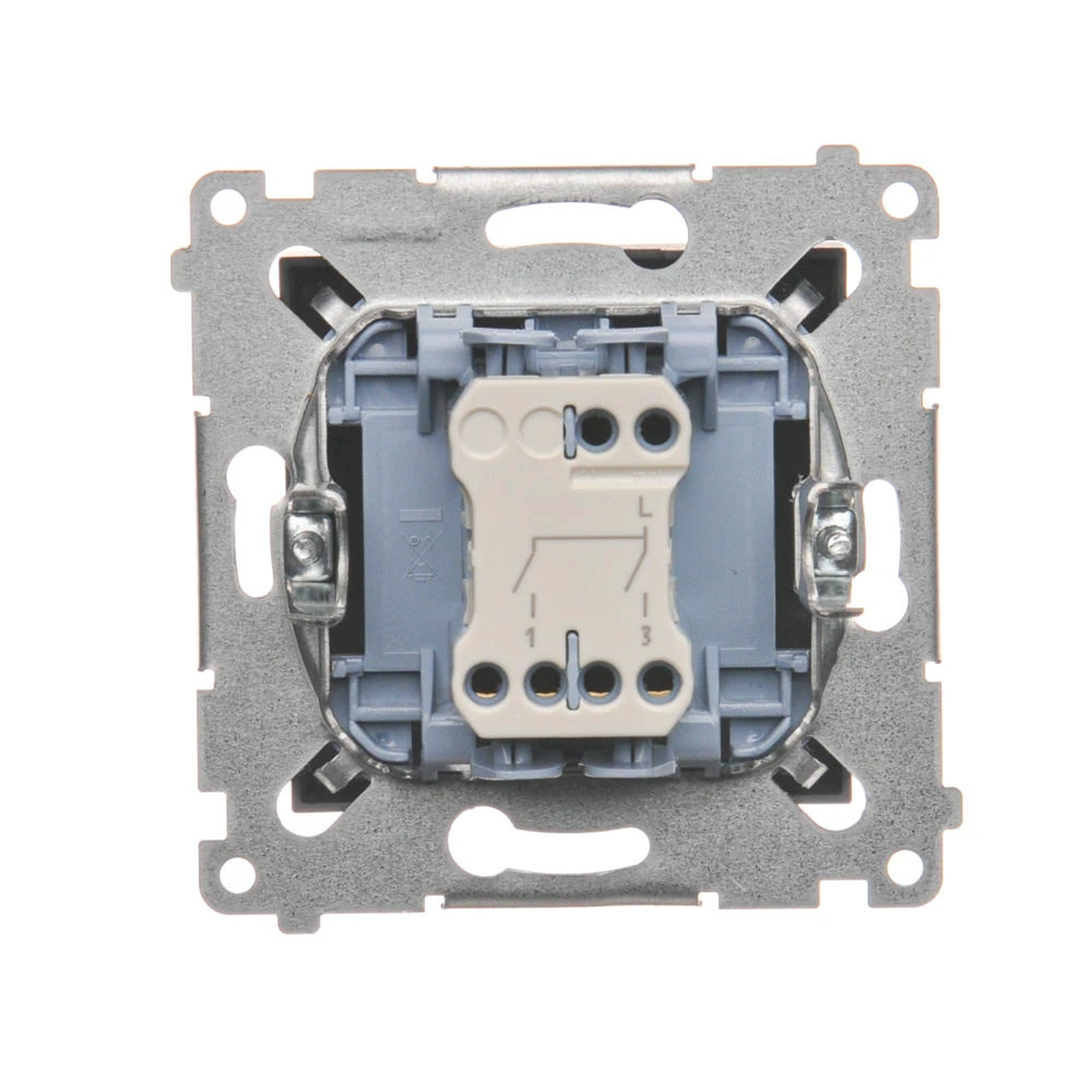

2x1-pole (bistable) connector.
To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.

< p>

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Candlestick
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallic bronze matt
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

Brown
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threadless
Exact material

PC

Other technical data

Wiring system

Off switch 2x1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Brown
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,063	0,063	0,719
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
