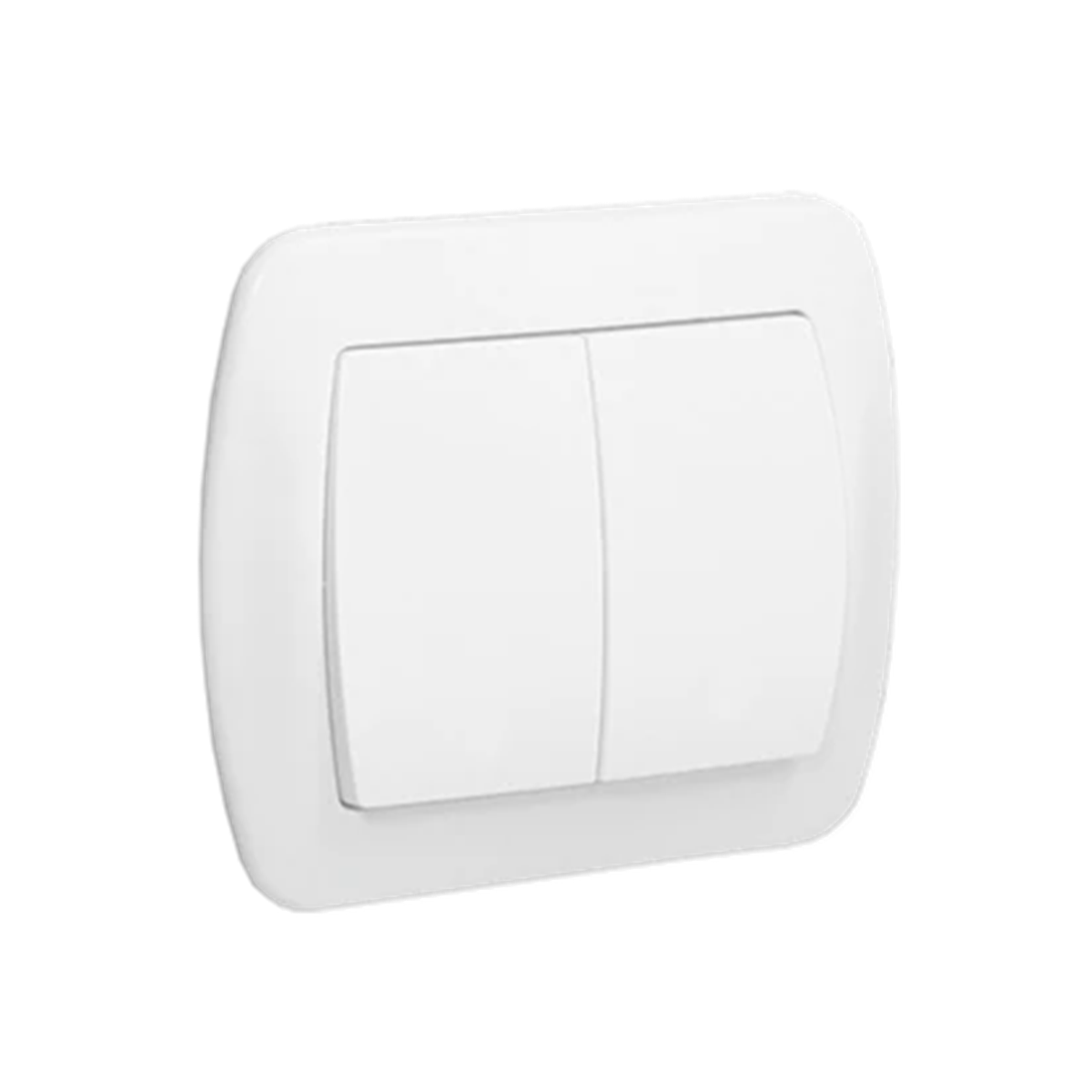

Candlestick switch 10A 250V screw terminals white AW5/11

local index:
MMT080KONT
Catalog No:
AW5/11
EAN code:
5902787569693
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 2
Price:
3,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 191 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candlestick connector from the Simon Akord series, from the manufacturer Contact Simon. The product part number is AW5/11.



FEATURES

  • Complete product; with frame.
  • Screw terminals.
  • Color white.
  • Rated current of fluorescent lamps 10AX.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 80.5 x 90 mm (height x width).
  • Made with PC.
  • 2x1-pole switch (bistable).



SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish the Chord series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but sophisticated colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    PC
  • Depth [mm]
    37.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24.5
  • For the frame system
    NO
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,061 0,061 0,698
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,043 0,230
Depth (m) 0,038 0,165 0,100
