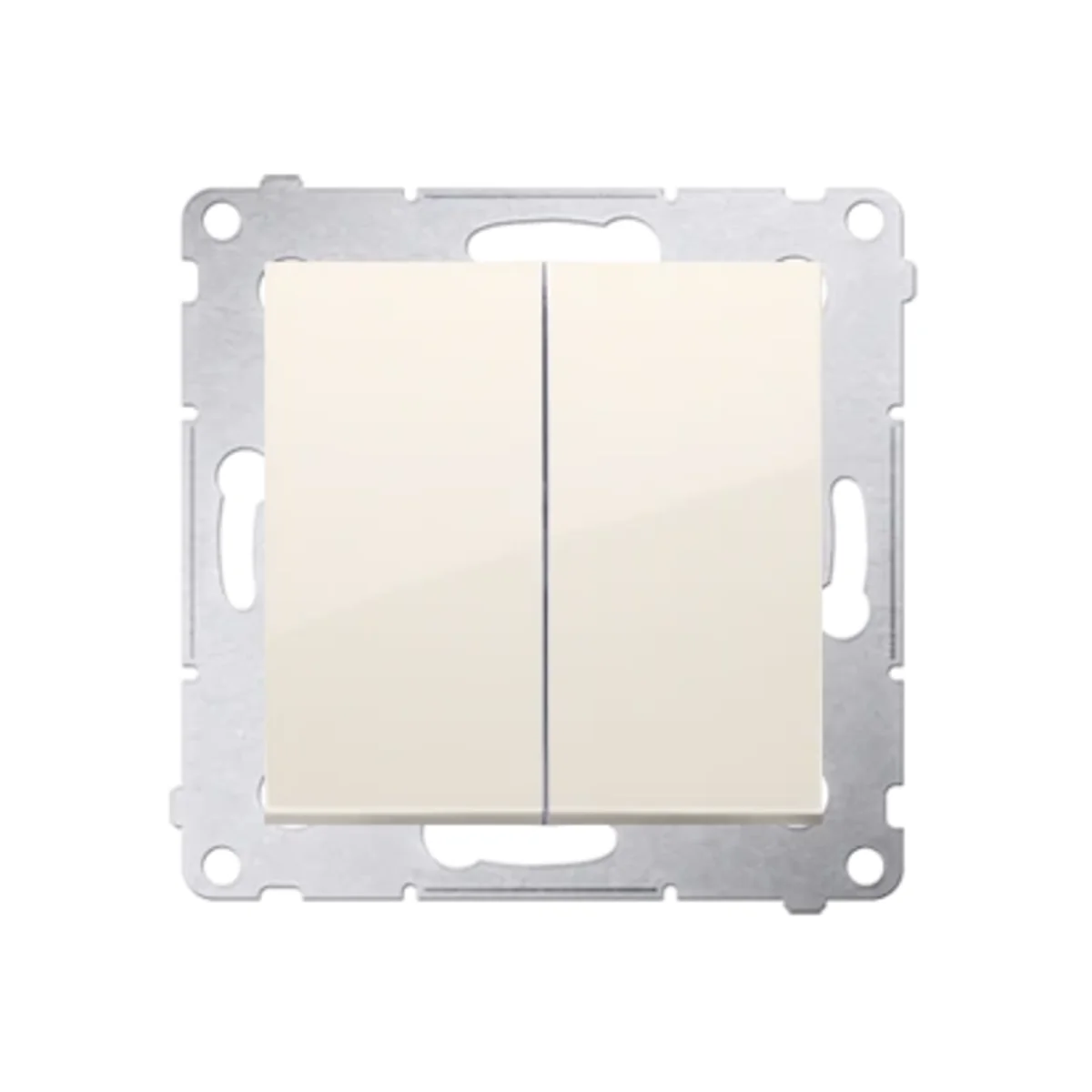

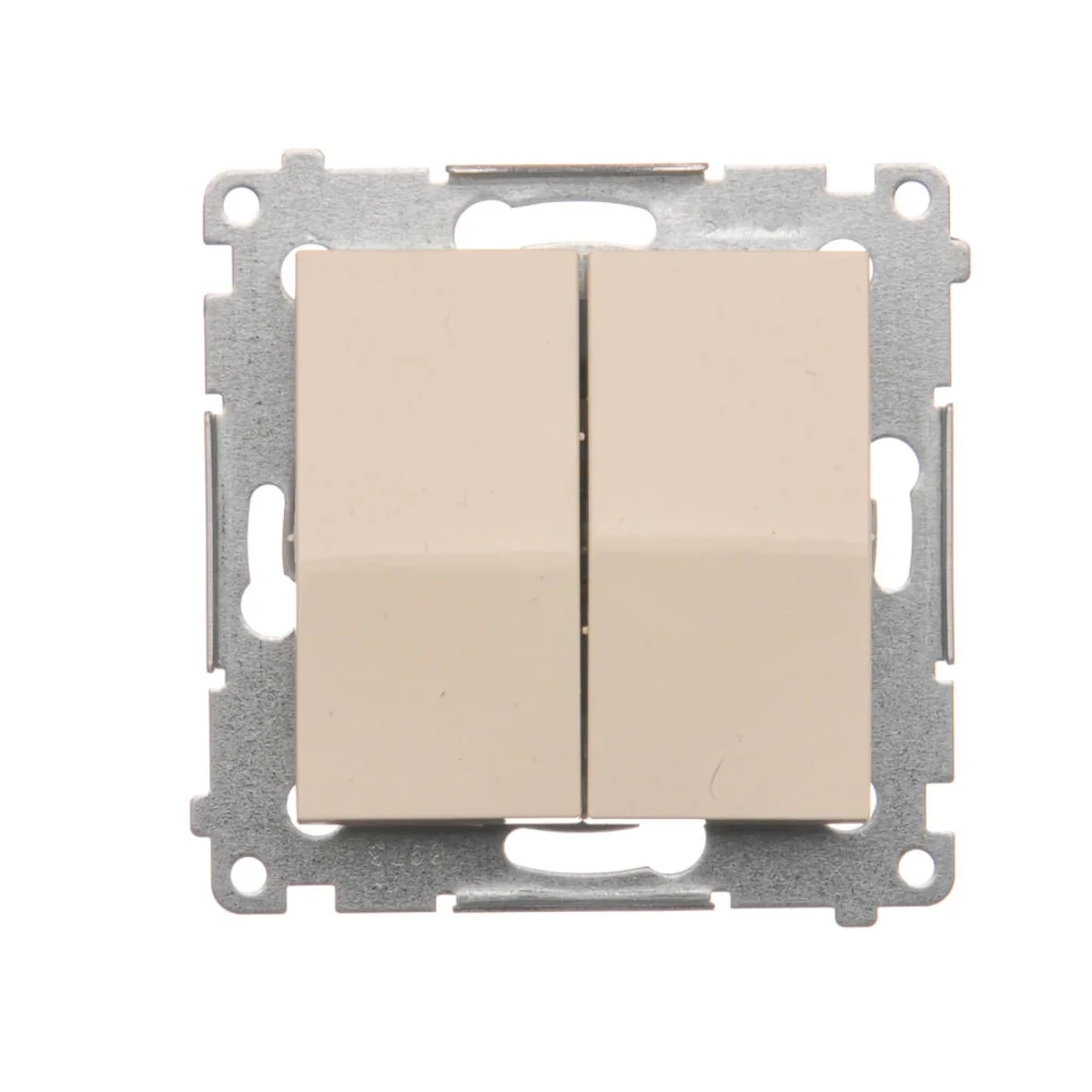

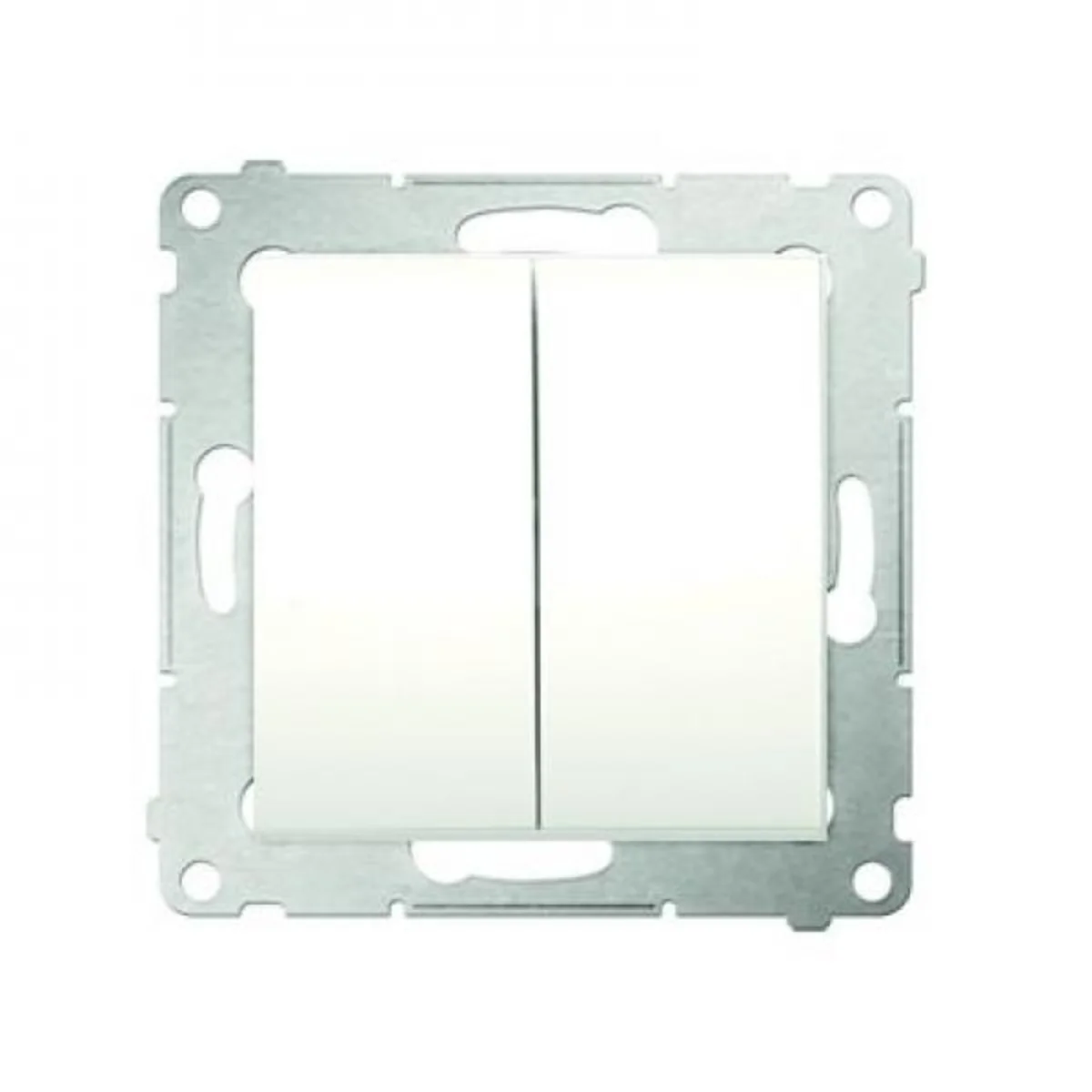

Candlestick connector (module) 10A 250V cream quick connectors DW5.01/41
local index:
MMT063KONT
Catalog No:
DW5.01/41
EAN code:
5902787822217
Price:
6,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Candlestick connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW5.01/41.
FEATURES
- Module without frame .
- Quick connectors.
- Colour cream.
- Light current rating 10AX.
- Rated voltage 230V.
- Ingress protection IP20.
- Flushmount.
- Dimensions: 75 x 75 mm (H x W).
- Material PC.
- 2x1-pole switch (bistable).
- To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.
;
SERIES DESCRIPTION
SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.
Technical data
-
Halogen freeYes
-
Number of keys2
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeCandlestick
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Accurate colorCreamy
-
Mounting depth [mm]26
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Depth [mm]41
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySimon 54
-
Width [mm]75
-
Height [mm]75
-
Surface finishShiny
-
BacklightNO
-
Terminal typeThreadless
-
Exact materialPC
Other technical data
-
Wiring systemOff switch 2x1-pole
-
Assembly arrangementBasic element with central cover plate
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourKremowy
-
Nominal voltage250 V
-

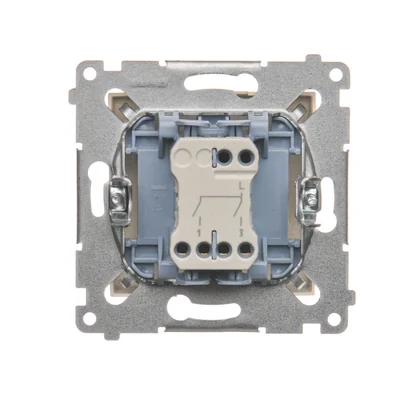

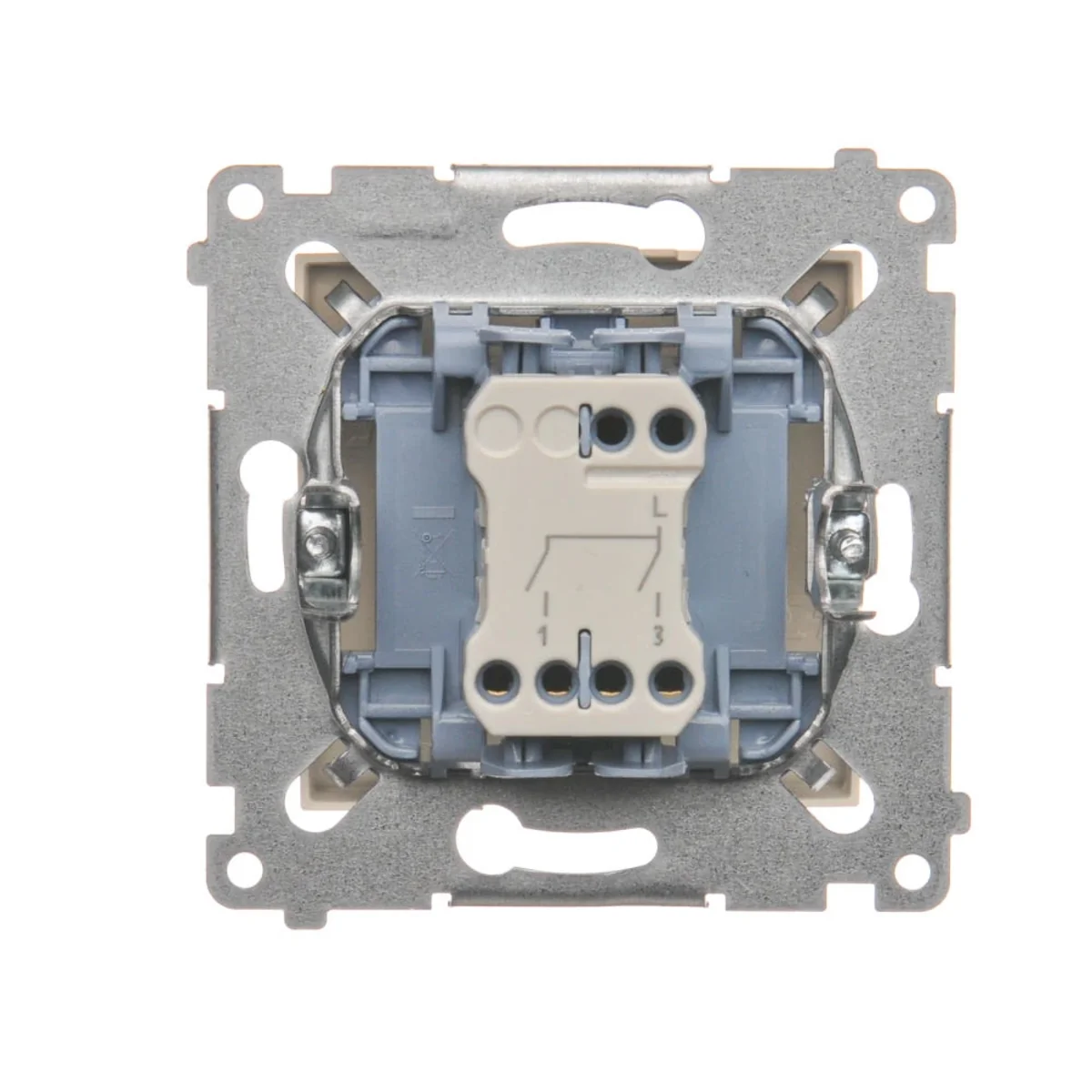

Connection typePush-in clamp
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps10 AX
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,063 | 0,063 | 0,719 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,041 | 0,160 | 0,100 |
