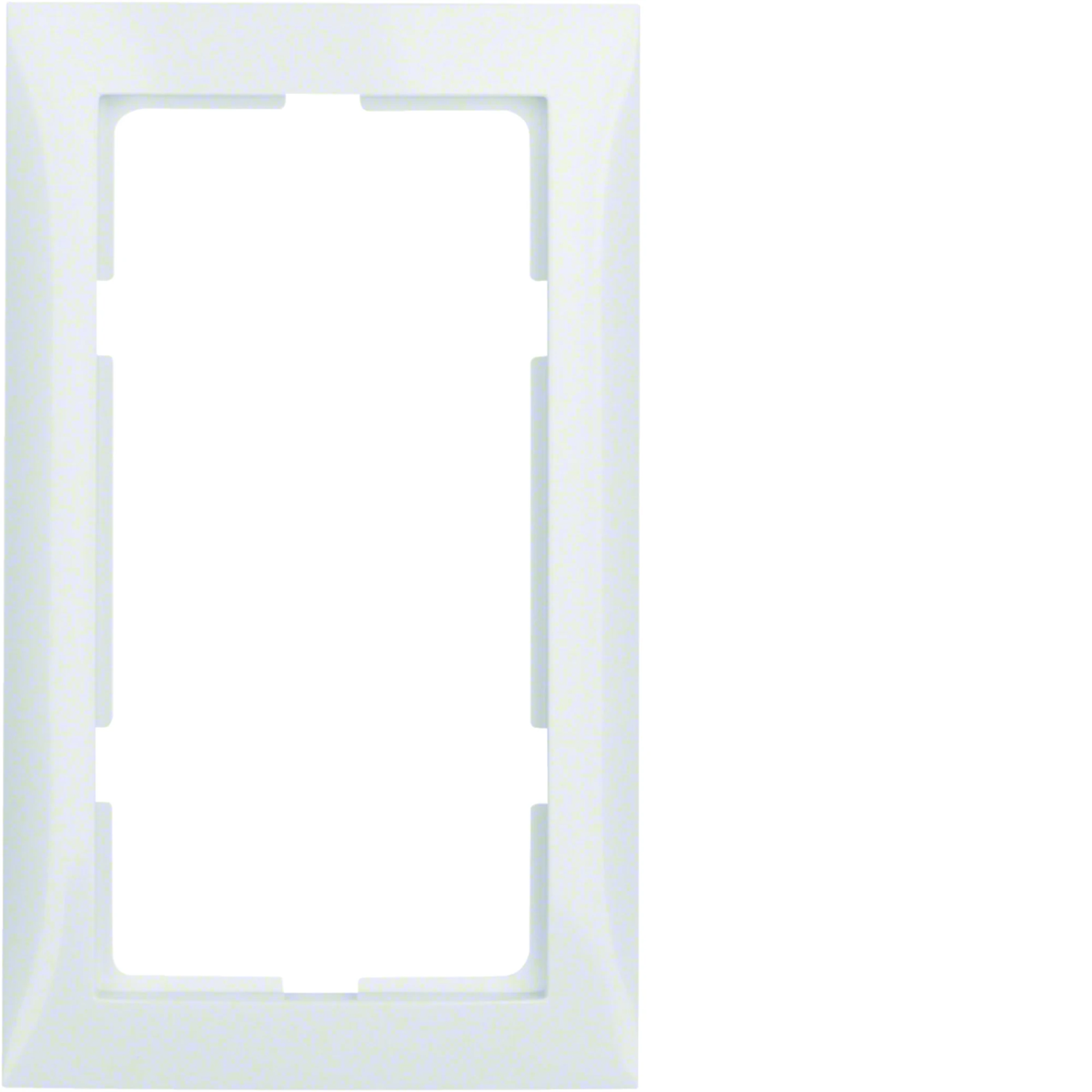

B.WADRAT/S.1 Frame with a large cut-out glossy white 13098989

Indice locale:
MAR041HAGE
Numero di catalogo:
13098989
Codice EAN:
4011334282884
Produttore: HAGER
Depth [mm]: 9.5
Number of modules: 1
Color: White
Prezzo:
3,97 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Frame with a large cut-out from the B.Kwadrat/S.1 series. The product code is 13098989.

  • For KNX easy 4-gang push-buttons.
  • For 3-gang push-buttons with temperature regulator and 4-, 5-gang KNX ETS.
  • Not suitable for use with surface-mounted boxes.
  • For vertical mounting.

Dati tecnici

  • Depth [mm]
    9.5
  • Color
    White
  • Material
    Plastic
  • Family
    B.SQUARE
  • Width [mm]
    80.5
  • Surface protection
    Natural
  • Accurate color
    Snow white
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    1
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    136.5
  • Surface finish
    Shiny
  • Mounting direction
    Vertical
  • Exact material
    Duroplastic
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • With hinged lid
    No
  • Impact strength
    IK02
  • Width
    80.5 mm
  • Depth
    9.5 mm
  • Built-in height
    111.1 mm
  • Mounting direction
    Vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Duroplast
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    136.5 mm
  • Built-in width
    55.4 mm
  • Diameter bore hole (opening)
    0 mm

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 10 pezzi 120 pezzi 3840 pezzi
Peso (kg) 0,027 0,322 4,312 157,975
Larghezza (m) 0,137 0,103 0,300 0,800
Lunghezza (m) 0,009 0,089 0,225 1,050
Profondità (m) 0,080 0,170 0,400 1,200
