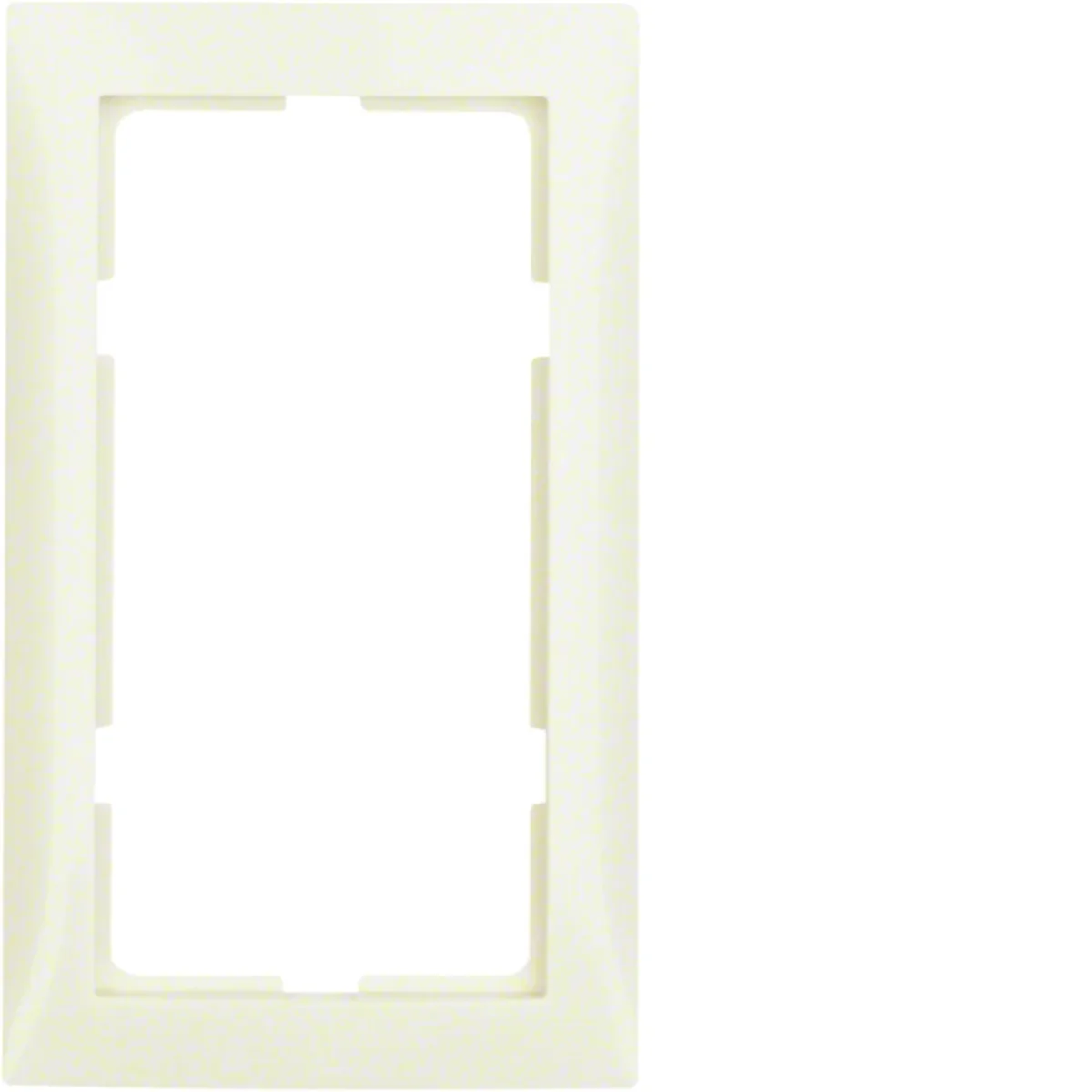

B.WADRAT/S.1 Frame with a large cut-out, glossy cream 13098982
local index:
MAR040HAGE
Catalog No:
13098982
EAN code:
4011334282877
Price:
3,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Frame with a large cut-out from the B.Kwadrat/S.1 series. The product code number is 13097006.
- For KNX easy 4-gang push-buttons.
- For 3-gang push-buttons with temperature regulator and 4-, 5-gang KNX ETS.
- Not suitable for use with surface-mounted boxes.
- For vertical mounting.
Technical data
-
Depth [mm]9.5
-
ColorBeige
-
MaterialPlastic
-
FamilyB.SQUARE
-
Width [mm]80.5
-
Surface protectionNatural
-
Accurate colorCreamy
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
-
Number of modules1
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Height [mm]136.5
-
Surface finishShiny
-
Mounting directionVertical
-
Exact materialDuroplastic
-
PKWIU27.12.40.0
Other technical data
-
Number of units1
-
Number of units horizontal1
-
Number of modules horizontal (module system)0
-
Liczba łączników1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
With hinged lidNo
-
Impact strengthIK02
-
Width80.5 mm
-
Depth9.5 mm
-
Built-in height111.1 mm
-
Mounting directionVertical
-
Number of units vertical1
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityDuroplast
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height136.5 mm
-
Built-in width55.4 mm
-
Diameter bore hole (opening)0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 120 pcs. | 3840 pcs. |
| Weight (kg) | 0,027 | 0,320 | 4,280 | 159,960 |
| Width (m) | 0,137 | 0,110 | 0,300 | 0,800 |
| Length (m) | 0,009 | 0,095 | 0,225 | 1,050 |
| Depth (m) | 0,080 | 0,175 | 0,400 | 1,200 |
