Button "bell" (module) 10A 230V cream quick connectors DD1.01/41

Name: Button \"bell\" (module) 10A 230V cream quick connectors
Brand: KONTAKT-SIMON
SKU: MMZ170KONT
Price: 6.16 PLN

local index:

MMZ170KONT

Catalog No:

DD1.01/41

EAN code:

5902787823160

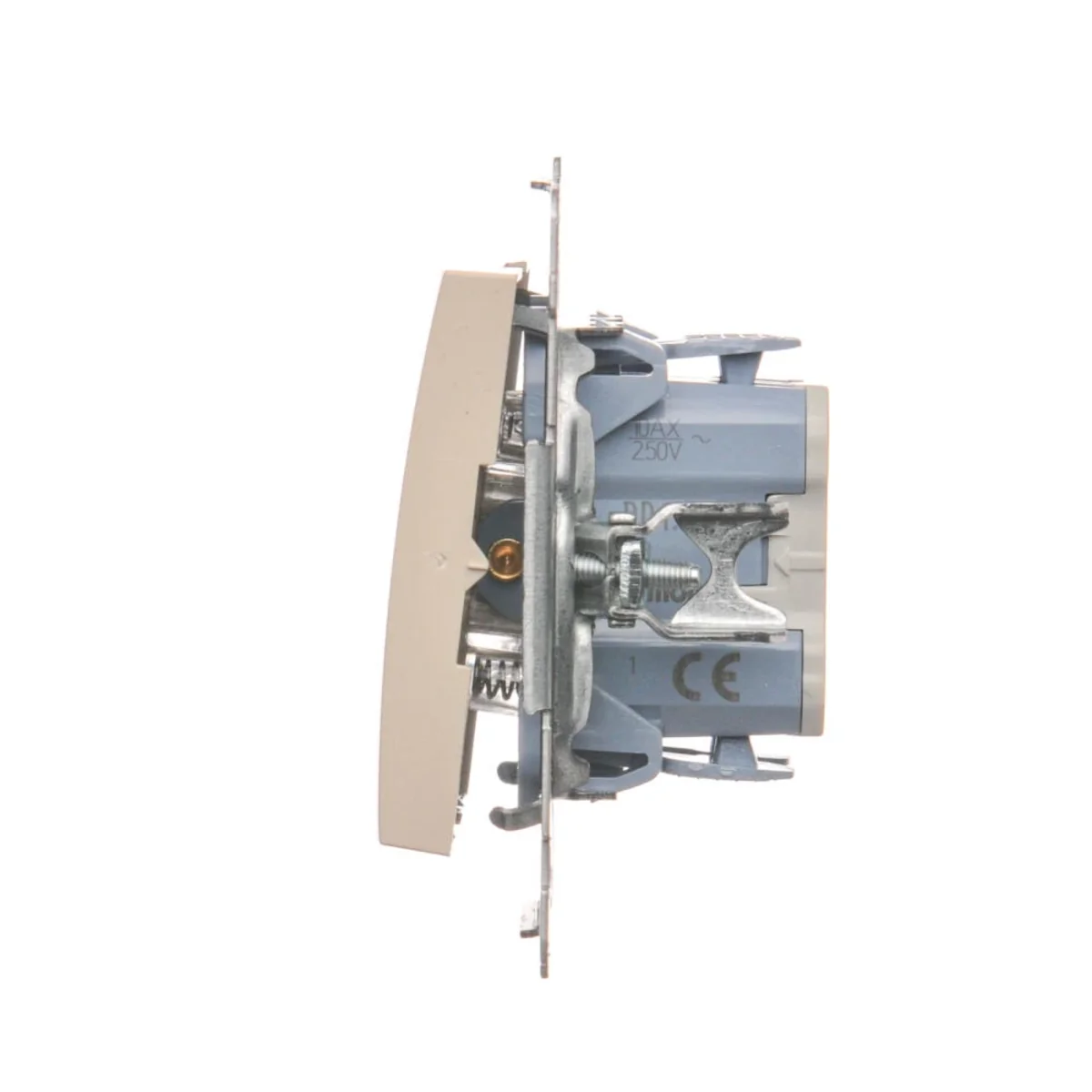

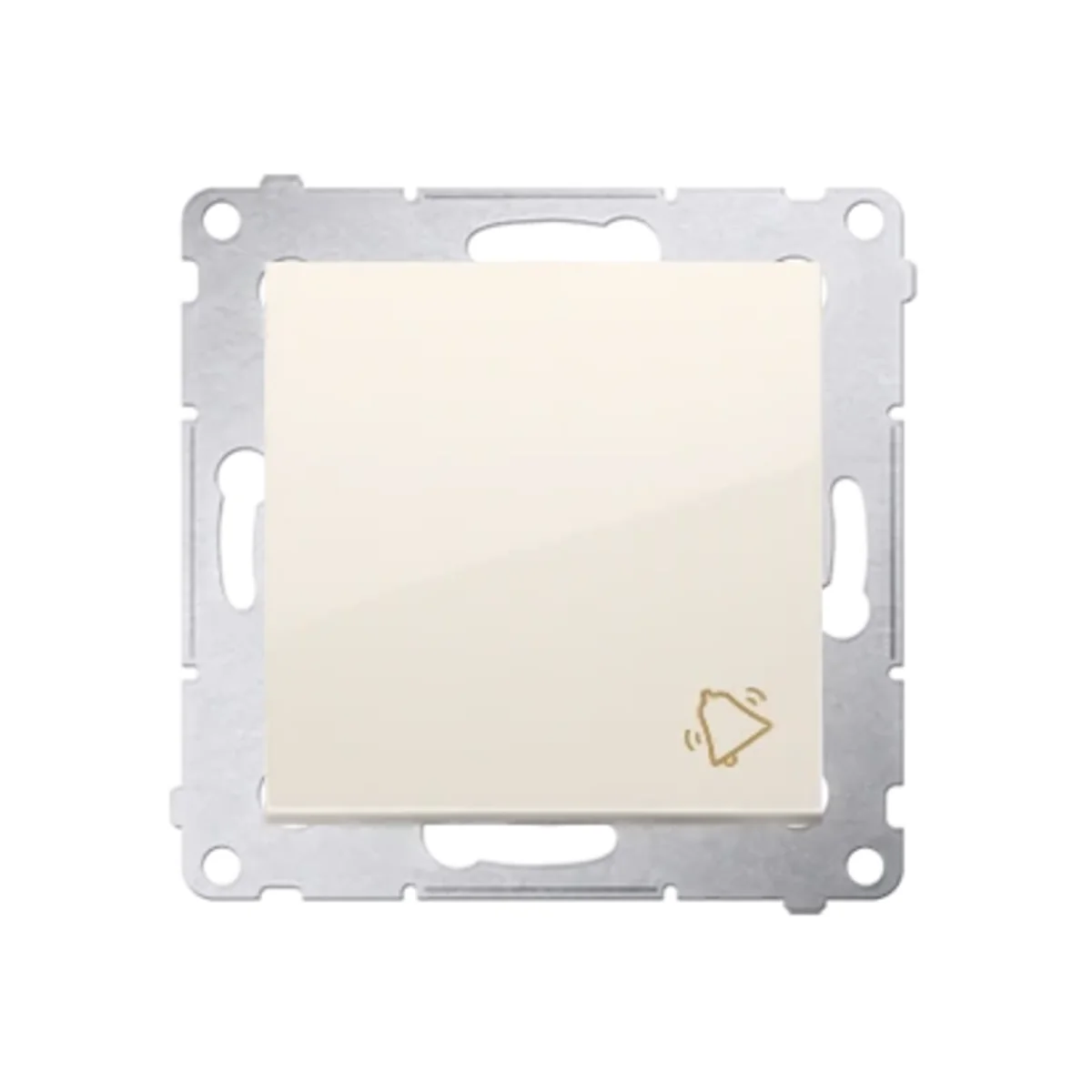

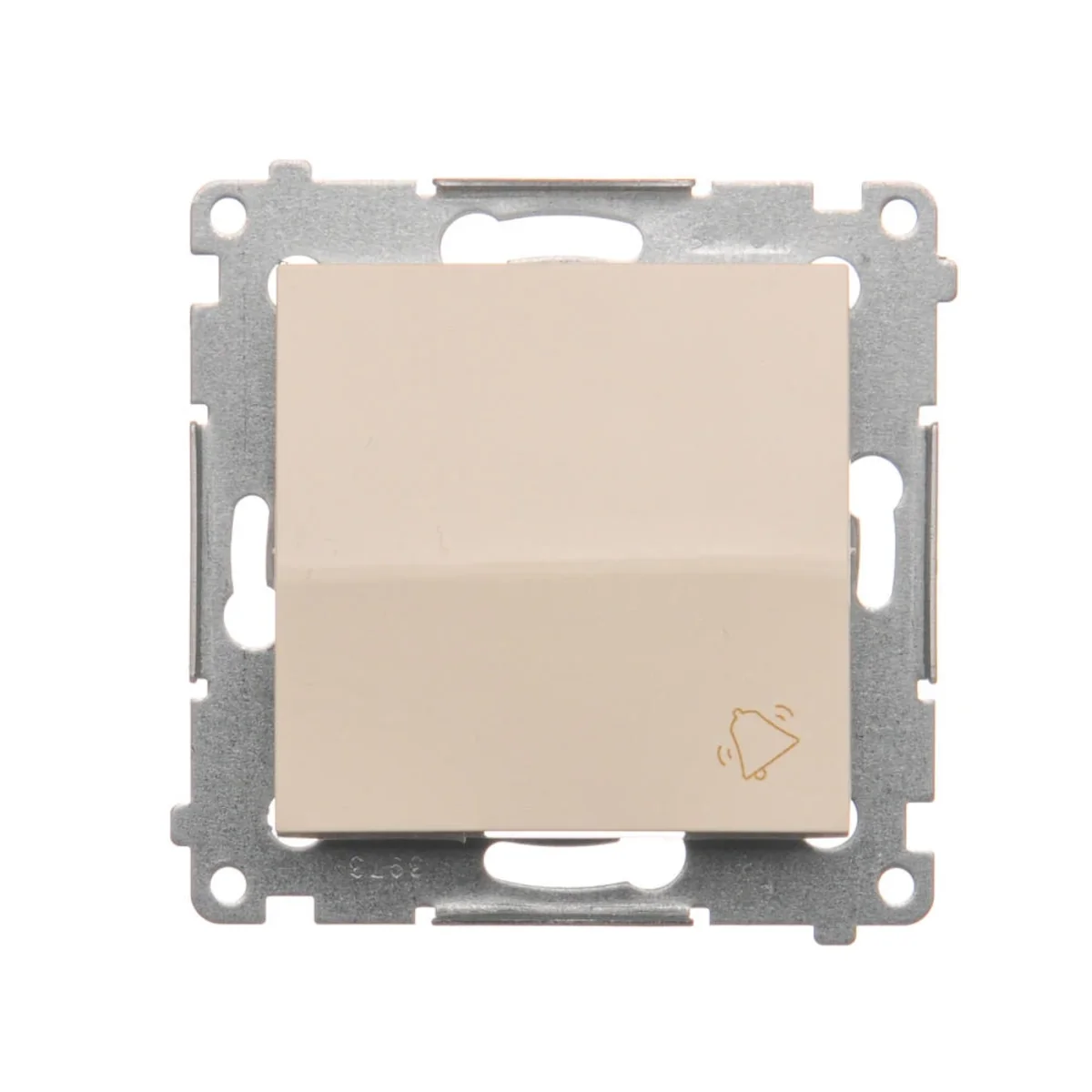

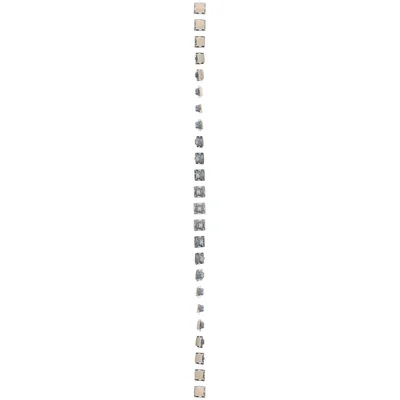

Button "bell" (module) 10A 230V cream quick connectors

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

6,16 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

"bell button" from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DD1.01/41. ;Cream color.

FEATURES

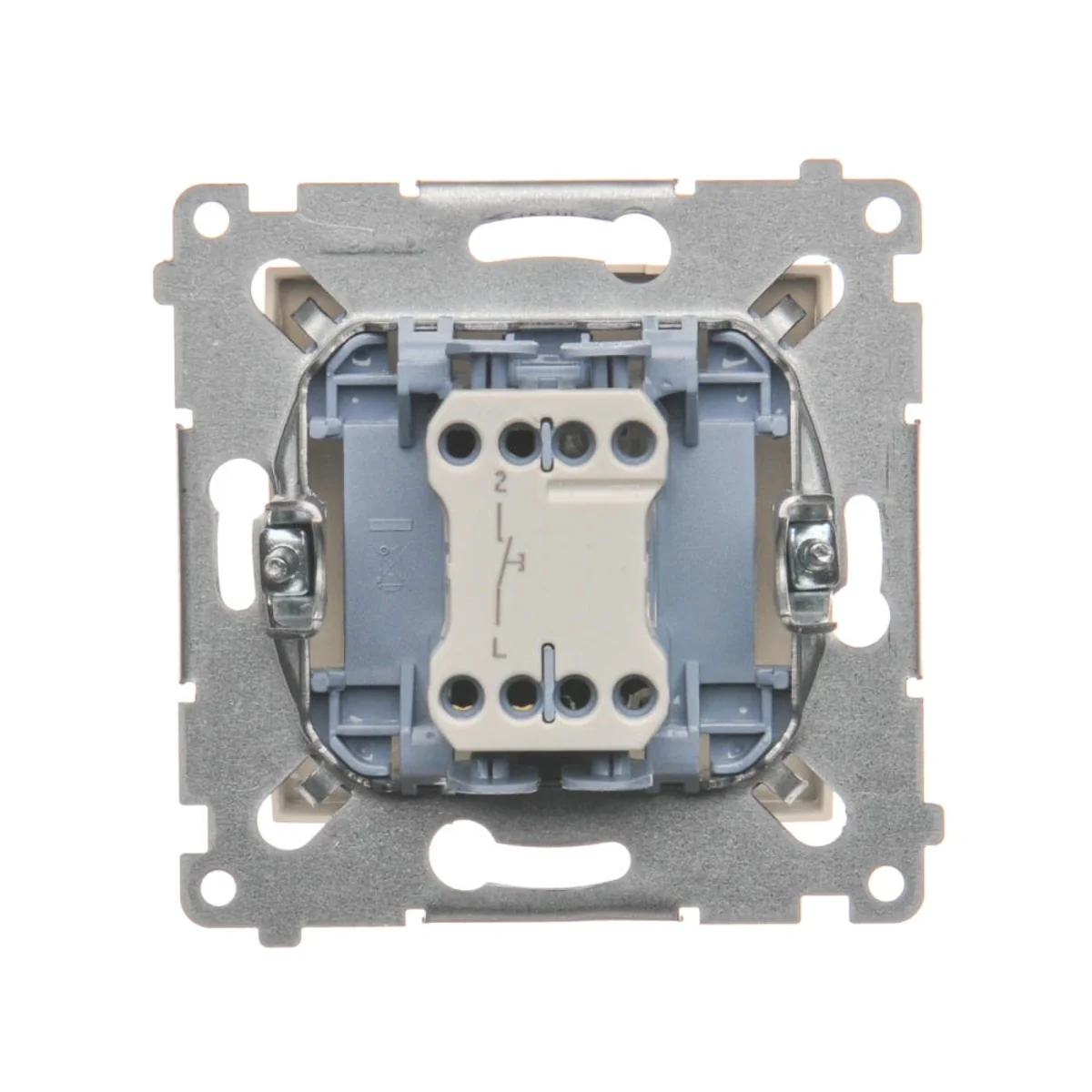

Quick connectors.
"bell" symbol on the key.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Width [mm]

75
Version

Confident
Surface protection

Natural
Accurate color

Creamy
Mounting depth [mm]

26
Variant

Bell
Exact material

PC

Depth [mm]

41
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Bell
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Backlight

NO
Terminal type

Threadless
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Untreated
Colour

Kremowy
Nominal voltage

250 V

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,060	0,060	0,686
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
