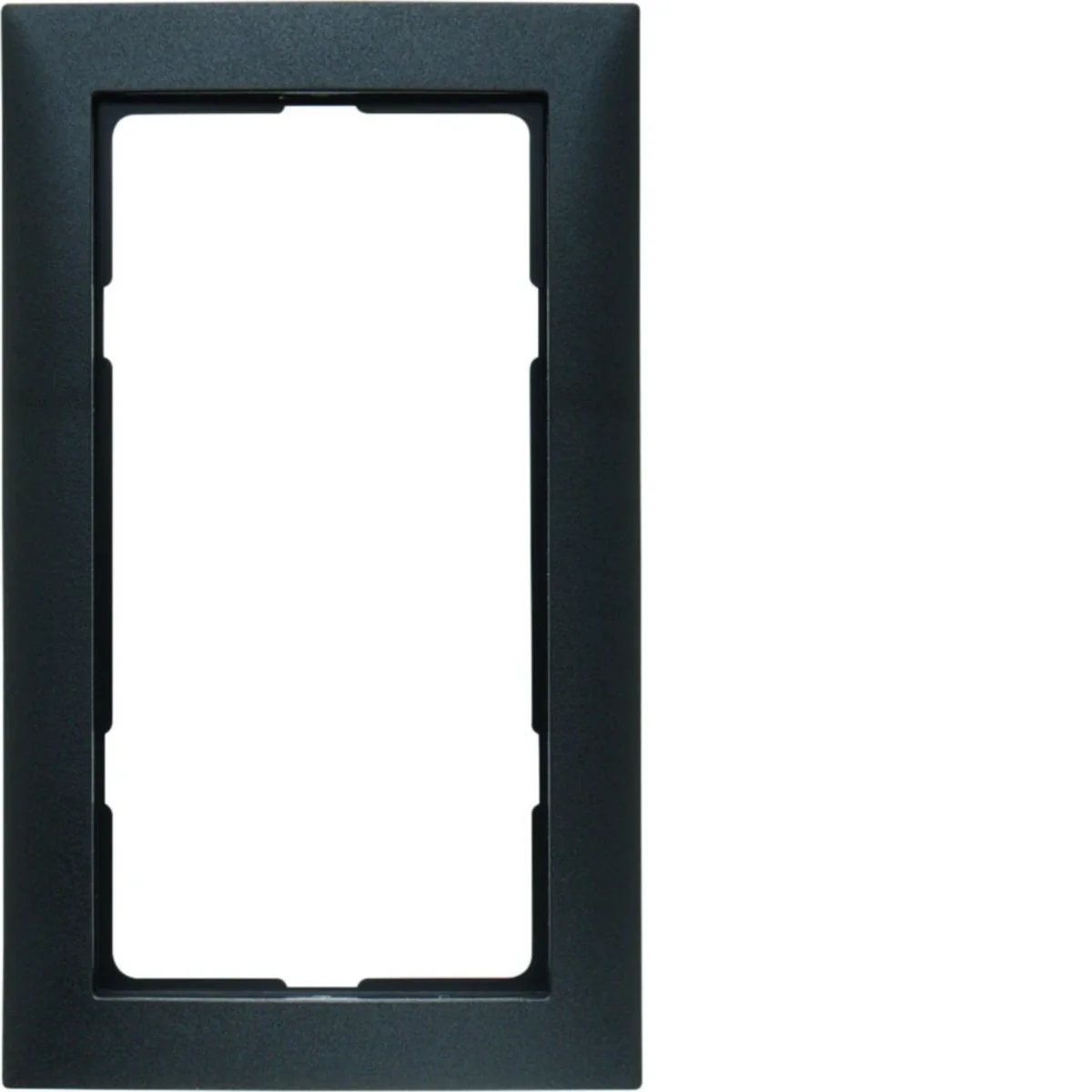

B.SQUARE/S.1 Anthracite matte frame with a large cut-out 13099949

local index:
MAR043HAGE
Catalog No:
13099949
EAN code:
4011334361541
Manufacturer: HAGER
Depth [mm]: 9.5
Number of modules: 1
Color: Graphite
Price:
10,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Frame with a large cut-out from the B.Kwadrat/S.1 series. The product code is 13099949.

  • For KNX easy 4-gang push-buttons.
  • For 3-gang push-buttons with temperature regulator and 4-, 5-gang KNX ETS.
  • Not suitable for use with surface-mounted boxes.
  • For vertical mounting.

Technical data

  • Depth [mm]
    9.5
  • Color
    Graphite
  • Material
    Plastic
  • Family
    B.SQUARE
  • Width [mm]
    80.5
  • Surface protection
    varnishing
  • Accurate color
    Anthracite
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    1
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    136.5
  • Surface finish
    matte
  • Mounting direction
    Vertical
  • Exact material
    Thermoplastic
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    80.5 mm
  • Depth
    9.5 mm
  • Built-in height
    111.1 mm
  • Mounting direction
    Vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    136.5 mm
  • Built-in width
    55.4 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,016 0,232 3,232 128,415
Width (m) 0,137 0,103 0,300 0,800
Length (m) 0,009 0,089 0,225 1,050
Depth (m) 0,080 0,170 0,400 1,200
