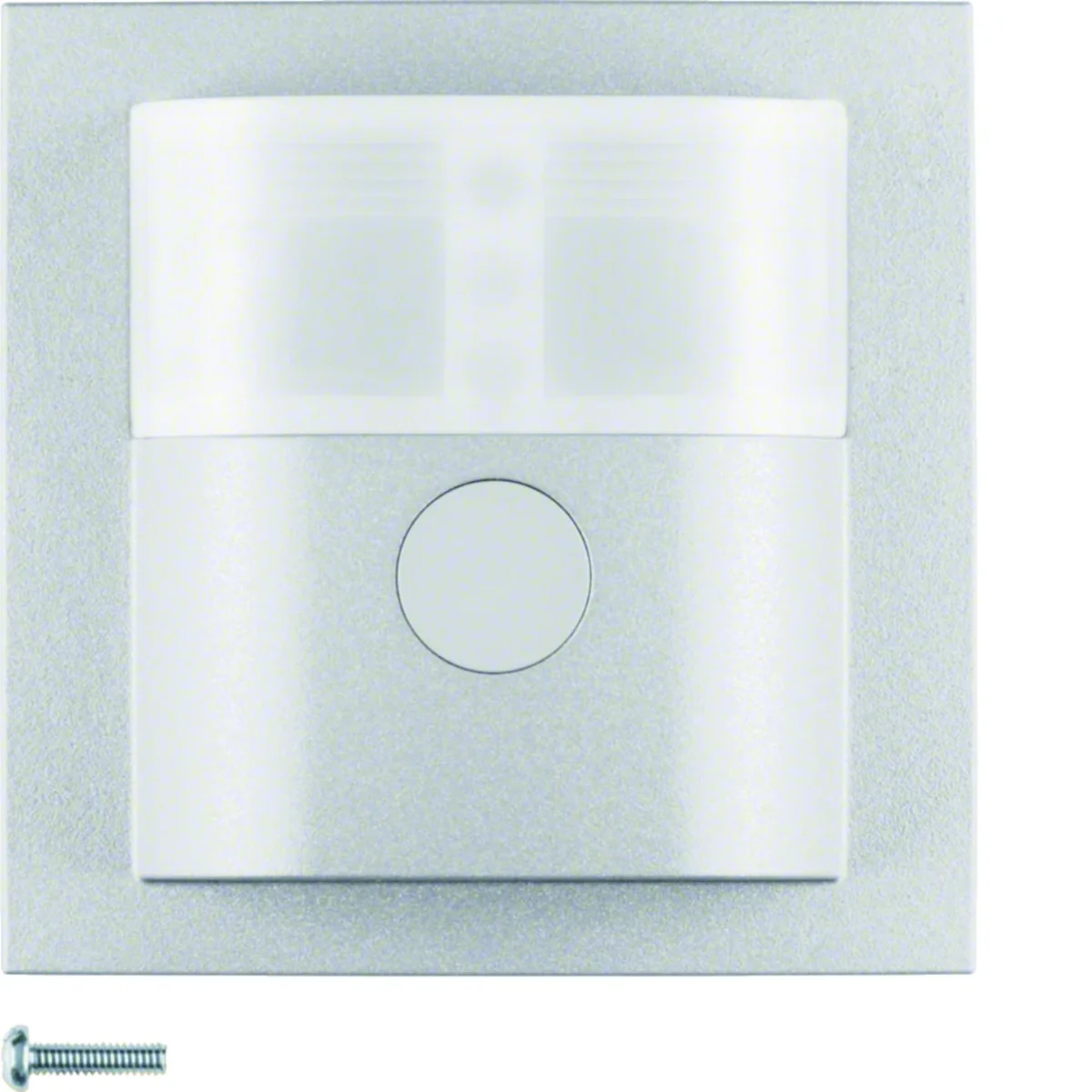

B.SQUARE/B.7 Motion sensor cap 1.1m aluminum matte 85341183
local index:
MAP372BERK
Catalog No:
85341183
EAN code:
4011334373551
Price:
98,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motion sensor cap from the Berker B.Kwadrat/S.1 series. To article numbers < /li>
Controls and indicators:
- with on/off/automatic button
LED control:
- with red/green/orange operation and status LEDs
- socket compatibility LED indicator and mechanism
Technical data
-
Detection angle [°]45-90
-
ShapeSquare
-
InstallationFlush-mounted
-
TypeFor the motion sensor
-
Level of securityIP20
-
Operating temperature range [°C]from -5 to 45
-
Number of detection planes3
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Straight range [m]≈ 12
-
PKWIU27.40.30.0
-
ColorSilver
-
MaterialPlastic
-
Detection field12x16
-
FamilyB.SQUARE
-
Surface protectionvarnishing
-
Accurate colorAluminum
-
Operation brightness level [%]10 - 100
-
Lateral range [m]≈ 8
-
For modular equipmentNot applicable
Other technical data
-
ModelMovement sensor
-
Constant light controlNo
-
NetworkableYes
-
Creep-under protectionNo
-
Max. reach sideways8 m
-
Diameter reach on floor0 m
-
Response value luminosity adjustableYes
-
Dim function with dimmer basic elementYes
-
Staircase light controllerNo
-
Material qualityThermoplastic
-
Suitable for degree of protection (IP)IP20
-
Min. switch-on time180 s
-
Switch-off delay self-learningNo
-
ColourAluminium
-
Mounting methodFlush-mounted
-
HVAC-controlYes
-
Suitable for wireless transmissionNo
-
Mounting height1.1 m
-
Max. reach frontally12 m
-
Response value sensitivity adjustableYes
-
Teach-function for response value luminosityYes
-
Animal zoneNo
-
MaterialPlastic
-
Halogen freeYes
-
Operation mode switchYes
-
Max. duty cycle3 min
-
Detection angle horizontal45 ... 90 °
-
RAL-number (similar)9006
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,067 | 0,092 | 3,577 | 134,454 |
| Width (m) | 0,056 | 0,084 | 0,300 | 0,800 |
| Length (m) | 0,045 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,085 | 0,400 | 1,200 |
