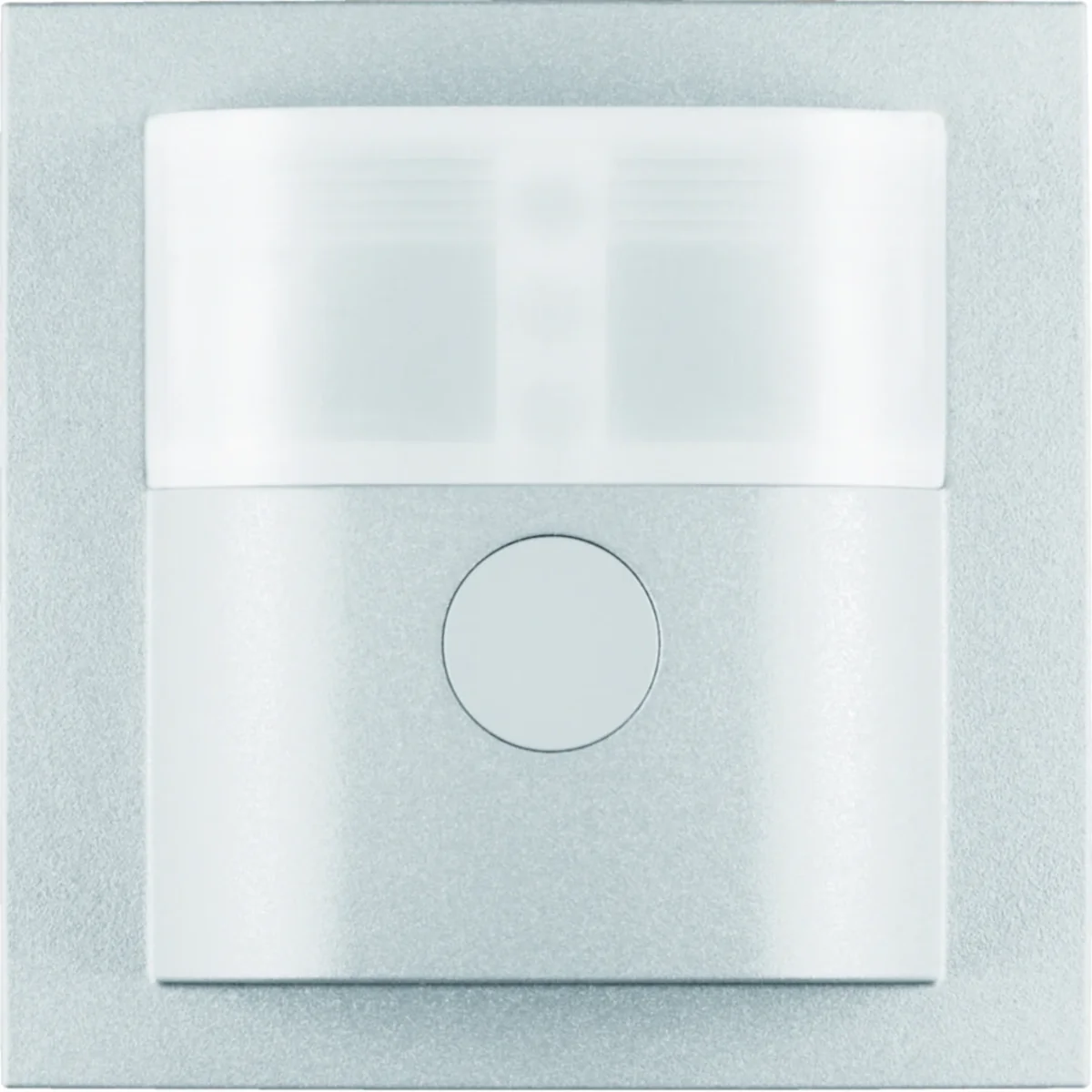

Name: B.SQUARE/B.7 Comfort IR motion sensor cap 1.1m aluminum matte
Brand: BERKER
SKU: MAP385BERK
Price: 151.87 PLN

IR attachment for motion sensor comfort from the Berker B.Kwadrat/B.7 series. To article numbers 8512 12 00, 8512 11 00, 8542 11 00, 8542 12 00, 8532 01 00, EE806.

Functions:

microprocessor control operation
impulse operation with idle time (e.g. for stair lighting installations/with impulse switching)
the function of programming the lighting intensity level activated by pressing the button
z button lock
party function activated for 2 hours
with presence simulation memory function

Controls and indicators:

with on/off/automatic button

LED control:

with red/green/orange operation and status LEDs

socket and mechanism compatibility LED indicator

Detection angle [°]

45-90
Shape

Square
Installation

Flush-mounted
Type

For the motion sensor
Level of security

IP20
Operating temperature range [°C]

from -5 to 45
Number of detection planes

3
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Straight range [m]

≈ 12
For modular equipment

Not applicable

Color

Silver
Material

Plastic
Detection field

12x16
Family

B.SQUARE
Surface protection

varnishing
Accurate color

Aluminum
Operation brightness level [%]

10 - 100
Lateral range [m]

≈ 8
Delay time, adjustable

≈ 10 s - 30 min
PKWIU

27.40.30.0

Other technical data

Model

Movement sensor
HVAC-control

Yes
Creep-under protection

No
Optimum mounting height

1.1 m
Bridging switch

Yes
Suitable for wireless transmission

Yes
Response value sensitivity adjustable

Yes
Teach-function for response value luminosity

Yes
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface protection

Lacquered
Anti-bacterial treatment

No
RAL-number (similar)

9006
Degree of protection (IP)

IP20
Max. duty cycle

30 min
Width

55.5 mm
Depth

45 mm

Constant light control

No
Animal zone

No
Networkable

Yes
Staircase light controller

Yes
Diameter reach on floor

0 m
With remote control

No
Response value luminosity adjustable

Yes
Dim function with dimmer basic element

Yes
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
Colour

Aluminium
Transparent

No
Min. switch-on time

10 s
Temperature

-5 ... 45 °C
Height

55.5 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,067	0,092	3,577	134,454
Width (m)	0,056	0,084	0,300	0,800
Length (m)	0,045	0,070	0,225	1,050
Depth (m)	0,056	0,085	0,400	1,200
