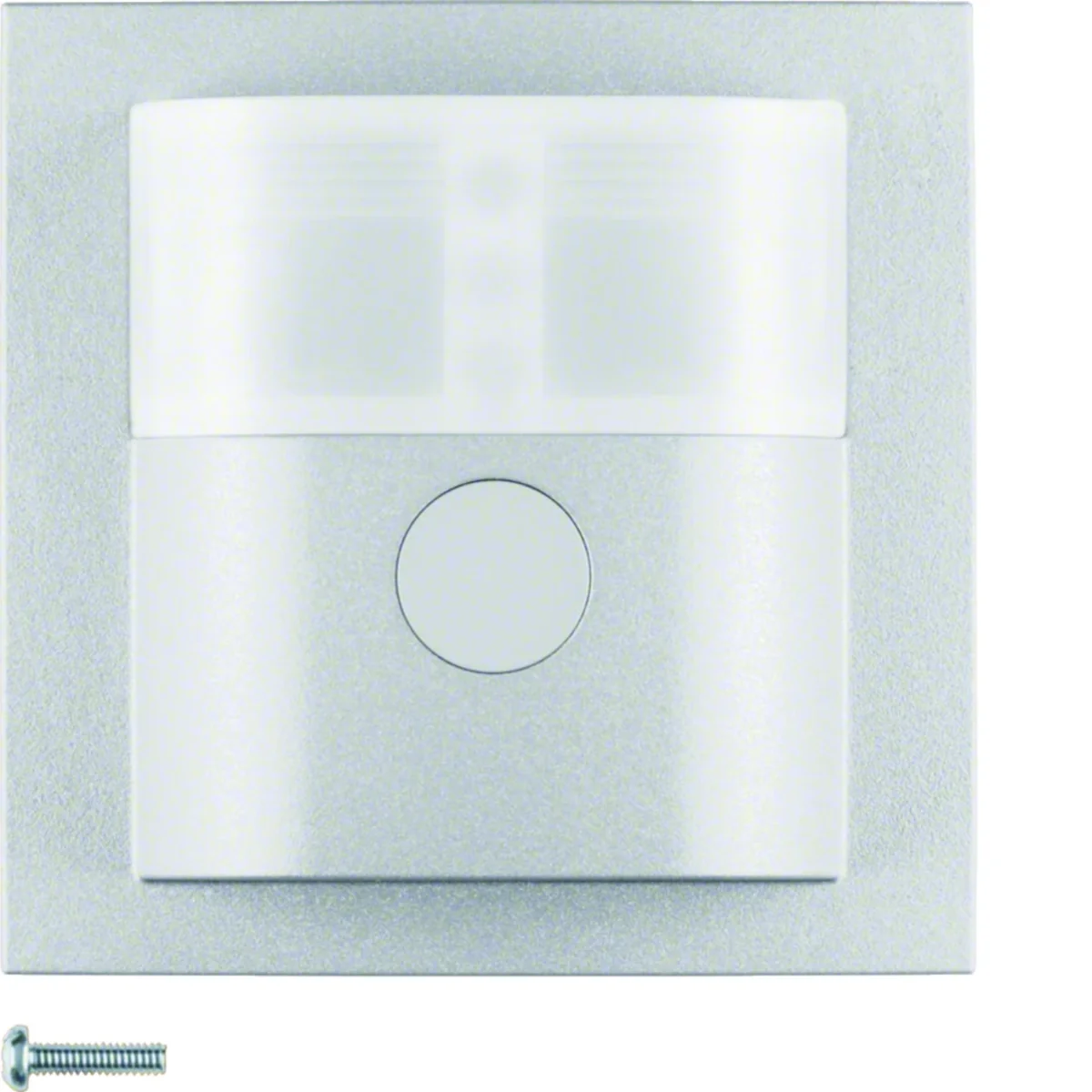

B.SQUARE/B.7 Comfort IR motion sensor attachment 2.2m aluminum matte 85342283

local index:
MAP412BERK
Catalog No:
85342283
EAN code:
4011334374299
Manufacturer: BERKER
Detection angle [°]: 45-90
Color: Silver
Shape: Square
Price:
149,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IR attachment for motion sensor comfort from the Berker B.Kwadrat/B.7 series. To the art. numbers 8512 12 00, 8512 11 00, 8542 11 00, 8542 12 00, 8532 01 00, EE806. The nominal mounting height is 2.2 m. The product catalog number is 85342283.

Features:

  • microprocessor operation control
  • pulse operation with idle time (e.g. for stair lighting installations/with pulse switching)
  • function of programming the lighting intensity level activated by pressing the button
  • with button locków
  • function “party” activated for 2 hours
  • with memory function to simulate presence

Controls and indicators:

  • with on/off/automatic button

LED control:

  • with red/green operation and status LEDs /orange
  • cap and mechanism compatibility LED indicator

Technical data

  • Detection angle [°]
    45-90
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For the motion sensor
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • Number of detection planes
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 8
  • For modular equipment
    Not applicable
  • Color
    Silver
  • Material
    Plastic
  • Detection field
    8x12
  • Family
    B.SQUARE
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • Operation brightness level [%]
    10 - 100
  • Lateral range [m]
    ≈ 6
  • Delay time, adjustable
    ≈ 10 s - 30 min
  • PKWIU
    27.40.30.0

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    Yes
  • Creep-under protection
    Yes
  • Optimum mounting height
    2.2 m
  • Bridging switch
    Yes
  • Suitable for wireless transmission
    Yes
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9006
  • Degree of protection (IP)
    IP20
  • Max. duty cycle
    30 min
  • Width
    55.5 mm
  • Depth
    45 mm
  • Constant light control
    No
  • Animal zone
    No
  • Networkable
    Yes
  • Staircase light controller
    Yes
  • Diameter reach on floor
    0 m
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Colour
    Aluminium
  • Transparent
    No
  • Min. switch-on time
    10 s
  • Temperature
    -5 ... 45 °C
  • Height
    55.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,069 0,095 3,649 136,758
Width (m) 0,056 0,085 0,300 0,800
Length (m) 0,045 0,075 0,225 1,050
Depth (m) 0,056 0,090 0,400 1,200
