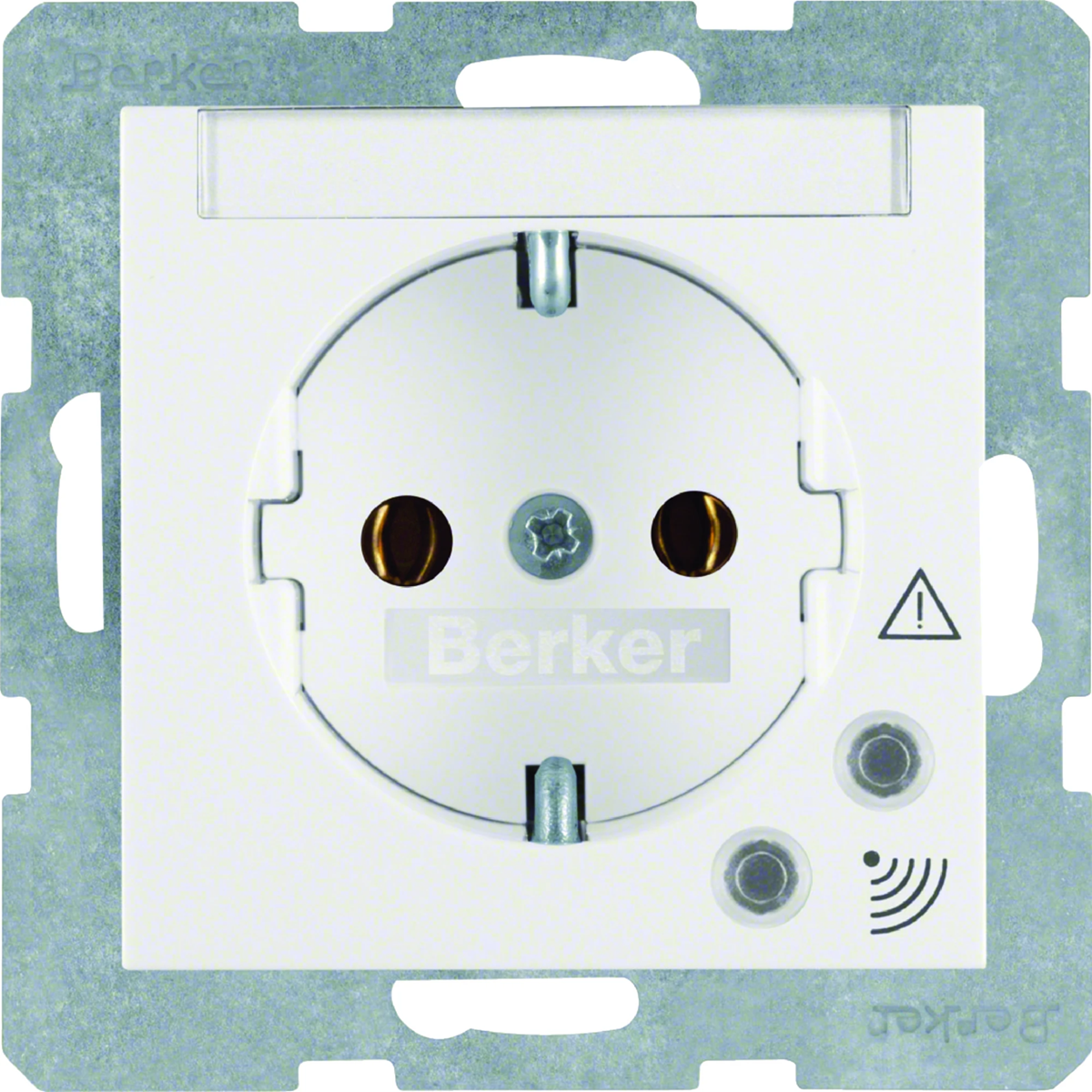

B.SQUARE/B.3/B.7 SCHUKO socket with overvoltage protection, white 41081909

local index:
MEE268BERK
Catalog No:
41081909
EAN code:
4011334224129
Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Square
Price:
242,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket of the S.1/B.3/B.7 series, from the manufacturer Hager. Number product catalog is 41081909.



FEATURES

  • Single.
  • With SCHUKO grounding.
  • With overvoltage protection.
  • Module without frame.
  • < li>Screw terminals.
  • With description field.
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20 .
  • flush mounting.
  • Lettering field height adapted to 6 mm P-touch strip.
  • With control LED for activation /error.
  • With spreaders.
  • With acoustic error signaling.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Family
    B.SQUARE
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Mounting depth [mm]
    32
  • Standard
    European
  • On the DATA key
    NO
  • Overvoltage protection
    Yes
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Descriptive field
    Yes
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    schuko
  • Surface finish
    matte
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    Yes
  • Over voltage protection
    Yes
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Imprint/indication
    Other
  • With hinged lid
    No
  • Label space/information surface
    Yes
  • RAL-number (similar)
    9010
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Other
  • Type of fastening
    Mounting with claw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    42 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,102 0,127 4,837 174,774
Width (m) 0,071 0,084 0,300 0,800
Length (m) 0,042 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
