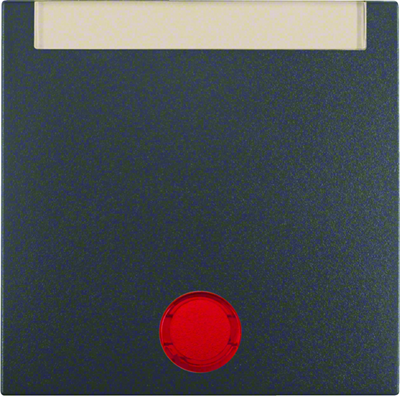

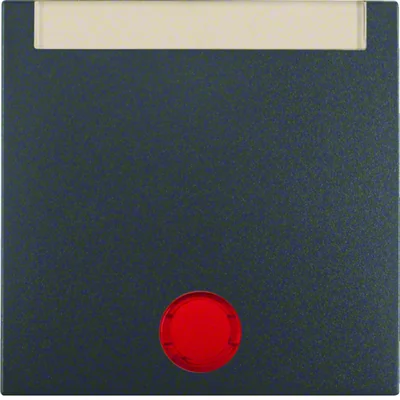

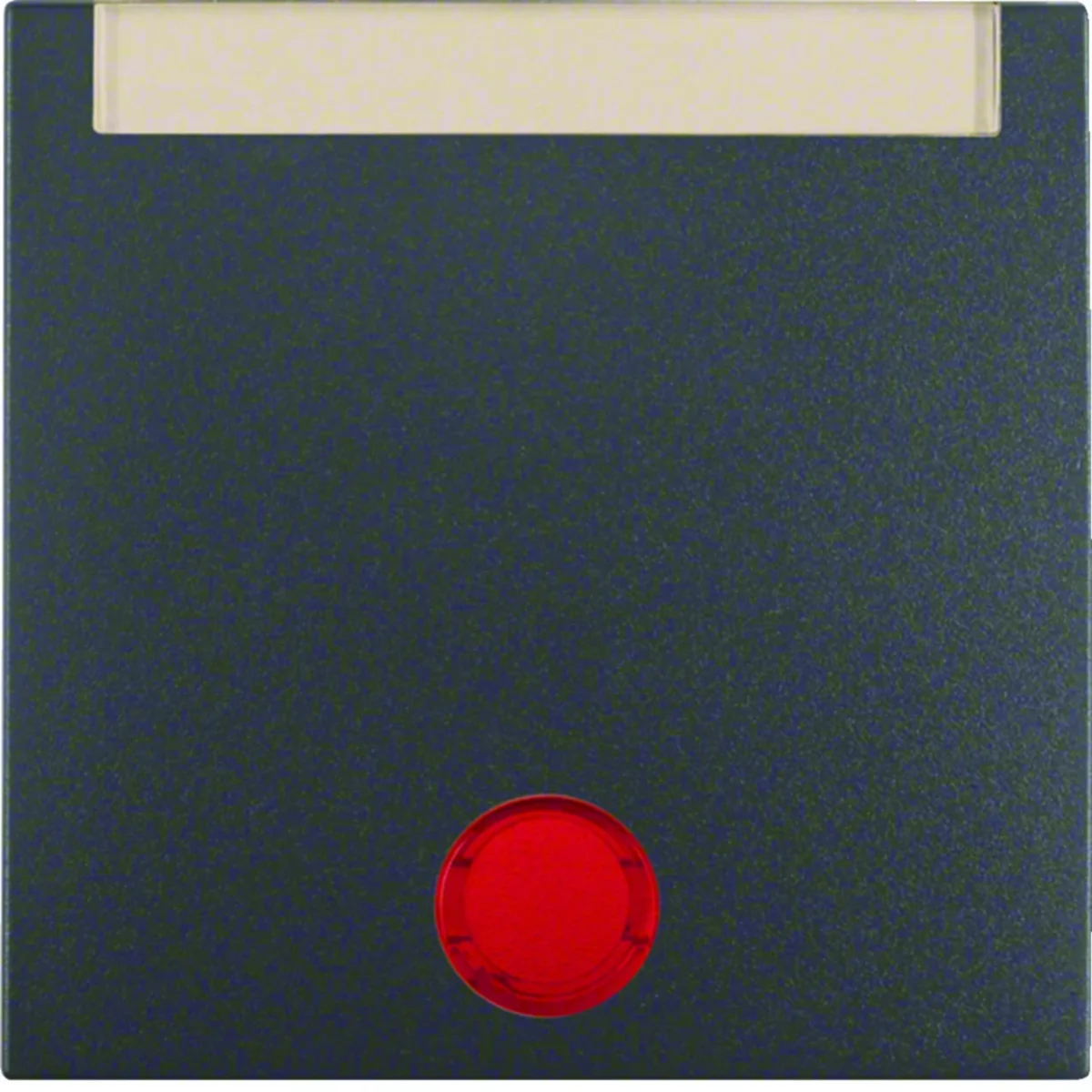

B.SQUARE/B.3/B.7 Rocker with 5 attached lenses and inscription field anthracite 16281606

local index:
MAK159BERK
Catalog No:
16281606
EAN code:
4011334226208
Manufacturer: BERKER
Color: Graphite
Material: Thermoplastic
Surface: Matt
Price:
10,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch with 5 attached lenses and labeling field, Berker B.Kwadrat/B.3/B.7 series.

  • for push-button switch
  • for stair/cross switches
  • for connection with backlight and control connection with backlight
  • height of the description field adapted to the P-touch strip 6 mm
  • clear lenses with light, bell, key, neutral and neutral red

Technical data

  • Color
    Graphite
  • Surface
    Matt
  • Accurate color
    Anthracite
  • Material
    Thermoplastic
  • Family
    B.SQUARE B.3 B.7
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    One-part rocker
  • Utilization
    Switch/push button
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With exchangeable lens/symbol
    Yes
  • Impact strength
    IK05
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • With label area
    Yes
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,014 0,252 2,256 92,183
Width (m) 0,055 0,072 0,300 0,800
Length (m) 0,022 0,280 0,225 1,050
Depth (m) 0,056 0,089 0,400 1,200
