B.SQUARE/B.3/B.7 Button with a red lens and a white "0" imprint 16241909

local index:
MAK139BERK
Catalog No:
16241909
EAN code:
4011334222538
Manufacturer: BERKER
Color: White
Material: Thermoplastic
Surface: Matt
Price:
9,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

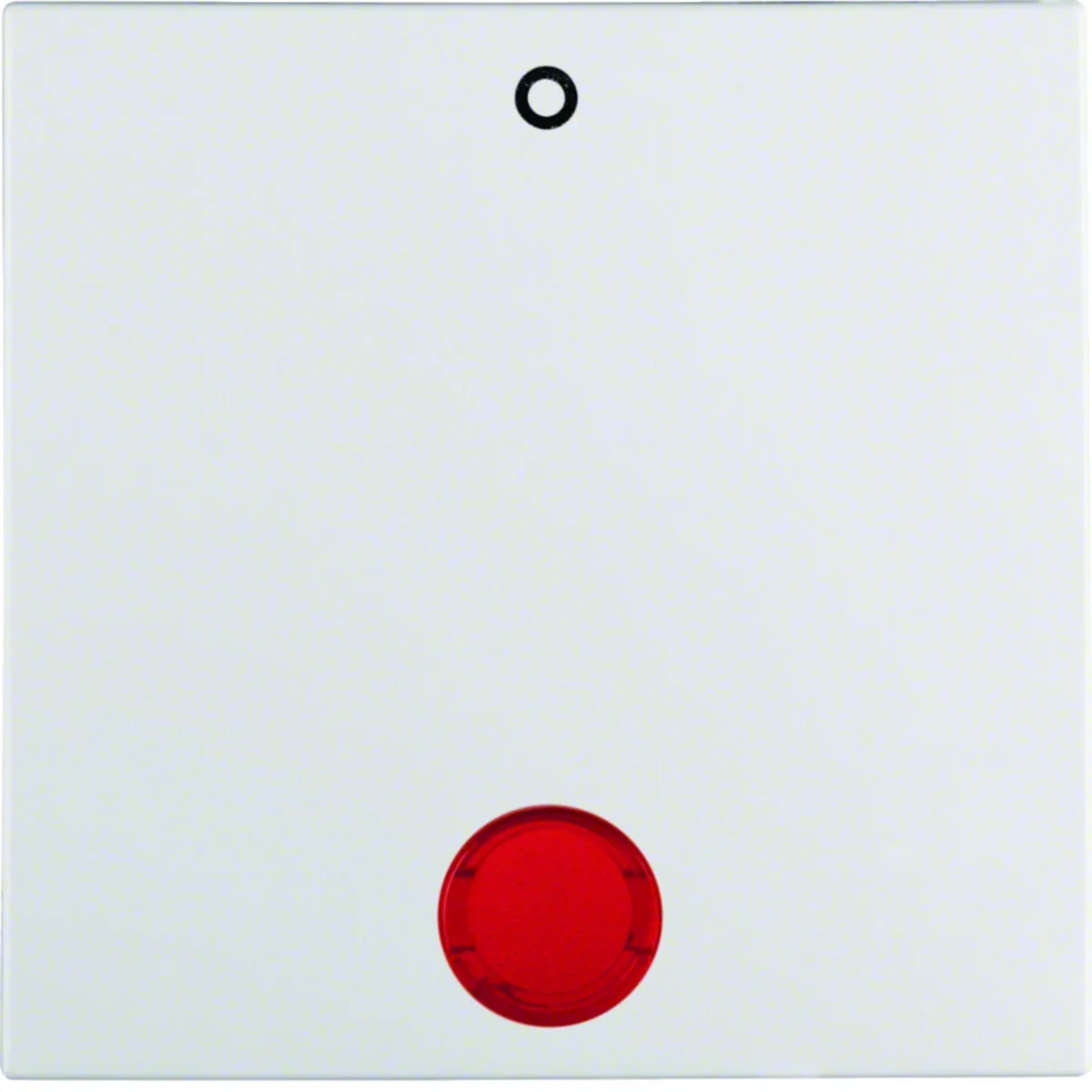

Switch with a red lens, imprinted with "0", from the Berker B.Kwadrat/B.3/B.7 series.

  • for 2- and 3-pole rocker switch,
  • for connection with backlight and control connection with backlight,
  • also for KNX applications.

Technical data

  • Color
    White
  • Surface
    Matt
  • PKWIU
    27.12.40.0
  • Material
    Thermoplastic
  • Family
    B.SQUARE B.3 B.7

Other technical data

  • Model
    One-part rocker
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP20
  • Imprint/indication
    Symbol "0"
  • Utilization
    Switch/push button
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • With exchangeable lens/symbol
    No
  • Impact strength
    IK05

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,014 0,252 2,256 92,183
Width (m) 0,055 0,072 0,300 0,800
Length (m) 0,022 0,280 0,225 1,050
Depth (m) 0,056 0,089 0,400 1,200
