B.SQUARE One.platform 2-key serial candlestick switch 533035
local index:
MPT001BERK
Catalog No:
533035
EAN code:
4011334430056
Price:
5,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

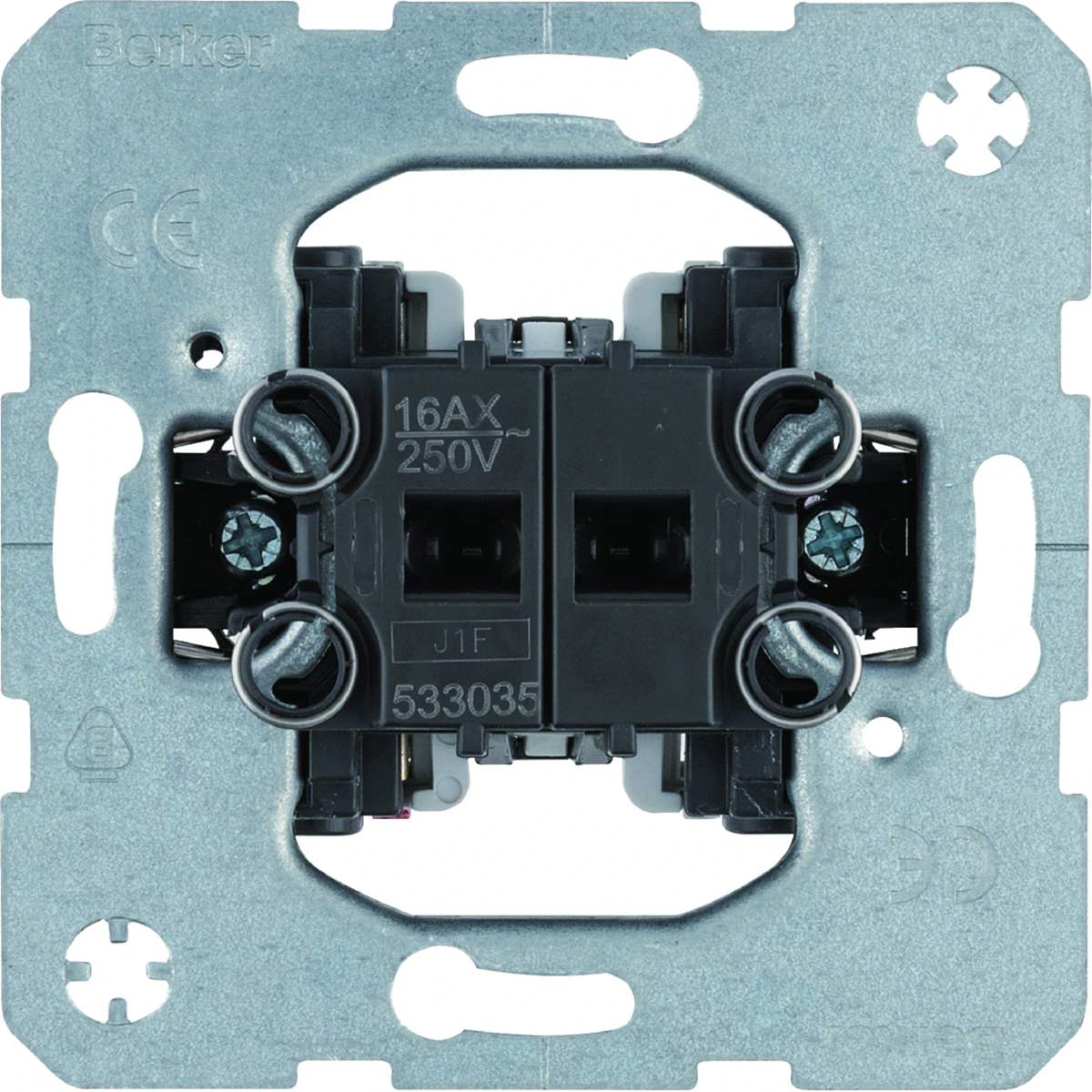

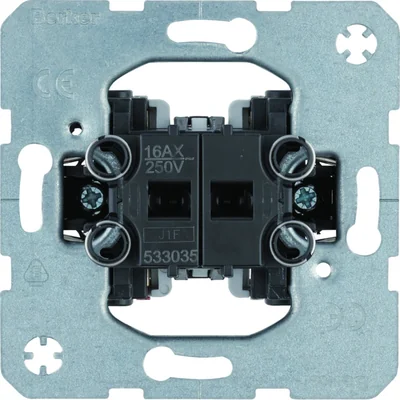

Candlestick switch mechanism from the one.platform series, from Berker. Product part number is 533035.
- Serial.
- 16 AX (200W self-ballasted).
- Quick Connect.
- For backlight connection and backlight control connection.
Technical data
-
Depth [mm]41.6
-
ShapeSquare
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyONE.PLATFORM
-
Width [mm]71
-
Height [mm]71
-
BacklightNO
-
For the frame systemYes
-
Number of keys2
-
MaterialPlastic Metal
-
Rated voltage [V]230
-
TypeCandlestick
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Degree of mechanical protectionIK07
-
Terminal typeThreadless
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemSeries switch
-
Assembly arrangementBasic element
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityOther
-
Surface protectionOther
-
IlluminationOptional
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width71 mm
-
Device depth41.6 mm
-
Min. depth of built-in installation box35 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers2
-
Type of fasteningMounting with claw
-
MaterialOther
-
Halogen freeYes
-
Label space/information surfaceNo
-
Function lightingControl and orientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth32 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,060 | 0,685 | 3,755 | 145,160 |
| Width (m) | 0,071 | 0,175 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,240 | 0,400 | 1,200 |
